Part Number

Manufacturer

Description

Unit Price

In Stock

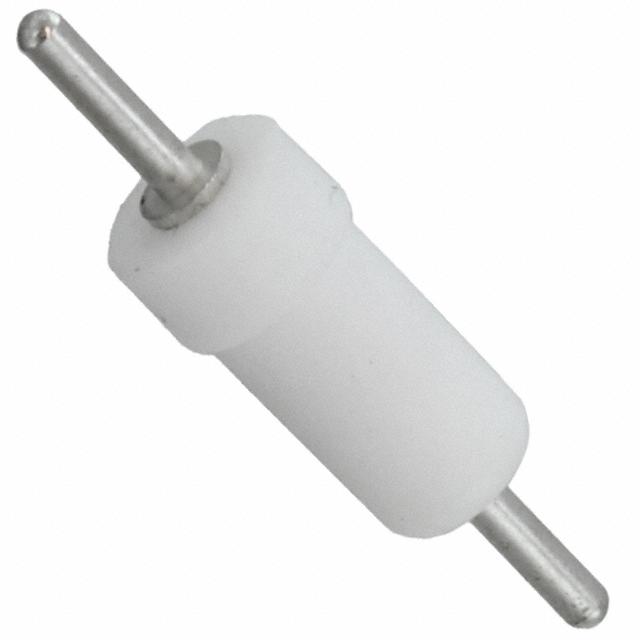

11158

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.040" (1.02mm) Dia
Length - Above Flange : 0.210" (5.33mm)
Length - Below Flange : 0.416" (10.57mm)
Length - Overall : 0.719" (18.26mm)
Flange Diameter : 0.172" (4.37mm)
Mounting Hole Diameter : 0.136" (3.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -

0

2450 in stock

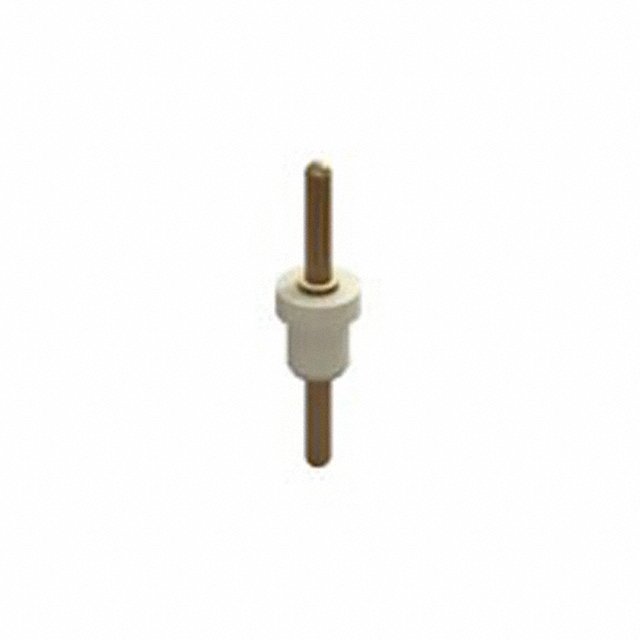

11159

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.040" (1.02mm) Dia
Length - Above Flange : 0.210" (5.33mm)
Length - Below Flange : 0.475" (12.07mm)
Length - Overall : 0.725" (18.42mm)
Flange Diameter : 0.172" (4.37mm)
Mounting Hole Diameter : 0.136" (3.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -

0

186 in stock

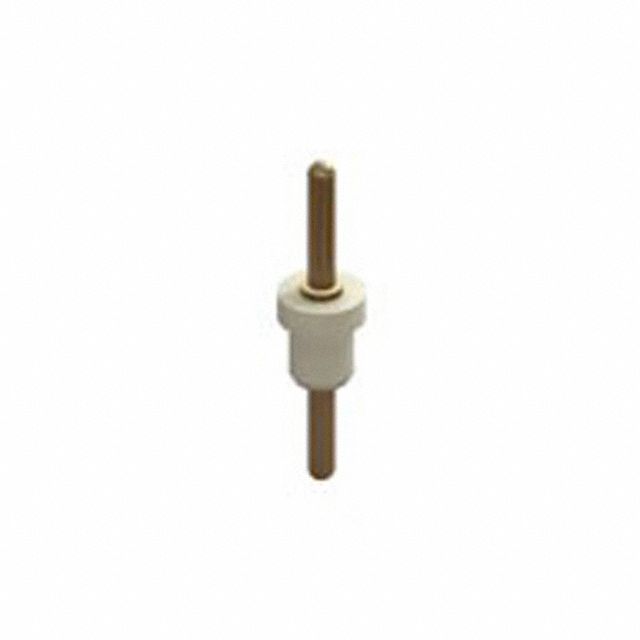

11160

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.040" (1.02mm) Dia
Length - Above Flange : 0.210" (5.33mm)
Length - Below Flange : 0.380" (9.65mm)
Length - Overall : 0.630" (16.00mm)
Flange Diameter : 0.172" (4.37mm)
Mounting Hole Diameter : 0.136" (3.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -

0

298 in stock

1140-0-01-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1140
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.274" (6.96mm)
Length - Below Flange : -
Length - Overall : 0.452" (11.48mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

650 in stock

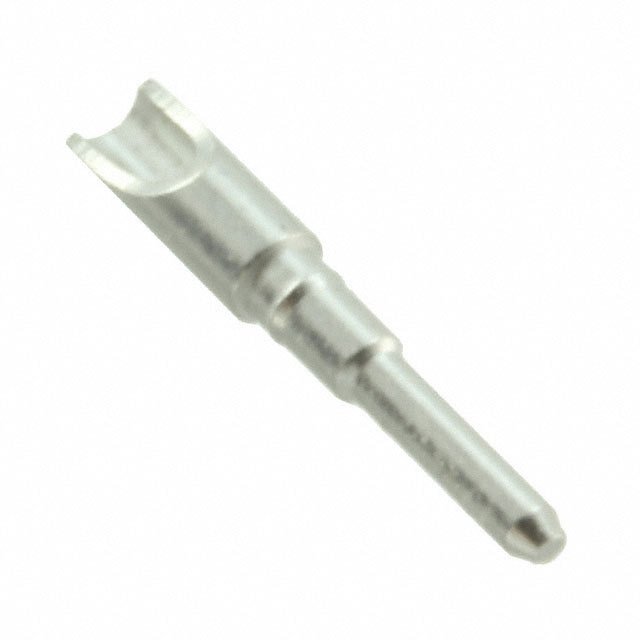

1140-0-01-80-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1140
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.274" (6.96mm)
Length - Below Flange : -
Length - Overall : 0.452" (11.48mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

752 in stock

1160-0-01-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1160
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.060" (1.52mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.315" (8.00mm)
Length - Below Flange : -
Length - Overall : 0.590" (14.99mm)
Flange Diameter : 0.090" (2.29mm)
Mounting Hole Diameter : 0.080" (2.03mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

725 in stock

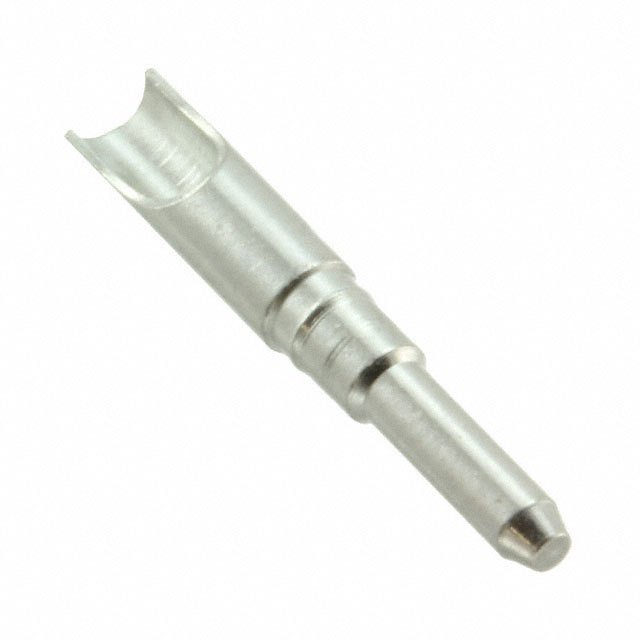

1160-0-01-80-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1160
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.060" (1.52mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.315" (8.00mm)
Length - Below Flange : -
Length - Overall : 0.590" (14.99mm)
Flange Diameter : 0.090" (2.29mm)
Mounting Hole Diameter : 0.080" (2.03mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

2894 in stock

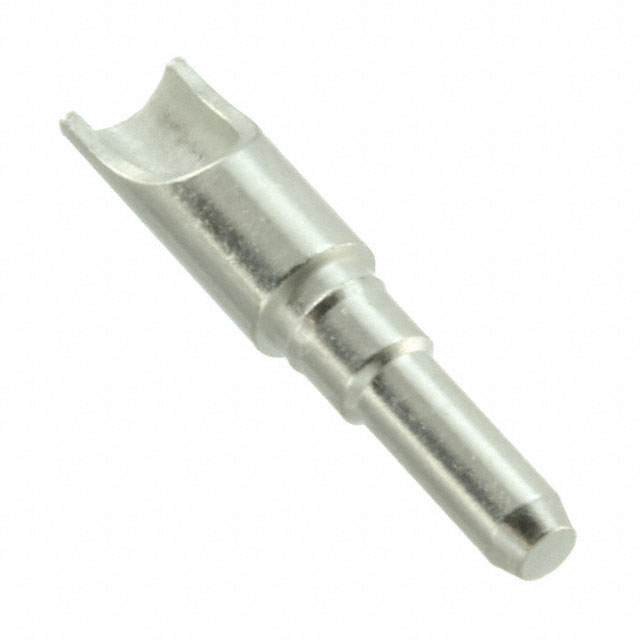

1178-0-01-80-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1178
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.078" (1.98mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.315" (8.00mm)
Length - Below Flange : -
Length - Overall : 0.590" (14.99mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

168 in stock

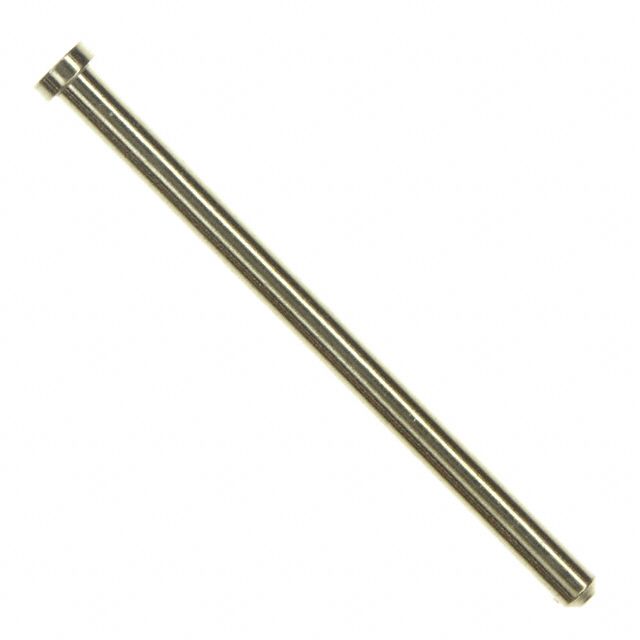

1179-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1179
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.644" (16.36mm)
Length - Below Flange : -
Length - Overall : 0.664" (16.87mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.044" (1.12mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

29239 in stock

1210

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.125" (3.18mm) Dia
Pin Size - Below Flange : 0.125" (3.18mm) Dia
Length - Above Flange : 0.540" (13.72mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.691" (17.55mm)
Flange Diameter : 0.175" (4.44mm)
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Staking Flare
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm) or 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Nickel
Contact Finish Thickness : -

0

482 in stock

1210-0-05-80-00-00-01-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1210
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Square
Pin Size - Below Flange : -
Length - Above Flange : 0.349" (8.86mm)
Length - Below Flange : -
Length - Overall : 0.380" (9.65mm)
Flange Diameter : 0.062" (1.57mm)
Mounting Hole Diameter : 0.053" (1.35mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled, Wire Wrap
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

900 in stock

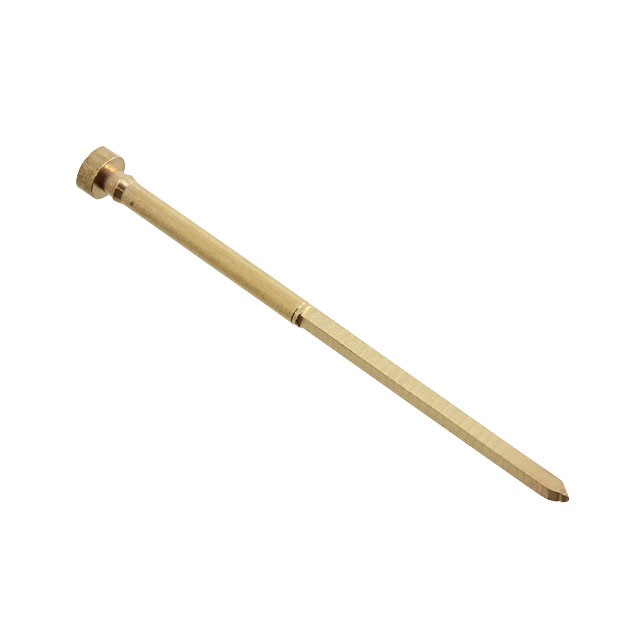

1215-3-05-15-00-00-01-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1215
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Square
Pin Size - Below Flange : -
Length - Above Flange : 0.870" (22.10mm)
Length - Below Flange : -
Length - Overall : 0.900" (22.86mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Press-Fit, Wire Wrap
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

1553 in stock
