Part Number

Manufacturer

Description

Unit Price

In Stock

9022-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9022
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.160" (4.06mm)
Length - Below Flange : -
Length - Overall : 0.185" (4.70mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.066" (1.68mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

13105 in stock

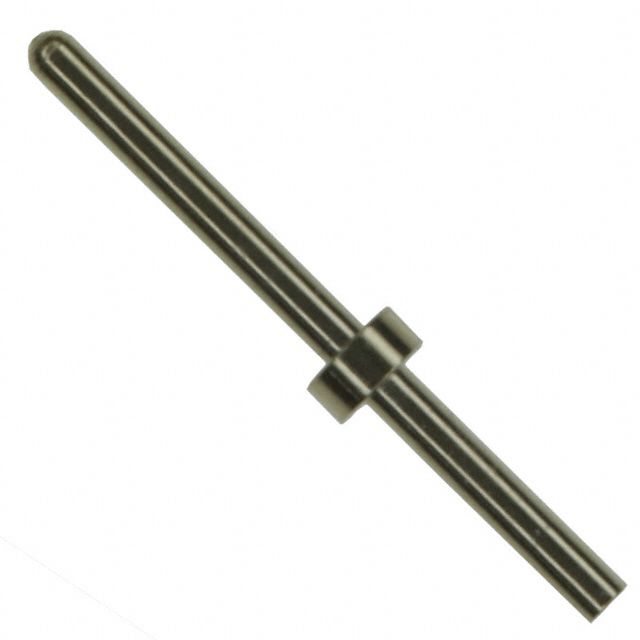

9081-0-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9081
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.170" (4.32mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.315" (8.00mm)
Flange Diameter : 0.045" (1.14mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

24276 in stock

9081-0-00-34-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9081
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.170" (4.32mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.315" (8.00mm)
Flange Diameter : 0.045" (1.14mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

0

1000 in stock

9083-0-00-15-00-00-38-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9083
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.012" (0.30mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.145" (3.68mm)
Length - Below Flange : -
Length - Overall : 0.153" (3.89mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.016" (0.41mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

39150 in stock

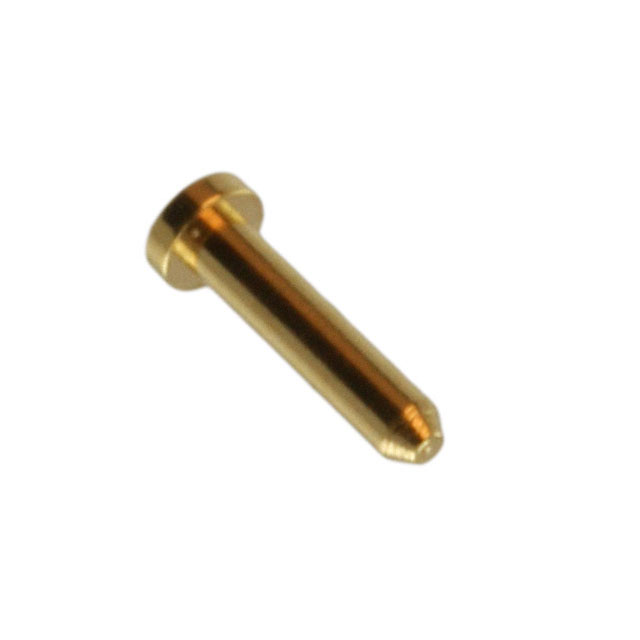

9086-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9086
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.036" (0.91mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.160" (4.06mm)
Length - Below Flange : -
Length - Overall : 0.175" (4.45mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

7249 in stock

9103-0-00-80-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : -
Series : 9103
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.300" (7.62mm)
Length - Below Flange : 0.051" (1.30mm)
Length - Overall : 0.371" (9.42mm)
Flange Diameter : 0.070" (1.78mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

2255 in stock

9113-0-00-15-00-00-38-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9113
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.160" (4.06mm)
Length - Below Flange : -
Length - Overall : 0.166" (4.22mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.022" (0.56mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

14021 in stock

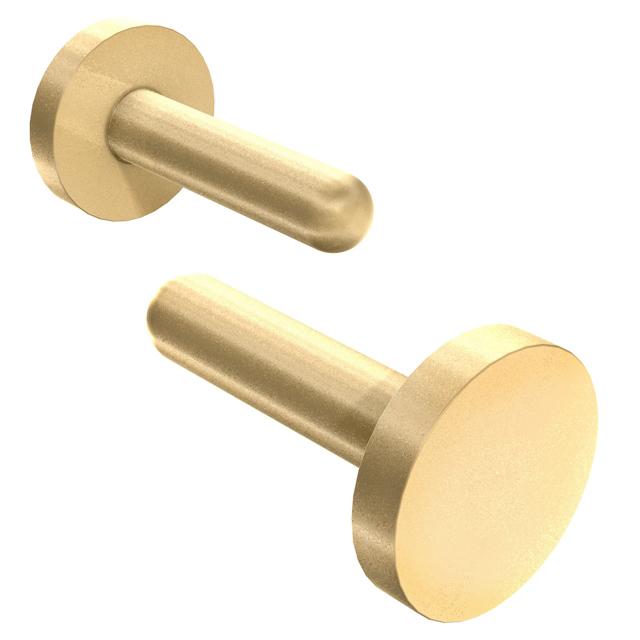

9137-0-00-15-00-00-38-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9137
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.160" (4.06mm)
Length - Below Flange : -
Length - Overall : 0.180" (4.57mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.022" (0.56mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

8604 in stock

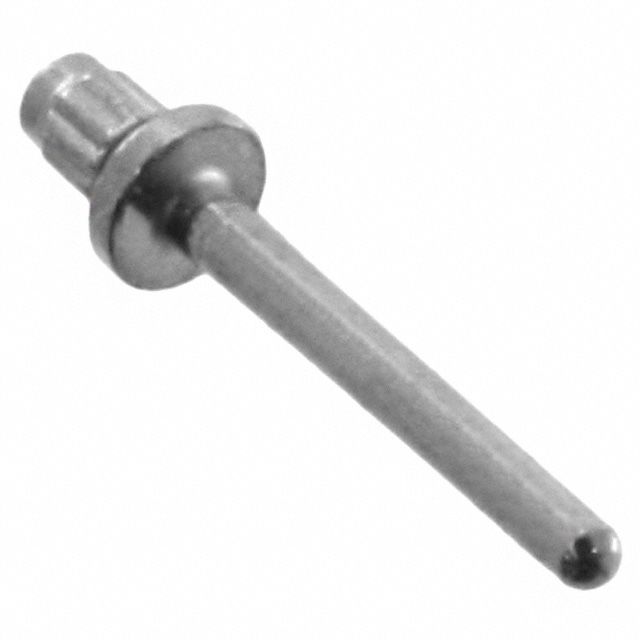

9159-0-00-01-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9159
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : 0.023" (0.58mm) Dia
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : 0.045" (1.14mm)
Length - Overall : 0.211" (5.36mm)
Flange Diameter : 0.045" (1.14mm)
Mounting Hole Diameter : 0.026" (0.66mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)

0

10727 in stock

9159-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9159
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : 0.023" (0.58mm) Dia
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : 0.045" (1.14mm)
Length - Overall : 0.211" (5.36mm)
Flange Diameter : 0.045" (1.14mm)
Mounting Hole Diameter : 0.026" (0.66mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

1990 in stock

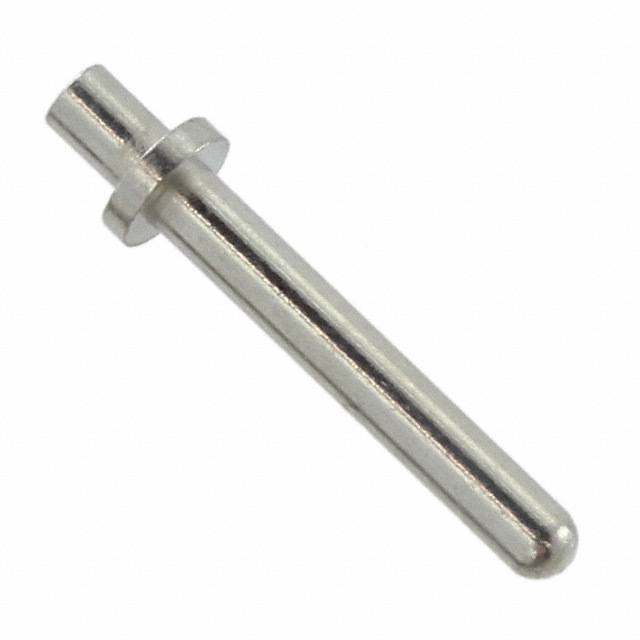

9242-0-00-80-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : -
Series : 9242
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.083" (2.11mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.375" (9.53mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.494" (12.55mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

1568 in stock

9265-0-00-15-00-00-38-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 9265
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.059" (1.50mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.240" (6.10mm)
Length - Below Flange : -
Length - Overall : 0.265" (6.73mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.063" (1.60mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

5002 in stock
