Terminals - PC Pin, Single Post Connectors Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

6835-0-00-15-00-00-44-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6835
Part Status : Active
Terminal Type : Single Post
Terminal Style : Flanged
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : 0.090" (2.29mm) Dia
Length - Above Flange : 0.225" (5.72mm)
Length - Below Flange : 0.063" (1.60mm)
Length - Overall : 0.587" (14.91mm)
Flange Diameter : 0.123" (3.12mm)
Mounting Hole Diameter : 0.092" (2.34mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

930 in stock

6955-0-05-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6955
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.300" (7.62mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.460" (11.68mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.091" (2.31mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1886 in stock

74640010

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Packaging : Bulk
Series : REDCUBE WP-PLUG
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : -
Pin Size - Below Flange : -
Length - Above Flange : 0.433" (11.00mm)
Length - Below Flange : 0.732" (18.60mm)
Length - Overall : 1.165" (29.60mm)
Flange Diameter : 0.355" (9.02mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Copper Alloy
Contact Finish : Tin
Contact Finish Thickness : -

143 in stock

74640016

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Packaging : Bulk
Series : REDCUBE WP-PLUG
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : -
Pin Size - Below Flange : -
Length - Above Flange : 0.512" (13.00mm)
Length - Below Flange : 0.732" (18.60mm)
Length - Overall : 1.244" (31.60mm)
Flange Diameter : 0.355" (9.02mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Copper Alloy
Contact Finish : Tin
Contact Finish Thickness : -

192 in stock

7464004

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Packaging : Bulk
Series : REDCUBE WP-PLUG
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : -
Pin Size - Below Flange : -
Length - Above Flange : 0.355" (9.02mm)
Length - Below Flange : 0.732" (18.60mm)
Length - Overall : 1.244" (31.60mm)
Flange Diameter : 0.355" (9.02mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Copper Alloy
Contact Finish : Tin
Contact Finish Thickness : -

423 in stock

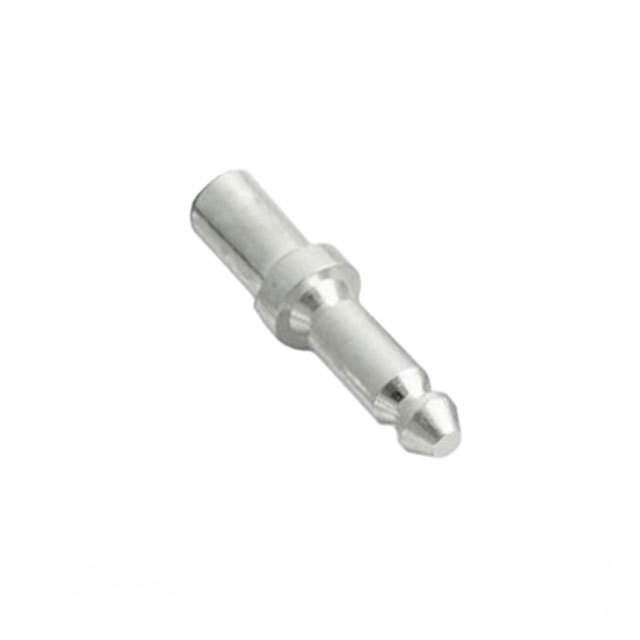

7464006

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Packaging : Bulk
Series : REDCUBE WP-PLUG
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : -
Pin Size - Below Flange : -
Length - Above Flange : 0.394" (10.00mm)
Length - Below Flange : 0.732" (18.60mm)
Length - Overall : 1.126" (28.60mm)
Flange Diameter : 0.355" (9.02mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Copper Alloy
Contact Finish : Tin
Contact Finish Thickness : -

375 in stock

7504-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 7504
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.058" (1.47mm) Dia
Length - Above Flange : 0.310" (7.87mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.460" (11.68mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : 0.068" (1.73mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

3000 in stock

75401-001LF

Amphenol Information Communication & Commercial

Manufacturer : Amphenol FCI
Packaging : Bulk
Series : Bergpin®
Part Status : Active
Terminal Type : Single Post
Terminal Style : Pin Retention
Pin Size - Above Flange : 0.025" (0.64mm) Square
Pin Size - Below Flange : 0.025" (0.64mm) Square
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.345" (8.76mm)
Flange Diameter : -
Mounting Hole Diameter : 0.032" ~ 0.034" (0.81mm ~ 0.86mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.062" ~ 0.125" (1.57mm ~ 3.18mm)
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

23623 in stock

76151-001LF

Amphenol Information Communication & Commercial

10000 in stock

7827-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 7827
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.022" (0.56mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.260" (6.60mm)
Flange Diameter : -
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

900 in stock

7912-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 7912
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.053" (1.35mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.479" (12.17mm)
Length - Below Flange : -
Length - Overall : 0.510" (12.95mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

2241 in stock

7937-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 7937
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : -
Pin Size - Below Flange : -
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.206" (5.23mm)
Flange Diameter : 0.155" (3.94mm)
Mounting Hole Diameter : -
Mounting Type : Surface Mount
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

27044 in stock
