Part Number

Manufacturer

Description

Unit Price

In Stock

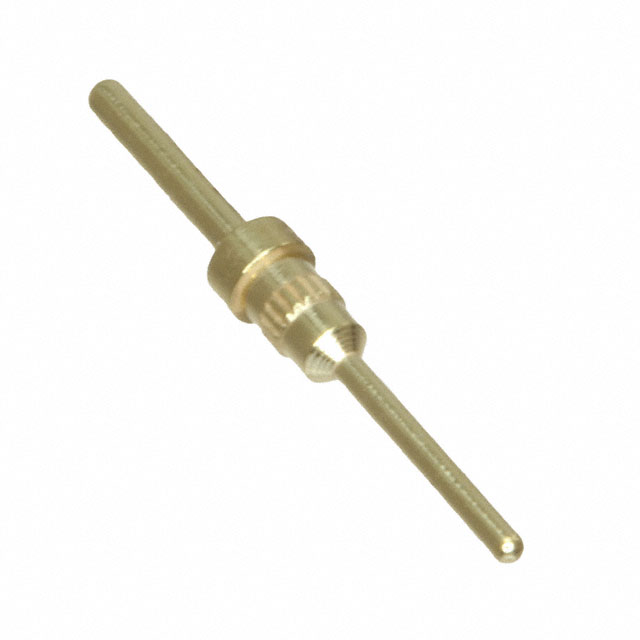

5005-0-00-34-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 5005
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.030" (0.76mm) Dia
Pin Size - Below Flange : 0.024" (0.61mm) Dia
Length - Above Flange : 0.195" (4.95mm)
Length - Below Flange : 0.302" (7.67mm)
Length - Overall : 0.530" (13.46mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

996 in stock

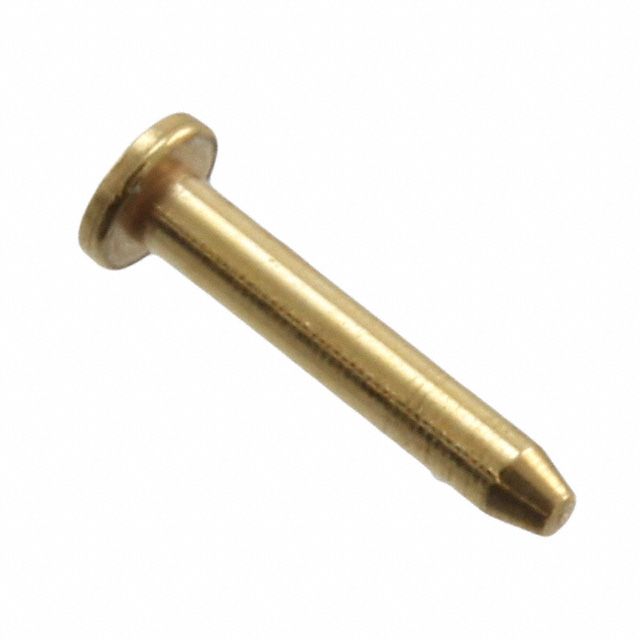

5035-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 5035
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.150" (3.81mm)
Length - Below Flange : -
Length - Overall : 0.160" (4.06mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.029" (0.74mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

11856 in stock

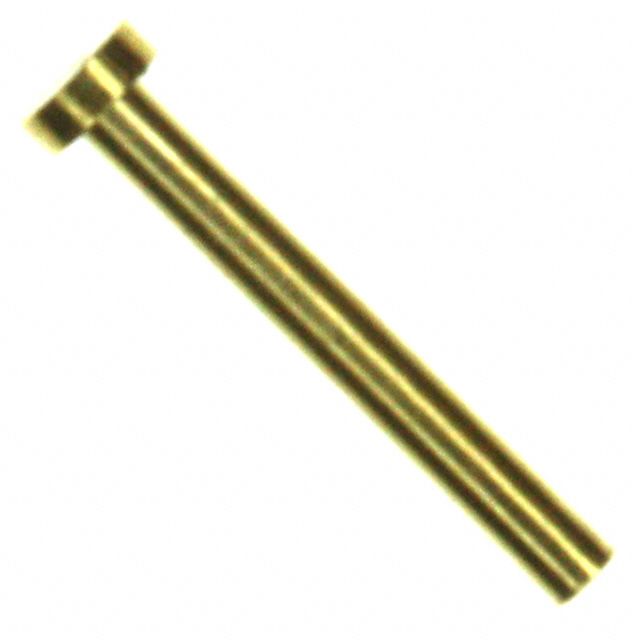

5063-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 5063
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.160" (4.06mm)
Length - Below Flange : -
Length - Overall : 0.172" (4.37mm)
Flange Diameter : 0.036" (0.91mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

3128 in stock

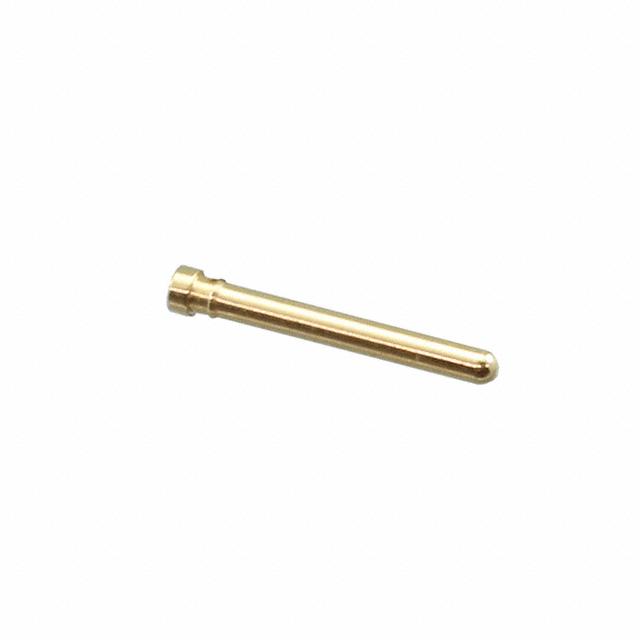

5137-0-00-15-00-00-38-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 5137
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.300" (7.62mm)
Length - Below Flange : -
Length - Overall : 0.320" (8.13mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.022" (0.56mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

39821 in stock

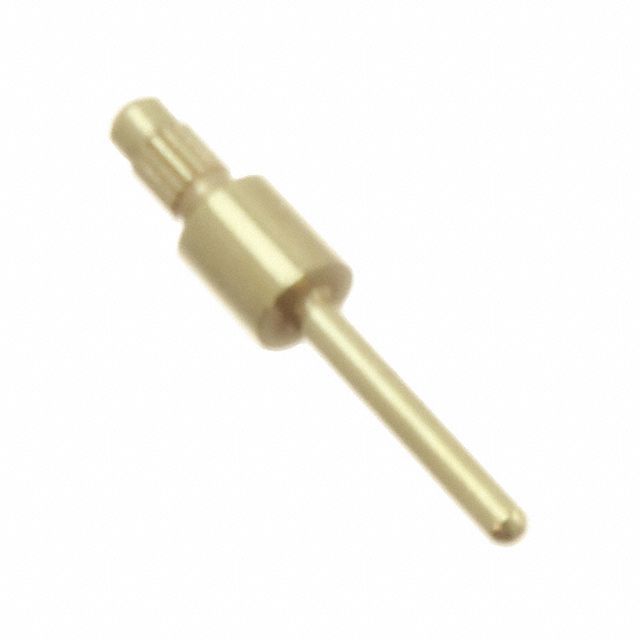

5155-0-00-34-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 5155
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : 0.018" (0.46mm) Dia
Length - Above Flange : 0.060" (1.52mm)
Length - Below Flange : 0.130" (3.30mm)
Length - Overall : 0.240" (6.10mm)
Flange Diameter : 0.045" (1.14mm)
Mounting Hole Diameter : 0.026" (0.66mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

855 in stock

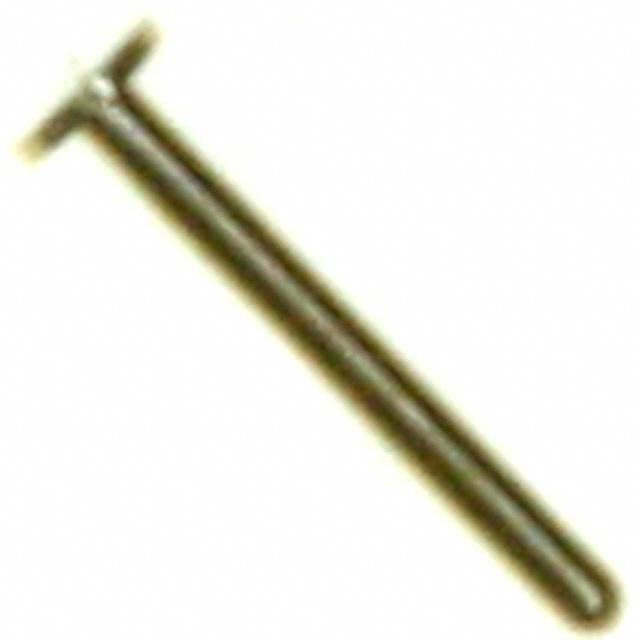

5240-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 5240
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.232" (5.89mm)
Length - Below Flange : -
Length - Overall : 0.240" (6.10mm)
Flange Diameter : 0.062" (1.57mm)
Mounting Hole Diameter : 0.029" (0.74mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

30757 in stock

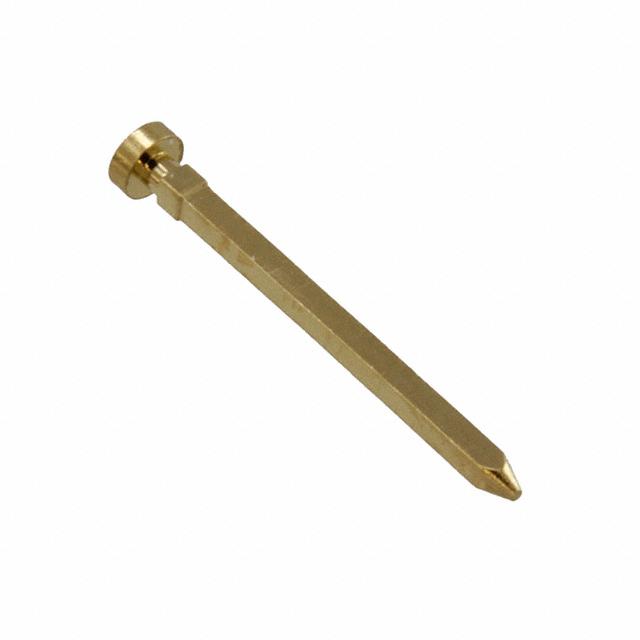

5275-1-05-15-00-00-01-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 5275
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Square
Pin Size - Below Flange : -
Length - Above Flange : 0.420" (10.67mm)
Length - Below Flange : -
Length - Overall : 0.440" (11.18mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Press-Fit, Square, Wire Wrap
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

2672 in stock

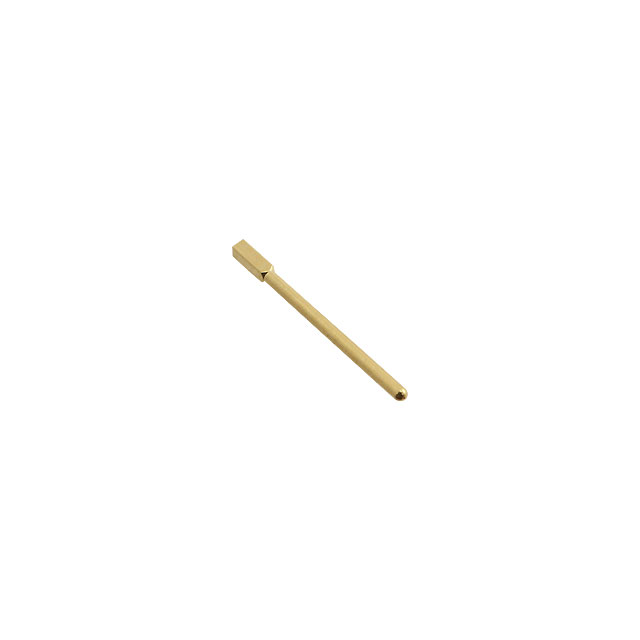

5435-0-05-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 5435
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.243" (6.17mm)
Length - Below Flange : -
Length - Overall : 0.303" (7.70mm)
Flange Diameter : -
Mounting Hole Diameter : 0.022" (0.56mm)
Mounting Type : Through Hole
Termination : Press-Fit, Square
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1519 in stock

5435-1-05-34-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 5435
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.140" (3.56mm)
Length - Below Flange : -
Length - Overall : 0.200" (5.08mm)
Flange Diameter : -
Mounting Hole Diameter : 0.022" (0.56mm)
Mounting Type : Through Hole
Termination : Press-Fit, Square
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

982 in stock

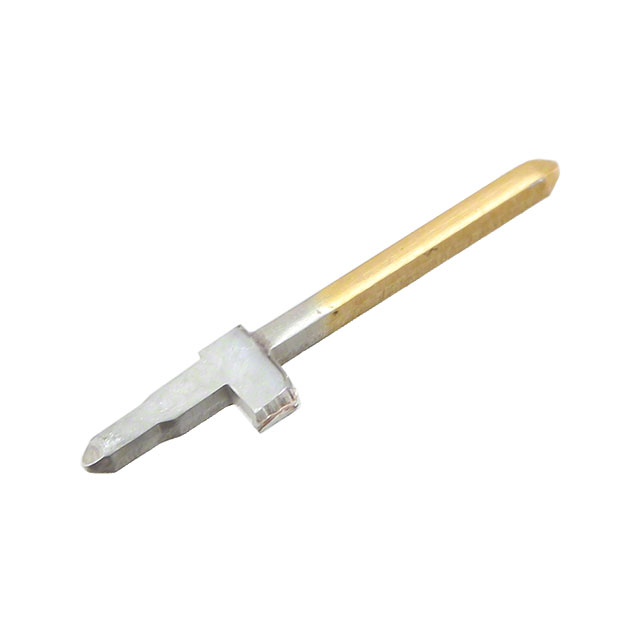

5-87623-4

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AMPMODU Mod II
Part Status : Active
Terminal Type : Single Post
Terminal Style : Smooth
Pin Size - Above Flange : 0.025" (0.64mm) Square
Pin Size - Below Flange : 0.025" (0.64mm) Square
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.443" (11.25mm)
Flange Diameter : -
Mounting Hole Diameter : 0.036" (0.91mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 15.0µin (0.38µm)

41854 in stock

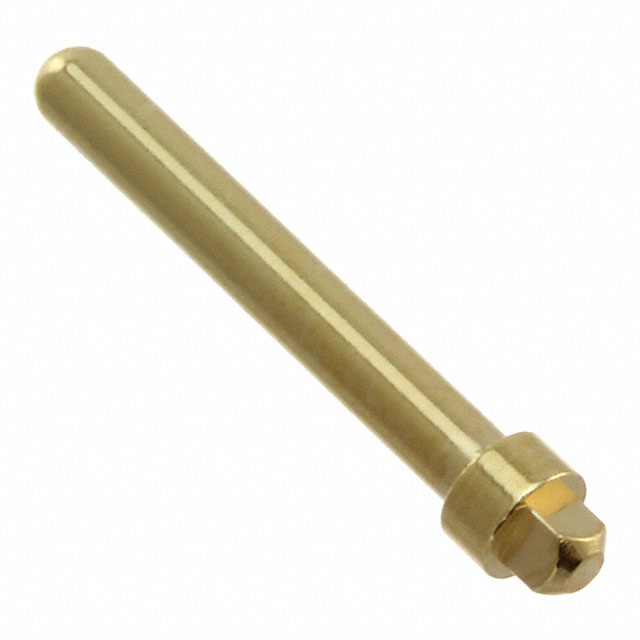

5920-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 5920
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Flanged
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : 0.085" (2.16mm) Dia
Length - Above Flange : 0.591" (15.01mm)
Length - Below Flange : 0.063" (1.60mm)
Length - Overall : 0.713" (18.10mm)
Flange Diameter : 0.118" (3.00mm)
Mounting Hole Diameter : 0.086" (2.18mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1353 in stock

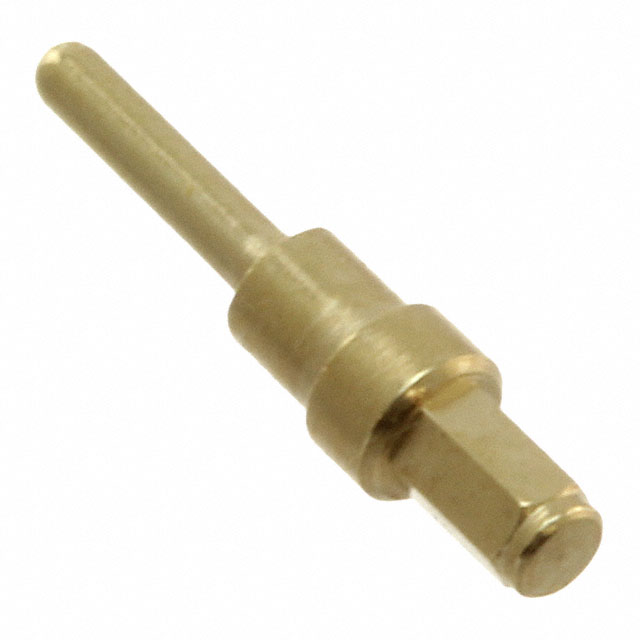

6025-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 6025
Part Status : Active
Terminal Type : Single Post
Terminal Style : Flanged, Pin Retention
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.067" (1.70mm) Hex
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.419" (10.64mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : 0.068" (1.73mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

2576 in stock
