Part Number

Manufacturer

Description

Unit Price

In Stock

4366-0-00-21-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4366
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.278" (7.06mm)
Length - Below Flange : -
Length - Overall : 0.300" (7.62mm)
Flange Diameter : 0.038" (0.97mm)
Mounting Hole Diameter : 0.034" (0.86mm)
Mounting Type : Through Hole
Termination : Press-Fit, Hex
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

1000 in stock

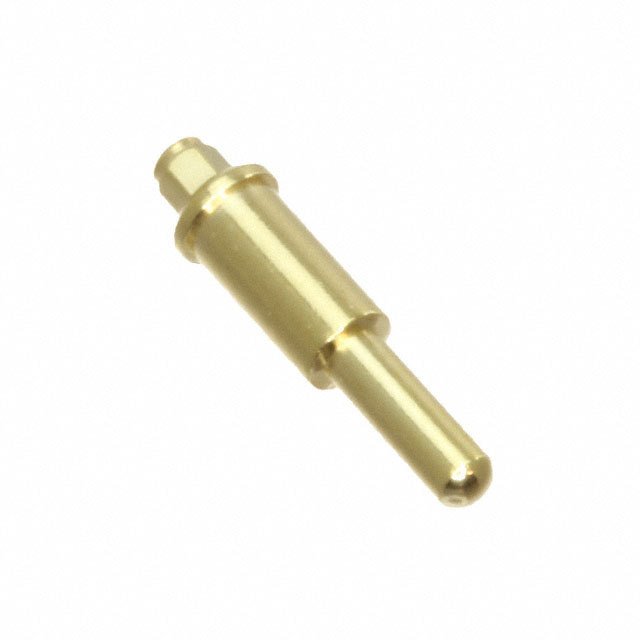

4427-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4427
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : 0.058" (1.47mm) Dia
Length - Above Flange : 0.368" (9.35mm)
Length - Below Flange : 0.063" (1.60mm)
Length - Overall : 0.456" (11.58mm)
Flange Diameter : 0.112" (2.84mm)
Mounting Hole Diameter : 0.068" (1.73mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1945 in stock

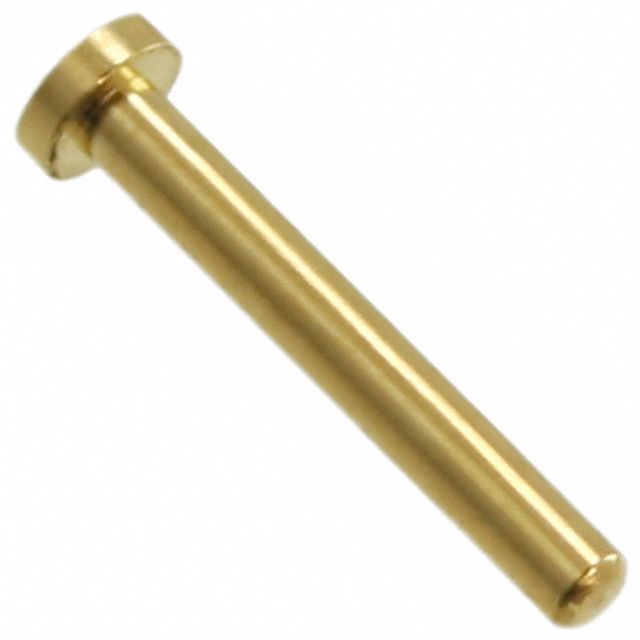

4477-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4477
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.030" (0.76mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.215" (5.46mm)
Length - Below Flange : -
Length - Overall : 0.230" (5.84mm)
Flange Diameter : 0.055" (1.40mm)
Mounting Hole Diameter : 0.034" (0.86mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

12932 in stock

4516-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4516
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : 0.018" (0.46mm) Dia
Length - Above Flange : 0.162" (4.12mm)
Length - Below Flange : 0.135" (3.43mm)
Length - Overall : 0.319" (8.10mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

3740 in stock

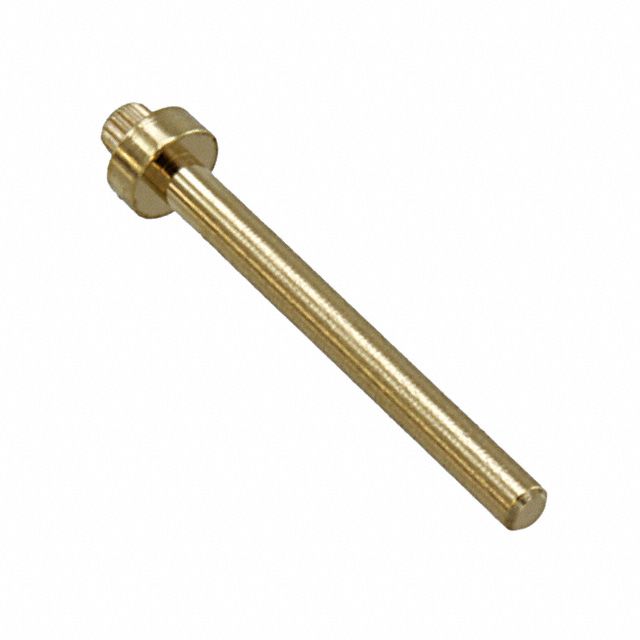

4526-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4526
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.043" (1.09mm) Dia
Length - Above Flange : 0.414" (10.52mm)
Length - Below Flange : 0.035" (0.89mm)
Length - Overall : 0.479" (12.17mm)
Flange Diameter : 0.082" (2.08mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1467 in stock

4526-0-00-21-00-00-03-0

Mill-Max

400 in stock

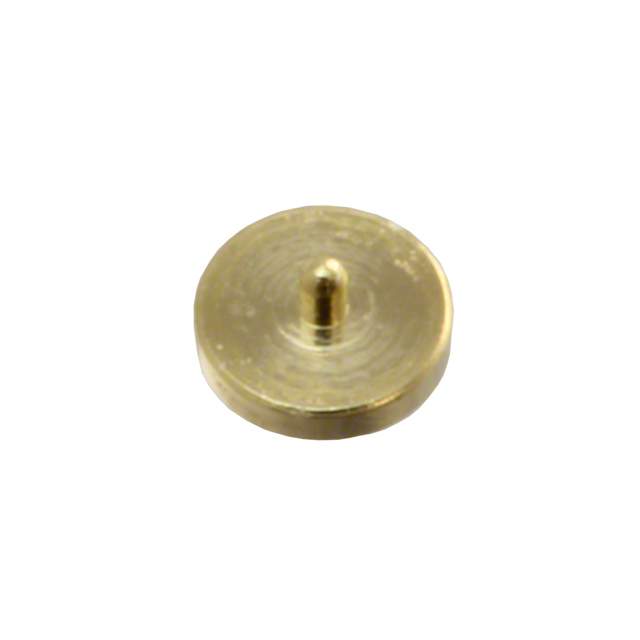

4541-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4541
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.029" (0.74mm)
Length - Below Flange : -
Length - Overall : 0.049" (1.24mm)
Flange Diameter : 0.098" (2.49mm)
Mounting Hole Diameter : 0.022" (0.56mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

2878 in stock

4639-0-00-80-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : -
Series : 4639
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.432" (10.97mm)
Length - Below Flange : 0.090" (2.29mm)
Length - Overall : 0.547" (13.89mm)
Flange Diameter : 0.114" (2.90mm)
Mounting Hole Diameter : 0.065" (1.65mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

1946 in stock

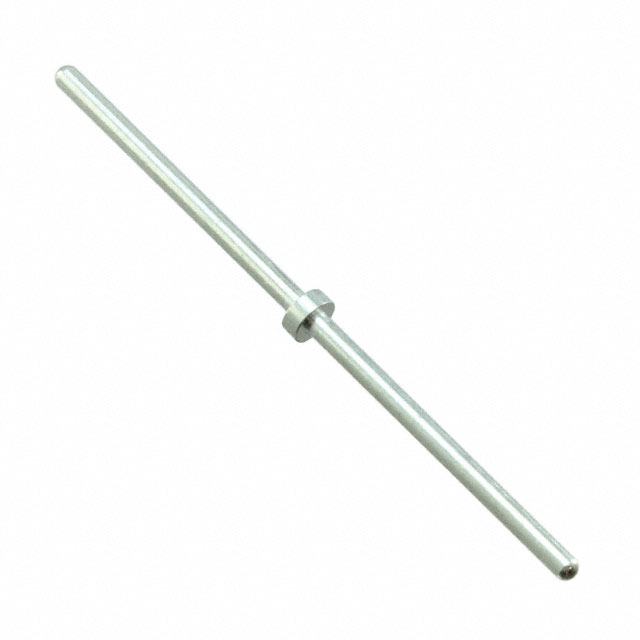

4650-0-00-80-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4650
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : 0.062" (1.58mm) Dia
Length - Above Flange : 0.875" (22.23mm)
Length - Below Flange : 0.875" (22.23mm)
Length - Overall : 1.800" (45.72mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.065" (1.65mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

370 in stock

4658-0-00-80-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : -
Series : 4658
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.094" (2.39mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.207" (5.26mm)
Flange Diameter : 0.070" (1.78mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

2698 in stock

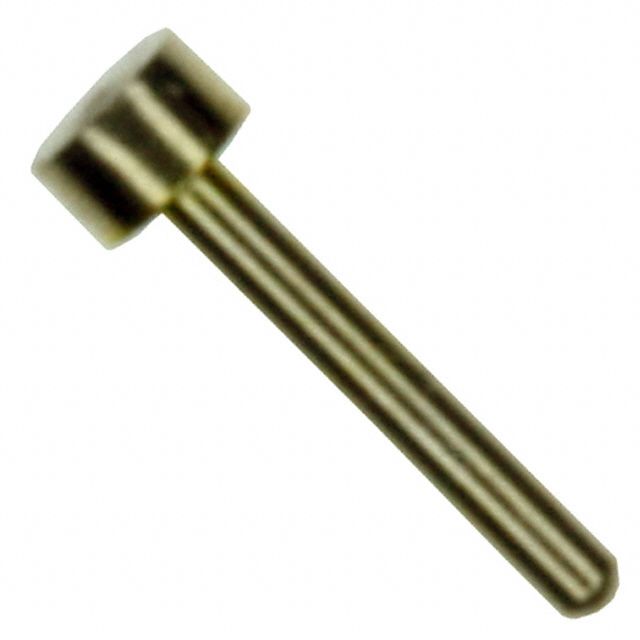

4689-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4689
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.015" (0.38mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.105" (2.67mm)
Length - Below Flange : -
Length - Overall : 0.125" (3.18mm)
Flange Diameter : 0.035" (0.89mm)
Mounting Hole Diameter : 0.019" (0.48mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

6425 in stock

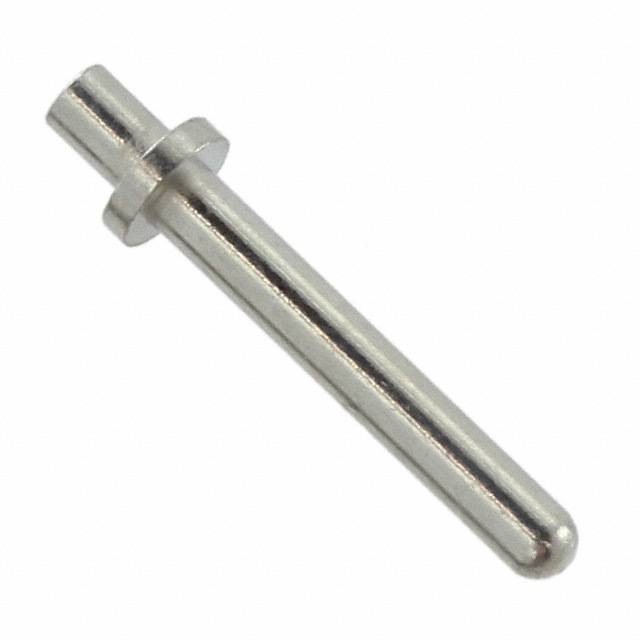

4717-0-00-80-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : -
Series : 4717
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.332" (8.43mm)
Length - Below Flange : 0.090" (2.29mm)
Length - Overall : 0.447" (11.35mm)
Flange Diameter : 0.114" (2.90mm)
Mounting Hole Diameter : 0.065" (1.65mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

22300 in stock
