Part Number

Manufacturer

Description

Unit Price

In Stock

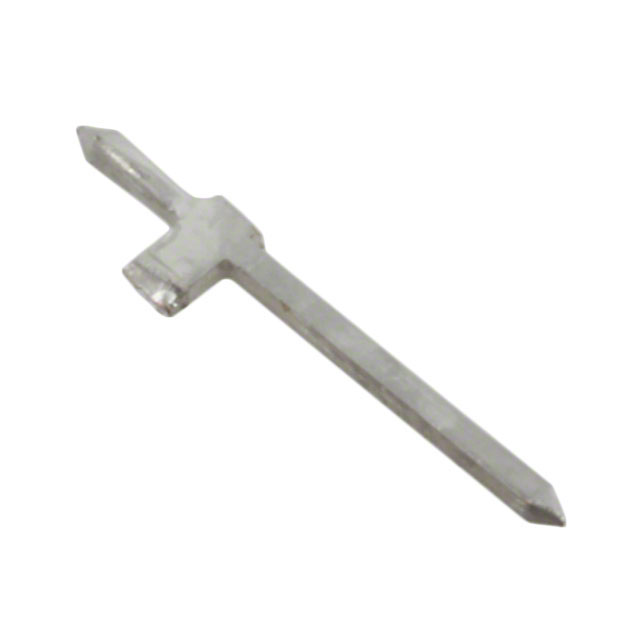

3-928776-4

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AMPMODU Mod II
Part Status : Active
Terminal Type : Single Post
Terminal Style : Pin Retention
Pin Size - Above Flange : 0.025" (0.64mm) Square
Pin Size - Below Flange : 0.025" (0.64mm) Square
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.520" (13.21mm)
Flange Diameter : -
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : 0.063" (1.60mm)
Contact Material : Phosphor Bronze
Contact Finish : Tin
Contact Finish Thickness : 39.4µin (1.00µm)

54754 in stock

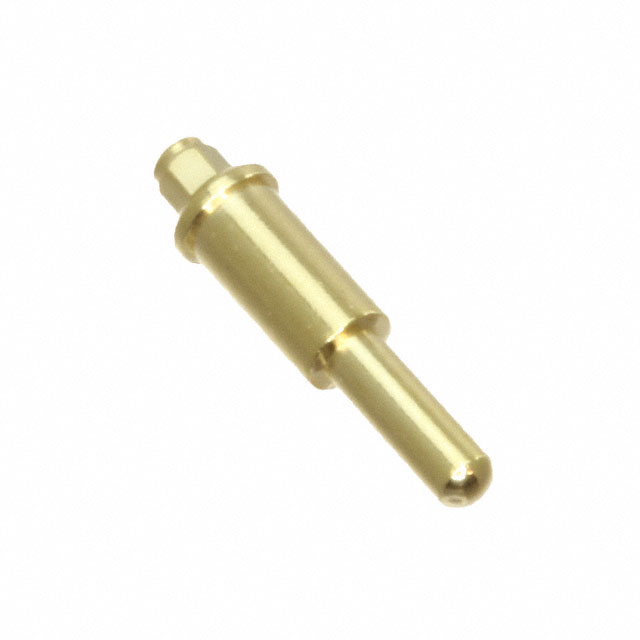

3975-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3975
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : 0.062" (1.58mm) Dia
Length - Above Flange : 0.170" (4.32mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.310" (7.87mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : 0.070" (1.78mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

4000 in stock

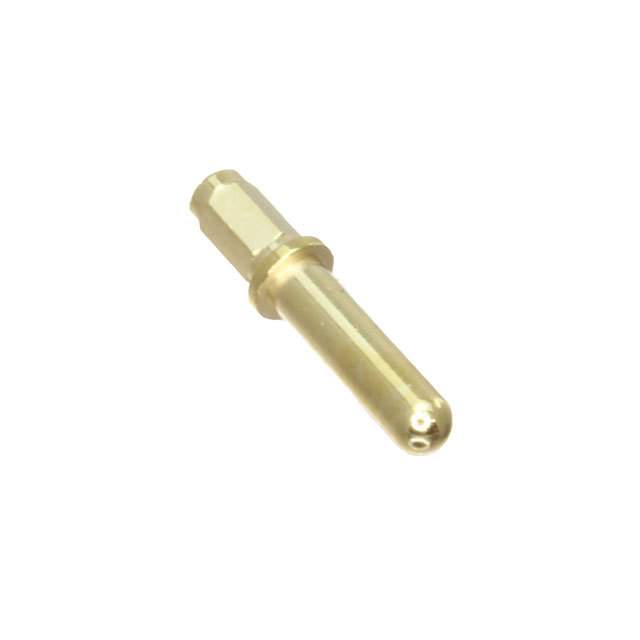

3977-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3977
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : 0.062" (1.58mm) Dia
Length - Above Flange : 0.235" (5.97mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.375" (9.53mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : 0.070" (1.78mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

2718 in stock

4006-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4006
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.016" (0.41mm) Dia
Pin Size - Below Flange : 0.016" (0.41mm) Dia
Length - Above Flange : 0.118" (3.00mm)
Length - Below Flange : 0.118" (3.00mm)
Length - Overall : 0.319" (8.10mm)
Flange Diameter : -
Mounting Hole Diameter : 0.034" (0.86mm)
Mounting Type : Through Hole
Termination : Press-Fit, Hex
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

950 in stock

4006-0-00-80-00-00-03-0

Mill-Max

1000 in stock

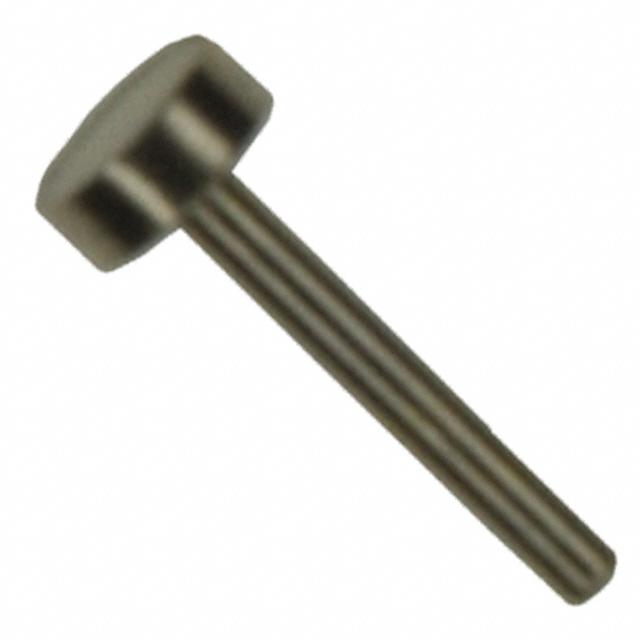

4184-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4184
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.010" (0.25mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.070" (1.78mm)
Length - Below Flange : -
Length - Overall : 0.080" (2.03mm)
Flange Diameter : 0.030" (0.76mm)
Mounting Hole Diameter : 0.014" (0.36mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

5239 in stock

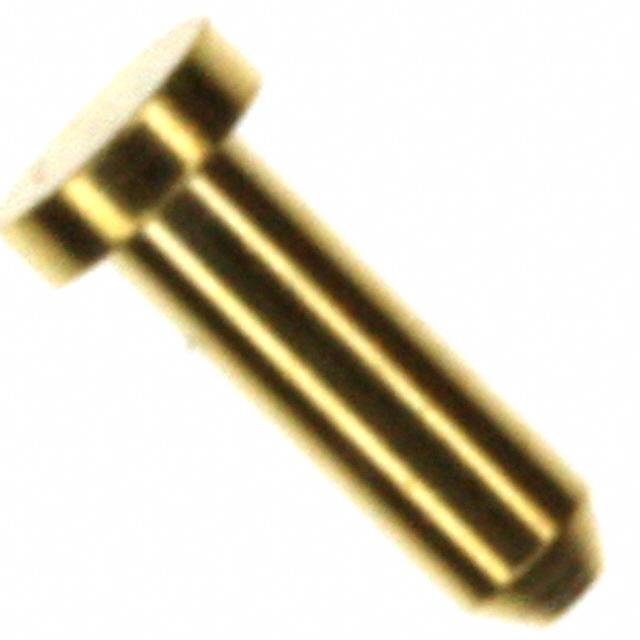

4268-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4268
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.035" (0.89mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.115" (2.92mm)
Length - Below Flange : -
Length - Overall : 0.130" (3.30mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.039" (0.99mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

15298 in stock

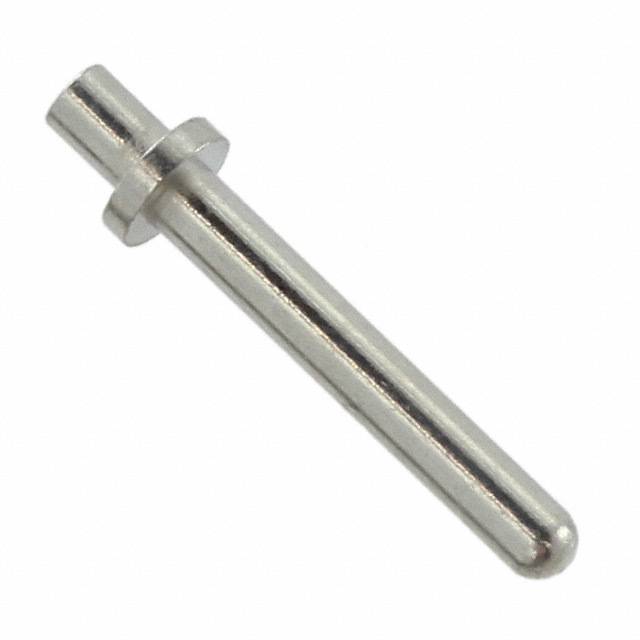

4275-0-00-80-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : -
Series : 4275
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.235" (5.97mm)
Length - Below Flange : 0.095" (2.41mm)
Length - Overall : 0.350" (8.89mm)
Flange Diameter : 0.070" (1.78mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

2003 in stock

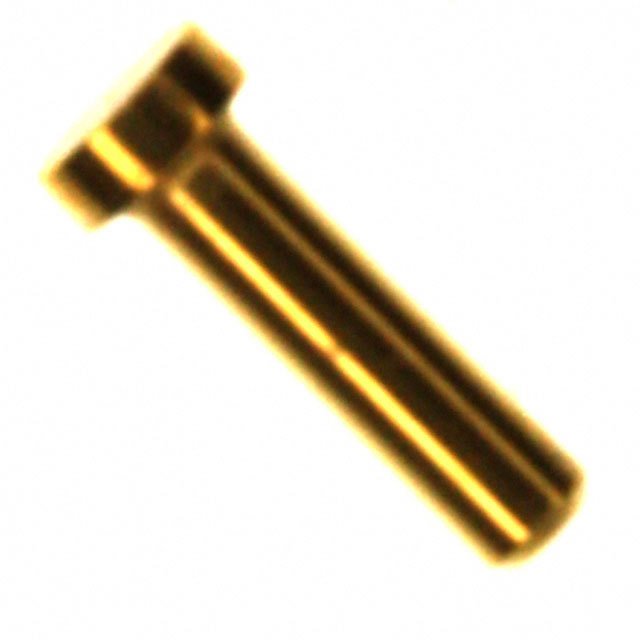

4288-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4288
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.072" (1.83mm)
Length - Below Flange : -
Length - Overall : 0.082" (2.08mm)
Flange Diameter : 0.030" (0.76mm)
Mounting Hole Diameter : 0.022" (0.56mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1727 in stock

4326-0-15-15-06-27-34-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : -
Series : *
Part Status : Active
Terminal Type : -
Terminal Style : -
Pin Size - Above Flange : -
Pin Size - Below Flange : -
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : -
Flange Diameter : -
Mounting Hole Diameter : -
Mounting Type : -
Termination : -
Insulation : -
Board Thickness : -
Contact Material : -
Contact Finish : -
Contact Finish Thickness : -

1999 in stock

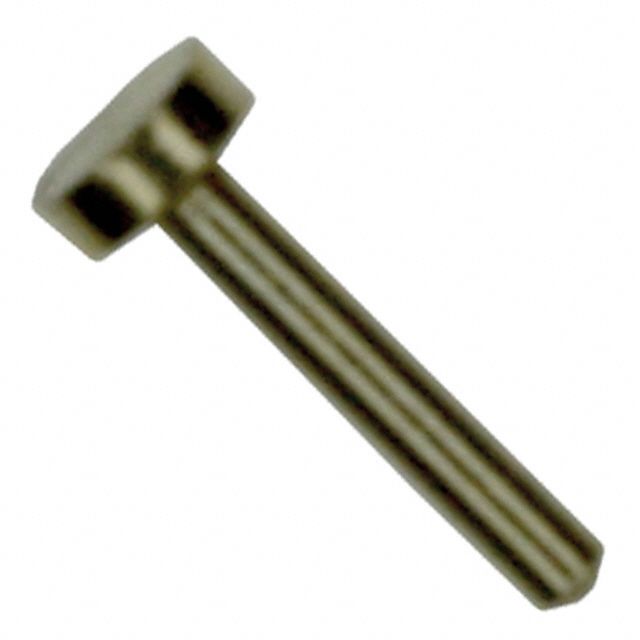

4353-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4353
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.012" (0.30mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.074" (1.88mm)
Length - Below Flange : -
Length - Overall : 0.084" (2.13mm)
Flange Diameter : 0.030" (0.76mm)
Mounting Hole Diameter : 0.016" (0.41mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

100 in stock

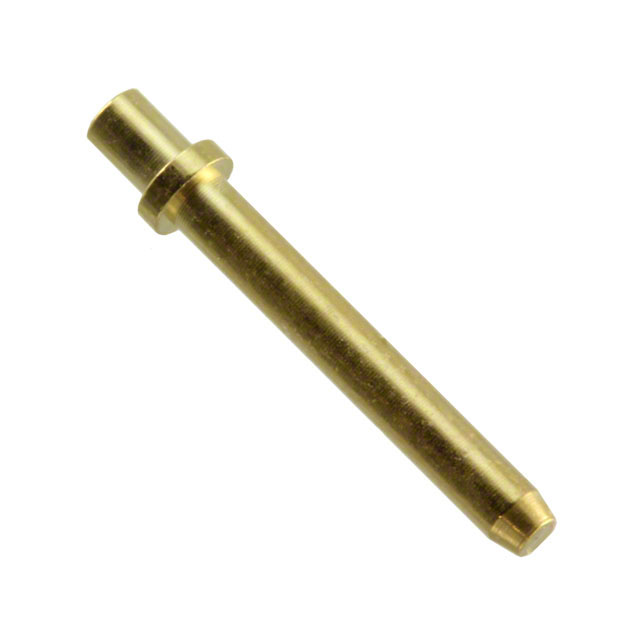

4357-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 4357
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.060" (1.52mm) Dia
Pin Size - Below Flange : 0.062" (1.58mm) Dia
Length - Above Flange : 0.440" (11.18mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.549" (13.94mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

2422 in stock
