Part Number

Manufacturer

Description

Unit Price

In Stock

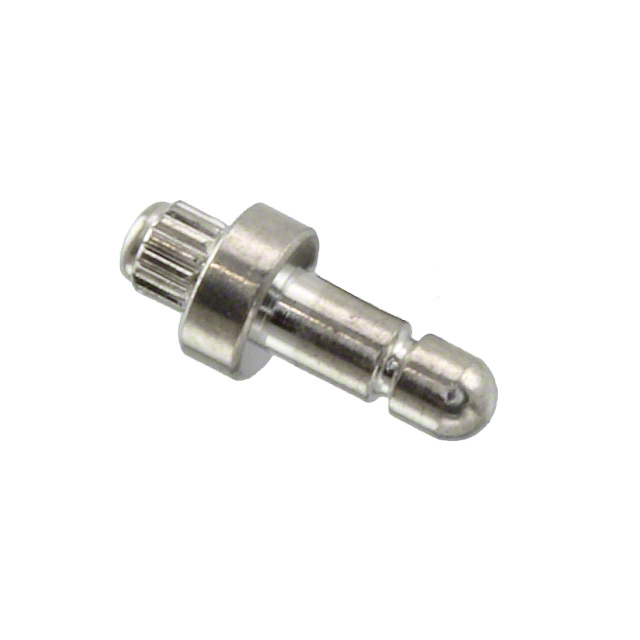

3-60839-1

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : Single Post
Terminal Style : Flanged, Pin Retention
Pin Size - Above Flange : 0.058" (1.47mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.165" (4.18mm)
Length - Below Flange : 0.062" (1.57mm)
Length - Overall : 0.263" (6.67mm)
Flange Diameter : 0.110" (2.79mm)
Mounting Hole Diameter : 0.059" ~ 0.062" (1.50mm ~ 1.57mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 150.0µin (3.81µm)

3650 in stock

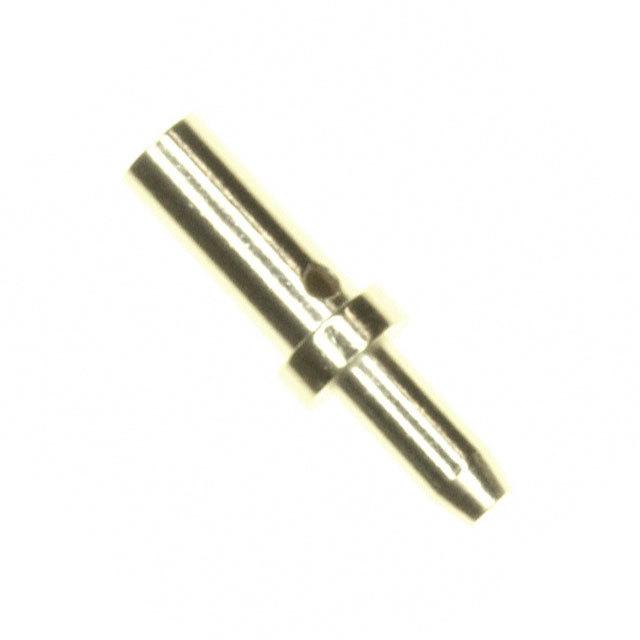

3609-1-07-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3609
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : 0.103" (2.62mm) Dia
Length - Above Flange : 0.200" (5.08mm)
Length - Below Flange : 0.250" (6.35mm)
Length - Overall : 0.496" (12.60mm)
Flange Diameter : 0.142" (3.61mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

7863 in stock

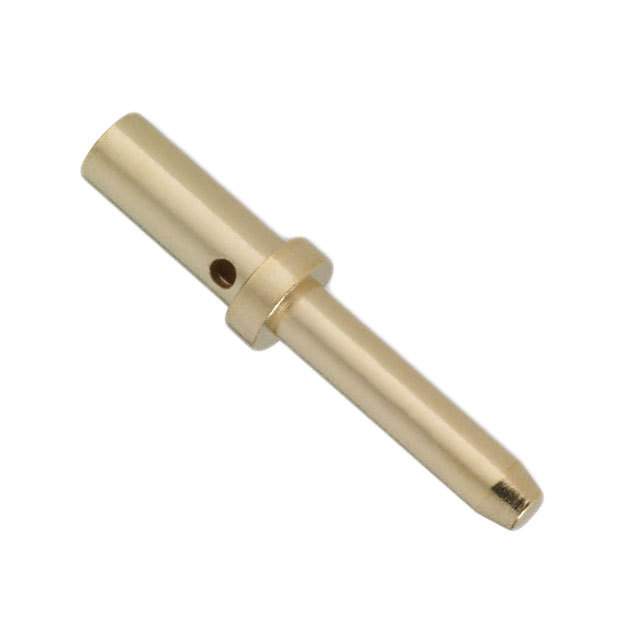

3609-2-07-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3609
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : 0.103" (2.62mm) Dia
Length - Above Flange : 0.375" (9.53mm)
Length - Below Flange : 0.250" (6.35mm)
Length - Overall : 0.671" (17.04mm)
Flange Diameter : 0.142" (3.61mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

12708 in stock

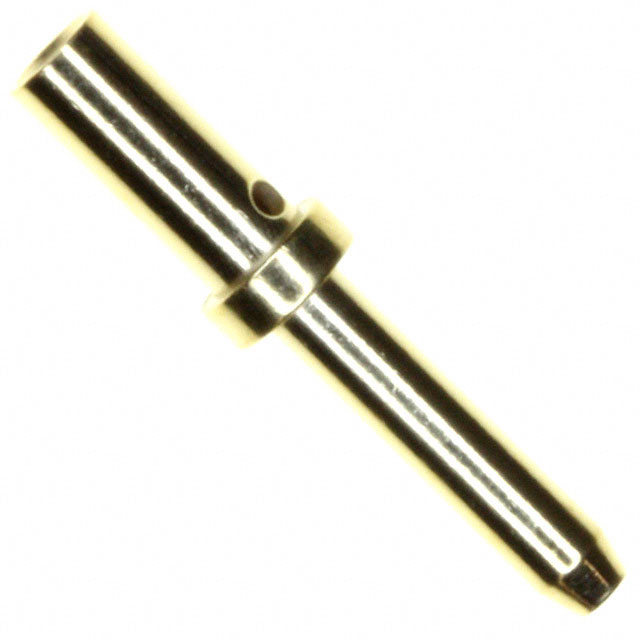

3609-2-07-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3609
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : 0.103" (2.62mm) Dia
Length - Above Flange : 0.375" (9.53mm)
Length - Below Flange : 0.250" (6.35mm)
Length - Overall : 0.671" (17.04mm)
Flange Diameter : 0.142" (3.61mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

2992 in stock

3609-3-07-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3609
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : 0.103" (2.62mm) Dia
Length - Above Flange : 0.500" (12.70mm)
Length - Below Flange : 0.250" (6.35mm)
Length - Overall : 0.796" (20.22mm)
Flange Diameter : 0.142" (3.61mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

975 in stock

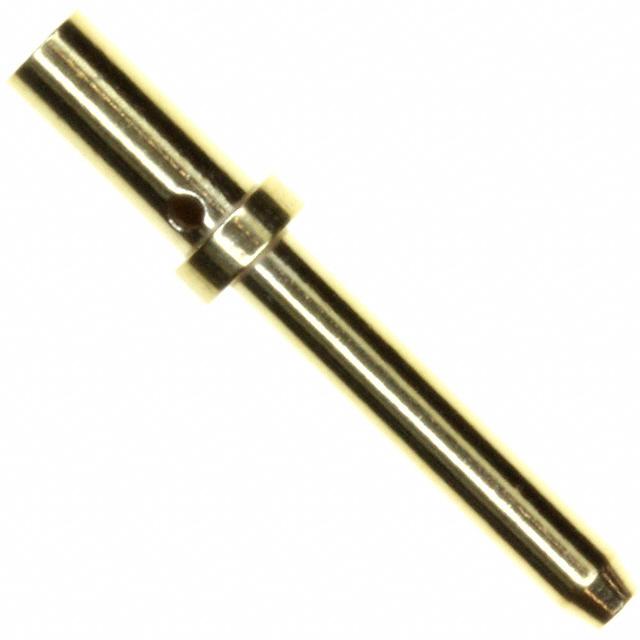

3609-3-07-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3609
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : 0.103" (2.62mm) Dia
Length - Above Flange : 0.500" (12.70mm)
Length - Below Flange : 0.250" (6.35mm)
Length - Overall : 0.796" (20.22mm)
Flange Diameter : 0.142" (3.61mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

1554 in stock

3620-1-32-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3620
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.200" (5.08mm)
Length - Below Flange : -
Length - Overall : 0.356" (9.04mm)
Flange Diameter : -
Mounting Hole Diameter : -
Mounting Type : Board Edge
Termination : Rivet
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

110 in stock

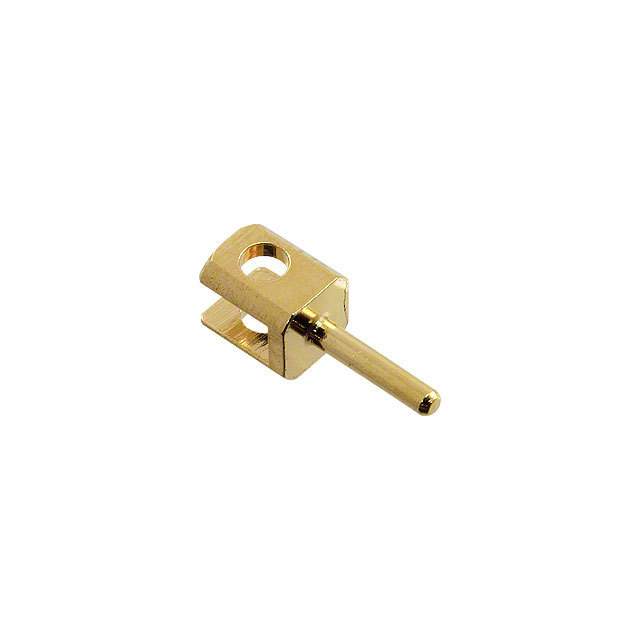

3620-2-32-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3620
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.200" (5.08mm)
Length - Below Flange : -
Length - Overall : 0.356" (9.04mm)
Flange Diameter : -
Mounting Hole Diameter : -
Mounting Type : Board Edge
Termination : Rivet
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

3932 in stock

3621-0-32-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3621
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.200" (5.08mm)
Length - Below Flange : -
Length - Overall : 0.356" (9.04mm)
Flange Diameter : -
Mounting Hole Diameter : -
Mounting Type : Board Edge
Termination : Rivet
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

950 in stock

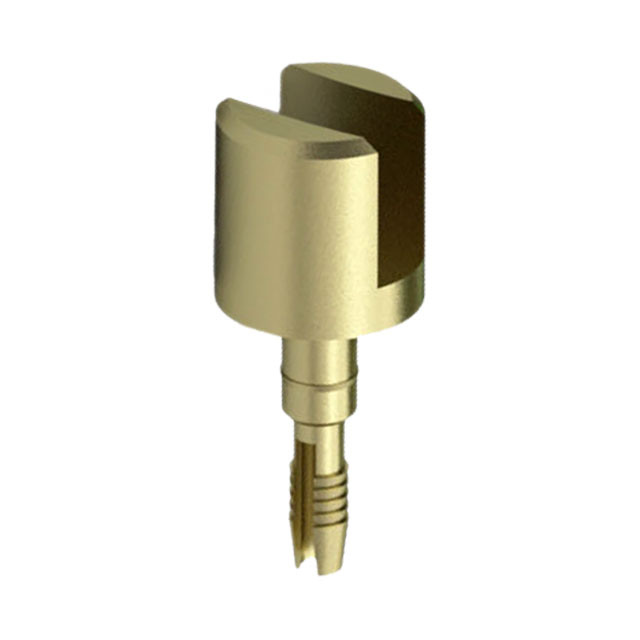

3622-0-32-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3622
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.154" (3.91mm) Dia
Pin Size - Below Flange : 0.045" (1.14mm) Dia
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : 0.220" (5.59mm)
Length - Overall : 0.376" (9.55mm)
Flange Diameter : 0.154" (3.91mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : 0.060" ~ 0.100" (1.52mm ~ 2.54mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1231 in stock

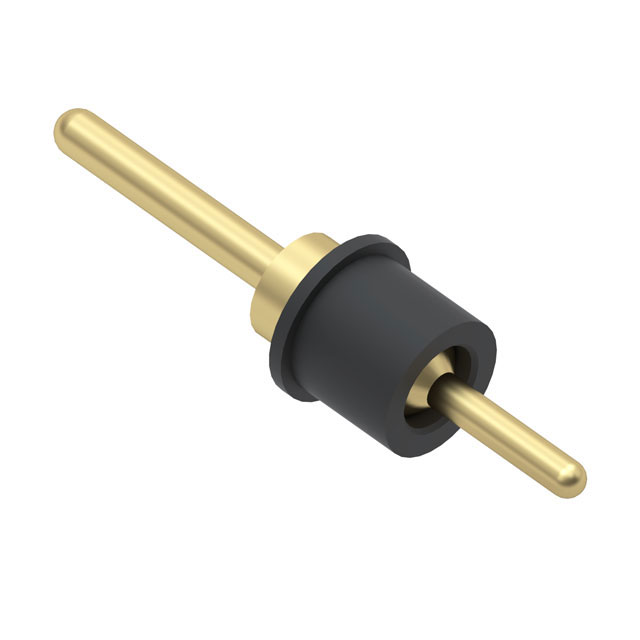

370-10-001-00-070800

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 370
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.030" (0.76mm) Dia
Pin Size - Below Flange : 0.024" (0.61mm) Dia
Length - Above Flange : 0.195" (4.95mm)
Length - Below Flange : 0.118" (3.00mm)
Length - Overall : 0.438" (11.13mm)
Flange Diameter : 0.110" (2.79mm)
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1269 in stock

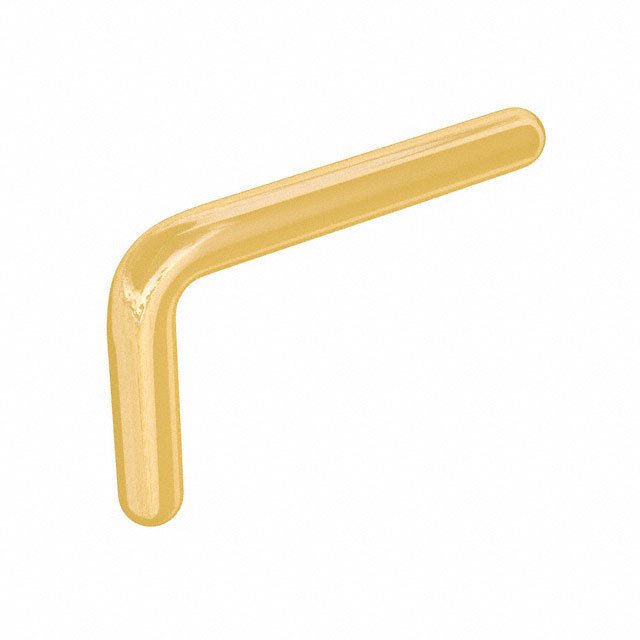

3720-0-14-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3720
Part Status : Active
Terminal Type : Single Post
Terminal Style : Smooth
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : -
Flange Diameter : -
Mounting Hole Diameter : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

3039 in stock
