Part Number

Manufacturer

Description

Unit Price

In Stock

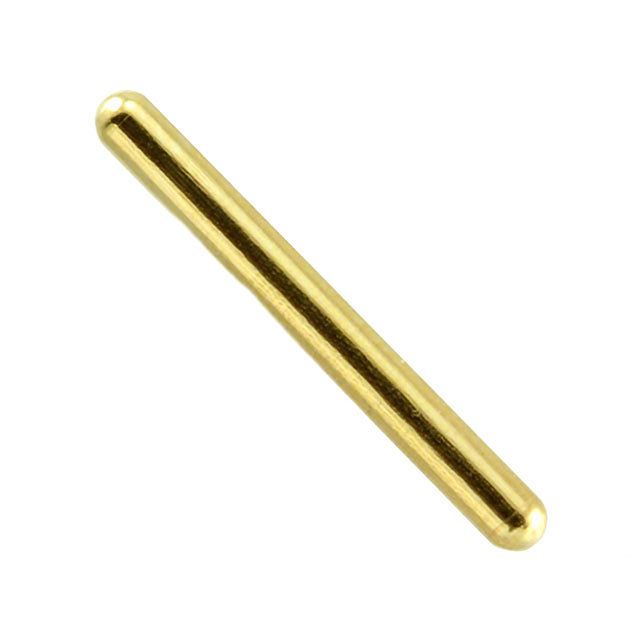

3560-1-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3560
Part Status : Active
Terminal Type : Single Post
Terminal Style : Smooth
Pin Size - Above Flange : 0.060" (1.52mm) Dia
Pin Size - Below Flange : 0.060" (1.52mm) Dia
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.500" (12.70mm)
Flange Diameter : -
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

966 in stock

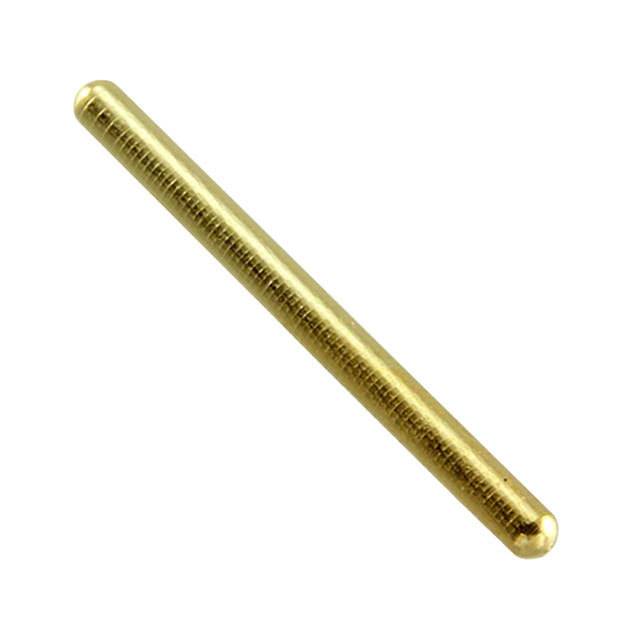

3560-2-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3560
Part Status : Active
Terminal Type : Single Post
Terminal Style : Smooth
Pin Size - Above Flange : 0.060" (1.52mm) Dia
Pin Size - Below Flange : 0.060" (1.52mm) Dia
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.750" (19.00mm)
Flange Diameter : -
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

982 in stock

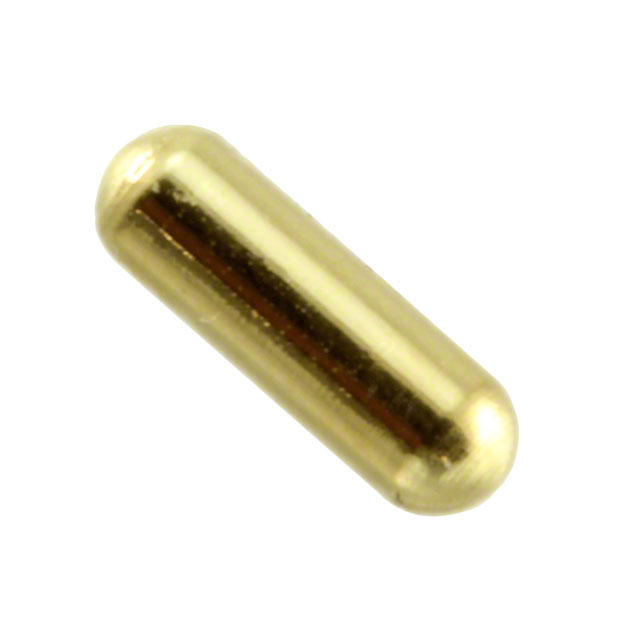

3580-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3580
Part Status : Active
Terminal Type : Single Post
Terminal Style : Smooth
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : 0.080" (2.03mm) Dia
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.250" (6.35mm)
Flange Diameter : -
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

1245 in stock

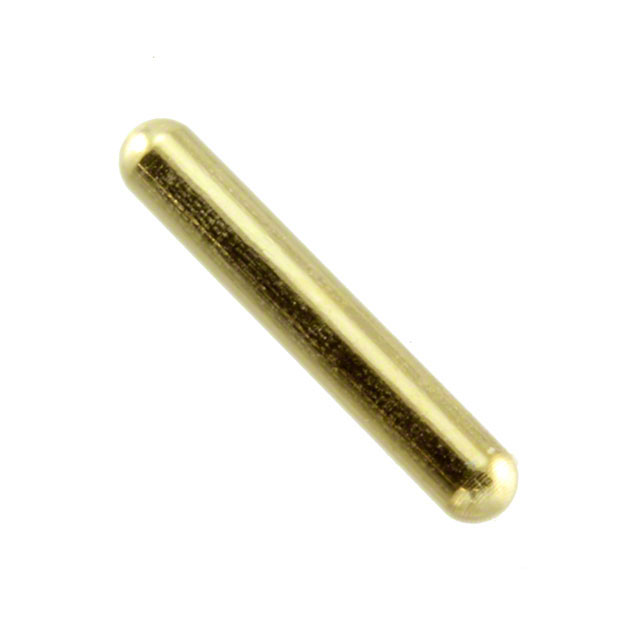

3580-1-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3580
Part Status : Active
Terminal Type : Single Post
Terminal Style : Smooth
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : 0.080" (2.03mm) Dia
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.500" (12.70mm)
Flange Diameter : -
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

592 in stock

3580-2-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3580
Part Status : Active
Terminal Type : Single Post
Terminal Style : Smooth
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : 0.080" (2.03mm) Dia
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.750" (19.00mm)
Flange Diameter : -
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

8833 in stock

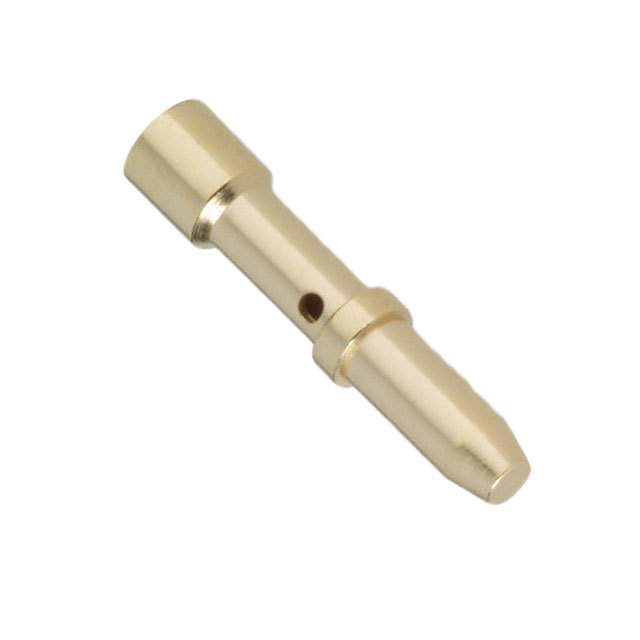

3601-1-07-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3601
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.200" (5.08mm)
Length - Below Flange : 0.275" (6.99mm)
Length - Overall : 0.506" (12.85mm)
Flange Diameter : 0.102" (2.59mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

0

1221 in stock

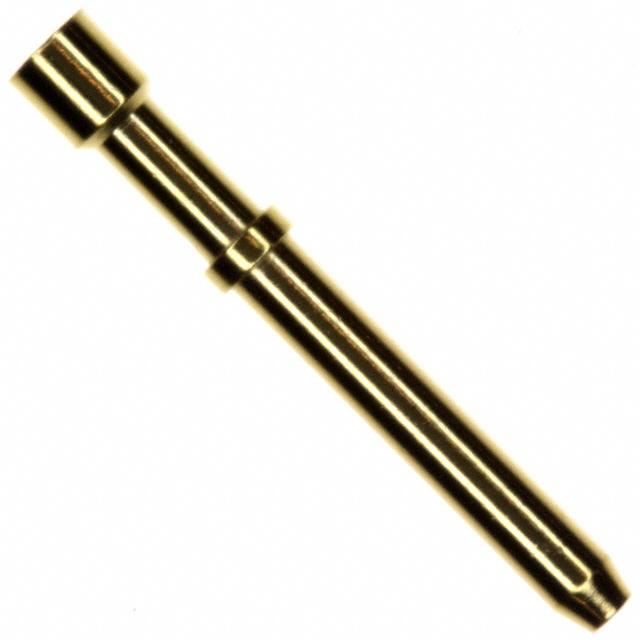

3601-3-07-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3601
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.500" (12.70mm)
Length - Below Flange : 0.275" (6.99mm)
Length - Overall : 0.806" (20.47mm)
Flange Diameter : 0.102" (2.59mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

0

746 in stock

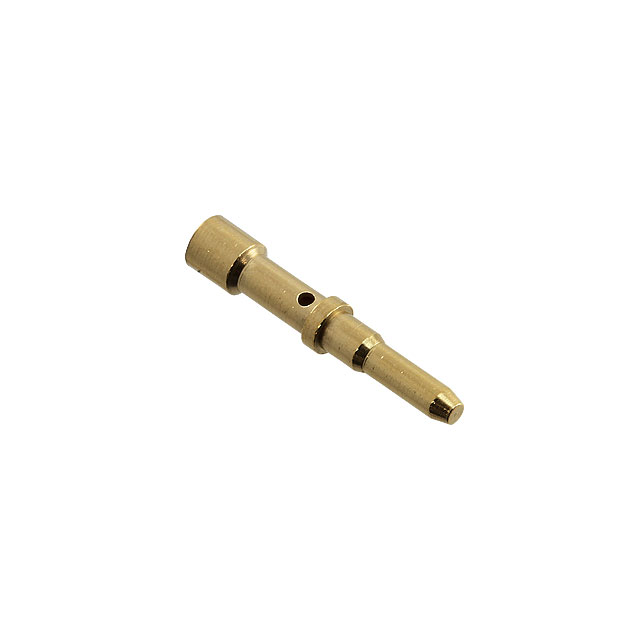

3602-0-07-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3602
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.282" (7.16mm)
Length - Below Flange : 0.275" (6.99mm)
Length - Overall : 0.588" (14.94mm)
Flange Diameter : 0.102" (2.59mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

3056 in stock

3602-0-07-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3602
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.282" (7.16mm)
Length - Below Flange : 0.275" (6.99mm)
Length - Overall : 0.588" (14.94mm)
Flange Diameter : 0.102" (2.59mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

0

970 in stock

3603-0-07-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3603
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.282" (7.16mm)
Length - Below Flange : 0.275" (6.99mm)
Length - Overall : 0.588" (14.94mm)
Flange Diameter : 0.102" (2.59mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

970 in stock

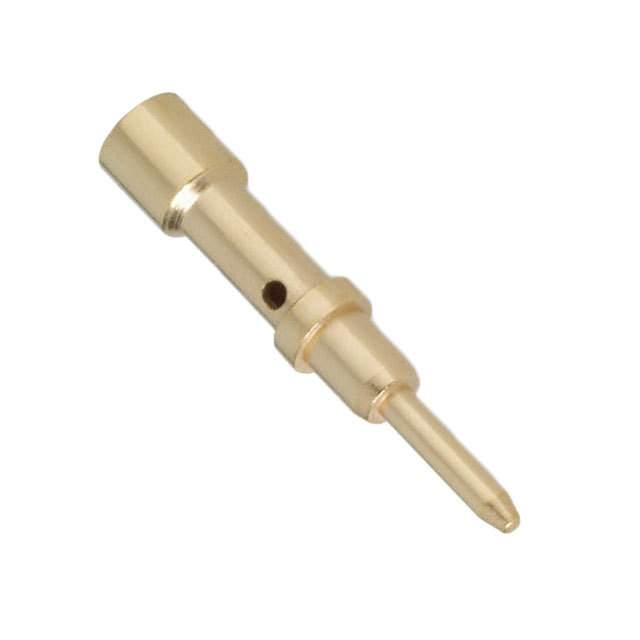

3603-0-07-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3603
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.282" (7.16mm)
Length - Below Flange : 0.275" (6.99mm)
Length - Overall : 0.588" (14.94mm)
Flange Diameter : 0.102" (2.59mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

0

5124 in stock

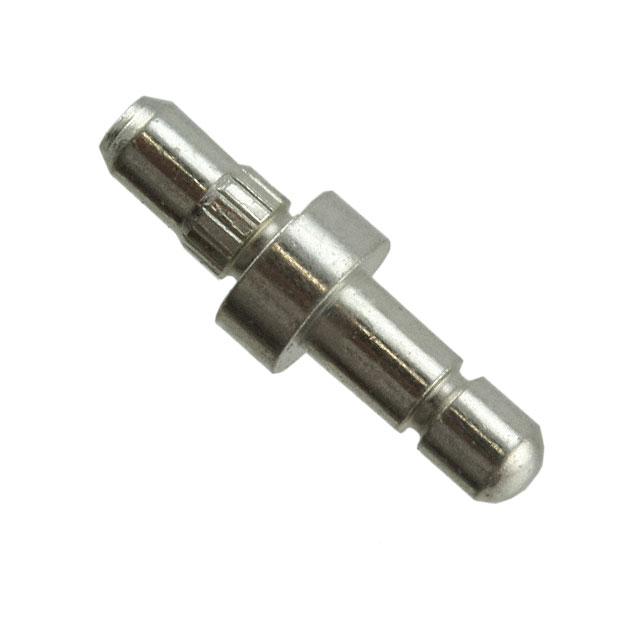

3-60599-1

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : Single Post
Terminal Style : Flanged, Pin Retention
Pin Size - Above Flange : 0.058" (1.47mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.165" (4.18mm)
Length - Below Flange : 0.143" (3.63mm)
Length - Overall : 0.352" (8.94mm)
Flange Diameter : 0.110" (2.79mm)
Mounting Hole Diameter : 0.059" ~ 0.062" (1.50mm ~ 1.57mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 15.0µin (0.38µm)

0

6407 in stock
