Part Number

Manufacturer

Description

Unit Price

In Stock

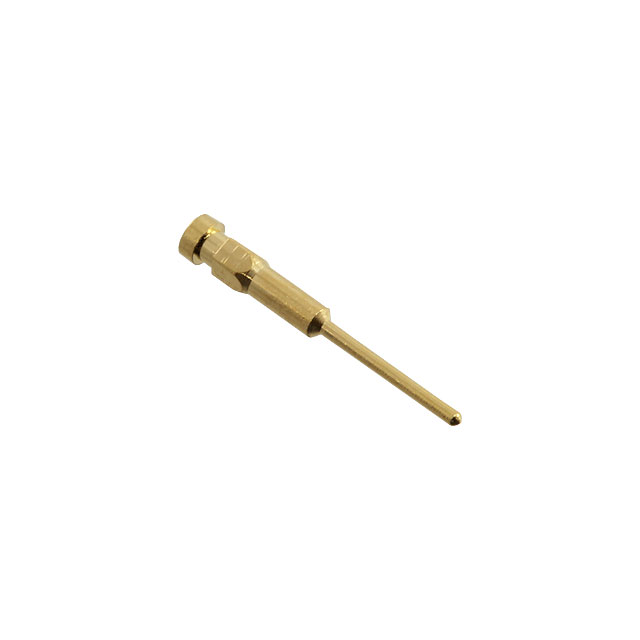

0522-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0522
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.340" (8.64mm)
Length - Below Flange : -
Length - Overall : 0.360" (9.14mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.042" (1.07mm)
Mounting Type : Through Hole
Termination : Press-Fit, Pentagon
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

14285 in stock

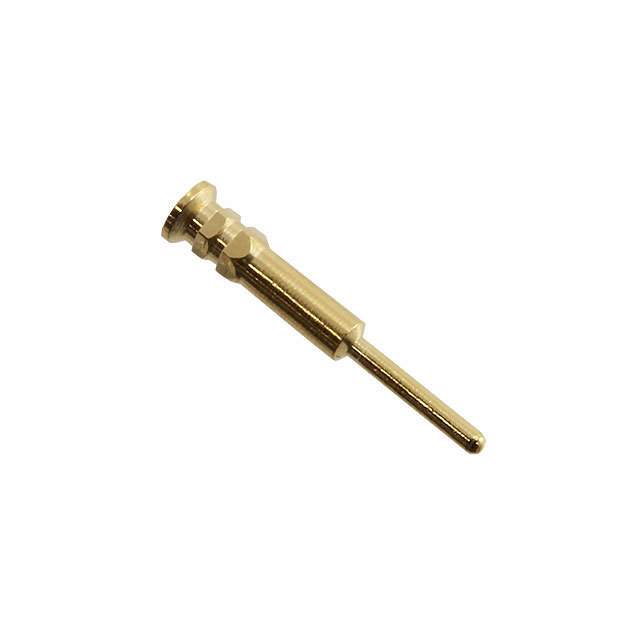

0542-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0542
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.279" (7.09mm)
Length - Below Flange : -
Length - Overall : 0.295" (7.49mm)
Flange Diameter : 0.055" (1.40mm)
Mounting Hole Diameter : 0.039" (0.99mm)
Mounting Type : Through Hole
Termination : Press-Fit, Hex
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1406 in stock

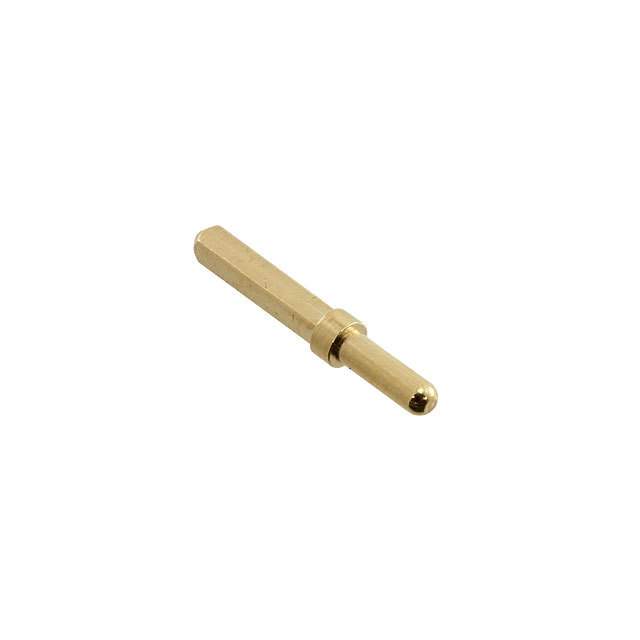

0600-0-05-15-00-00-01-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0600
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.048" (1.22mm) Dia
Pin Size - Below Flange : 0.047" (1.19mm) Square
Length - Above Flange : 0.150" (3.81mm)
Length - Below Flange : 0.250" (6.35mm)
Length - Overall : 0.440" (11.18mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

11730 in stock

0600-0-05-21-00-00-01-0

Mill-Max

1000 in stock

0912-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0912
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.053" (1.35mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.282" (7.16mm)
Length - Below Flange : -
Length - Overall : 0.313" (7.95mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

995 in stock

0995-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0995
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.036" (0.91mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.281" (7.14mm)
Length - Below Flange : -
Length - Overall : 0.313" (7.95mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

995 in stock

0995-0-00-80-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0995
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.036" (0.91mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.281" (7.14mm)
Length - Below Flange : -
Length - Overall : 0.313" (7.95mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

12500 in stock

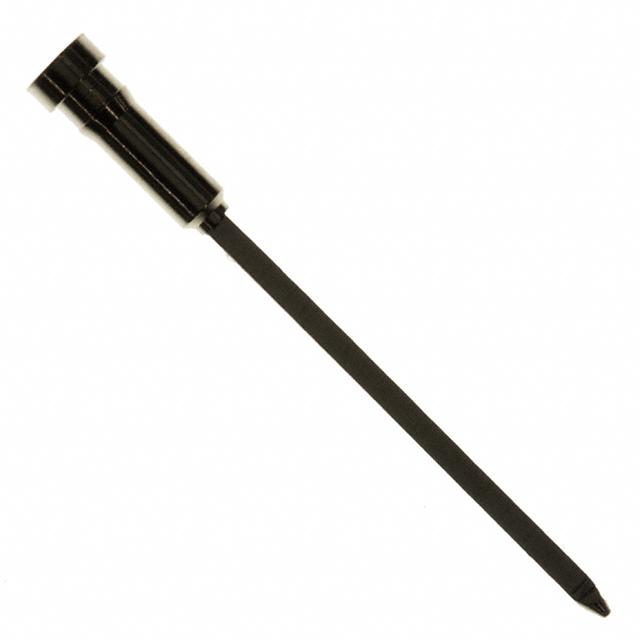

1010-3-05-15-00-00-01-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1010
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Square
Pin Size - Below Flange : -
Length - Above Flange : 0.663" (16.84mm)
Length - Below Flange : -
Length - Overall : 0.693" (17.60mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit, Wire Wrap
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

3420 in stock

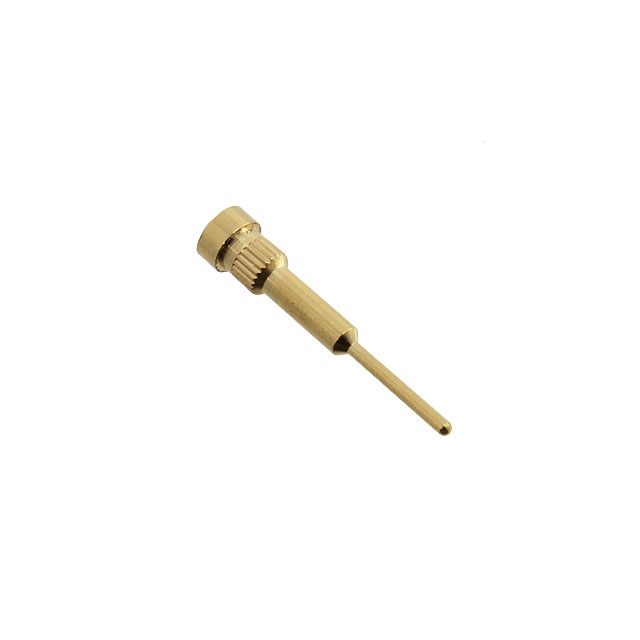

1067-1-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1067
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.340" (8.64mm)
Length - Below Flange : -
Length - Overall : 0.371" (9.42mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.055" (1.40mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

3724 in stock

1067-2-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1067
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.340" (8.64mm)
Length - Below Flange : -
Length - Overall : 0.371" (9.42mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.042" (1.07mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1000 in stock

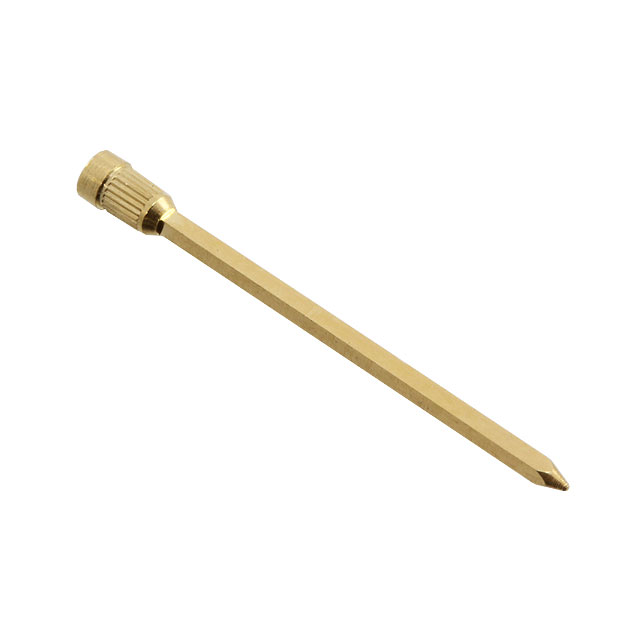

1094-0-05-15-00-00-01-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1094
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Square
Pin Size - Below Flange : -
Length - Above Flange : 0.680" (17.27mm)
Length - Below Flange : -
Length - Overall : 0.710" (18.03mm)
Flange Diameter : 0.065" (1.65mm)
Mounting Hole Diameter : 0.056" (1.42mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled, Wire Wrap
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1505 in stock

1097-0-05-21-00-00-01-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1097
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.045" (1.14mm) Square
Pin Size - Below Flange : -
Length - Above Flange : 0.749" (19.02mm)
Length - Below Flange : -
Length - Overall : 0.799" (20.29mm)
Flange Diameter : 0.114" (2.90mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage, Wire Wrap
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

1000 in stock
