Part Number

Manufacturer

Description

Unit Price

In Stock

3231-2-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3231
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.375" (9.53mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.494" (12.55mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

875 in stock

3231-2-00-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3231
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.375" (9.53mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.494" (12.55mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

0

800 in stock

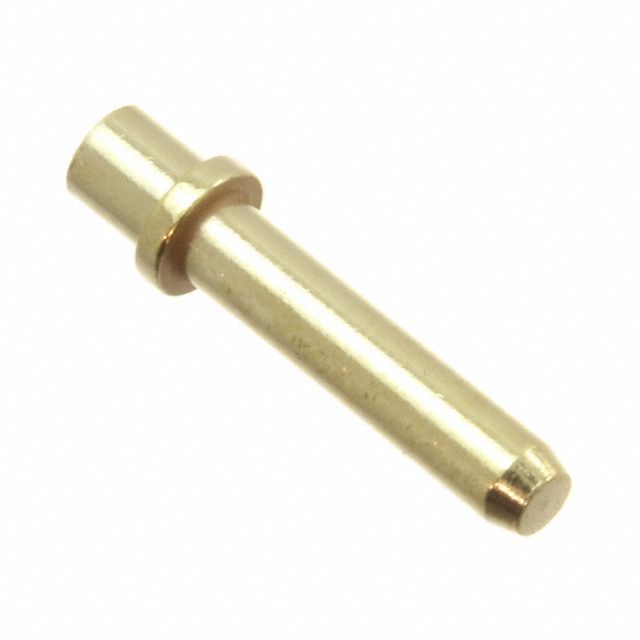

3231-2-00-34-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3231
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.375" (9.53mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.494" (12.55mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

0

500 in stock

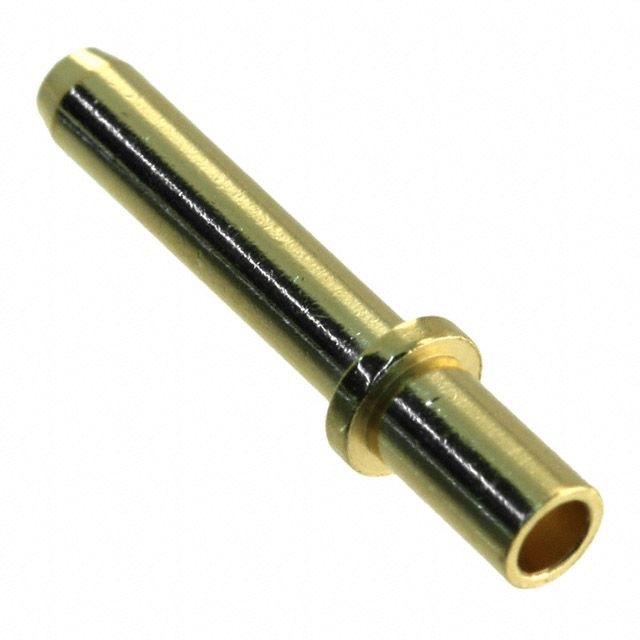

3231-4-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3231
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.375" (9.53mm)
Length - Below Flange : 0.156" (3.96mm)
Length - Overall : 0.556" (14.12mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.125" (3.18mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

4125 in stock

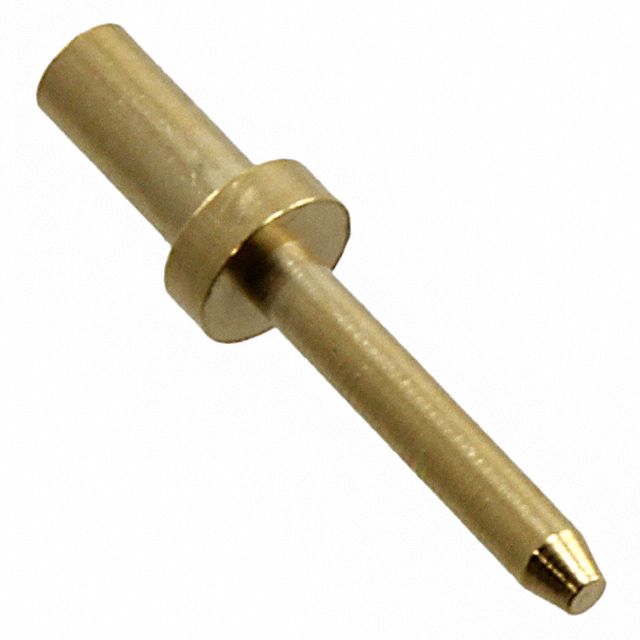

3232-3-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3232
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.240" (6.10mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.395" (10.03mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : 0.062" (1.57mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

2003 in stock

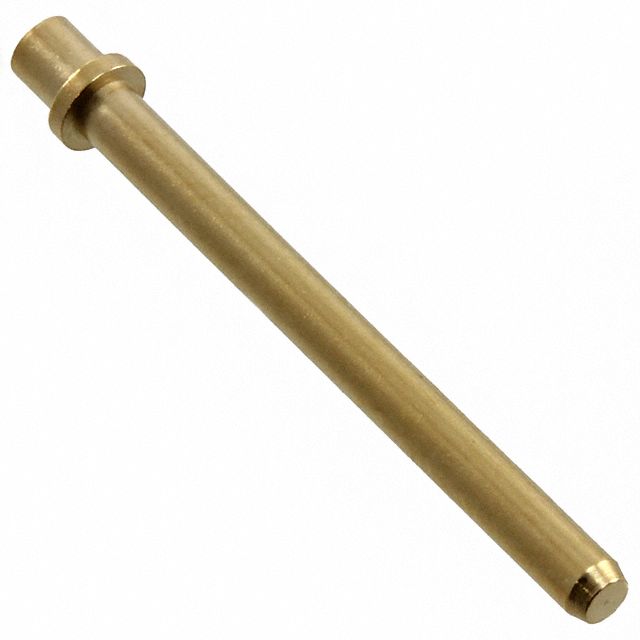

3233-2-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3233
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.900" (22.86mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 1.019" (25.88mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

617 in stock

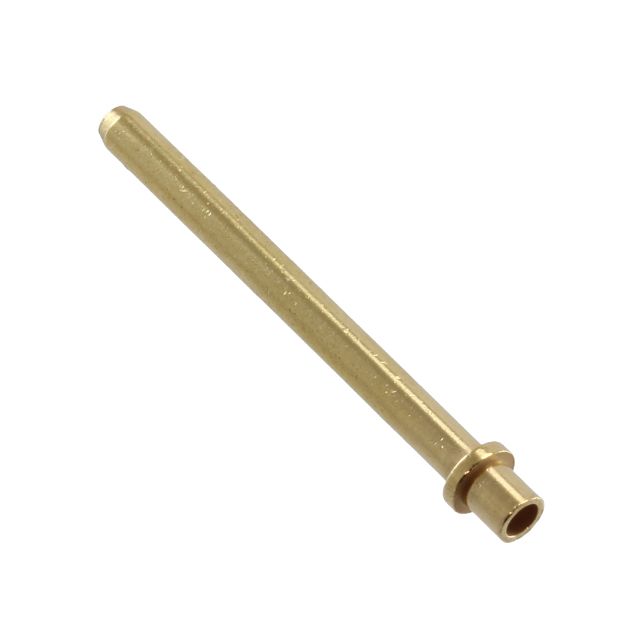

3233-2-00-34-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3233
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.900" (22.86mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 1.019" (25.88mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

0

980 in stock

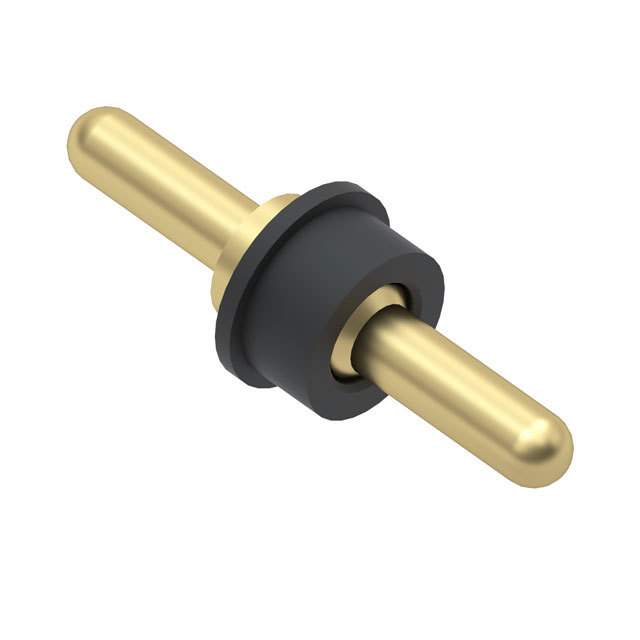

330-10-001-00-770800

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 330
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.040" (1.02mm) Dia
Length - Above Flange : 0.125" (3.18mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.330" (8.38mm)
Flange Diameter : 0.110" (2.79mm)
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

1587 in stock

3301-2-14-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3301
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : -
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : -
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole, Right Angle
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

1000 in stock

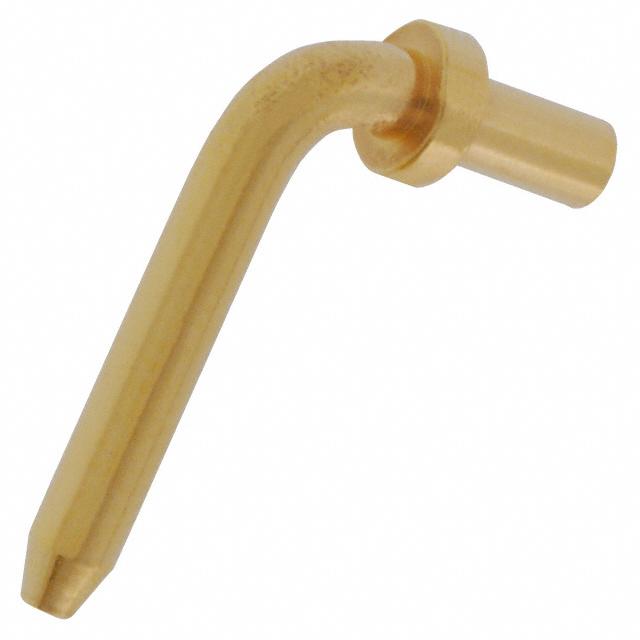

3301-2-14-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3301
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : -
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : -
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole, Right Angle
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

0

14487 in stock

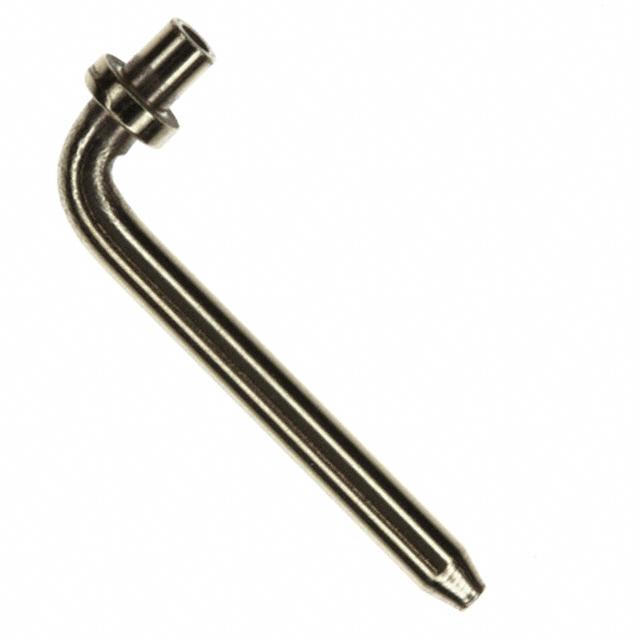

3303-1-14-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3303
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : -
Length - Below Flange : 0.051" (1.30mm)
Length - Overall : -
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole, Right Angle
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

618 in stock

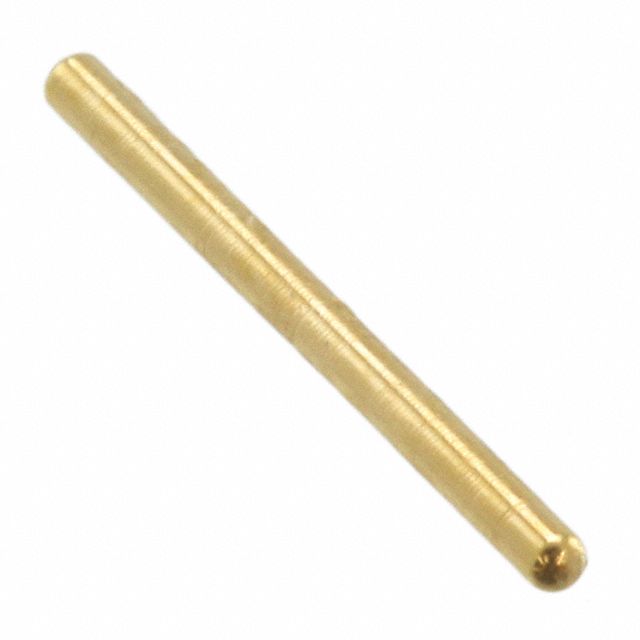

3320-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3320
Part Status : Active
Terminal Type : Single Post
Terminal Style : Smooth
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : -
Length - Below Flange : -
Length - Overall : 0.250" (6.35mm)
Flange Diameter : -
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

13116 in stock
