Part Number

Manufacturer

Description

Unit Price

In Stock

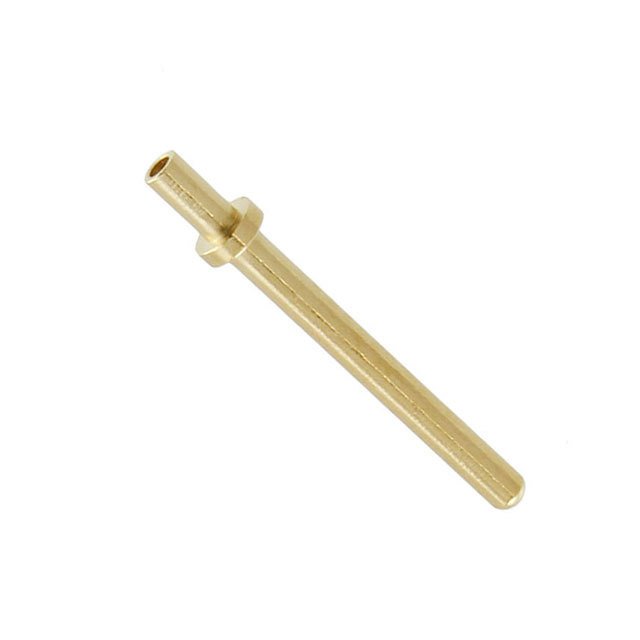

3149-2-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3149
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.380" (9.65mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.482" (12.24mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

27247 in stock

3149-2-00-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3149
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.380" (9.65mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.482" (12.24mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

0

1000 in stock

3149-2-00-34-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3149
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.380" (9.65mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.482" (12.24mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

0

1000 in stock

3150-2-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3150
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.030" (0.76mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.580" (14.73mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.682" (17.32mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

2829 in stock

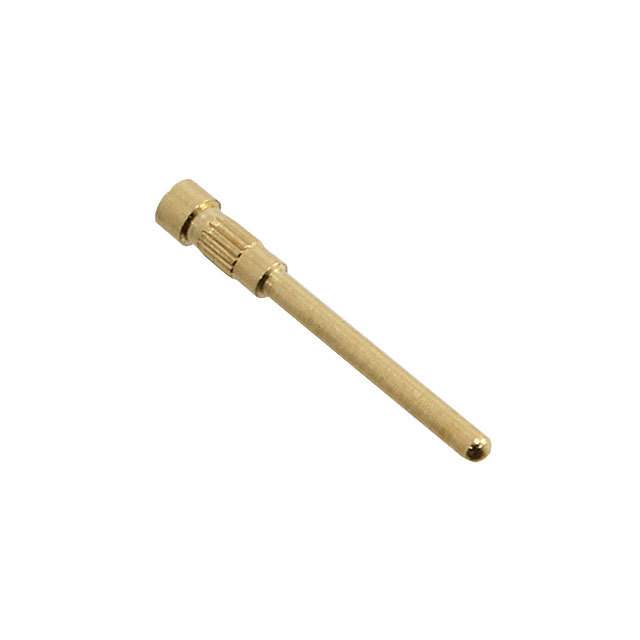

3154-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3154
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.240" (6.10mm)
Length - Below Flange : -
Length - Overall : 0.260" (6.60mm)
Flange Diameter : 0.032" (0.81mm)
Mounting Hole Diameter : 0.026" (0.66mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

15660 in stock

3155-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3155
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : 0.025" (0.64mm) Dia
Length - Above Flange : 0.180" (4.57mm)
Length - Below Flange : 0.060" (1.52mm)
Length - Overall : 0.290" (7.37mm)
Flange Diameter : 0.045" (1.14mm)
Mounting Hole Diameter : 0.026" (0.66mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

775 in stock

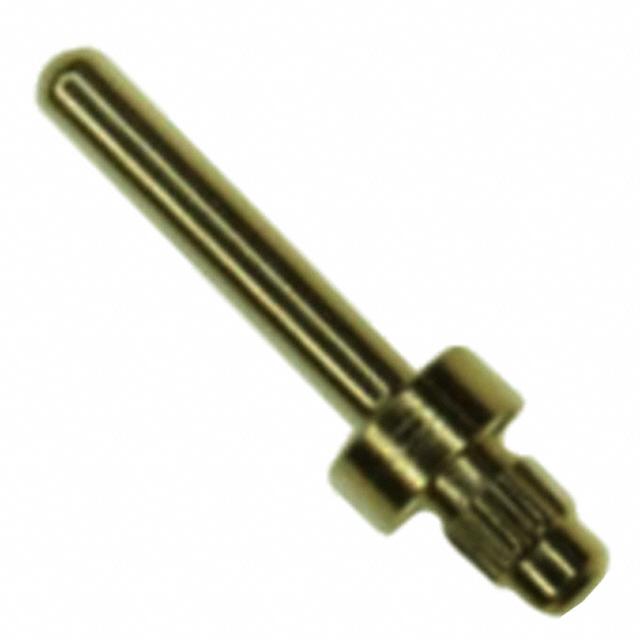

3157-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3157
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : 0.023" (0.58mm) Dia
Length - Above Flange : 0.125" (3.18mm)
Length - Below Flange : 0.045" (1.14mm)
Length - Overall : 0.190" (4.83mm)
Flange Diameter : 0.045" (1.14mm)
Mounting Hole Diameter : 0.026" (0.66mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

22285 in stock

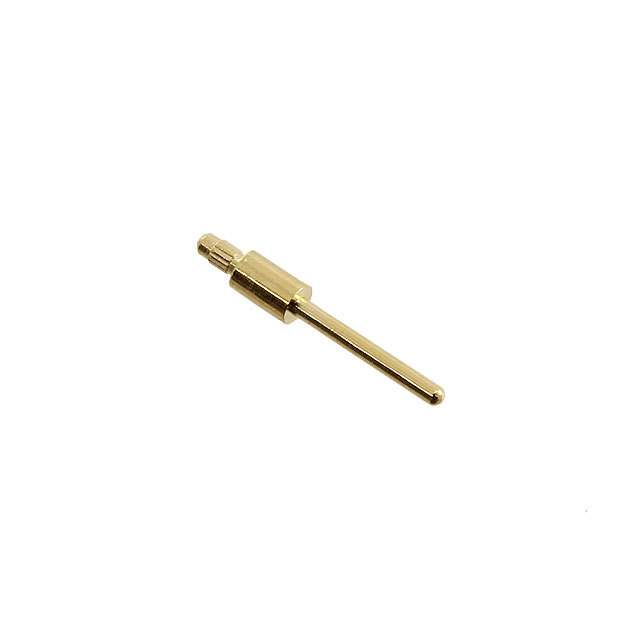

3158-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3158
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : 0.022" (0.56mm) Dia
Length - Above Flange : 0.160" (4.06mm)
Length - Below Flange : 0.050" (1.27mm)
Length - Overall : 0.270" (6.86mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

8845 in stock

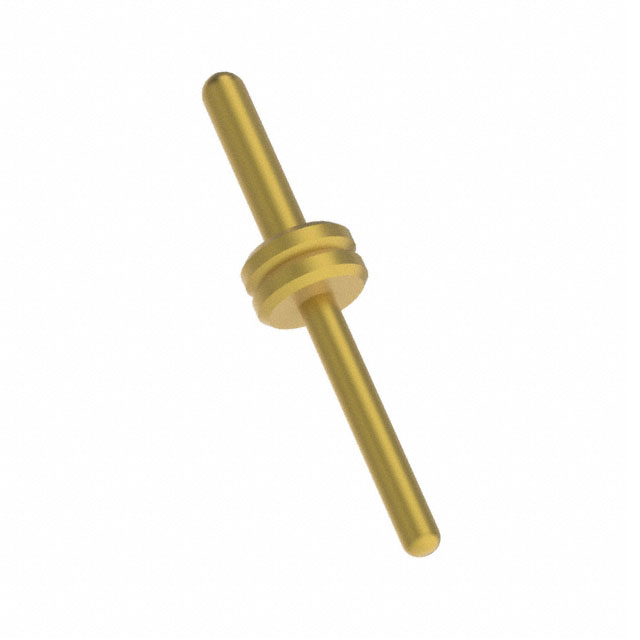

3169-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3169
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.022" (0.56mm) Dia
Pin Size - Below Flange : 0.018" (0.46mm) Dia
Length - Above Flange : 0.100" (2.54mm)
Length - Below Flange : 0.132" (3.35mm)
Length - Overall : 0.262" (6.65mm)
Flange Diameter : 0.056" (1.42mm)
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

955 in stock

3169-0-61-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tape & Reel (TR)
Series : 3169
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.022" (0.56mm) Dia
Pin Size - Below Flange : 0.018" (0.46mm) Dia
Length - Above Flange : 0.100" (2.54mm)
Length - Below Flange : 0.132" (3.35mm)
Length - Overall : 0.262" (6.65mm)
Flange Diameter : 0.056" (1.42mm)
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

100 in stock

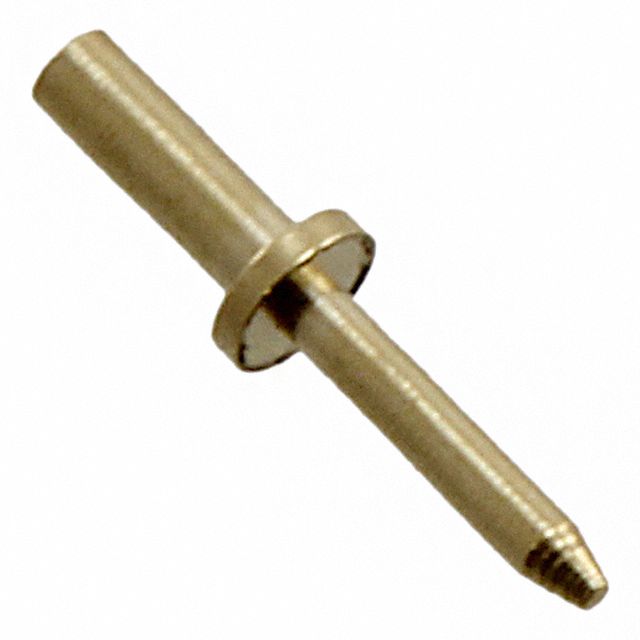

3210-2-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3210
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.120" (3.05mm)
Length - Below Flange : 0.085" (2.16mm)
Length - Overall : 0.215" (5.46mm)
Flange Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.031" (0.79mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

5564 in stock

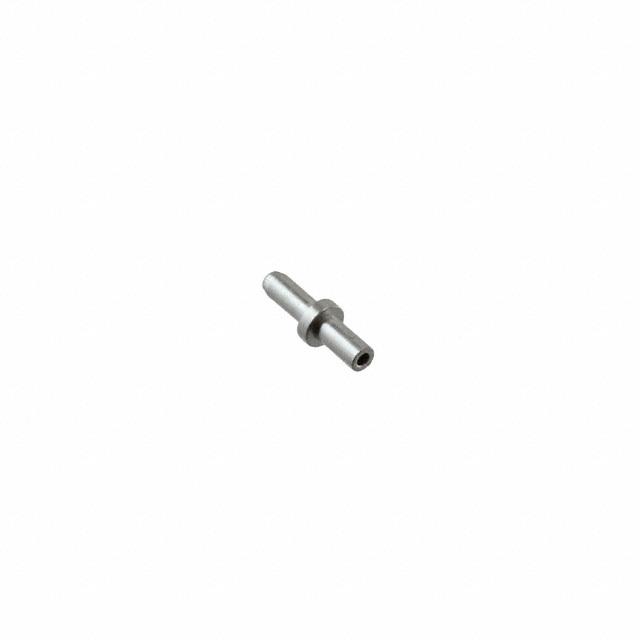

3221-2-00-80-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3221
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.039" (0.99mm) Dia
Pin Size - Below Flange : 0.040" (1.02mm) Dia
Length - Above Flange : 0.082" (2.08mm)
Length - Below Flange : 0.150" (3.81mm)
Length - Overall : 0.252" (6.40mm)
Flange Diameter : 0.070" (1.78mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

265 in stock
