Part Number

Manufacturer

Description

Unit Price

In Stock

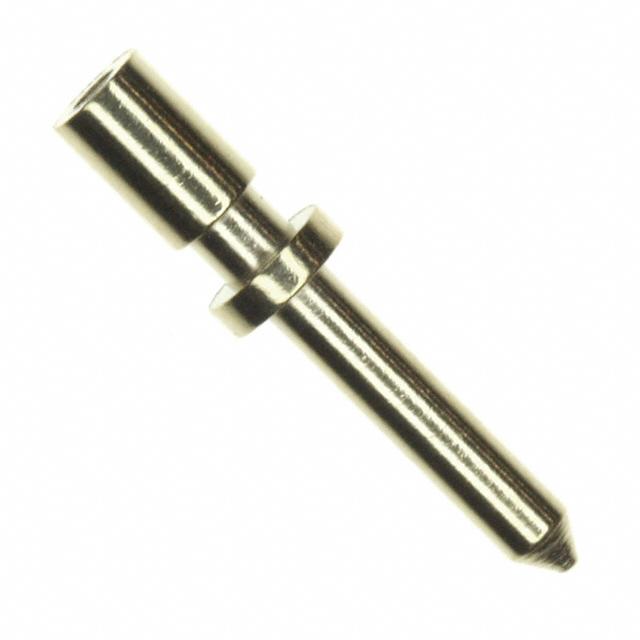

3139-0-00-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3139
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.049" (1.24mm) Dia
Pin Size - Below Flange : 0.071" (1.80mm) Dia
Length - Above Flange : 0.249" (6.32mm)
Length - Below Flange : 0.156" (3.96mm)
Length - Overall : 0.430" (10.92mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

1498 in stock

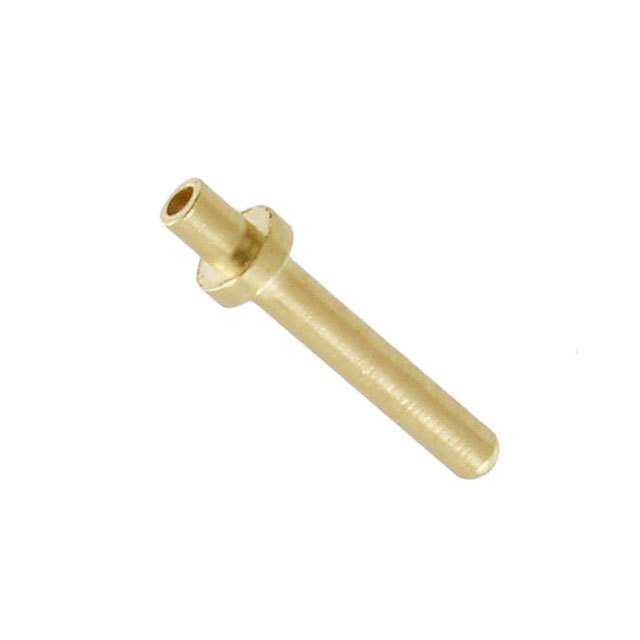

3141-1-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3141
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.230" (5.84mm)
Length - Below Flange : 0.051" (1.30mm)
Length - Overall : 0.301" (7.65mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

5149 in stock

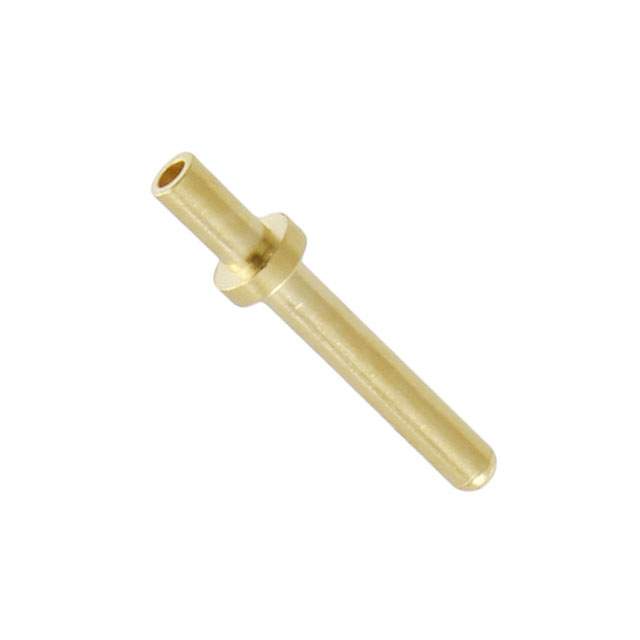

3141-2-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3141
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.230" (5.84mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.332" (8.43mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

7056 in stock

3141-2-00-34-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3141
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.230" (5.84mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.332" (8.43mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

1000 in stock

3142-2-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3142
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.094" (2.39mm)
Length - Below Flange : 0.150" (3.81mm)
Length - Overall : 0.274" (6.96mm)
Flange Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.062" (1.57mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

950 in stock

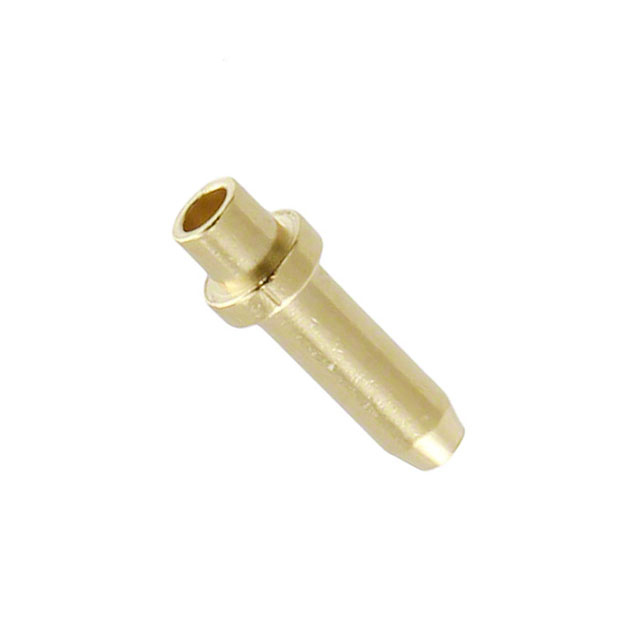

3144-1-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3144
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.053" (1.35mm)
Length - Overall : 0.266" (6.76mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

9787 in stock

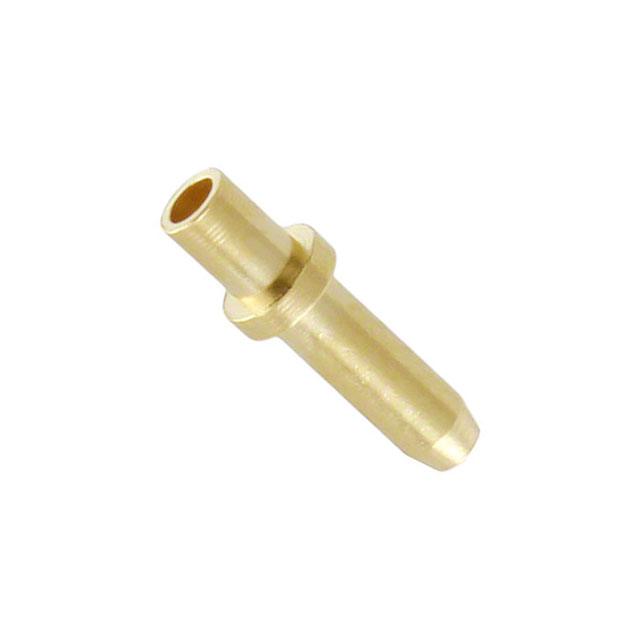

3144-2-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3144
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.297" (7.54mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

4128 in stock

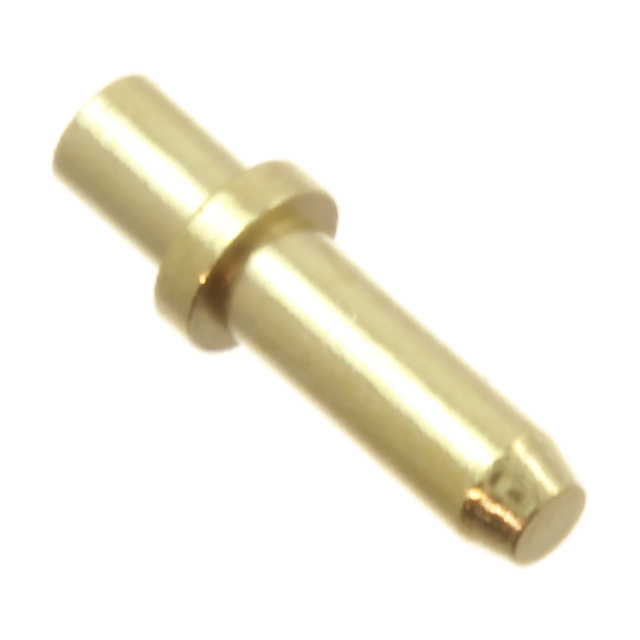

3144-2-00-21-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3144
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.297" (7.54mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

1370 in stock

3144-2-00-34-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3144
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.062" (1.57mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.297" (7.54mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

995 in stock

3145-2-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3145
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.041" (1.04mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.187" (4.75mm)
Length - Below Flange : 0.085" (2.16mm)
Length - Overall : 0.297" (7.54mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : 0.076" (1.93mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1000 in stock

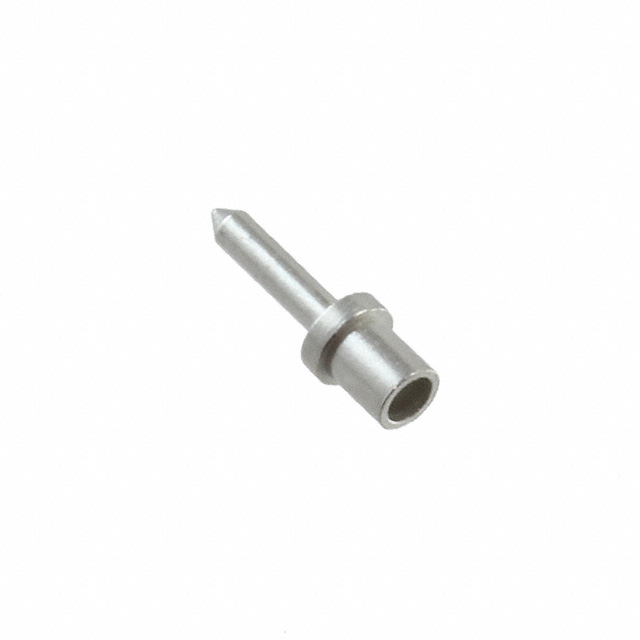

3145-2-00-80-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3145
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.041" (1.04mm) Dia
Pin Size - Below Flange : 0.072" (1.83mm) Dia
Length - Above Flange : 0.187" (4.75mm)
Length - Below Flange : 0.085" (2.16mm)
Length - Overall : 0.297" (7.54mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : 0.062" (1.57mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

1000 in stock

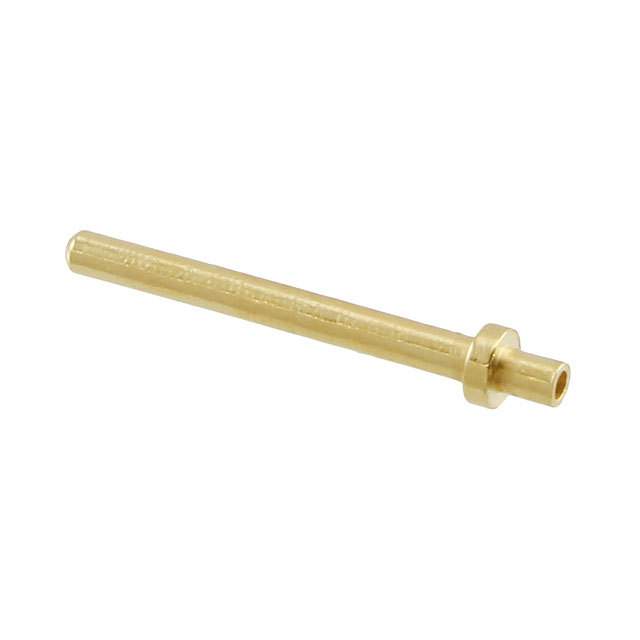

3149-1-00-15-00-00-08-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3149
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.380" (9.65mm)
Length - Below Flange : 0.051" (1.30mm)
Length - Overall : 0.451" (11.46mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.031" (0.79mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

34657 in stock
