Part Number
Manufacturer
Description
Unit Price
In Stock
3121-2-00-80-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.075" (1.91mm)
Length - Overall : 0.248" (6.30mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.040" (1.02mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Packaging : Bulk
Series : 3121
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.075" (1.91mm)
Length - Overall : 0.248" (6.30mm)
Flange Diameter : 0.040" (1.02mm)
Mounting Hole Diameter : 0.023" (0.58mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.040" (1.02mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
1000 in stock

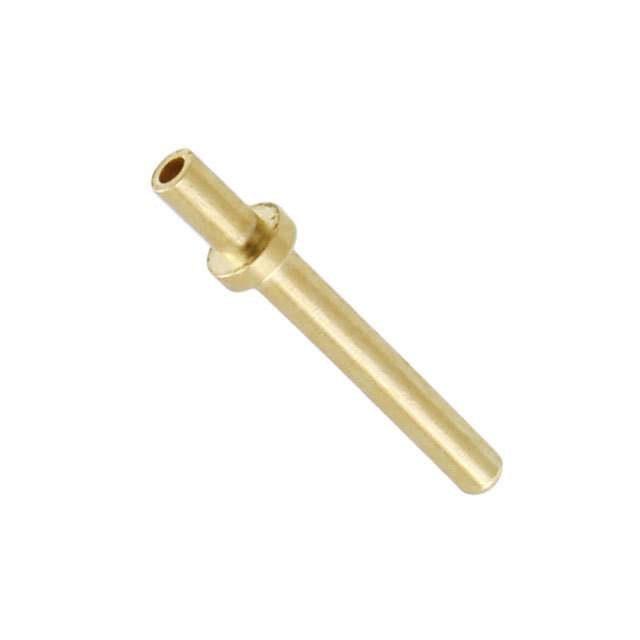

3122-2-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3122
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.280" (7.11mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.382" (9.70mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3122
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.280" (7.11mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.382" (9.70mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
2465 in stock

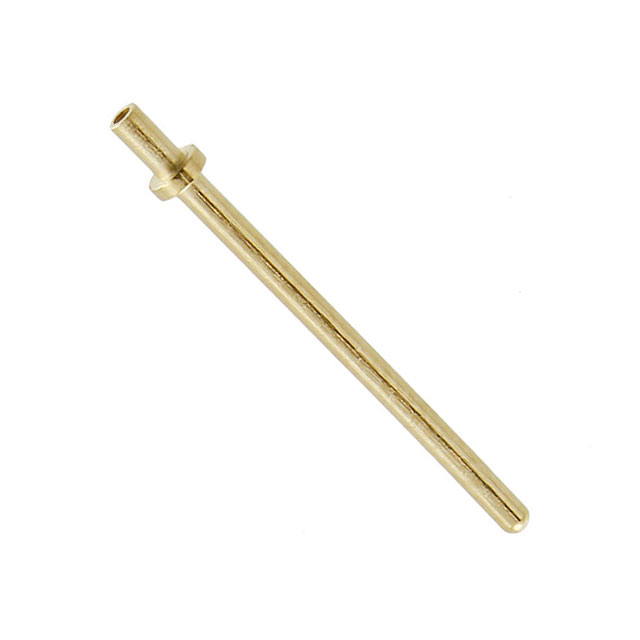

3123-2-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3123
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.580" (14.73mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.682" (17.32mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3123
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.580" (14.73mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.682" (17.32mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
3211 in stock

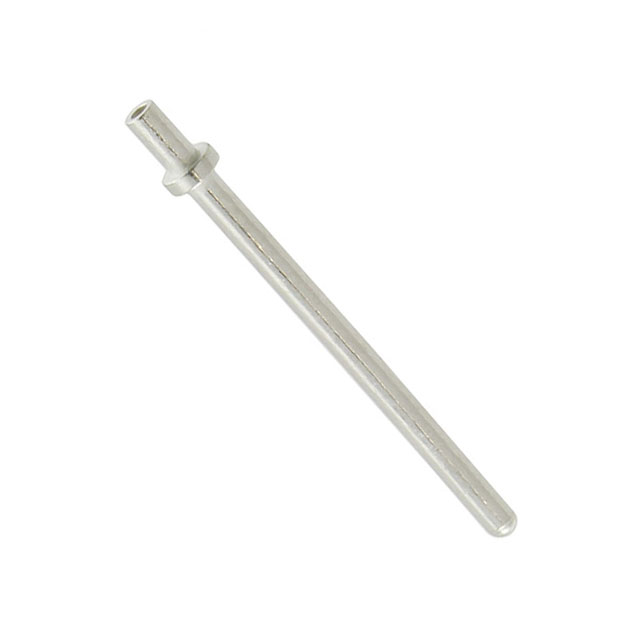

3123-2-00-80-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3123
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.580" (14.73mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.682" (17.32mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Packaging : Bulk
Series : 3123
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.580" (14.73mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.682" (17.32mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
921 in stock

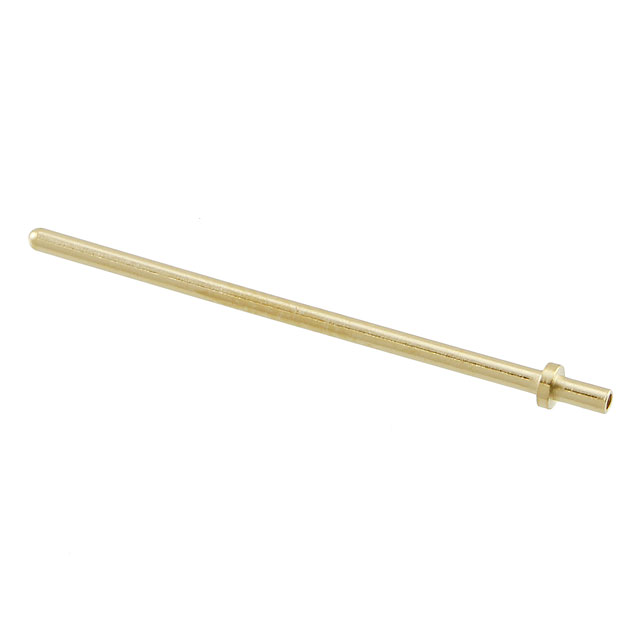

3124-2-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3124
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.880" (22.35mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.982" (24.94mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3124
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.880" (22.35mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.982" (24.94mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
1284 in stock

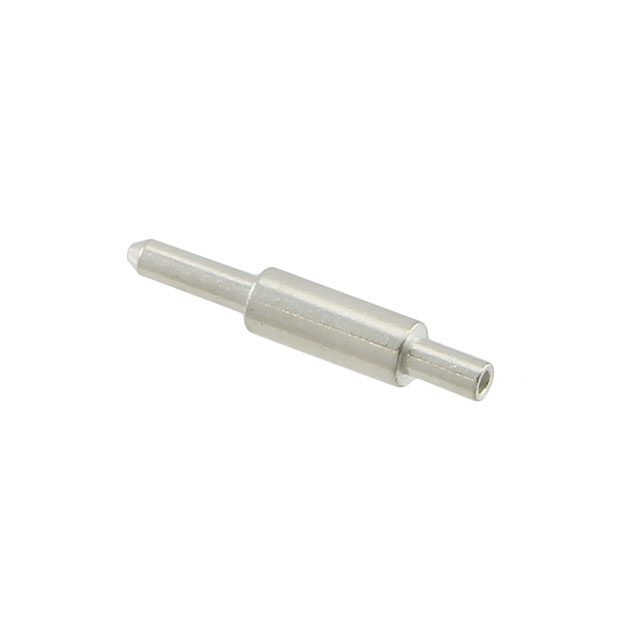

3125-2-00-80-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3125
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.150" (3.81mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.402" (10.20mm)
Flange Diameter : 0.071" (1.80mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Packaging : Bulk
Series : 3125
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.150" (3.81mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.402" (10.20mm)
Flange Diameter : 0.071" (1.80mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
60267 in stock
3125-3-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3125
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.150" (3.81mm)
Length - Below Flange : 0.113" (2.87mm)
Length - Overall : 0.433" (11.00mm)
Flange Diameter : 0.071" (1.80mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3125
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.150" (3.81mm)
Length - Below Flange : 0.113" (2.87mm)
Length - Overall : 0.433" (11.00mm)
Flange Diameter : 0.071" (1.80mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
1000 in stock
3126-2-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3126
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.150" (3.81mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.652" (16.56mm)
Flange Diameter : 0.071" (1.80mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3126
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.150" (3.81mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.652" (16.56mm)
Flange Diameter : 0.071" (1.80mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
1000 in stock

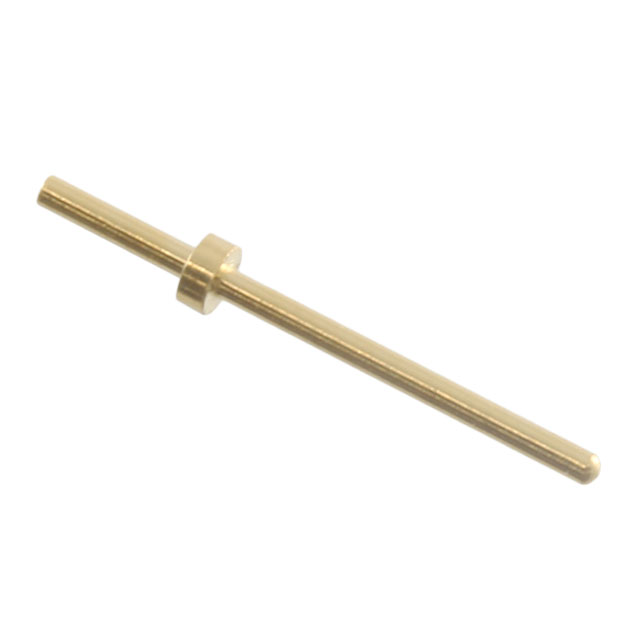

3128-1-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3128
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.250" (6.35mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.370" (9.40mm)
Flange Diameter : 0.046" (1.17mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3128
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.250" (6.35mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.370" (9.40mm)
Flange Diameter : 0.046" (1.17mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
94904 in stock
3128-1-00-34-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3128
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.250" (6.35mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.370" (9.40mm)
Flange Diameter : 0.046" (1.17mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)
Packaging : Bulk
Series : 3128
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.250" (6.35mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.370" (9.40mm)
Flange Diameter : 0.046" (1.17mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)
0
1000 in stock
3128-1-00-80-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3128
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.250" (6.35mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 1.270" (32.26mm)
Flange Diameter : 0.046" (1.17mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Packaging : Bulk
Series : 3128
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.250" (6.35mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 1.270" (32.26mm)
Flange Diameter : 0.046" (1.17mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
1000 in stock

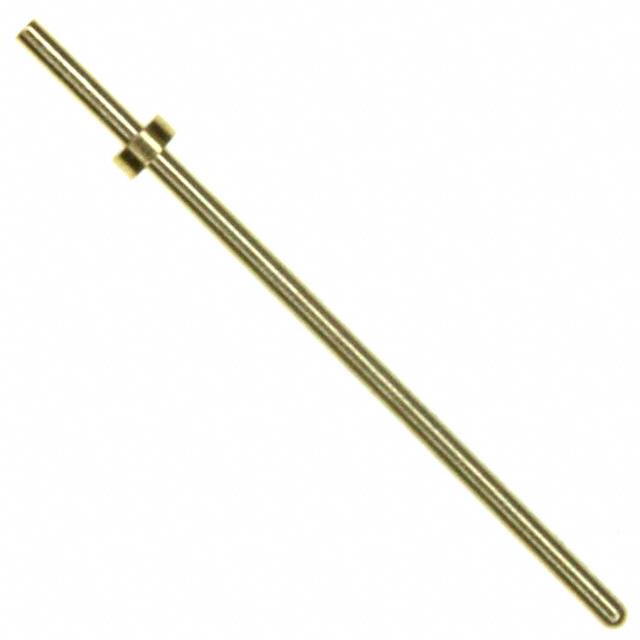

3128-2-00-15-00-00-08-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3128
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.425" (10.80mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.545" (13.84mm)
Flange Diameter : 0.046" (1.17mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Bulk
Series : 3128
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.425" (10.80mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.545" (13.84mm)
Flange Diameter : 0.046" (1.17mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
119106 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
