Part Number

Manufacturer

Description

Unit Price

In Stock

0257-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0257
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.266" (6.76mm)
Length - Below Flange : -
Length - Overall : 0.297" (7.54mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

990 in stock

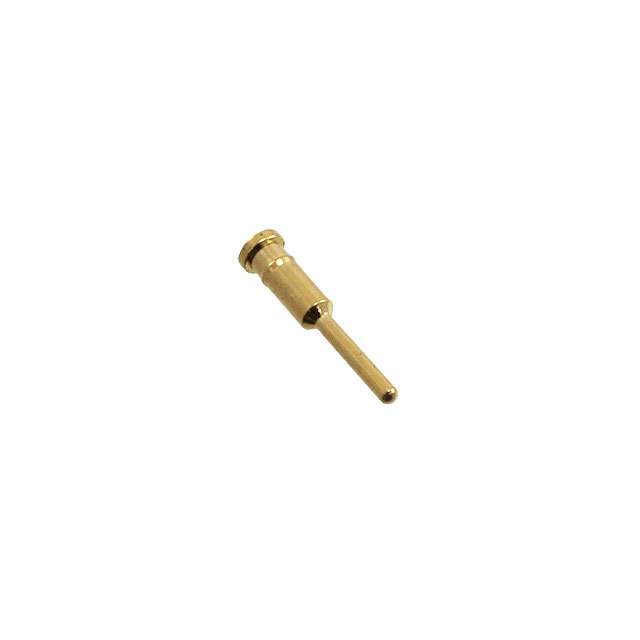

0257-0-00-21-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0257
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.266" (6.76mm)
Length - Below Flange : -
Length - Overall : 0.297" (7.54mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

0

12500 in stock

0257-0-00-34-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0257
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.266" (6.76mm)
Length - Below Flange : -
Length - Overall : 0.297" (7.54mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

0

995 in stock

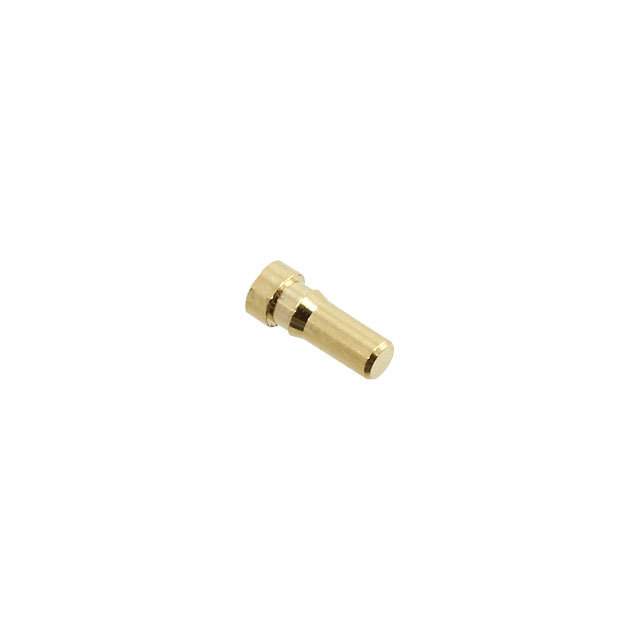

0259-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0259
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.053" (1.35mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.142" (3.61mm)
Length - Below Flange : -
Length - Overall : 0.173" (4.39mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

4004 in stock

0265-0-01-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0265
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.072" (1.83mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.260" (6.60mm)
Length - Overall : 0.417" (10.59mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

1000 in stock

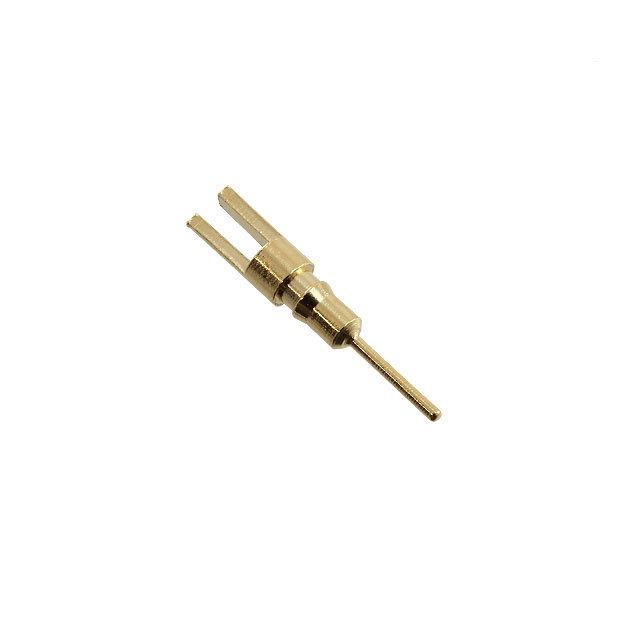

0270-0-01-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0270
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.072" (1.83mm) Dia
Pin Size - Below Flange : 0.018" (0.46mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.259" (6.58mm)
Length - Overall : 0.416" (10.57mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

5085 in stock

0272-0-01-80-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0272
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.072" (1.83mm) Dia
Pin Size - Below Flange : 0.018" (0.46mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.259" (6.58mm)
Length - Overall : 0.416" (10.57mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

0

1000 in stock

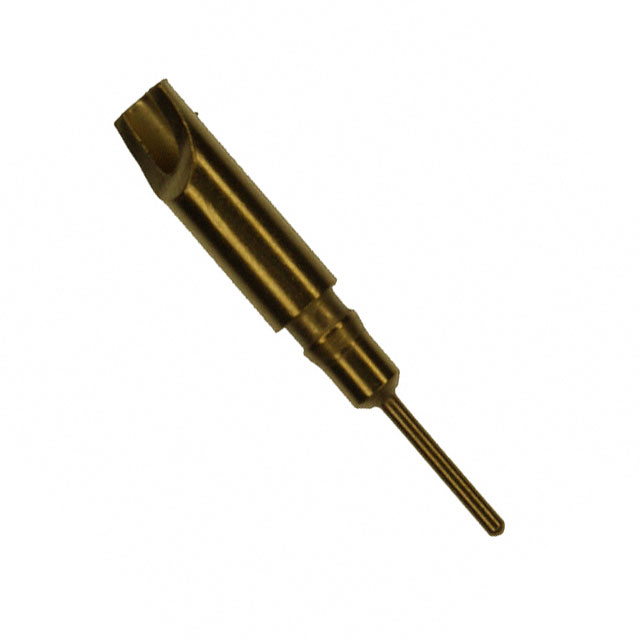

0275-0-01-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0275
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.259" (6.58mm)
Length - Below Flange : -
Length - Overall : 0.491" (12.47mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

1173 in stock

0286-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0286
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.053" (1.35mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.084" (2.13mm)
Length - Below Flange : -
Length - Overall : 0.115" (2.92mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

995 in stock

0286-0-00-34-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0286
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.053" (1.35mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.084" (2.13mm)
Length - Below Flange : -
Length - Overall : 0.115" (2.92mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

0

1000 in stock

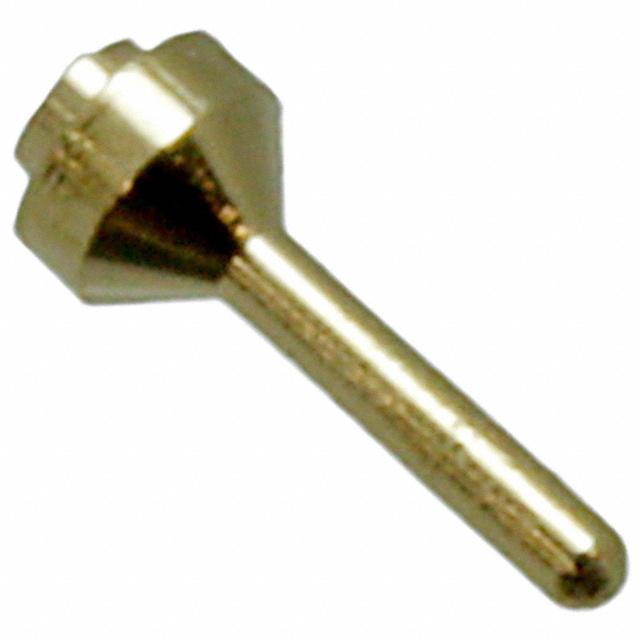

0508-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0508
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : -
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.125" (3.18mm)
Length - Below Flange : -
Length - Overall : 0.155" (3.94mm)
Flange Diameter : 0.058" (1.47mm)
Mounting Hole Diameter : -
Mounting Type : Surface Mount
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

0

15980 in stock

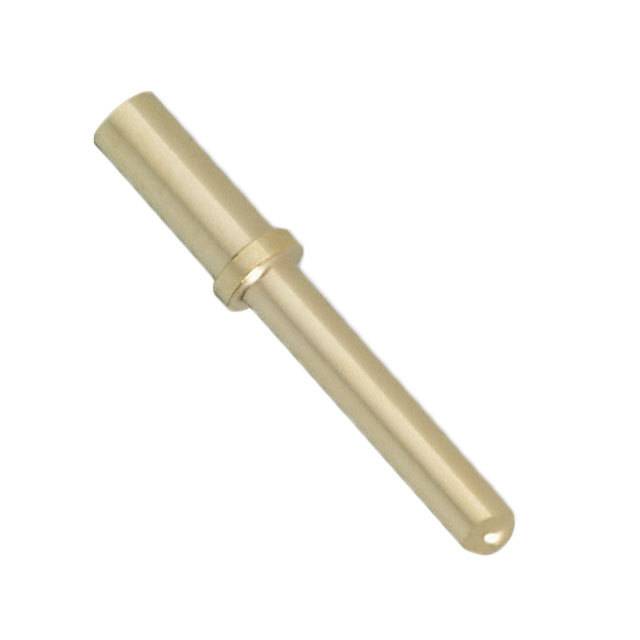

0520-0-00-21-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0520
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Wire
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : 0.100" (2.54mm) Dia
Length - Above Flange : 0.460" (11.68mm)
Length - Below Flange : 0.250" (6.35mm)
Length - Overall : 0.740" (18.80mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : -
Mounting Type : Free Hanging (In-Line)
Termination : Crimp
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 20.0µin (0.51µm)

0

10282 in stock
