- Connectors, Interconnects
- Terminals - PC Pin Receptacles, Socket Connectors
Part Number
Manufacturer
Description
Unit Price
In Stock

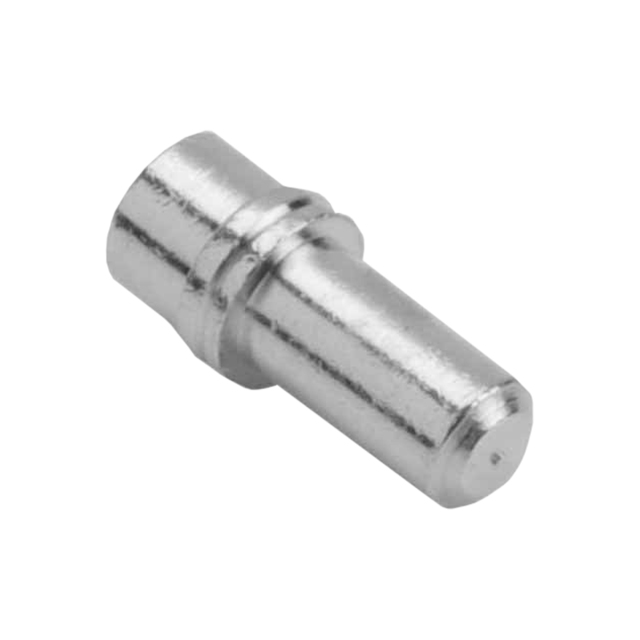

H8505-01
Harwin
Manufacturer : Harwin Inc.
Packaging : Bulk
Series : -
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.232" (5.89mm)
Accepts Pin Diameter : 0.023" ~ 0.033" (0.60mm ~ 0.85mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.075" ~ 0.079" (1.91mm ~ 2.01mm)
Flange Diameter : 0.105" (2.67mm)
Tail Diameter : -
Socket Depth : 0.130" (3.30mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 5.90µin (0.150µm)
Packaging : Bulk
Series : -
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.232" (5.89mm)
Accepts Pin Diameter : 0.023" ~ 0.033" (0.60mm ~ 0.85mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.075" ~ 0.079" (1.91mm ~ 2.01mm)
Flange Diameter : 0.105" (2.67mm)
Tail Diameter : -
Socket Depth : 0.130" (3.30mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 5.90µin (0.150µm)
0
660 in stock
MS02
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.221" (5.61mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.090" (2.29mm)
Tail Diameter : -
Socket Depth : 0.206" (5.23mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.221" (5.61mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.090" (2.29mm)
Tail Diameter : -
Socket Depth : 0.206" (5.23mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1291 in stock
MS04
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.213" (5.41mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.100" (2.54mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Packaging : Bulk
Series : Apex Precision Power®
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.213" (5.41mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.100" (2.54mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
783 in stock

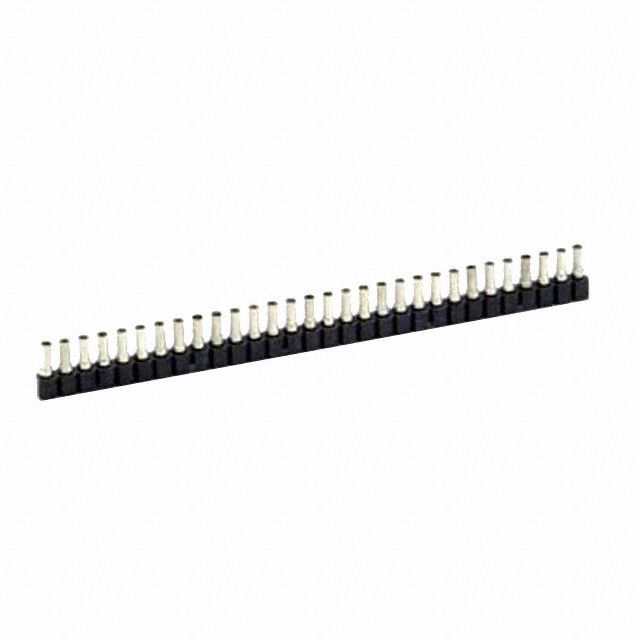

MS11
Apex Microtechnology
Manufacturer : Apex Microtechnology
Packaging : Strip
Series : Apex Precision Power®
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.155" (3.94mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : -
Mounting Hole Diameter : 0.059" ~ 0.061" (1.50mm ~ 1.55mm)
Flange Diameter : 0.076" (1.93mm)
Tail Diameter : -
Socket Depth : 0.155" (3.94mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Packaging : Strip
Series : Apex Precision Power®
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.155" (3.94mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : -
Mounting Hole Diameter : 0.059" ~ 0.061" (1.50mm ~ 1.55mm)
Flange Diameter : 0.076" (1.93mm)
Tail Diameter : -
Socket Depth : 0.155" (3.94mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
0
78 in stock

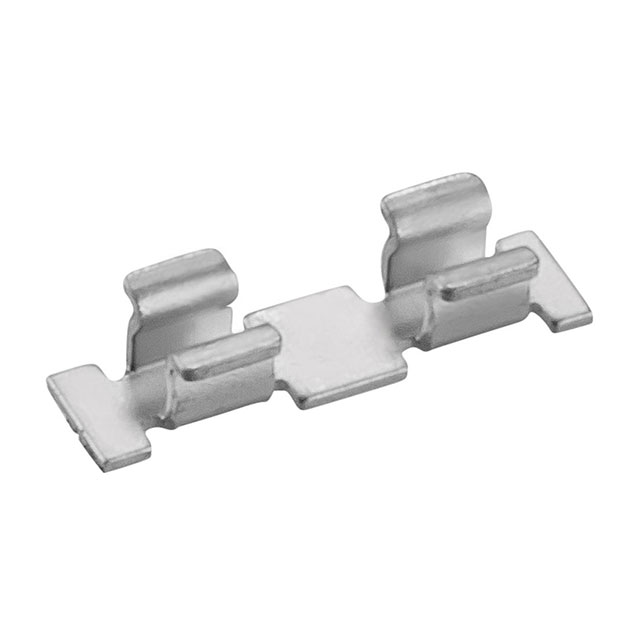

S8071-46R
Harwin
Manufacturer : Harwin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EZ-Board
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.177" (4.50mm)
Accepts Pin Diameter : 0.028" (0.70mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : -
Flange Diameter : -
Tail Diameter : -
Socket Depth : -
Contact Material : Stainless Steel
Contact Finish : Tin
Contact Finish Thickness : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EZ-Board
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.177" (4.50mm)
Accepts Pin Diameter : 0.028" (0.70mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : -
Flange Diameter : -
Tail Diameter : -
Socket Depth : -
Contact Material : Stainless Steel
Contact Finish : Tin
Contact Finish Thickness : -
0
4048 in stock

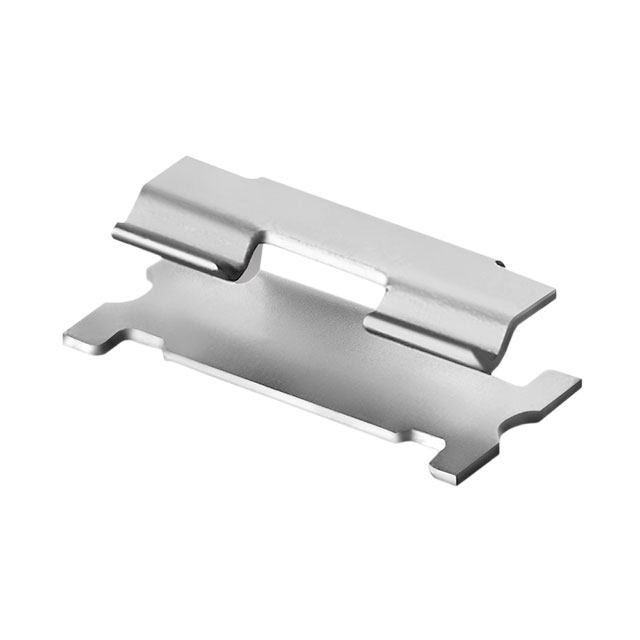

S8081-46R
Harwin
Manufacturer : Harwin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EZ-Board
Part Status : Discontinued at
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.110" (2.79mm)
Accepts Pin Diameter : 0.028" (0.70mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : -
Flange Diameter : -
Tail Diameter : -
Socket Depth : -
Contact Material : Stainless Steel
Contact Finish : Tin
Contact Finish Thickness : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EZ-Board
Part Status : Discontinued at
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.110" (2.79mm)
Accepts Pin Diameter : 0.028" (0.70mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : -
Flange Diameter : -
Tail Diameter : -
Socket Depth : -
Contact Material : Stainless Steel
Contact Finish : Tin
Contact Finish Thickness : -
0
8790 in stock

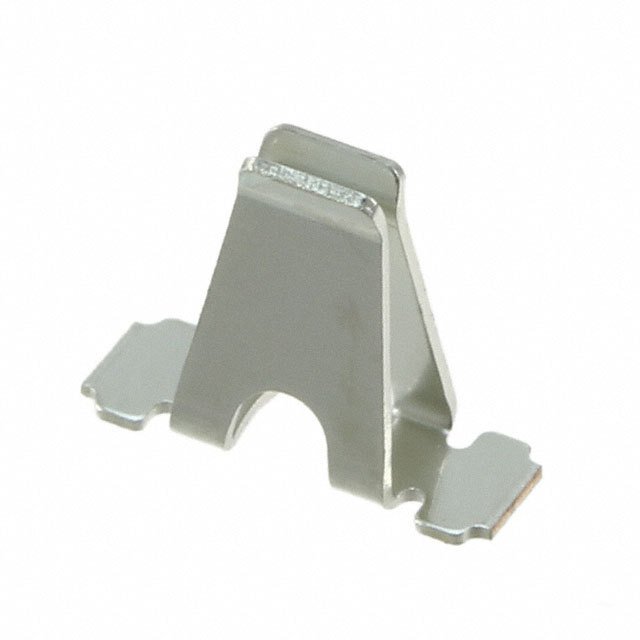

S9091-46R
Harwin
Manufacturer : Harwin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EZ-Board
Part Status : Active
Tail Type : Clip
Termination : Surface Mount - Bottom Entry
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.031" ~ 0.059" (0.79mm ~ 1.50mm)
Accepts Square Pin Size : 0.031" ~ 0.059" (0.79mm ~ 1.50mm)
Pin Hole Diameter : -
Mounting Hole Diameter : 0.150" (3.81mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.137" (3.48mm)
Contact Material : Phosphor Bronze
Contact Finish : Tin
Contact Finish Thickness : 160.0µin (4.06µm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EZ-Board
Part Status : Active
Tail Type : Clip
Termination : Surface Mount - Bottom Entry
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.031" ~ 0.059" (0.79mm ~ 1.50mm)
Accepts Square Pin Size : 0.031" ~ 0.059" (0.79mm ~ 1.50mm)
Pin Hole Diameter : -
Mounting Hole Diameter : 0.150" (3.81mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.137" (3.48mm)
Contact Material : Phosphor Bronze
Contact Finish : Tin
Contact Finish Thickness : 160.0µin (4.06µm)
0
6392 in stock

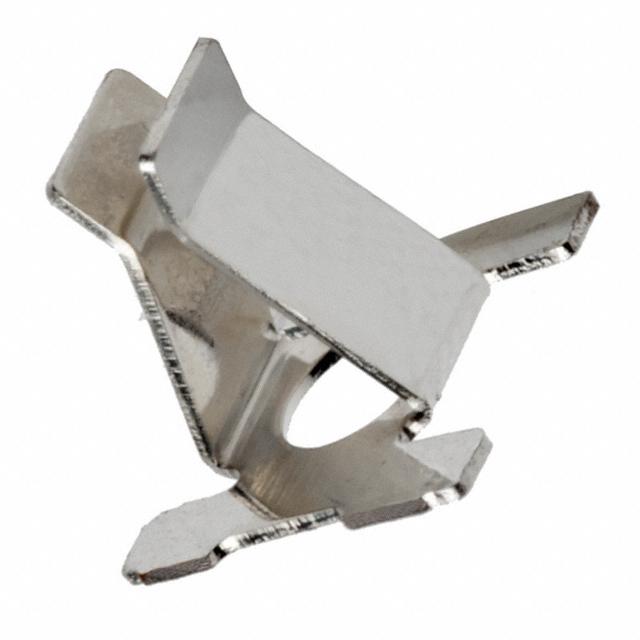

S9101-46R
Harwin
Manufacturer : Harwin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EZ-Board
Part Status : Active
Tail Type : Clip
Termination : Surface Mount
Length - Overall : 0.177" (4.50mm)
Accepts Pin Diameter : 0.043" ~ 0.071" (1.10mm ~ 1.80mm)
Accepts Square Pin Size : 0.043" ~ 0.055" (1.10mm ~ 1.40mm)
Pin Hole Diameter : 0.079" (2.00mm)
Mounting Hole Diameter : 0.158" (4.01mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.138" (3.51mm)
Contact Material : Phosphor Bronze
Contact Finish : Tin
Contact Finish Thickness : 157.5µin (4.00µm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EZ-Board
Part Status : Active
Tail Type : Clip
Termination : Surface Mount
Length - Overall : 0.177" (4.50mm)
Accepts Pin Diameter : 0.043" ~ 0.071" (1.10mm ~ 1.80mm)
Accepts Square Pin Size : 0.043" ~ 0.055" (1.10mm ~ 1.40mm)
Pin Hole Diameter : 0.079" (2.00mm)
Mounting Hole Diameter : 0.158" (4.01mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.138" (3.51mm)
Contact Material : Phosphor Bronze
Contact Finish : Tin
Contact Finish Thickness : 157.5µin (4.00µm)
0
12337 in stock

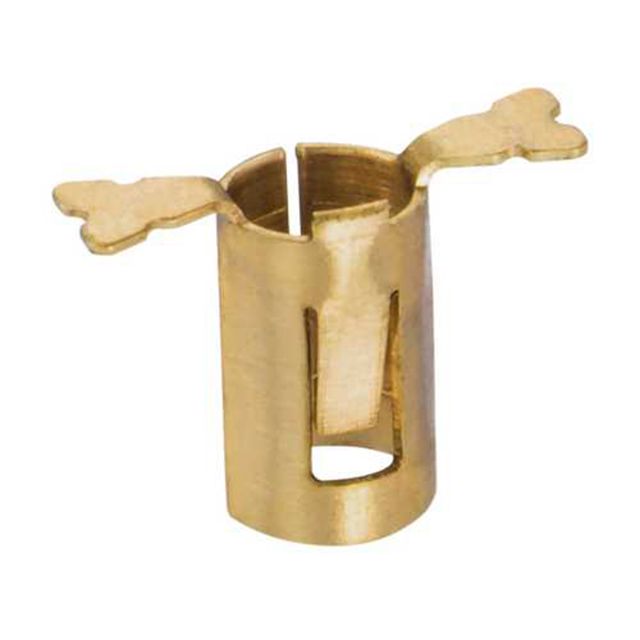

S9111-45R
Harwin
Manufacturer : Harwin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SYCAMORE
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.059" ~ 0.075" (1.50mm ~ 1.90mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.079" (2.00mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.108" (2.75mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SYCAMORE
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.059" ~ 0.075" (1.50mm ~ 1.90mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.079" (2.00mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.108" (2.75mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
0
2295 in stock

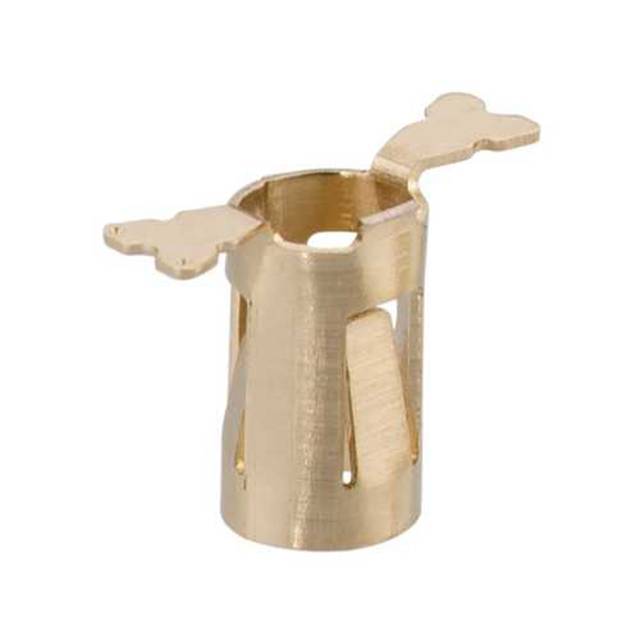

S9121-45R
Harwin
Manufacturer : Harwin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SYCAMORE
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount - Bottom Entry
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.059" ~ 0.075" (1.50mm ~ 1.90mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.079" (2.00mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.103" (2.62mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SYCAMORE
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount - Bottom Entry
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.059" ~ 0.075" (1.50mm ~ 1.90mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.079" (2.00mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.103" (2.62mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
0
3297 in stock
S9131-45R
Harwin
Manufacturer : Harwin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SYCAMORE
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.031" ~ 0.051" (0.80mm ~ 1.30mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.079" (2.00mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.105" (2.67mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SYCAMORE
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.031" ~ 0.051" (0.80mm ~ 1.30mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.079" (2.00mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.105" (2.67mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
0
2828 in stock
S9141-45R
Harwin
Manufacturer : Harwin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SYCAMORE
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount - Bottom Entry
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.031" ~ 0.051" (0.80mm ~ 1.30mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.079" (2.00mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.101" (2.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SYCAMORE
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount - Bottom Entry
Length - Overall : 0.160" (4.06mm)
Accepts Pin Diameter : 0.031" ~ 0.051" (0.80mm ~ 1.30mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.079" (2.00mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.101" (2.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 3.90µin (0.099µm)
0
7151 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
