Part Number

Manufacturer

Description

Unit Price

In Stock

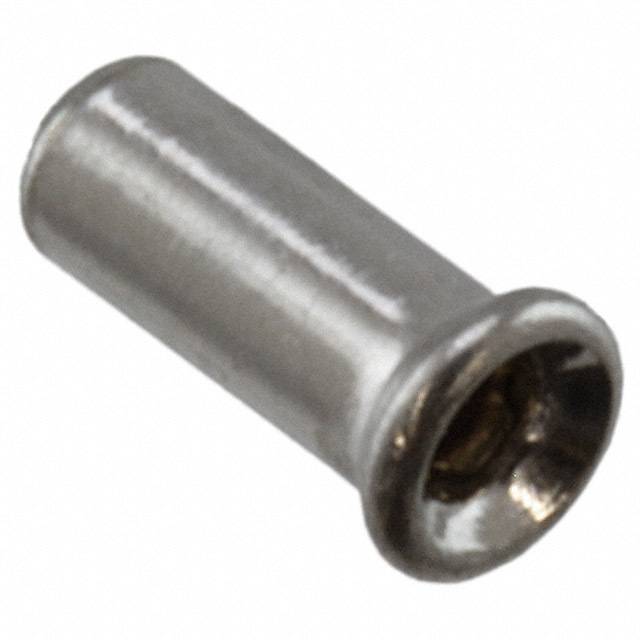

3-5331272-5

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : 2
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.138" (3.51mm)
Accepts Pin Diameter : 0.022" ~ 0.025" (0.56mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.052" (1.32mm)
Flange Diameter : 0.070" (1.77mm)
Tail Diameter : -
Socket Depth : 0.125" (3.18mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

12377 in stock

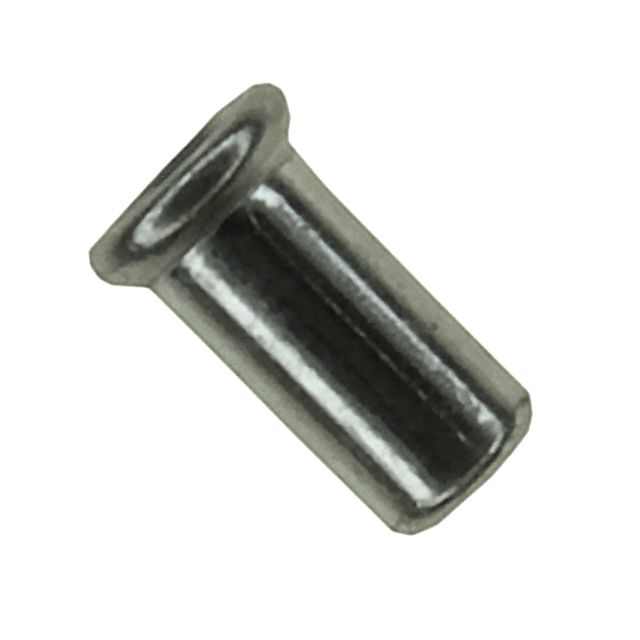

3-5331677-8

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : -
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.138" (3.51mm)
Accepts Pin Diameter : 0.026" ~ 0.029" (0.66mm ~ 0.74mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.062" ~ 0.063" (1.57mm ~ 1.60mm)
Flange Diameter : 0.080" (2.03mm)
Tail Diameter : -
Socket Depth : 0.125" (3.18mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

19635 in stock

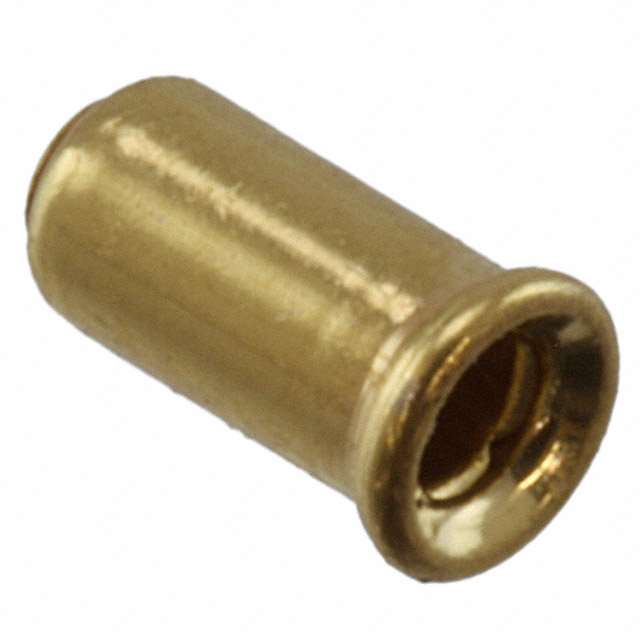

3-5332070-5

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : 4
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.143" (3.63mm)
Accepts Pin Diameter : 0.037" ~ 0.040" (0.94mm ~ 1.02mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.072" (1.83mm)
Flange Diameter : 0.089" (2.26mm)
Tail Diameter : -
Socket Depth : 0.130" (3.30mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

2179 in stock

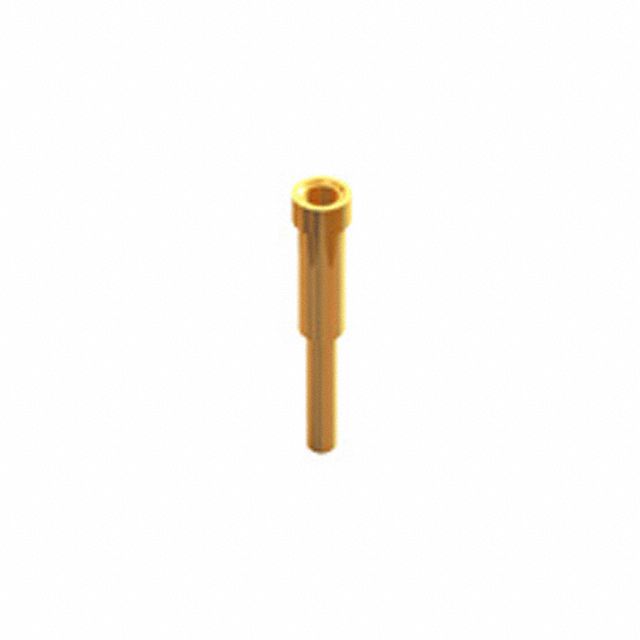

3590

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.397" (10.10mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.065" (1.65mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : 0.062" (1.57mm)
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1573 in stock

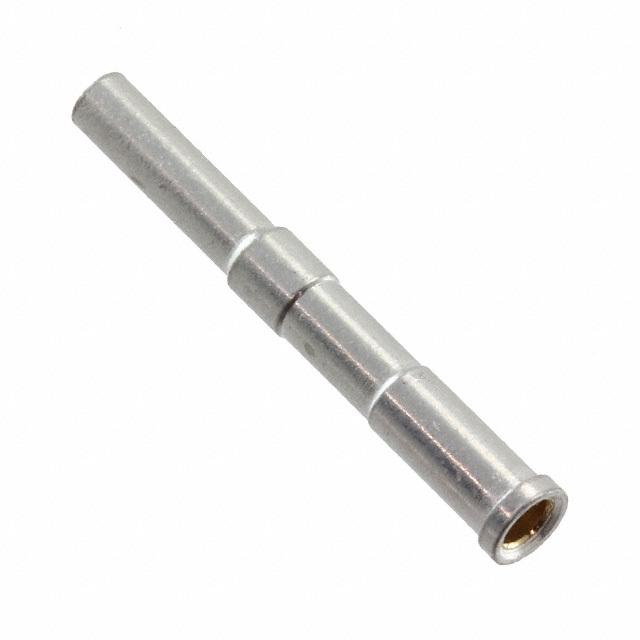

3667-0-19-80-23-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3667
Part Status : Active
Tail Type : Standard Tail
Termination : Wire Wrap
Length - Overall : 0.875" (22.23mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.065" (1.65mm)
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : 0.091" (2.31mm)
Socket Depth : 0.108" (2.75mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

980 in stock

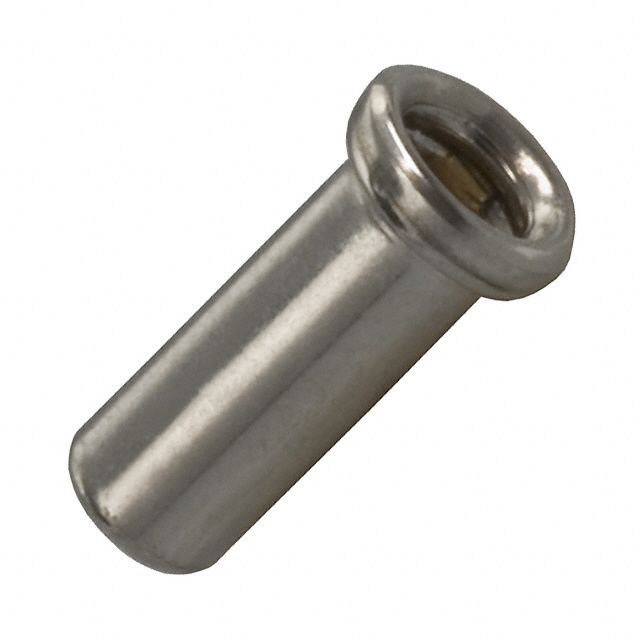

380635-1

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : -
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.236" (6.00mm)
Accepts Pin Diameter : 0.018" ~ 0.040" (0.46mm ~ 1.02mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.048" (1.22mm)
Mounting Hole Diameter : 0.086" ~ 0.089" (2.18mm ~ 2.26mm)
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : -
Socket Depth : 0.145" (3.68mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

330 in stock

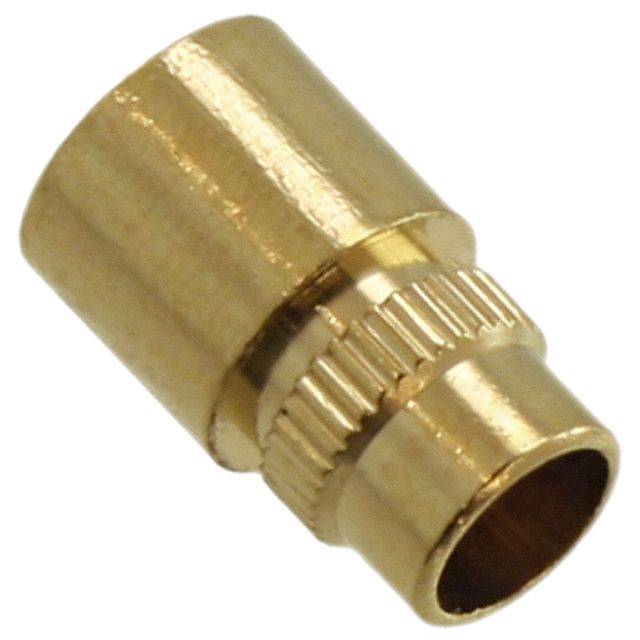

3808-0-15-15-02-14-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3808
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Knurled
Length - Overall : 0.175" (4.45mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.105" (2.67mm)
Tail Diameter : -
Socket Depth : 0.175" (4.45mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1757 in stock

3808-0-15-15-02-27-10-0

Mill-Max

2617 in stock

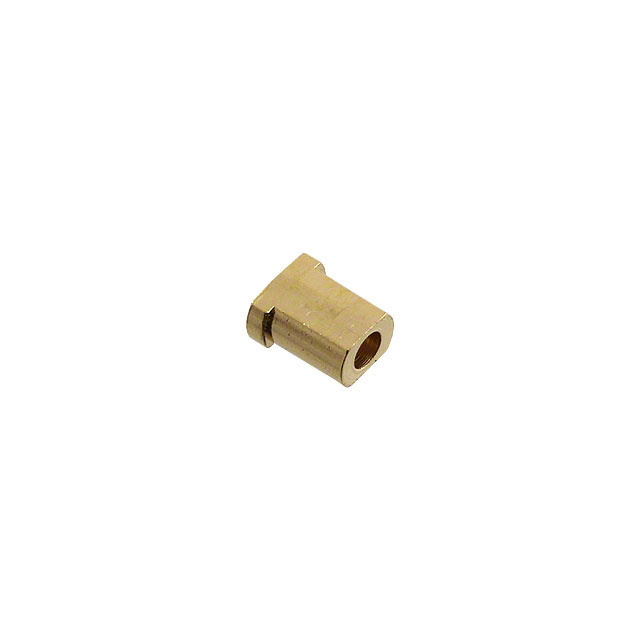

3907-0-18-15-30-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3907
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount
Length - Overall : 0.115" (2.92mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : -
Flange Diameter : 0.100" (2.54mm)
Tail Diameter : -
Socket Depth : 0.115" (2.92mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1184 in stock

3907-0-18-80-30-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3907
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount
Length - Overall : 0.115" (2.92mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : -
Flange Diameter : 0.100" (2.54mm)
Tail Diameter : -
Socket Depth : 0.115" (2.92mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1000 in stock

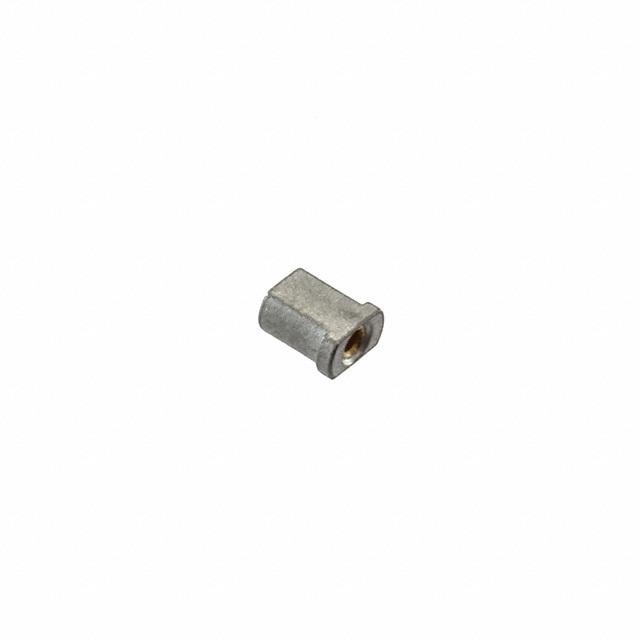

3907-0-18-80-30-84-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 3907
Part Status : Active
Tail Type : No Tail
Termination : Surface Mount
Length - Overall : 0.115" (2.92mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : -
Flange Diameter : 0.100" (2.54mm)
Tail Diameter : -
Socket Depth : 0.115" (2.92mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 100.0µin (2.54µm)

1000 in stock

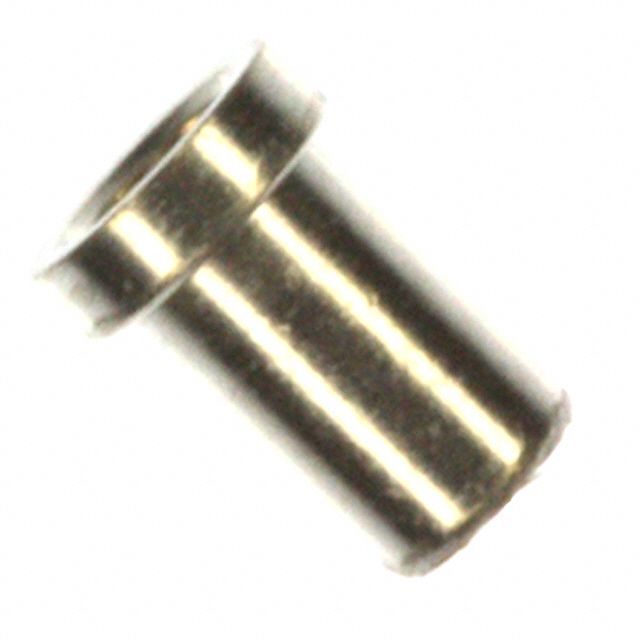

4015-0-67-80-30-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4015
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.100" (2.54mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.068" (1.73mm)
Tail Diameter : -
Socket Depth : 0.100" (2.54mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

86540 in stock
