Part Number

Manufacturer

Description

Unit Price

In Stock

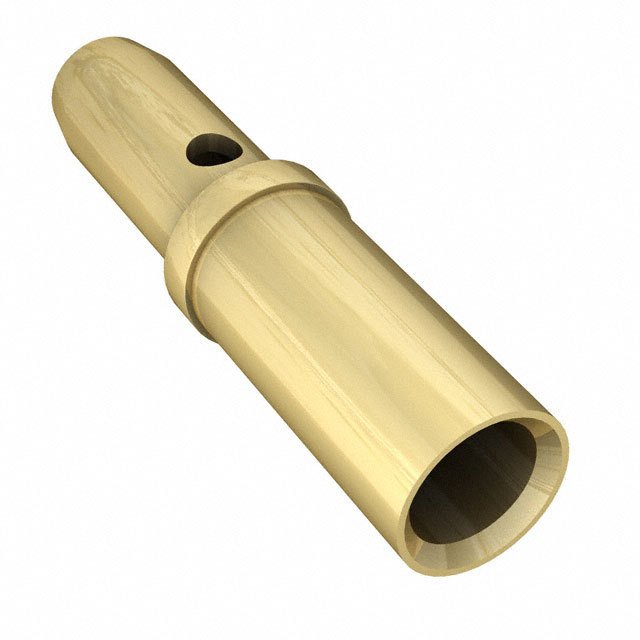

0714-0-33-15-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 714
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.518" (13.16mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : -
Flange Diameter : 0.132" (3.35mm)
Tail Diameter : -
Socket Depth : 0.214" (5.44mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

177 in stock

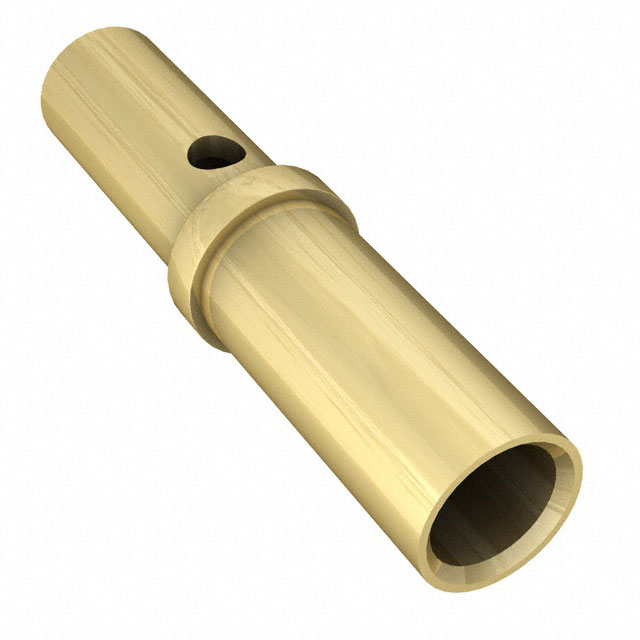

0716-0-33-15-23-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 716
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.518" (13.16mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : -
Flange Diameter : 0.129" (3.28mm)
Tail Diameter : -
Socket Depth : 0.214" (5.44mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

7592 in stock

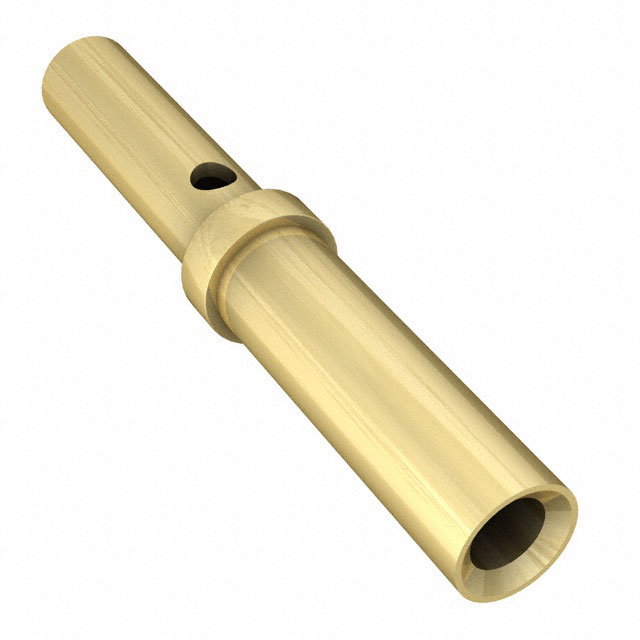

0720-0-33-15-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 720
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.518" (13.16mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : -
Flange Diameter : 0.093" (2.36mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1512 in stock

0722-0-33-15-47-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 722
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.518" (13.16mm)
Accepts Pin Diameter : 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size : 0.025" (0.64mm)
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : -
Flange Diameter : -
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1287 in stock

0740-0-18-80-34-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 740
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.425" (10.80mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.084" (2.13mm)
Tail Diameter : -
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

636 in stock

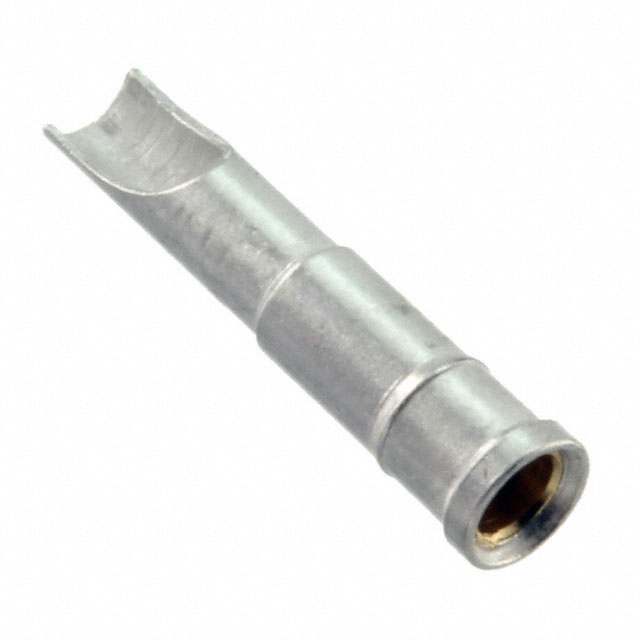

0760-0-18-80-13-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 760
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.520" (13.21mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.106" (2.69mm)
Flange Diameter : 0.119" (3.02mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

3226 in stock

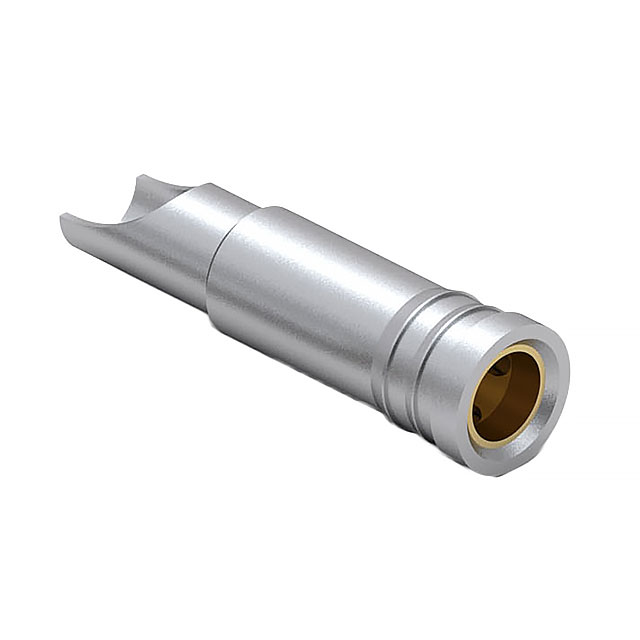

0778-0-18-80-07-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0778
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.585" (14.86mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.143" (3.63mm)
Flange Diameter : 0.156" (3.96mm)
Tail Diameter : -
Socket Depth : 0.275" (6.99mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

47 in stock

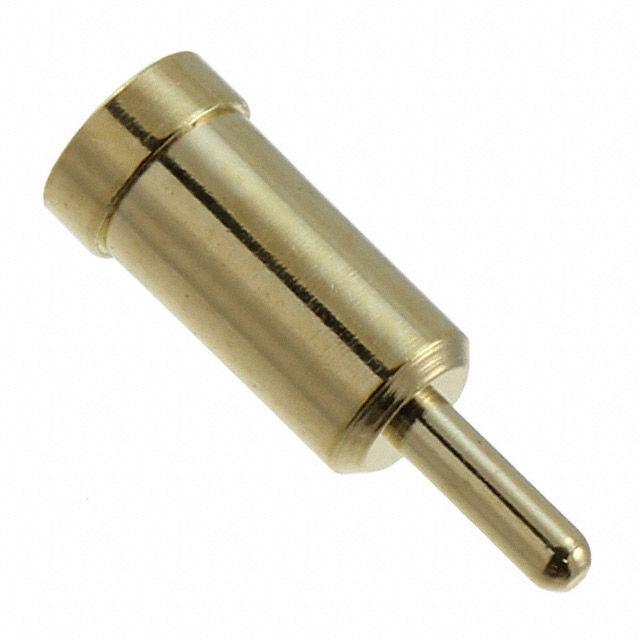

0814-0-15-15-34-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 814
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.280" (7.11mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.082" (2.08mm)
Flange Diameter : 0.090" (2.29mm)
Tail Diameter : 0.030" (0.76mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

615 in stock

1001-0-15-15-30-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1001
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.070" (1.77mm)
Tail Diameter : 0.020" (0.51mm)
Socket Depth : 0.146" (3.71mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

900 in stock

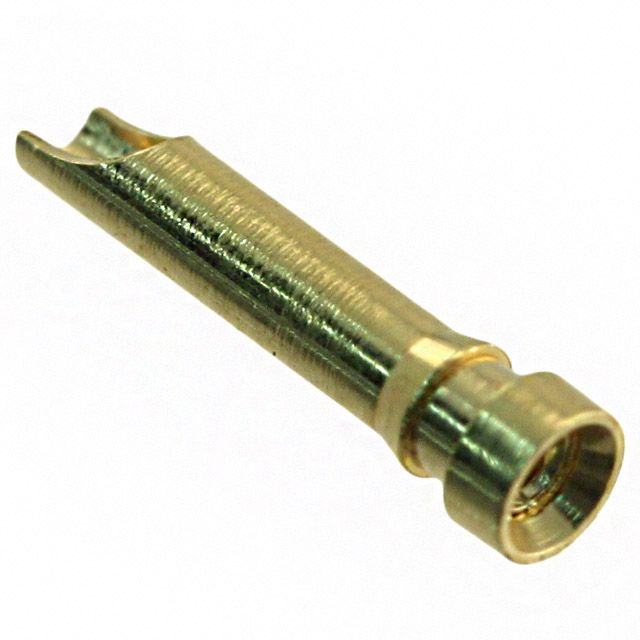

1024-0-18-15-30-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1024
Part Status : Active
Tail Type : Solder Cup
Termination : Press-Fit
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.059" (1.50mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

44492 in stock

1024-0-18-80-30-27-10-0

Mill-Max

1000 in stock

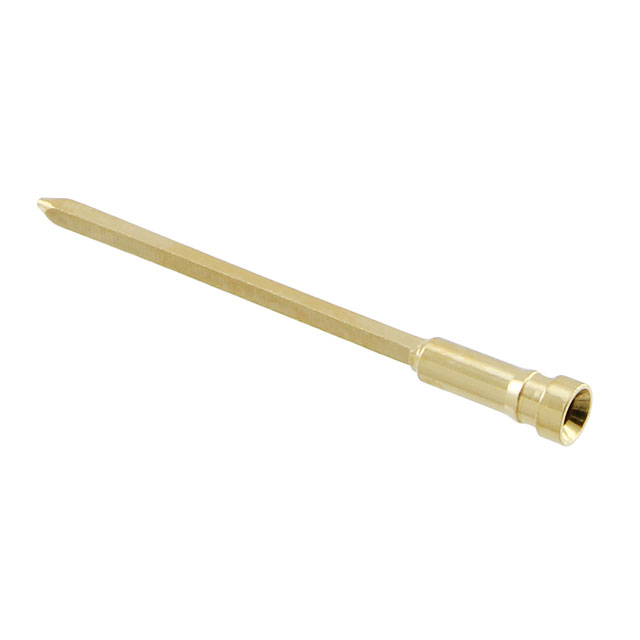

1030-3-05-15-00-00-01-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1030
Part Status : Active
Tail Type : Wire Wrap
Termination : Press-Fit
Length - Overall : 0.693" (17.60mm)
Accepts Pin Diameter : -
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : 0.025" (0.64mm) Square
Socket Depth : 0.162" (4.12mm)
Contact Material : Brass Alloy
Contact Finish : Unplated
Contact Finish Thickness : -

32 in stock
