Part Number
Manufacturer
Description
Unit Price
In Stock

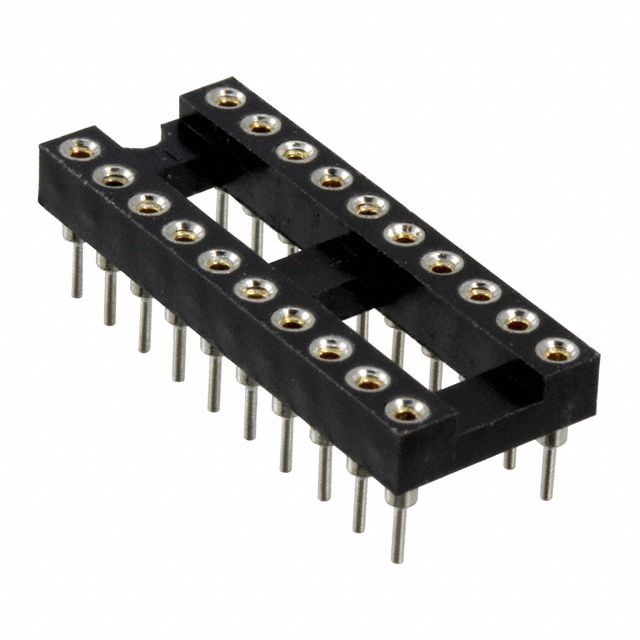

SA203000
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 20 (2 x 10)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 20 (2 x 10)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
5250 in stock

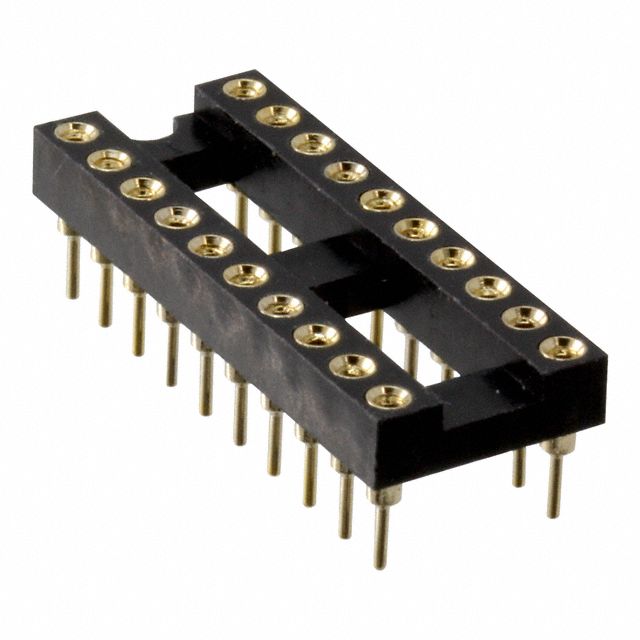

SA203040
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 20 (2 x 10)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 20 (2 x 10)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
503 in stock

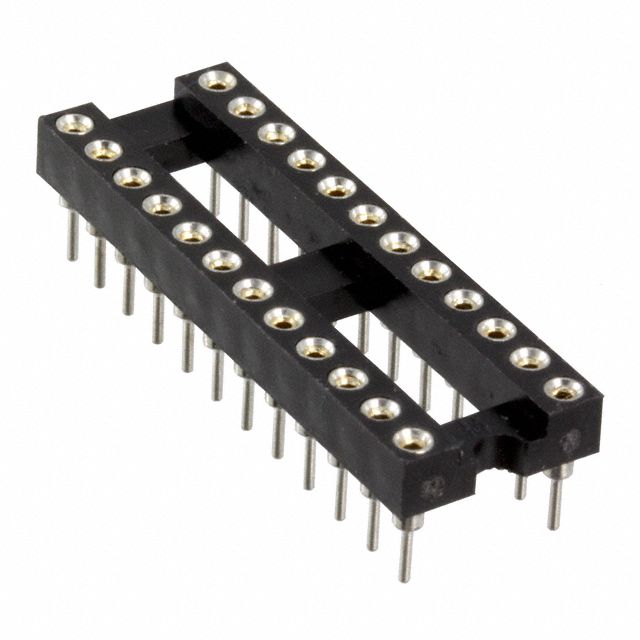

SA243000
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
1225 in stock

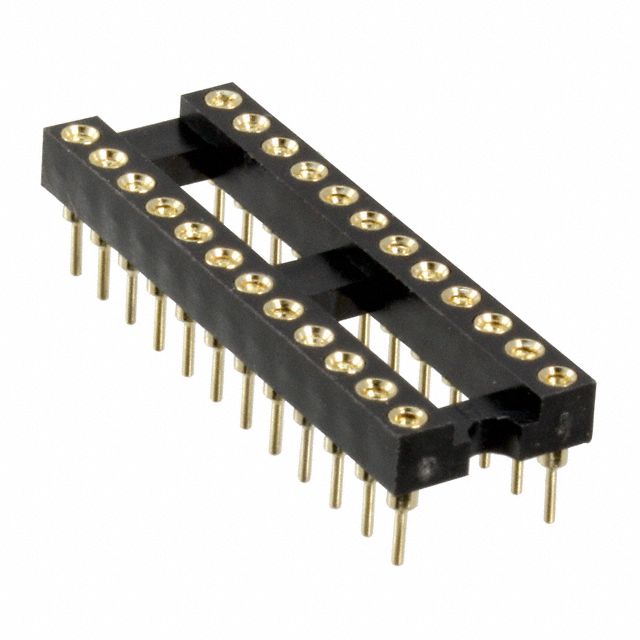

SA243040
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
100 in stock

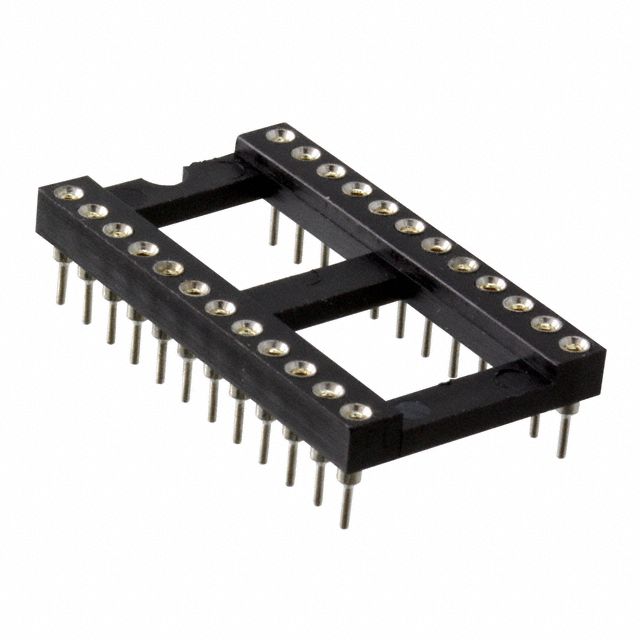

SA246000
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
1042 in stock

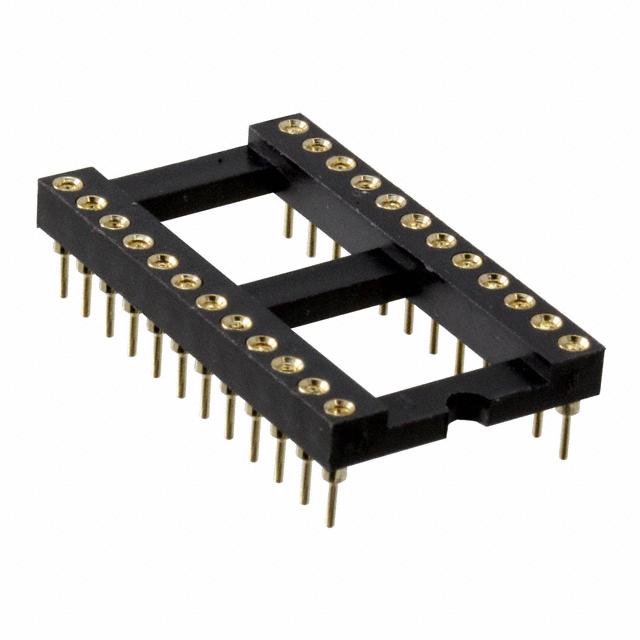

SA246040
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
133 in stock

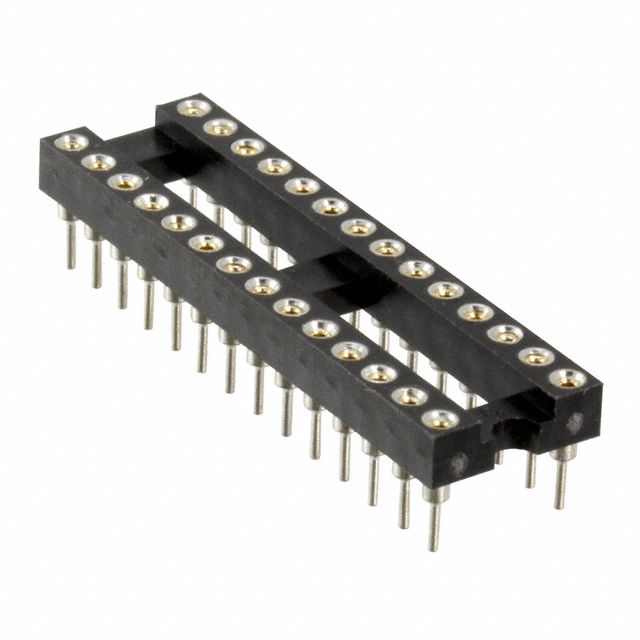

SA283000
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
1350 in stock

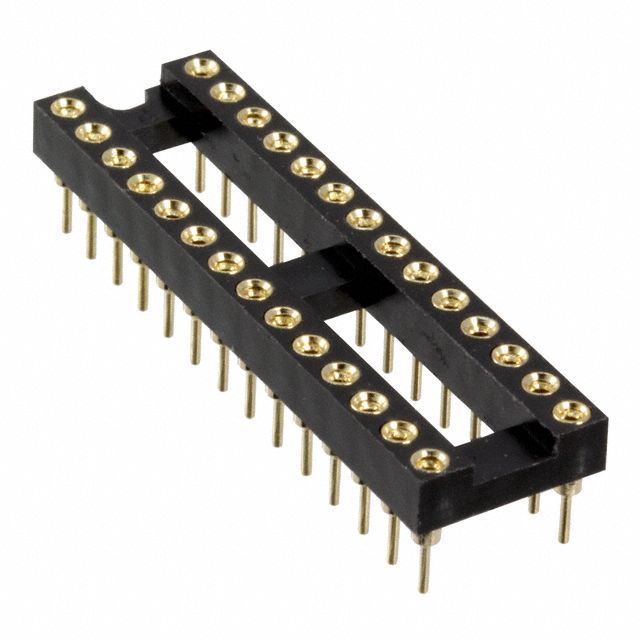

SA283040
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
720 in stock

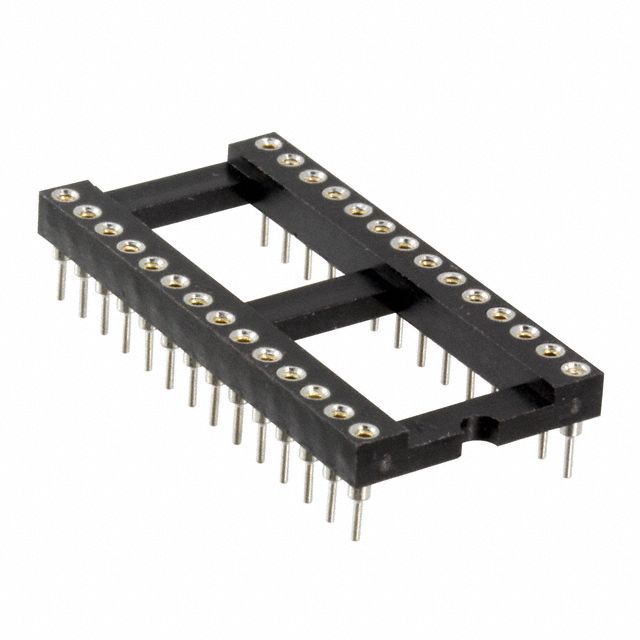

SA286000
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
1354 in stock

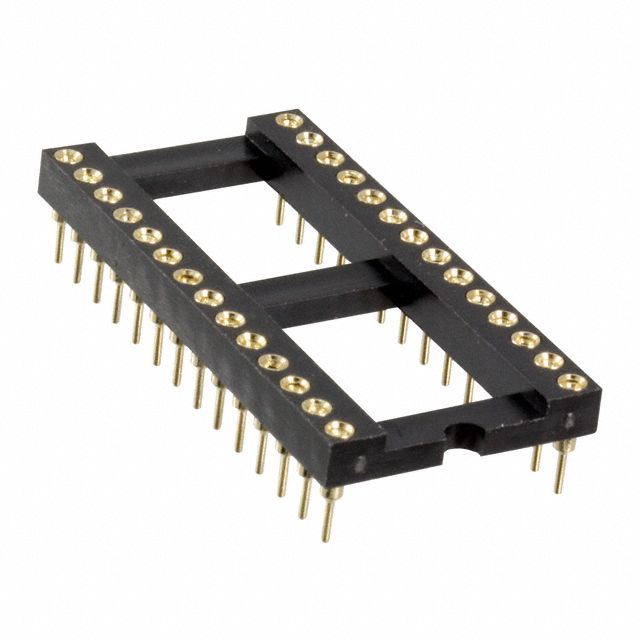

SA286040
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
402 in stock

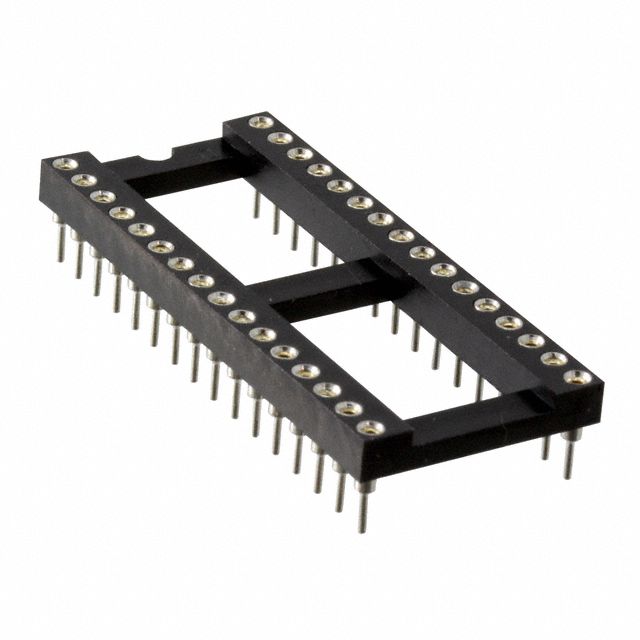

SA326000
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 32 (2 x 16)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 32 (2 x 16)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
606 in stock

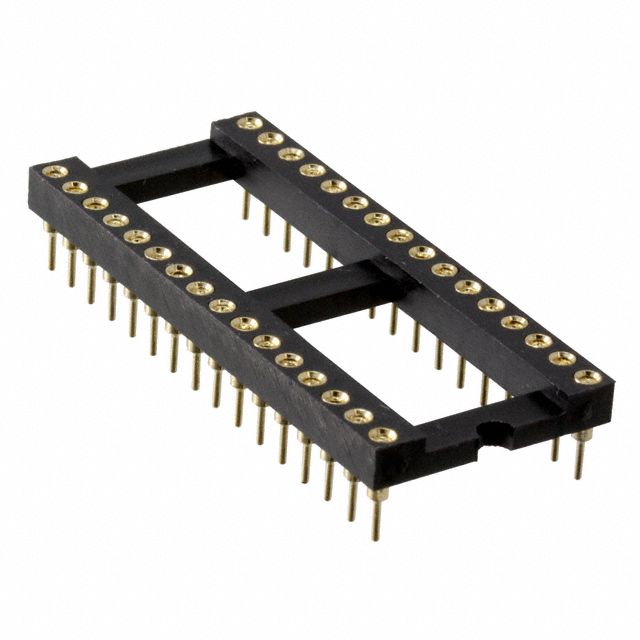

SA326040
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 32 (2 x 16)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 32 (2 x 16)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
196 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
