Part Number
Manufacturer
Description
Unit Price
In Stock

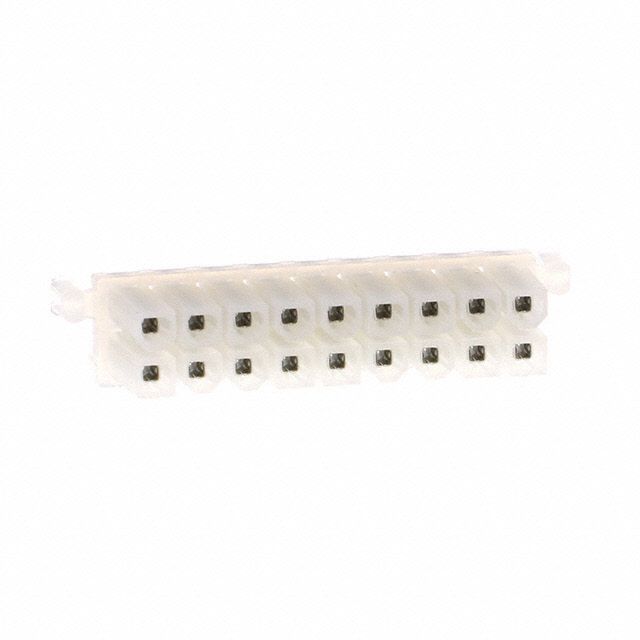

0015247180
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit BMI 42385
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 18
Number of Positions Loaded : All
Pitch - Mating : 0.165" (4.20mm)
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : Natural
Insulation Height : 0.446" (11.33mm)
Contact Length - Post : 0.138" (3.50mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-2
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 600V
Packaging : Tray
Series : Mini-Fit BMI 42385
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 18
Number of Positions Loaded : All
Pitch - Mating : 0.165" (4.20mm)
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : Natural
Insulation Height : 0.446" (11.33mm)
Contact Length - Post : 0.138" (3.50mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-2
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 600V
0
2402 in stock

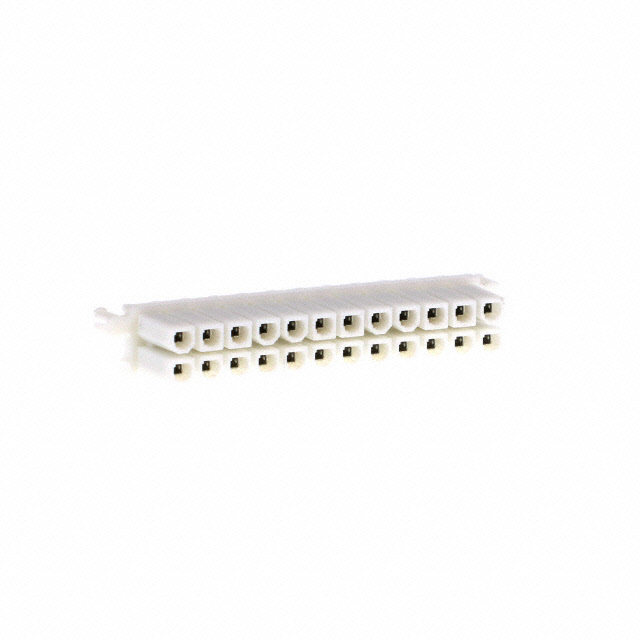

0015247241
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit BMI 42385
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 24
Number of Positions Loaded : All
Pitch - Mating : 0.165" (4.20mm)
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : Natural
Insulation Height : 0.446" (11.33mm)
Contact Length - Post : 0.138" (3.50mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 600V
Packaging : Tray
Series : Mini-Fit BMI 42385
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 24
Number of Positions Loaded : All
Pitch - Mating : 0.165" (4.20mm)
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : Natural
Insulation Height : 0.446" (11.33mm)
Contact Length - Post : 0.138" (3.50mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Lock
Current Rating : -
Voltage Rating : 600V
0
765 in stock

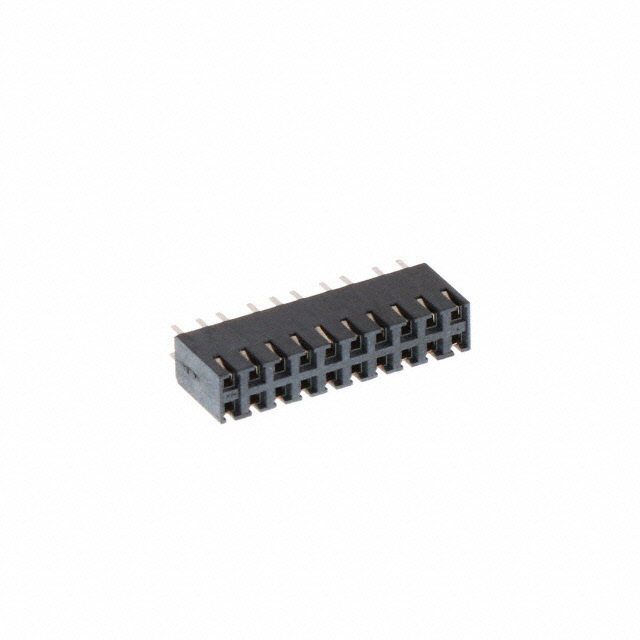

0015445820
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : C-Grid 71850
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.340" (8.64mm)
Contact Length - Post : 0.120" (3.05mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 2.5A
Voltage Rating : 500VAC
Packaging : Tray
Series : C-Grid 71850
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.340" (8.64mm)
Contact Length - Post : 0.120" (3.05mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 2.5A
Voltage Rating : 500VAC
0
100 in stock

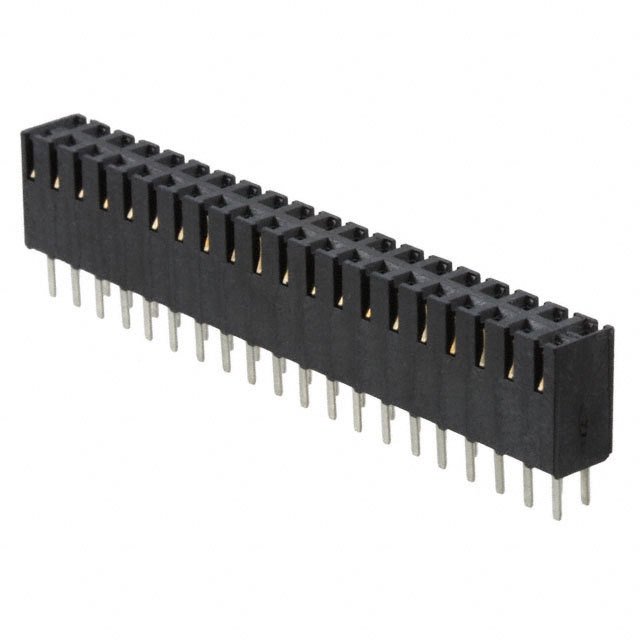

0015445840
Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : C-Grid 71850
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 40
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.340" (8.64mm)
Contact Length - Post : 0.120" (3.05mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 2.5A
Voltage Rating : 500VAC
Packaging : Tray
Series : C-Grid 71850
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 40
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.340" (8.64mm)
Contact Length - Post : 0.120" (3.05mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 2.5A
Voltage Rating : 500VAC
0
17 in stock

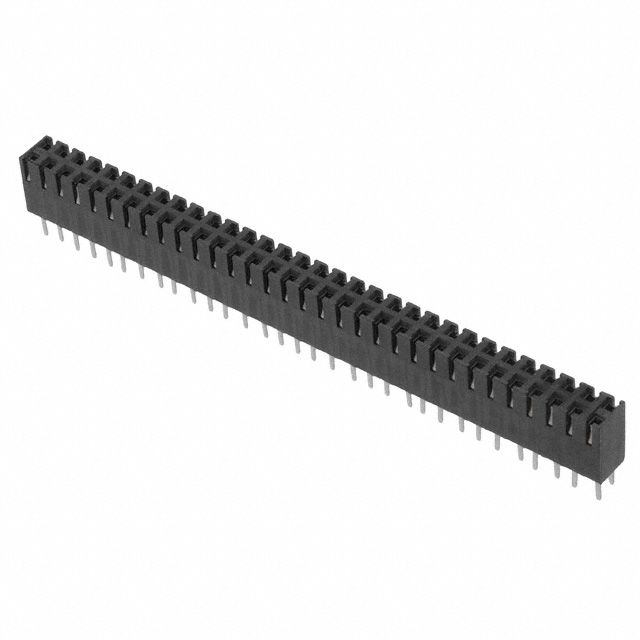

0015445864
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : C-Grid 71850
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 64
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.340" (8.64mm)
Contact Length - Post : 0.120" (3.05mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 2.5A
Voltage Rating : 500VAC
Packaging : Tray
Series : C-Grid 71850
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 64
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.340" (8.64mm)
Contact Length - Post : 0.120" (3.05mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 2.5A
Voltage Rating : 500VAC
0
100 in stock
0015453216
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : C-Grid 71395
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Insulation Color : Black
Insulation Height : 0.368" (9.35mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 2.5A
Voltage Rating : 250VAC
Packaging : Tray
Series : C-Grid 71395
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 16
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 150.0µin (3.81µm)
Insulation Color : Black
Insulation Height : 0.368" (9.35mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 2.5A
Voltage Rating : 250VAC
0
1364 in stock

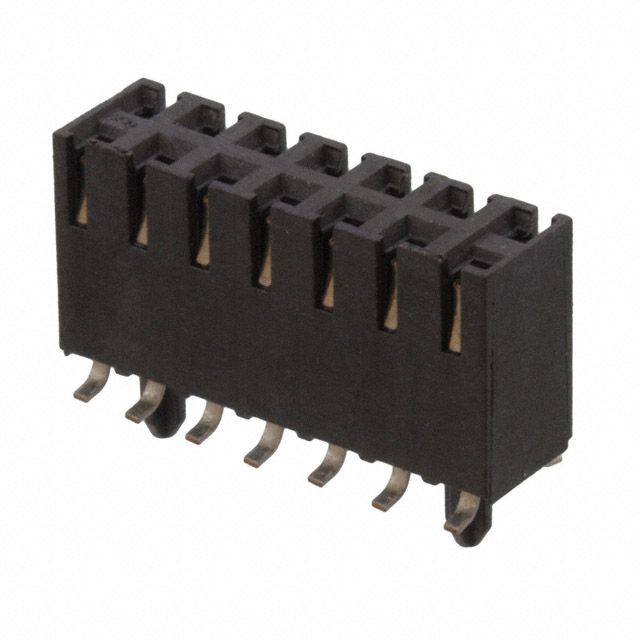

0015453514
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : C-Grid 71395
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.368" (9.35mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 2.5A
Voltage Rating : 250VAC
Packaging : Tray
Series : C-Grid 71395
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board or Cable
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : Black
Insulation Height : 0.368" (9.35mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 2.5A
Voltage Rating : 250VAC
0
100 in stock
0022022025
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC
0
5118 in stock
0022022035
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC
0
2591 in stock
0022022065
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC
0
1224 in stock
0022022075
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC
0
3219 in stock
0022022085
Affinity Medical Technologies - a Molex company
Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC
0
1033 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
