Part Number

Manufacturer

Description

Unit Price

In Stock

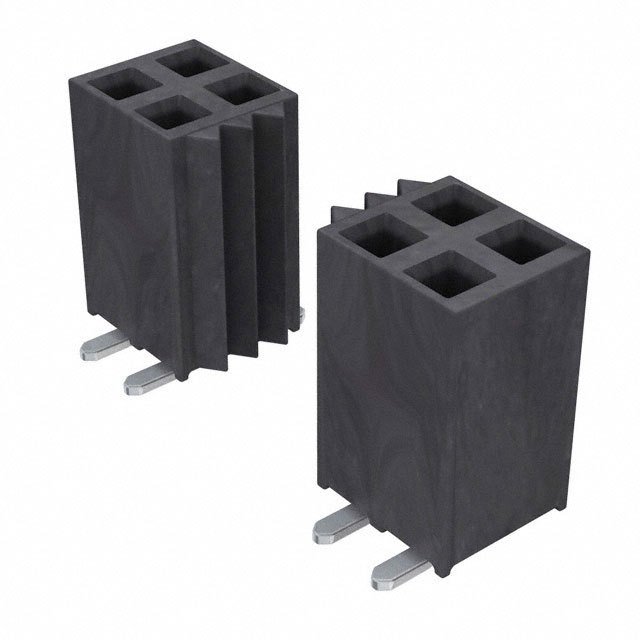

SSW-132-22-F-D-VS

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 64
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : -
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

118 in stock

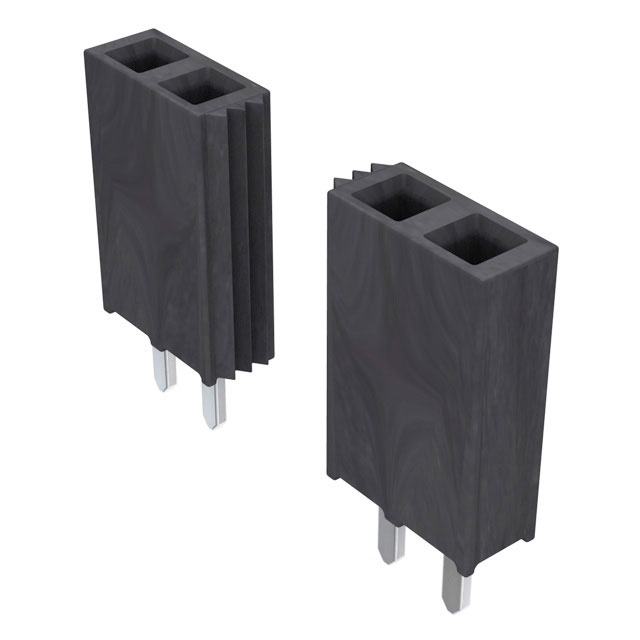

SSW-136-01-T-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 36
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

171 in stock

SSW-150-01-G-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 100
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

2160 in stock

SSW-150-01-G-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

1540 in stock

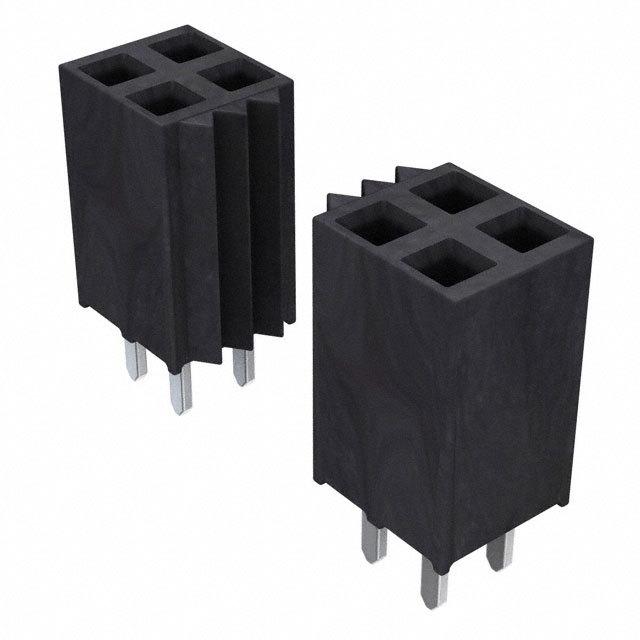

SSW-150-01-S-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 100
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

628 in stock

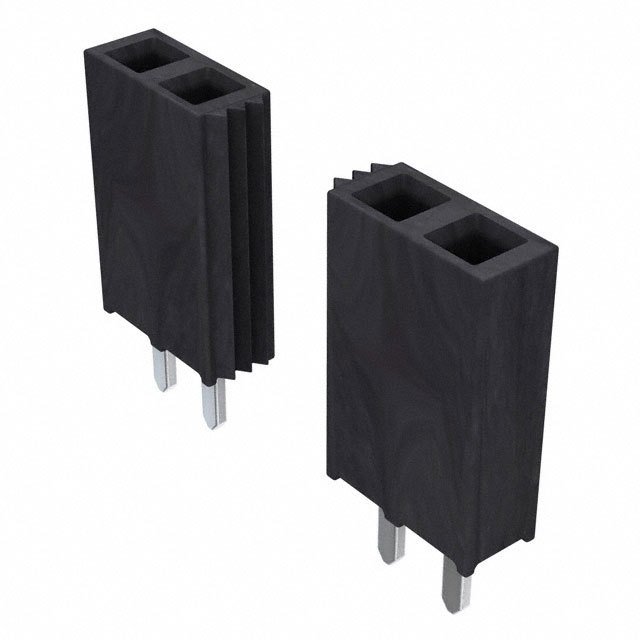

SSW-150-01-S-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

948 in stock

SSW-150-01-T-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 100
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

7442 in stock

SSW-150-01-T-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.104" (2.64mm)
Operating Temperature : -55°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

1117 in stock

SSW-150-02-G-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 100
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.194" (4.93mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

885 in stock

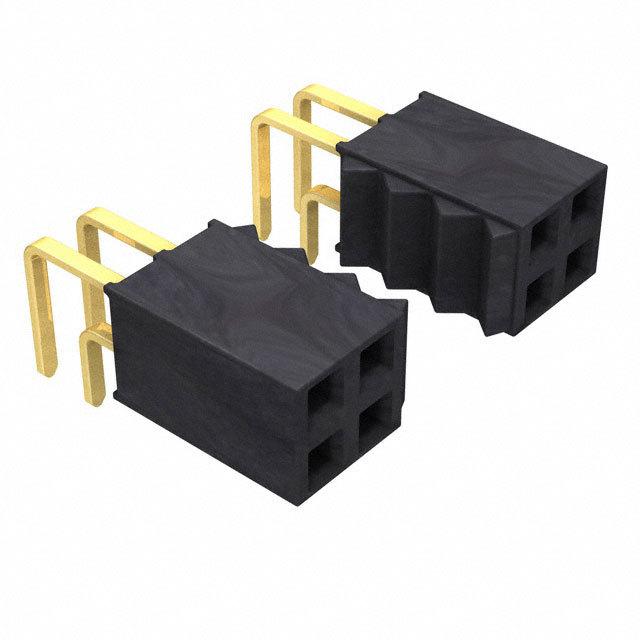

SSW-150-02-G-D-RA

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Tube
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 100
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.195" (4.95mm)
Contact Length - Post : 0.100" (2.54mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

762 in stock

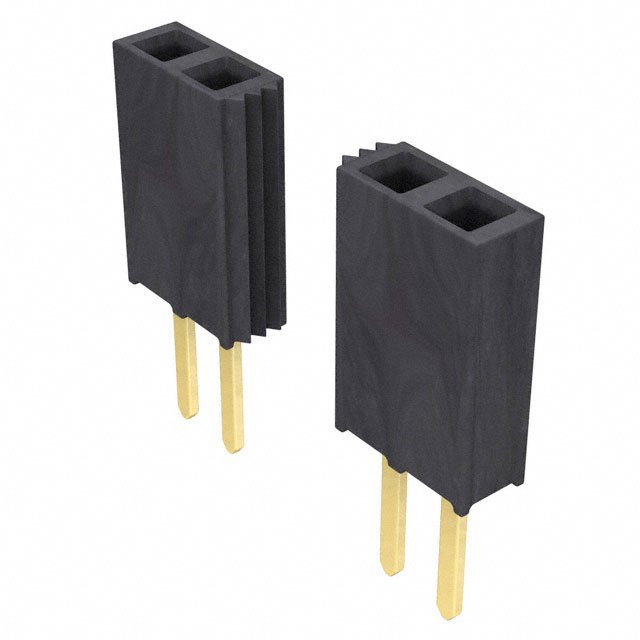

SSW-150-02-G-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.194" (4.93mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

76 in stock

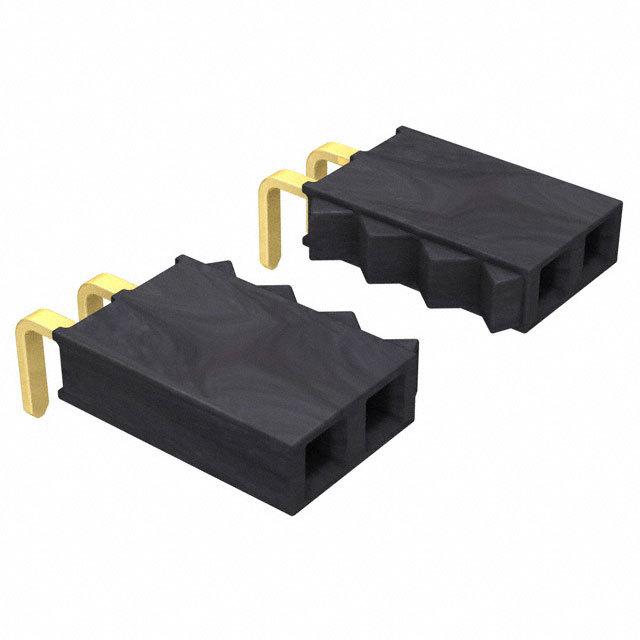

SSW-150-02-G-S-RA

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Tube
Series : SSW
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 20.0µin (0.51µm)
Insulation Color : Black
Insulation Height : 0.095" (2.41mm)
Contact Length - Post : 0.100" (2.54mm)
Operating Temperature : -55°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 5.7A per Contact
Voltage Rating : -

222 in stock
