Part Number
Manufacturer
Description
Unit Price
In Stock

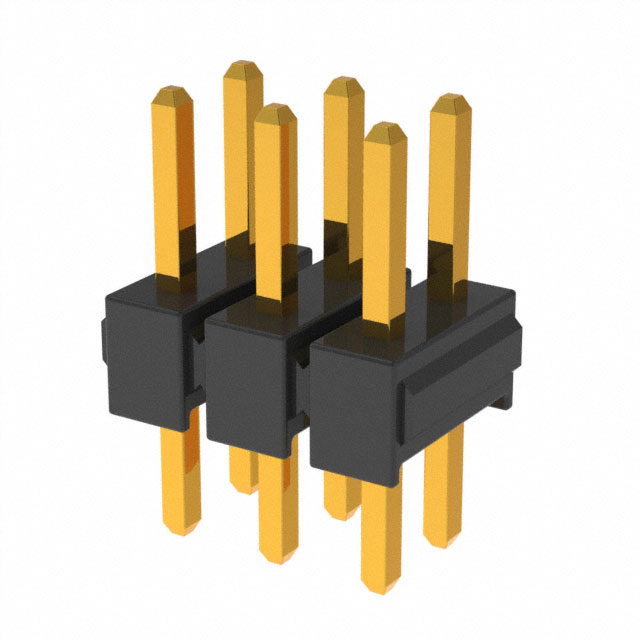

XG8T-0631
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
0
100 in stock

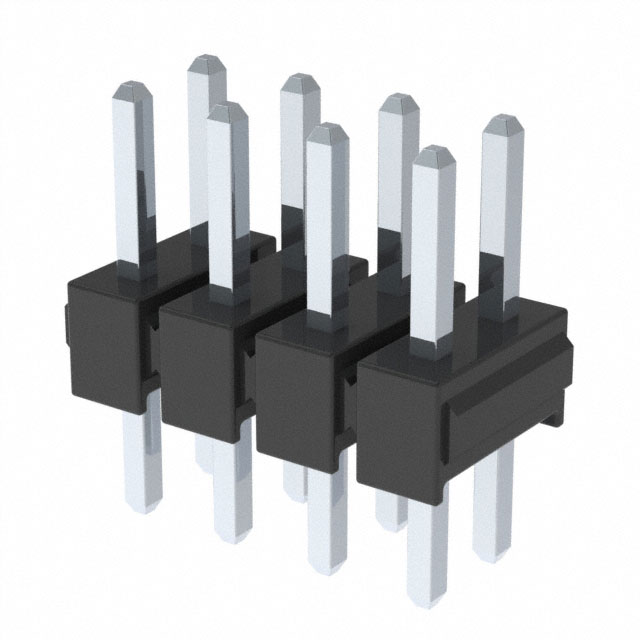

XG8T-0841
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
0
100 in stock
XG8T-1431
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
0
930 in stock

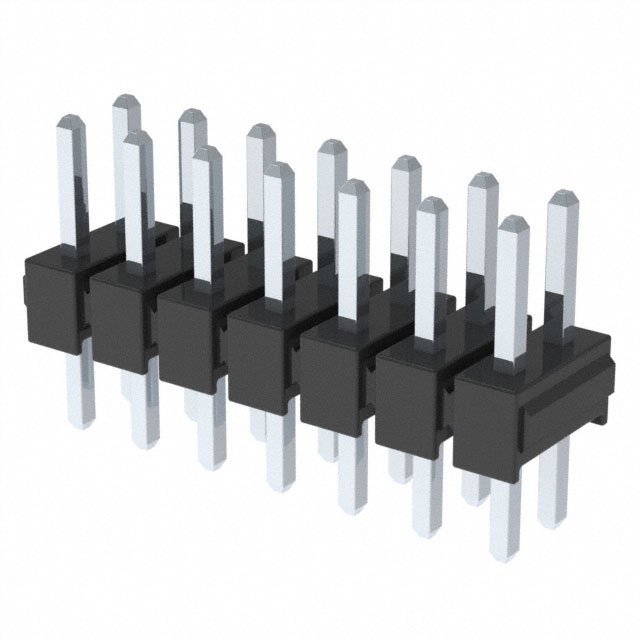

XG8T-1441
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
0
200 in stock
XG8T-1631
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
0
1537 in stock

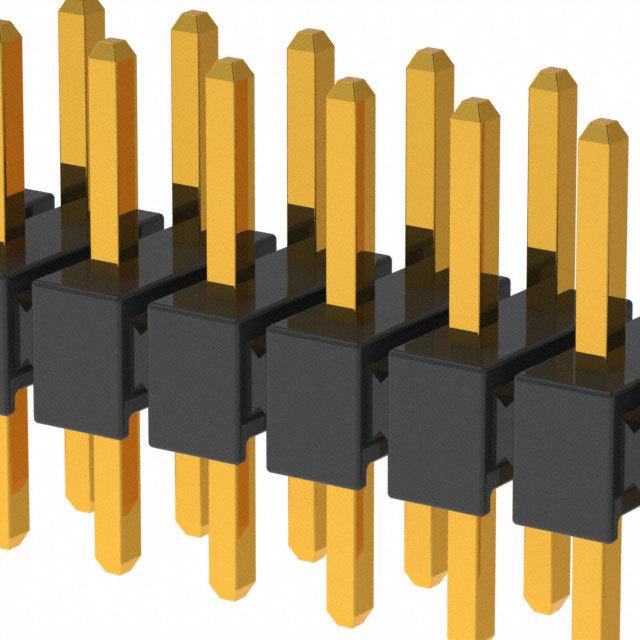

XG8T-2031
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.169" (4.30mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.386" (9.80mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 2A
Voltage Rating : 300V
0
128 in stock
XG8V-0331
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 3
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
2811 in stock
XG8V-0431
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
964 in stock
XG8V-0641
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
357 in stock
XG8V-0831
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 8
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
652 in stock
XG8V-3631
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 36
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 5.90µin (0.150µm)
Contact Finish - Post : Gold
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
23 in stock
XG8W-1041
Omron Electronic Components
Manufacturer : Omron Electronics Inc-EMC Div
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
Packaging : Bulk
Series : XG8
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.236" (6.00mm)
Contact Length - Post : 0.118" (3.00mm)
Overall Contact Length : 0.453" (11.50mm)
Insulation Height : 0.098" (2.50mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Brass, Nickel
Insulation Material : Polybutylene Terephthalate (PBT), Glass Filled
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 3A
Voltage Rating : 300V
0
740 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
