Rectangular Connectors - Headers, Male Pins Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

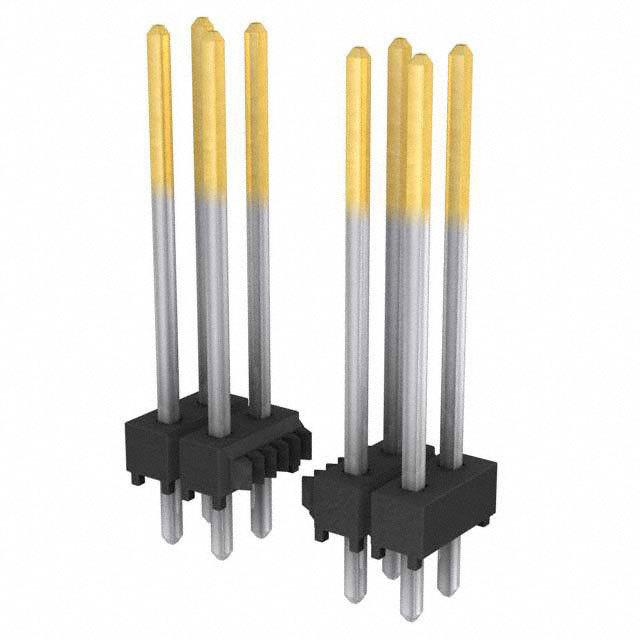

TSW-114-17-L-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 28
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.620" (15.75mm)
Contact Length - Post : 0.110" (2.79mm)
Overall Contact Length : 0.830" (21.08mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

482 in stock

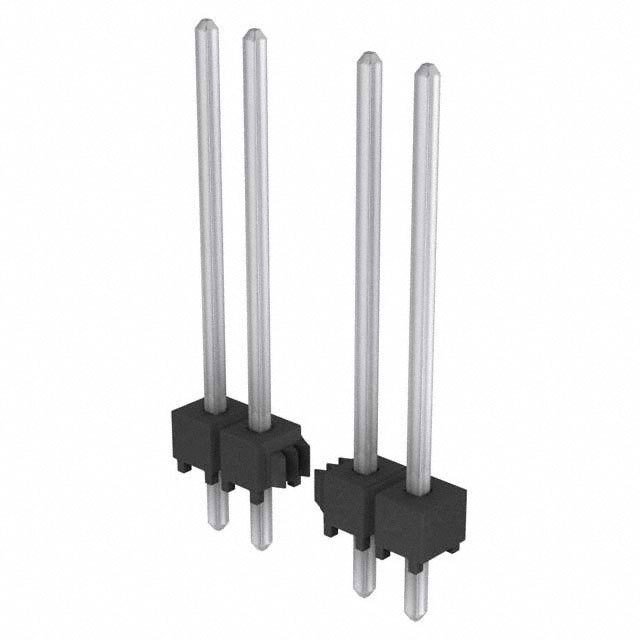

TSW-114-17-T-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.620" (15.75mm)
Contact Length - Post : 0.110" (2.79mm)
Overall Contact Length : 0.830" (21.08mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

1055 in stock

TSW-114-18-G-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 14
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.720" (18.29mm)
Contact Length - Post : 0.110" (2.79mm)
Overall Contact Length : 0.930" (23.62mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

303 in stock

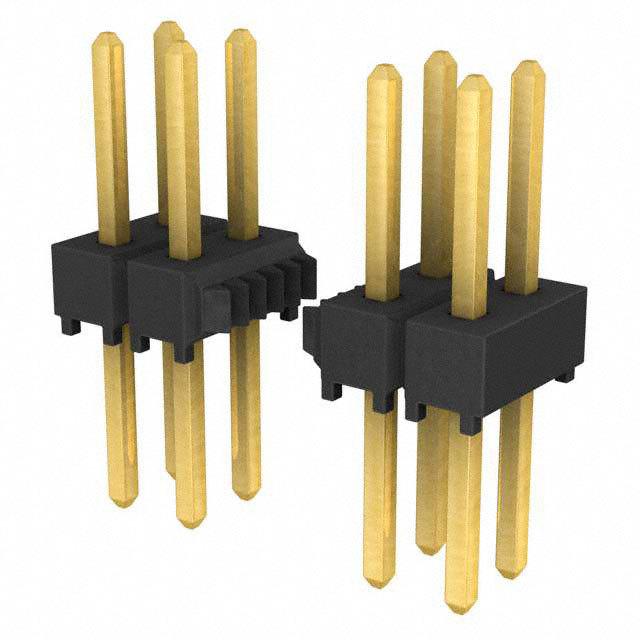

TSW-114-26-G-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 28
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.456" (11.58mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

381 in stock

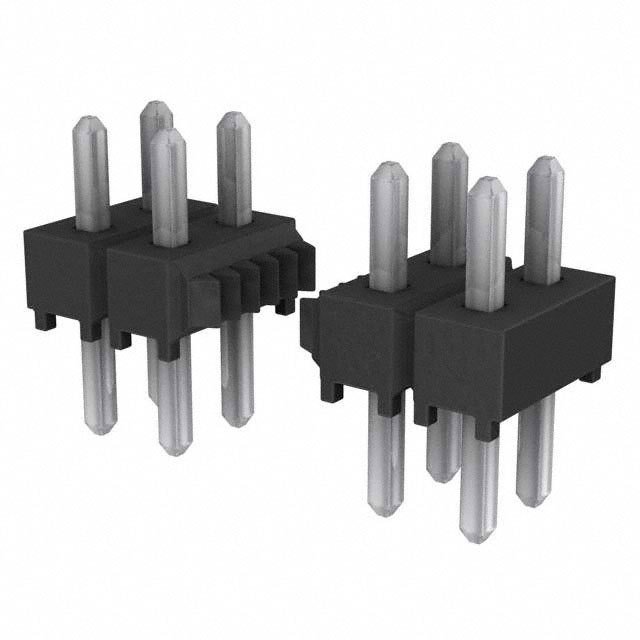

TSW-115-05-T-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 30
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.105" (2.67mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.335" (8.51mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

229 in stock

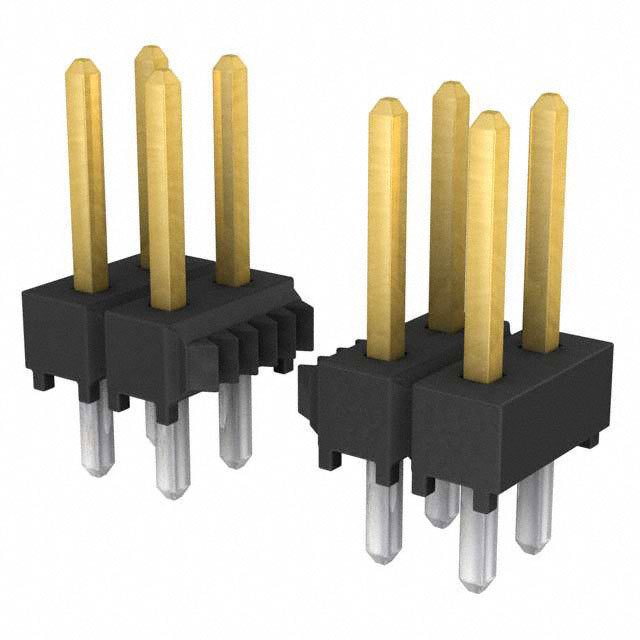

TSW-115-07-F-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 30
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.100" (2.54mm)
Overall Contact Length : 0.430" (10.92mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

175 in stock

TSW-116-07-F-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 32
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.100" (2.54mm)
Overall Contact Length : 0.430" (10.92mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

334 in stock

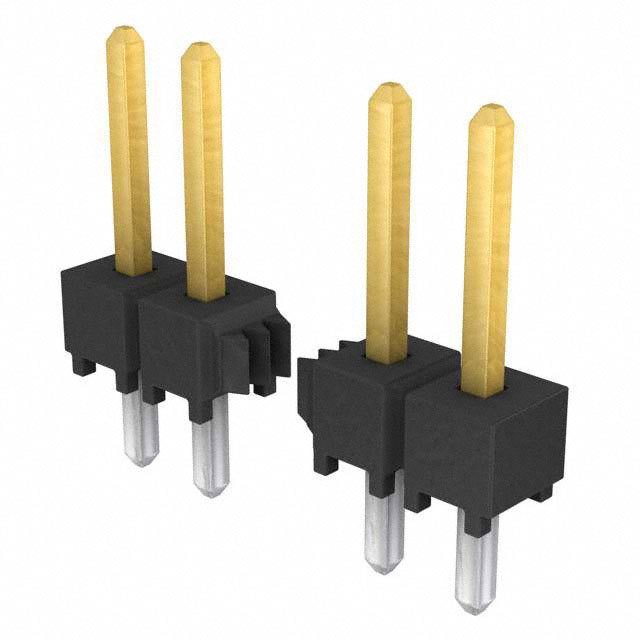

TSW-116-07-F-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 16
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.100" (2.54mm)
Overall Contact Length : 0.430" (10.92mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

186 in stock

TSW-116-07-G-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 32
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.100" (2.54mm)
Overall Contact Length : 0.430" (10.92mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

197 in stock

TSW-116-07-L-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 32
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.100" (2.54mm)
Overall Contact Length : 0.430" (10.92mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

222 in stock

TSW-116-07-L-T

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 48
Number of Rows : 3
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.100" (2.54mm)
Overall Contact Length : 0.430" (10.92mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

76 in stock

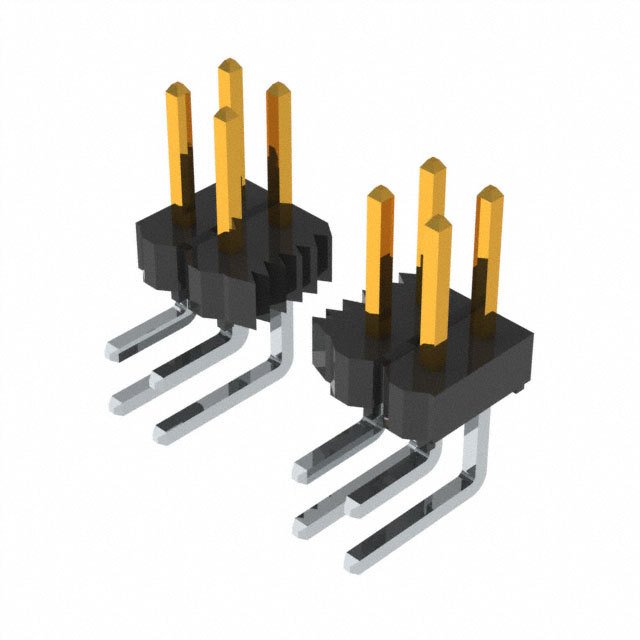

TSW-116-08-F-D-RA

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 32
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.090" (2.29mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 3.00µin (0.076µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

99 in stock
