Rectangular Connectors - Headers, Male Pins Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

TSW-110-23-L-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.115" (2.92mm)
Overall Contact Length : 0.445" (11.30mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

298 in stock

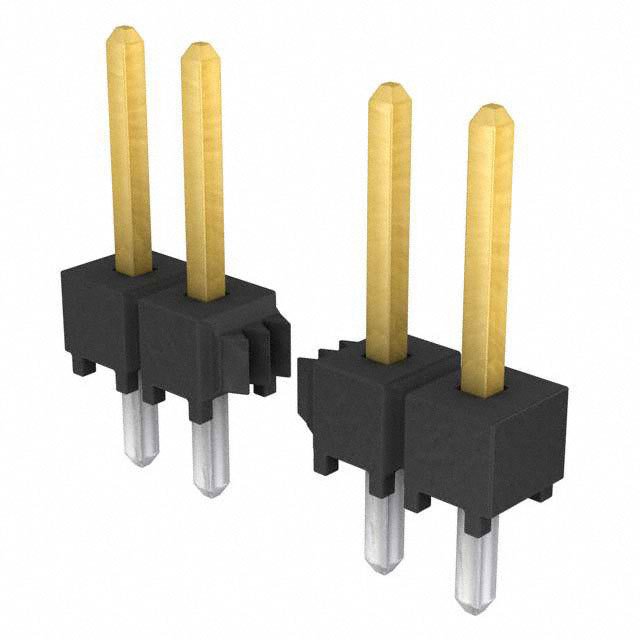

TSW-110-23-S-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.115" (2.92mm)
Overall Contact Length : 0.445" (11.30mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

1467 in stock

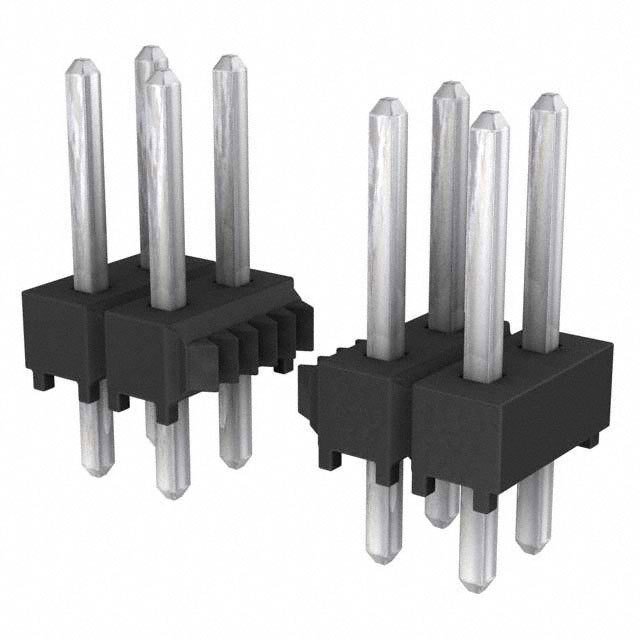

TSW-110-23-T-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.115" (2.92mm)
Overall Contact Length : 0.445" (11.30mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

380 in stock

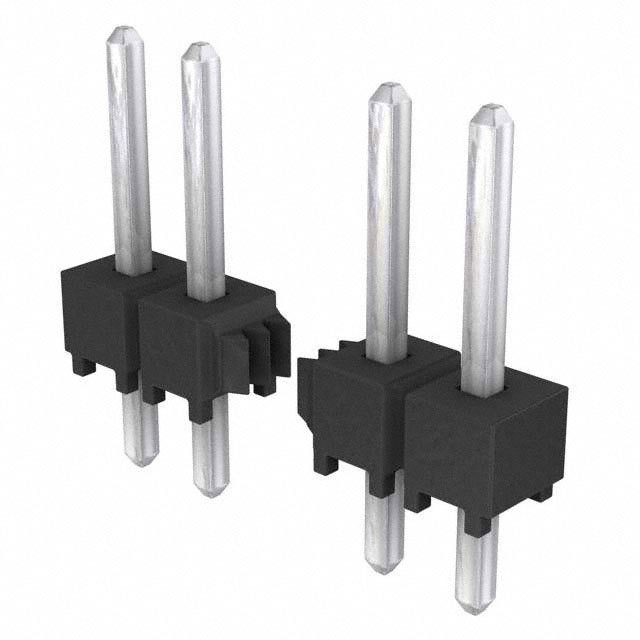

TSW-110-23-T-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.115" (2.92mm)
Overall Contact Length : 0.445" (11.30mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

115 in stock

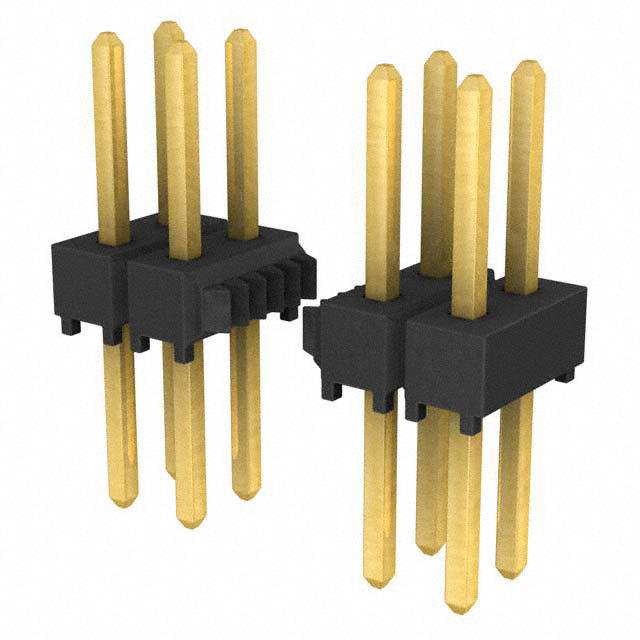

TSW-110-26-G-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.456" (11.58mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

415 in stock

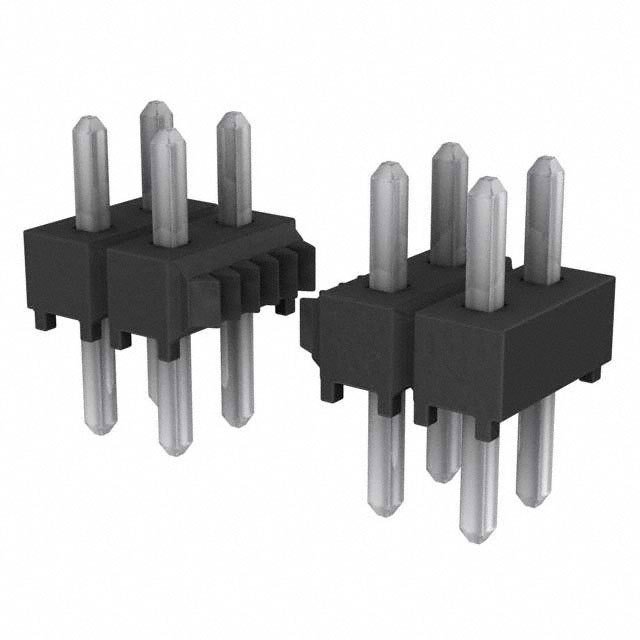

TSW-111-05-T-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 22
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.105" (2.67mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.335" (8.51mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

212 in stock

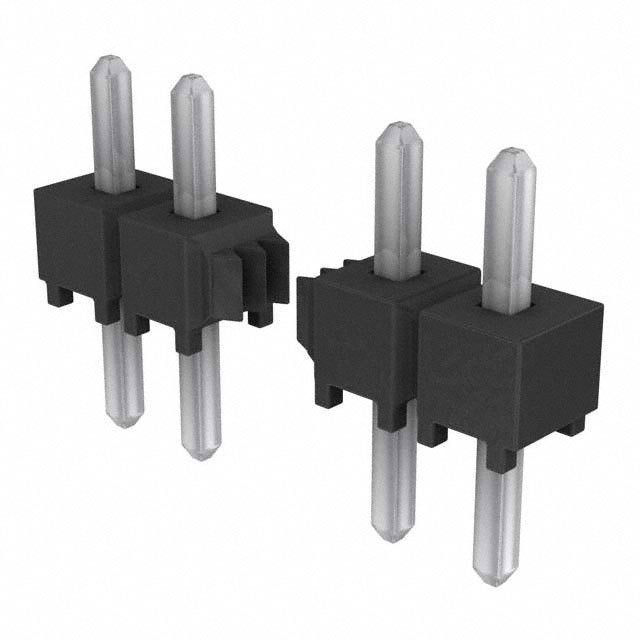

TSW-111-06-T-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 11
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.105" (2.67mm)
Contact Length - Post : 0.095" (2.41mm)
Overall Contact Length : 0.300" (7.62mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

260 in stock

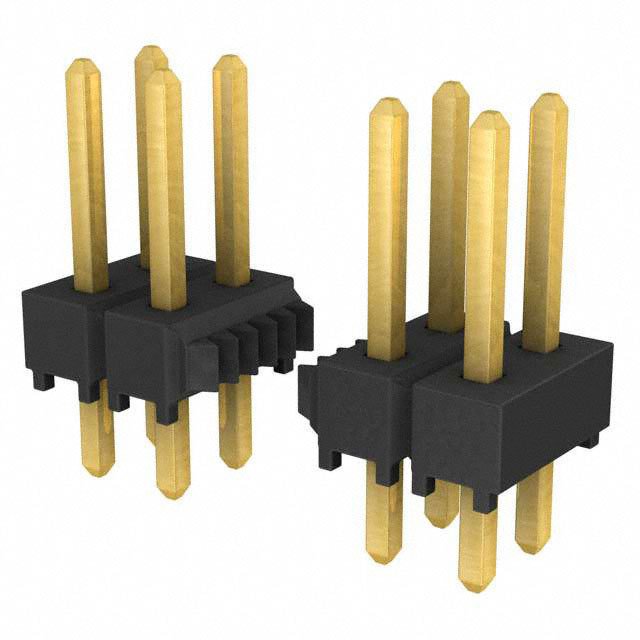

TSW-111-07-G-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 22
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.100" (2.54mm)
Overall Contact Length : 0.430" (10.92mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

125 in stock

TSW-111-07-G-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 11
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.100" (2.54mm)
Overall Contact Length : 0.430" (10.92mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

224 in stock

TSW-111-07-S-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 22
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.100" (2.54mm)
Overall Contact Length : 0.430" (10.92mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

117 in stock

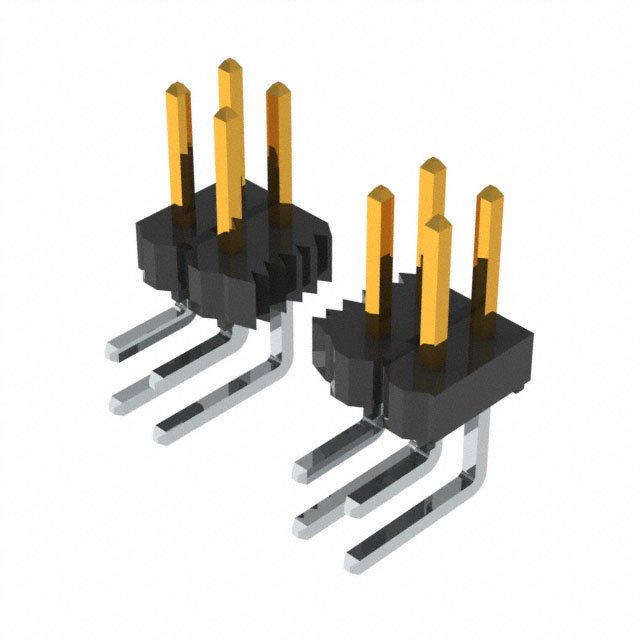

TSW-111-08-S-D-RA

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 22
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.090" (2.29mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

212 in stock

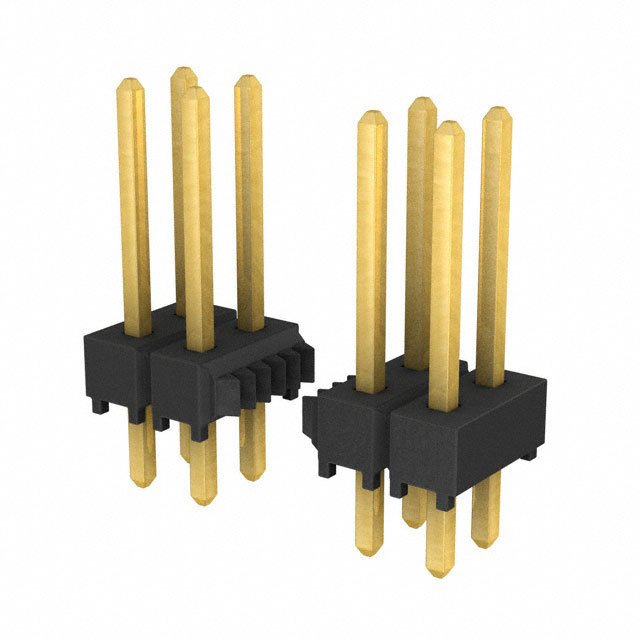

TSW-111-14-G-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 22
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.320" (8.13mm)
Contact Length - Post : 0.110" (2.79mm)
Overall Contact Length : 0.530" (13.46mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

129 in stock
