Rectangular Connectors - Headers, Male Pins Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

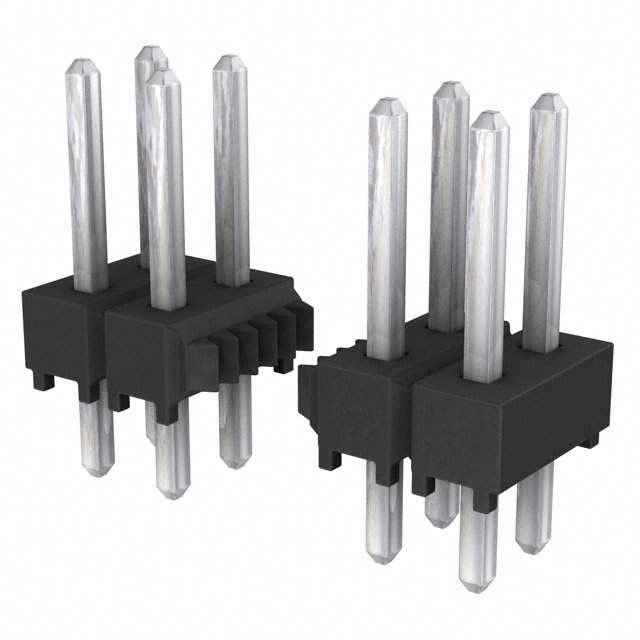

TSW-105-23-T-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.115" (2.92mm)
Overall Contact Length : 0.445" (11.30mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

220 in stock

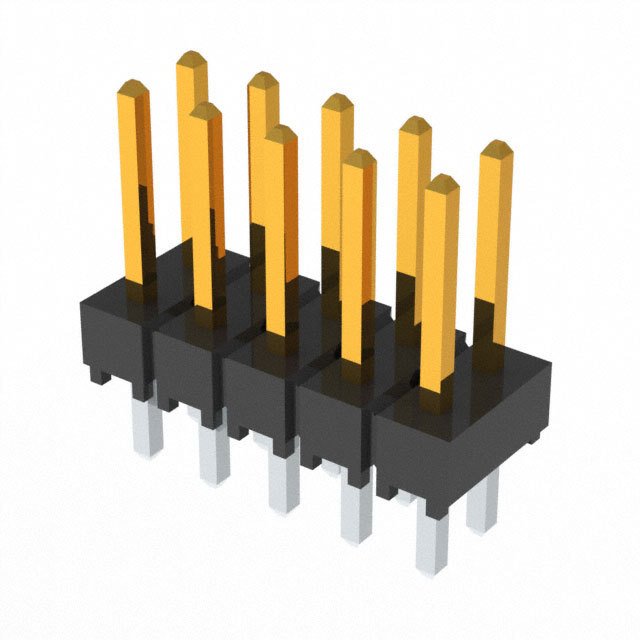

TSW-105-24-L-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.265" (6.73mm)
Contact Length - Post : 0.115" (2.92mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

303 in stock

TSW-105-24-T-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.265" (6.73mm)
Contact Length - Post : 0.115" (2.92mm)
Overall Contact Length : 0.480" (12.19mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

1659 in stock

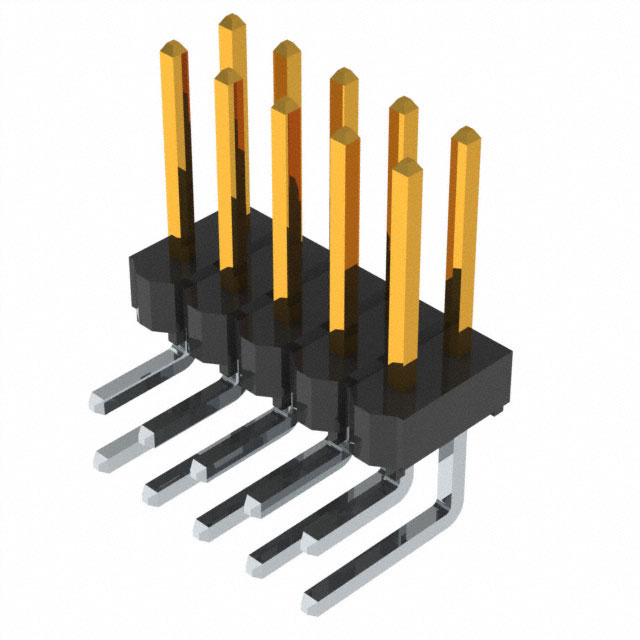

TSW-105-25-L-D-RA

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.320" (8.13mm)
Contact Length - Post : 0.100" (2.54mm)
Overall Contact Length : -
Insulation Height : 0.219" (5.56mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

690 in stock

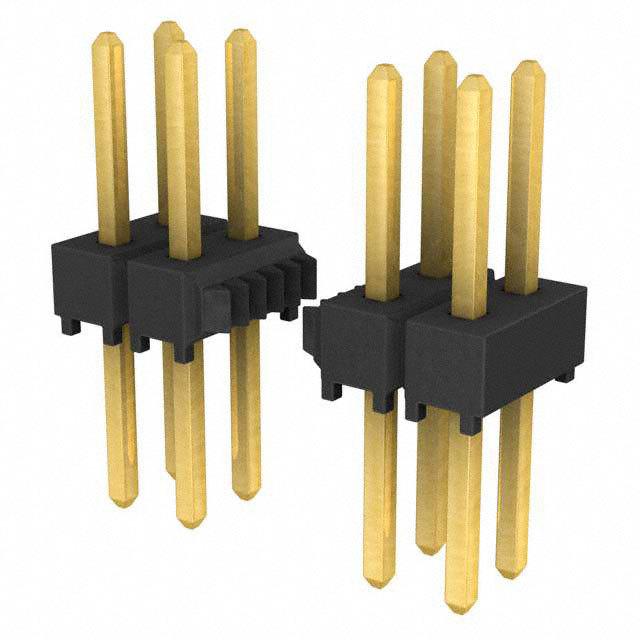

TSW-105-26-G-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.456" (11.58mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

105 in stock

TSW-105-26-G-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.456" (11.58mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

107 in stock

TSW-105-26-L-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Discontinued at
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.456" (11.58mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

236 in stock

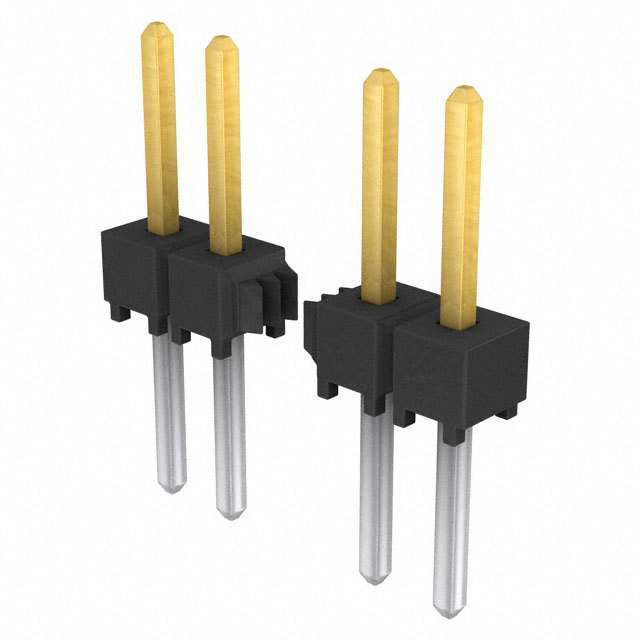

TSW-105-26-S-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Discontinued at
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 5
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.230" (5.84mm)
Contact Length - Post : 0.126" (3.20mm)
Overall Contact Length : 0.456" (11.58mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

125 in stock

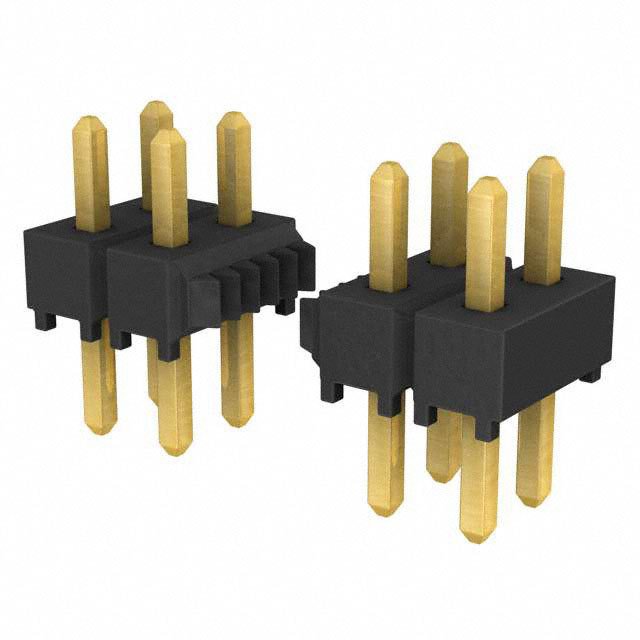

TSW-106-05-G-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.105" (2.67mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.335" (8.51mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

300 in stock

TSW-106-05-T-D

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 12
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.105" (2.67mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.335" (8.51mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

476 in stock

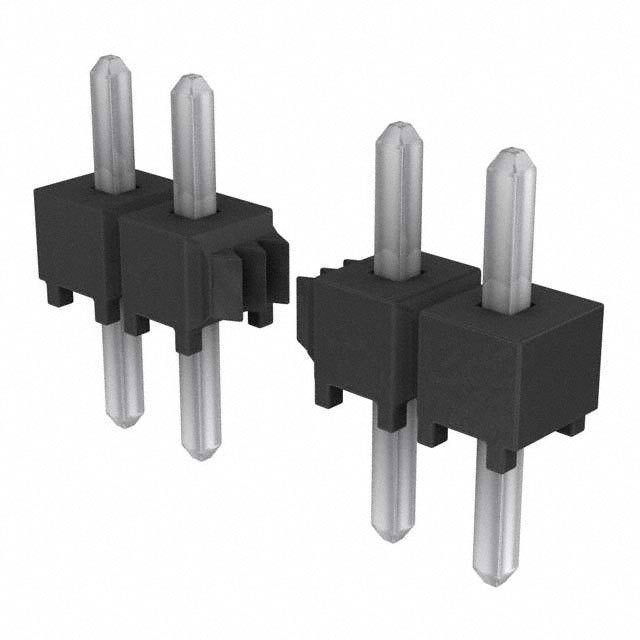

TSW-106-05-T-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.105" (2.67mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.335" (8.51mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

504 in stock

TSW-106-06-T-S

Samtec, Inc.

Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.100" (2.54mm)
Number of Positions : 6
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.105" (2.67mm)
Contact Length - Post : 0.095" (2.41mm)
Overall Contact Length : 0.300" (7.62mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -

213 in stock
