Part Number
Manufacturer
Description
Unit Price
In Stock

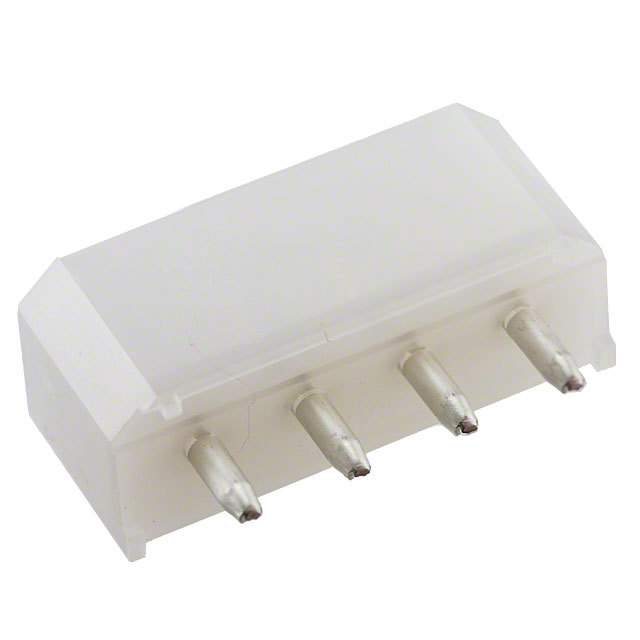

0015244449
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : 8981
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.200" (5.08mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.171" (4.34mm)
Contact Length - Post : 0.140" (3.56mm)
Overall Contact Length : -
Insulation Height : 0.400" (10.16mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Tray
Series : 8981
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.200" (5.08mm)
Number of Positions : 4
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Cable/Wire
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Length - Mating : 0.171" (4.34mm)
Contact Length - Post : 0.140" (3.56mm)
Overall Contact Length : -
Insulation Height : 0.400" (10.16mm)
Contact Shape : Circular
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
22406 in stock

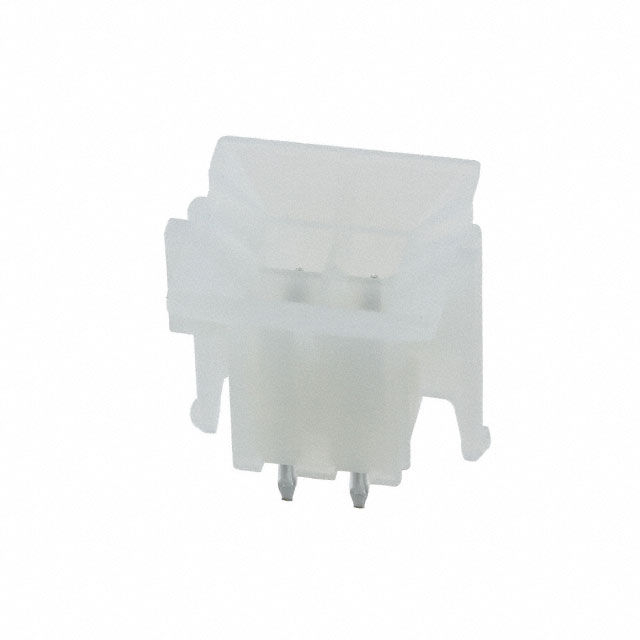

0015246041
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
299 in stock
0015246042
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
2650 in stock
0015246043
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : Mini-Fit BMI 42404
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.591" (15.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : Mini-Fit BMI 42404
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 4
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.591" (15.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
3336 in stock
0015246061
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
4405 in stock

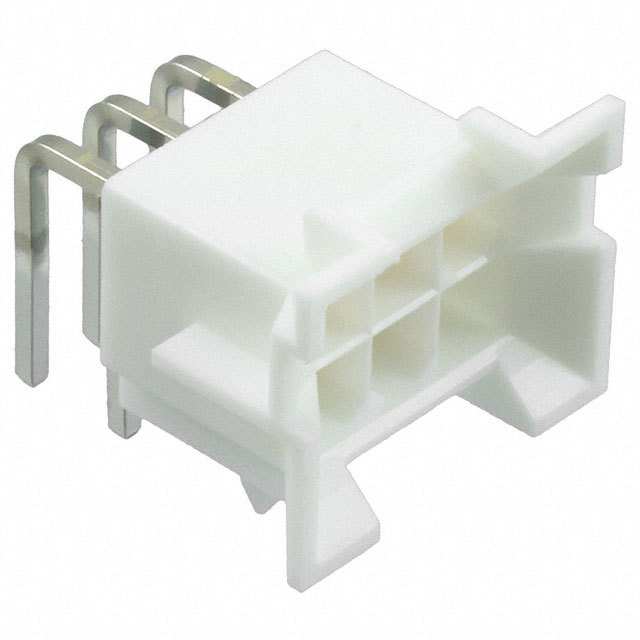

0015246063
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : Mini-Fit BMI 42404
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.591" (15.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : Mini-Fit BMI 42404
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 6
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.591" (15.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
1560 in stock
0015246101
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
2258 in stock
0015246102
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
711 in stock
0015246103
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : Mini-Fit BMI 42404
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.591" (15.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : Mini-Fit BMI 42404
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.591" (15.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
2966 in stock
0015246141
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-2
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
914 in stock
0015246142
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Tray
Series : Mini-Fit BMI 42440
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.138" (3.50mm)
Overall Contact Length : -
Insulation Height : 0.555" (14.10mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
2483 in stock
0015246143
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Packaging : Bulk
Series : Mini-Fit BMI 42404
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.591" (15.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
Packaging : Bulk
Series : Mini-Fit BMI 42404
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.165" (4.20mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.165" (4.20mm)
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Shrouded - 4 Wall
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Latch Holder
Contact Length - Mating : -
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : -
Insulation Height : 0.591" (15.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 30.0µin (0.76µm)
Contact Finish - Post : Tin
Contact Material : Brass
Insulation Material : Polyamide (PA66), Nylon 6/6
Features : Board Lock
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Natural
Current Rating : -
Voltage Rating : -
0
1440 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
