- Connectors, Interconnects
- Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Part Number
Manufacturer
Description
Unit Price
In Stock

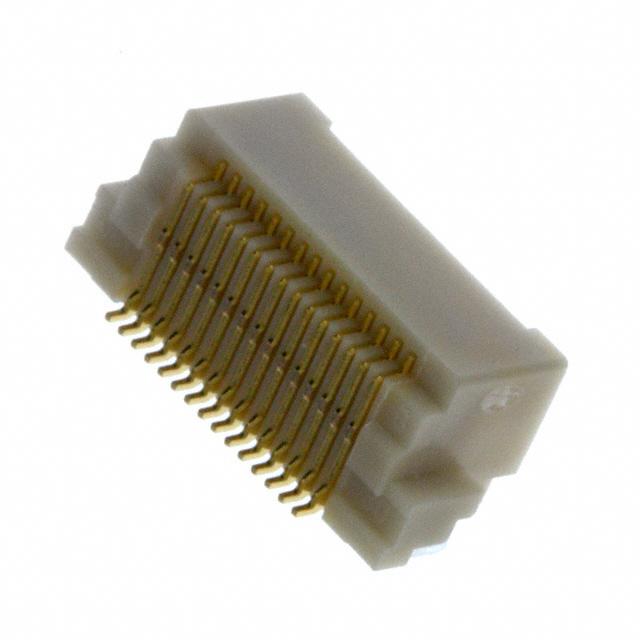

(SN).JPG "Show details for 30PS-JMDSS-G-1-TF(LF)(SN)")
30PS-JMDSS-G-1-TF(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JMD
Part Status : Active
Connector Type : Plug, Outer Shroud Contacts
Number of Positions : 30
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount, Right Angle
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : -
Height Above Board : 0.189" (4.80mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JMD
Part Status : Active
Connector Type : Plug, Outer Shroud Contacts
Number of Positions : 30
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount, Right Angle
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : -
Height Above Board : 0.189" (4.80mm)
0
2220 in stock

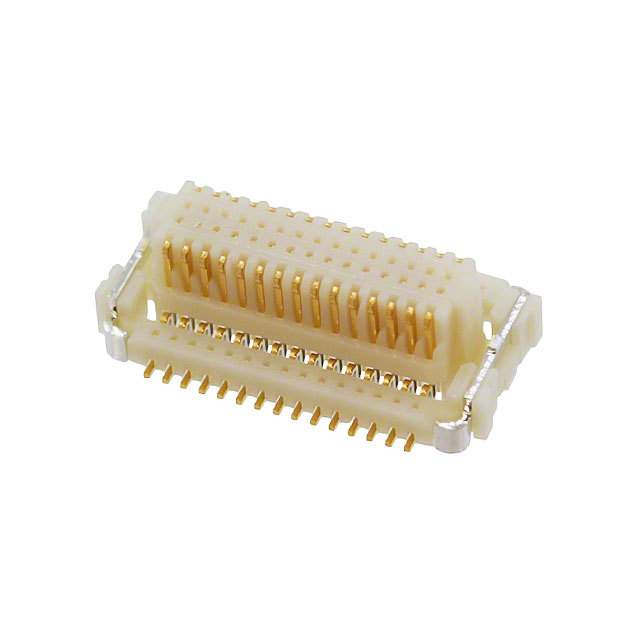

(LF)(SN).jpg "Show details for 30RF-JMCS-G-1B-TF(N)(LF)(SN)")
30RF-JMCS-G-1B-TF(N)(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JMC
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 30
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide, Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : -
Height Above Board : 0.130" (3.30mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JMC
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 30
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide, Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : -
Height Above Board : 0.130" (3.30mm)
0
2974 in stock

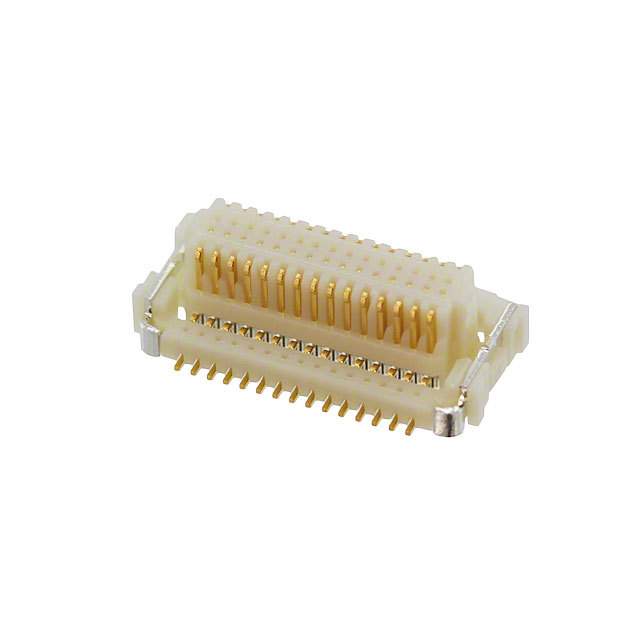

(LF)(SN).jpg "Show details for 30RF-JMCS-G-1-TF(N)(LF)(SN)")
30RF-JMCS-G-1-TF(N)(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JMC
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 30
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : -
Height Above Board : 0.130" (3.30mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JMC
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 30
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : -
Height Above Board : 0.130" (3.30mm)
0
3845 in stock

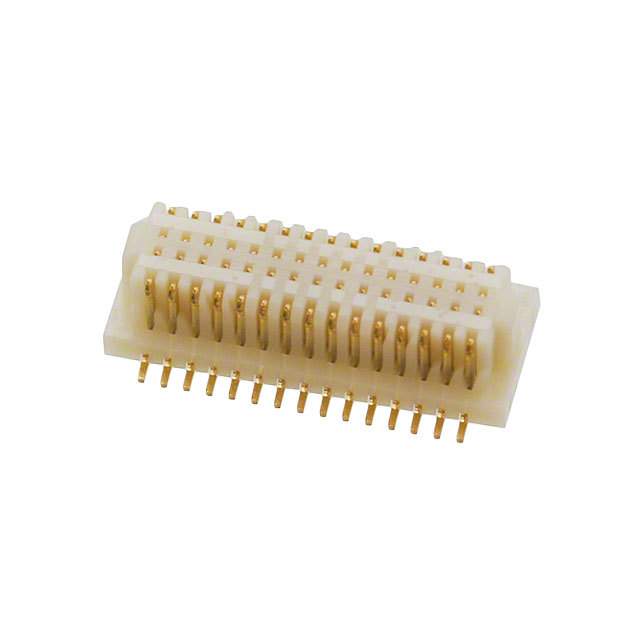

.jpg "Show details for 30R-JMCS-G-B-TF(NSA)")
30R-JMCS-G-B-TF(NSA)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JMC
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 30
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : -
Height Above Board : 0.091" (2.30mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JMC
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 30
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : -
Height Above Board : 0.091" (2.30mm)
0
10616 in stock

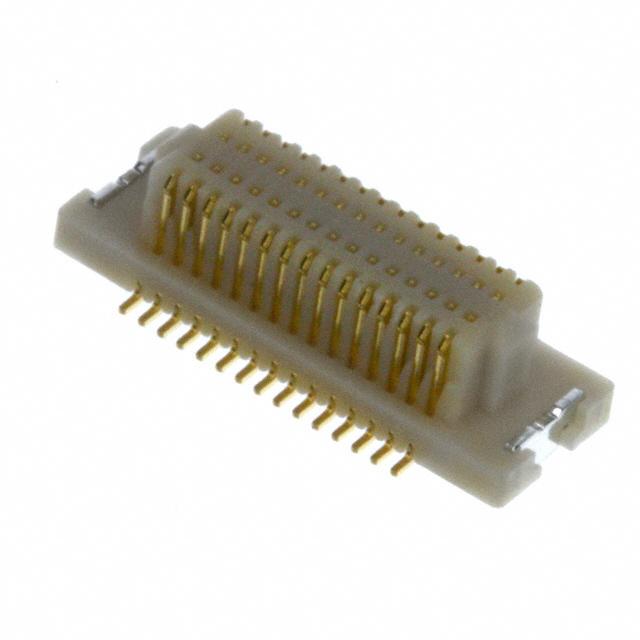

(LF)(SN).JPG "Show details for 30R-JMDSS-G-1-TF(S)(LF)(SN)")
30R-JMDSS-G-1-TF(S)(LF)(SN)
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JMD
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 30
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : 4.5mm, 5mm, 6mm
Height Above Board : 0.122" (3.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JMD
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 30
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : 4.5mm, 5mm, 6mm
Height Above Board : 0.122" (3.10mm)
0
16670 in stock

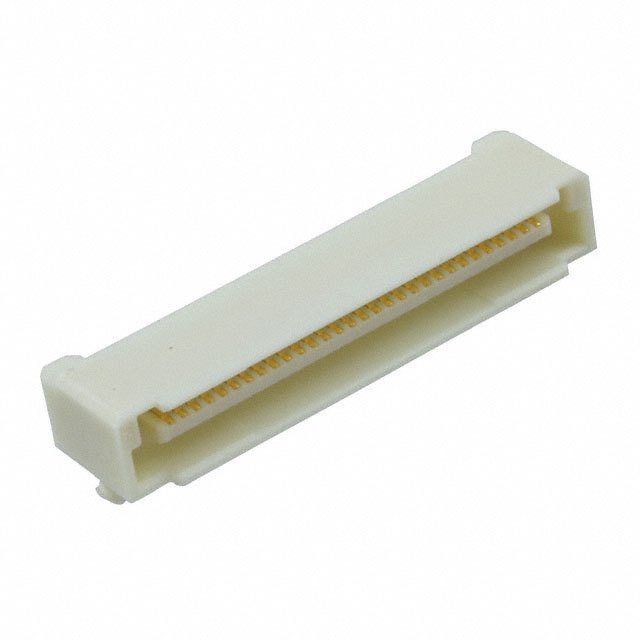

316229-2
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : Free Height (FH)
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 60
Pitch : 0.031" (0.80mm)
Number of Rows : 2
Mounting Type : Surface Mount, Right Angle
Features : Board Guide
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Mated Stacking Heights : -
Height Above Board : 0.201" (5.10mm)
Packaging : Tube
Series : Free Height (FH)
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 60
Pitch : 0.031" (0.80mm)
Number of Rows : 2
Mounting Type : Surface Mount, Right Angle
Features : Board Guide
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Mated Stacking Heights : -
Height Above Board : 0.201" (5.10mm)
0
608 in stock
316229-3
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tube
Series : Free Height (FH)
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 80
Pitch : 0.031" (0.80mm)
Number of Rows : 2
Mounting Type : Surface Mount, Right Angle
Features : Board Guide
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Mated Stacking Heights : -
Height Above Board : 0.201" (5.10mm)
Packaging : Tube
Series : Free Height (FH)
Part Status : Active
Connector Type : Plug, Center Strip Contacts
Number of Positions : 80
Pitch : 0.031" (0.80mm)
Number of Rows : 2
Mounting Type : Surface Mount, Right Angle
Features : Board Guide
Contact Finish : Gold
Contact Finish Thickness : 11.8µin (0.30µm)
Mated Stacking Heights : -
Height Above Board : 0.201" (5.10mm)
0
2003 in stock

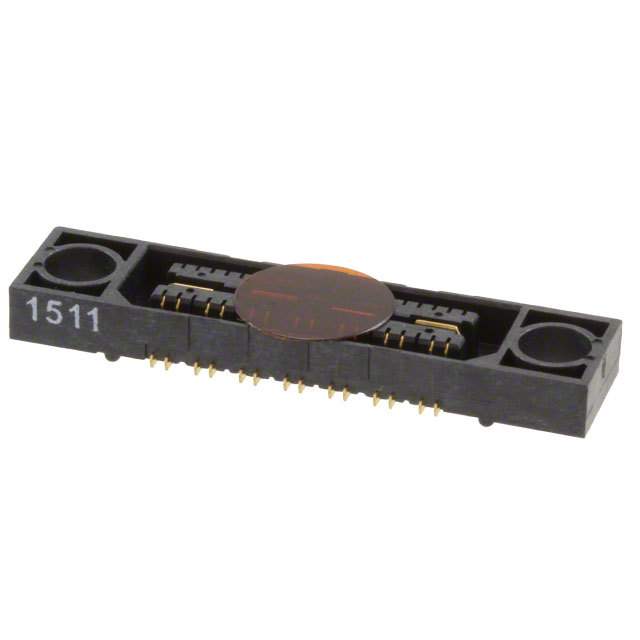

3-1658071-1
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : MICTOR SB
Part Status : Active
Connector Type : Differential Pair Array, Female
Number of Positions : 28
Pitch : 0.031" (0.80mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide, Ground Bus (Plane)
Contact Finish : Gold
Contact Finish Thickness : Flash
Mated Stacking Heights : -
Height Above Board : 0.120" (3.05mm)
Packaging : Tray
Series : MICTOR SB
Part Status : Active
Connector Type : Differential Pair Array, Female
Number of Positions : 28
Pitch : 0.031" (0.80mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide, Ground Bus (Plane)
Contact Finish : Gold
Contact Finish Thickness : Flash
Mated Stacking Heights : -
Height Above Board : 0.120" (3.05mm)
0
288 in stock

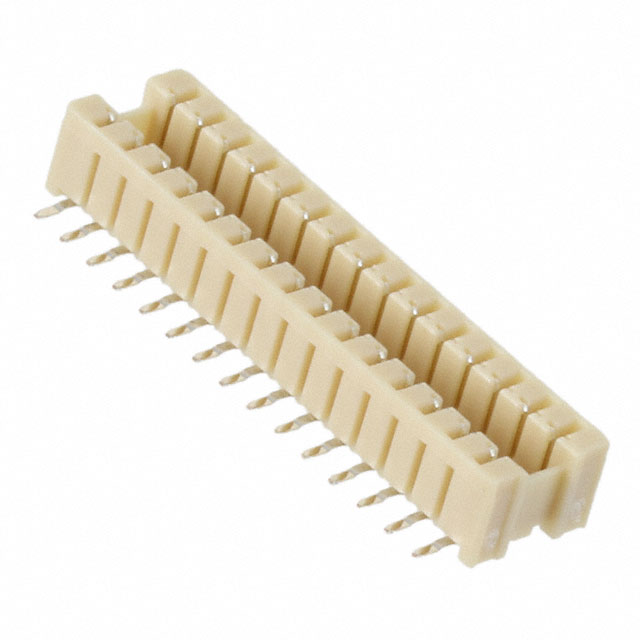

3-179437-0
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AMPMODU
Part Status : Active
Connector Type : Receptacle, Outer Shroud Contacts
Number of Positions : 30
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide
Contact Finish : Tin
Contact Finish Thickness : -
Mated Stacking Heights : -
Height Above Board : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AMPMODU
Part Status : Active
Connector Type : Receptacle, Outer Shroud Contacts
Number of Positions : 30
Pitch : 0.079" (2.00mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide
Contact Finish : Tin
Contact Finish Thickness : -
Mated Stacking Heights : -
Height Above Board : -
0
2996 in stock

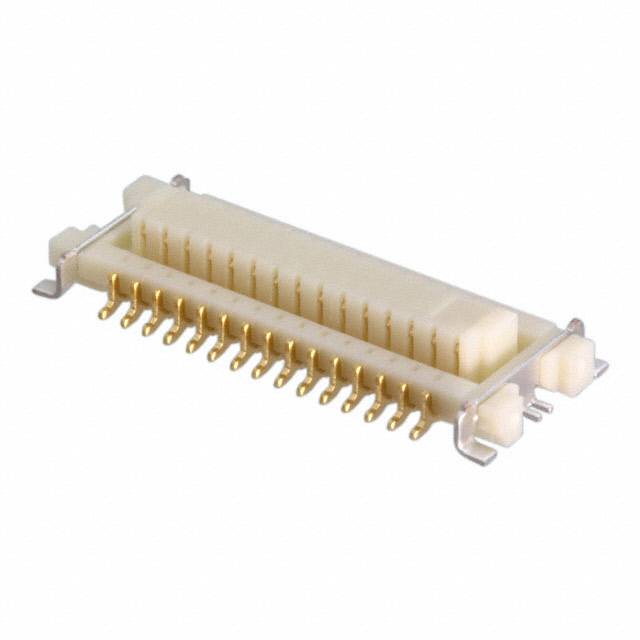

3-179702-0
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Fine Stack (FS)
Part Status : Discontinued at
Connector Type : Plug, Center Strip Contacts
Number of Positions : 30
Pitch : 0.031" (0.80mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : 3mm
Height Above Board : 0.094" (2.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Fine Stack (FS)
Part Status : Discontinued at
Connector Type : Plug, Center Strip Contacts
Number of Positions : 30
Pitch : 0.031" (0.80mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Solder Retention
Contact Finish : Gold
Contact Finish Thickness : -
Mated Stacking Heights : 3mm
Height Above Board : 0.094" (2.40mm)
0
100 in stock

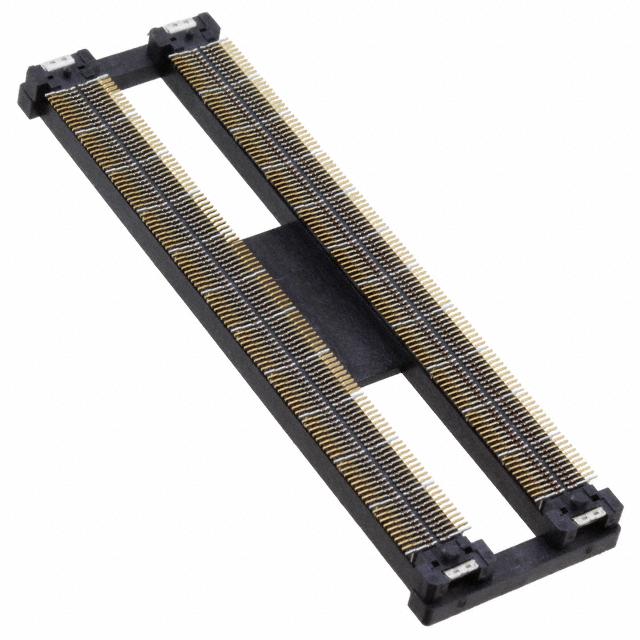

3-1827231-6
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : Free Height (FH)
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 440
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide, Ground Plate
Contact Finish : Gold
Contact Finish Thickness : 8.00µin (0.203µm)
Mated Stacking Heights : 5mm, 8mm
Height Above Board : 0.128" (3.25mm)
Packaging : Tray
Series : Free Height (FH)
Part Status : Active
Connector Type : Receptacle, Center Strip Contacts
Number of Positions : 440
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide, Ground Plate
Contact Finish : Gold
Contact Finish Thickness : 8.00µin (0.203µm)
Mated Stacking Heights : 5mm, 8mm
Height Above Board : 0.128" (3.25mm)
0
1712 in stock

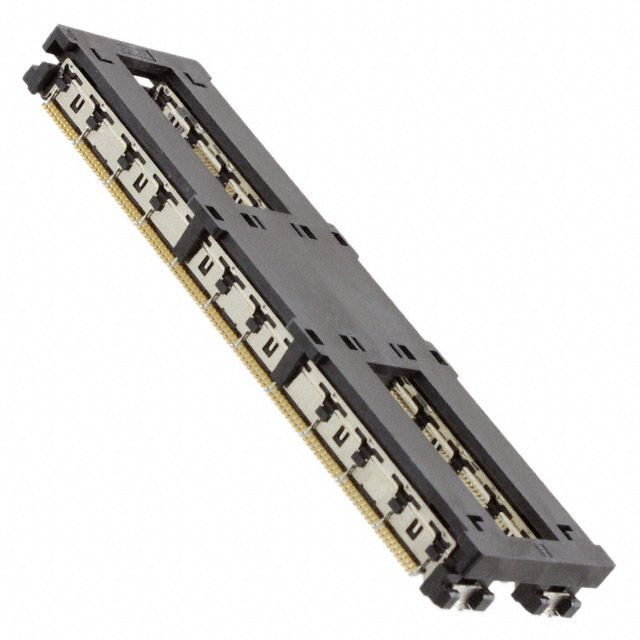

3-1827233-6
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : Free Height (FH)
Part Status : Active
Connector Type : Plug, Outer Shroud Contacts
Number of Positions : 440
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide, Ground Plate
Contact Finish : Gold
Contact Finish Thickness : 8.00µin (0.203µm)
Mated Stacking Heights : 5mm, 8mm
Height Above Board : 0.175" (4.45mm)
Packaging : Tray
Series : Free Height (FH)
Part Status : Active
Connector Type : Plug, Outer Shroud Contacts
Number of Positions : 440
Pitch : 0.020" (0.50mm)
Number of Rows : 2
Mounting Type : Surface Mount
Features : Board Guide, Ground Plate
Contact Finish : Gold
Contact Finish Thickness : 8.00µin (0.203µm)
Mated Stacking Heights : 5mm, 8mm
Height Above Board : 0.175" (4.45mm)
0
491 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
