Part Number
Manufacturer
Description
Unit Price
In Stock

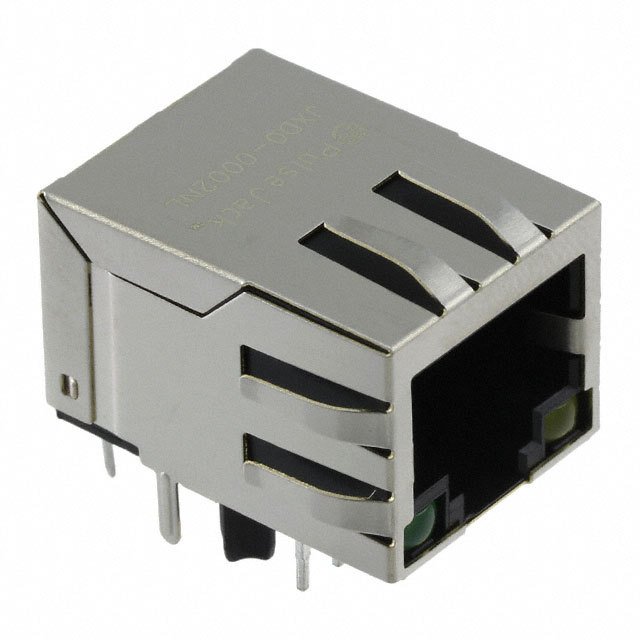

JXD0-0002NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Bulk
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features : Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Bulk
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features : Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
873 in stock

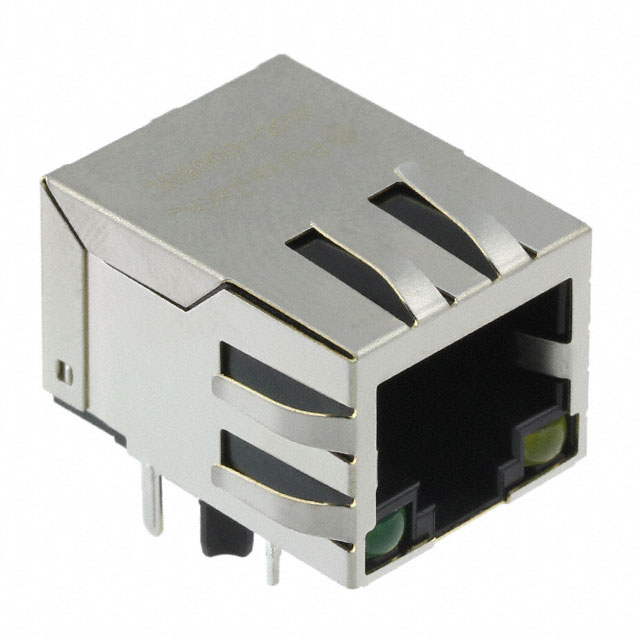

JXD0-0006NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100 Base-TX, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.531" (13.49mm)
LED Color : Green - Yellow
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features : Board Guide
Tab Direction : Down
Contact Material : Copper Alloy
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100 Base-TX, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.531" (13.49mm)
LED Color : Green - Yellow
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features : Board Guide
Tab Direction : Down
Contact Material : Copper Alloy
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
755 in stock

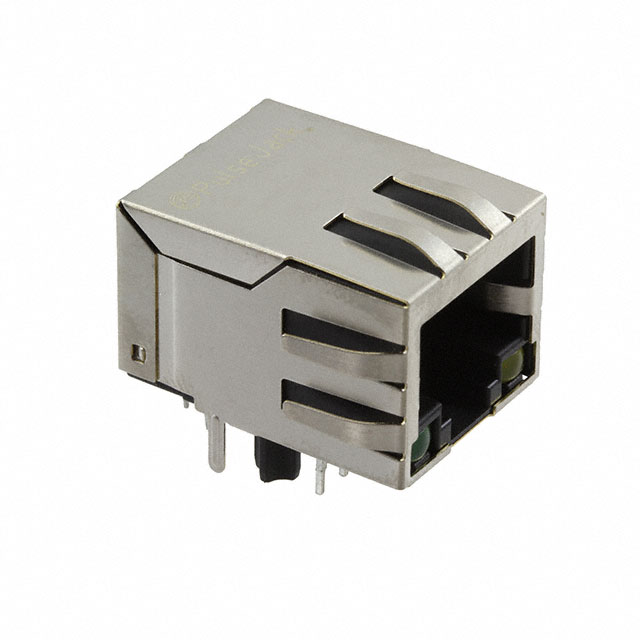

JXD0-0008NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100 Base-TX, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.531" (13.49mm)
LED Color : Green - Yellow
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features : Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100 Base-TX, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.531" (13.49mm)
LED Color : Green - Yellow
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features : Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
10 in stock

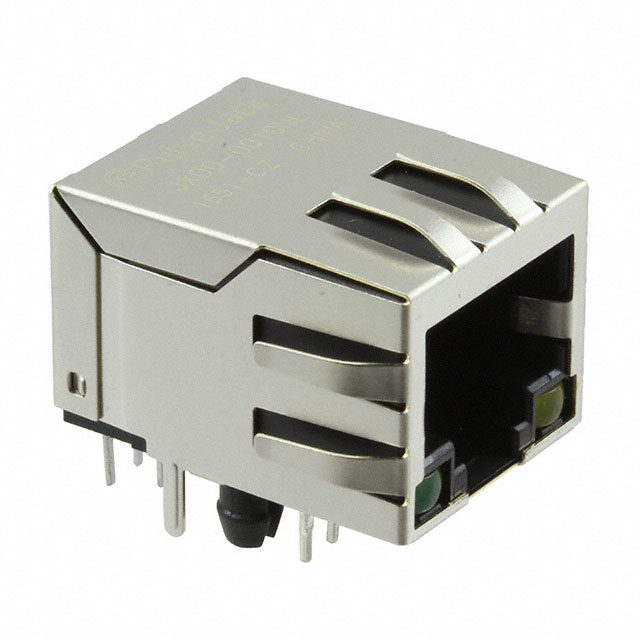

JXD0-0010NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : -
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : -
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
840 in stock
JXD0-0012NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100 Base-TX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100 Base-TX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
800 in stock

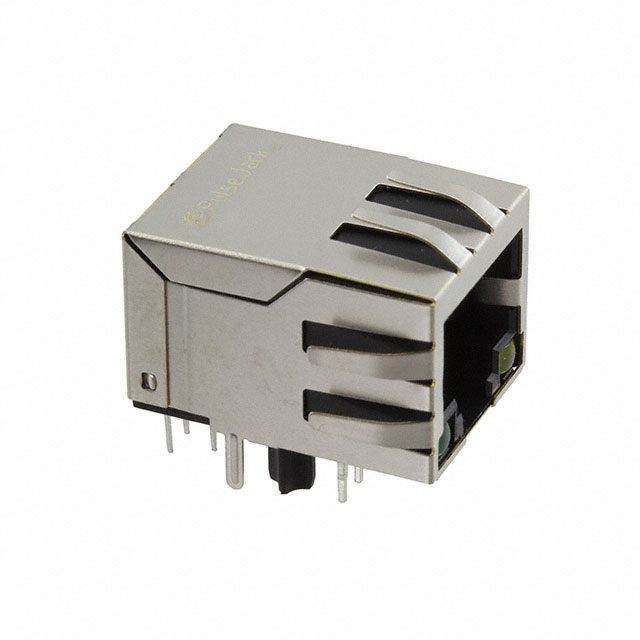

JXD0-0015NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
1400 in stock
JXD0-0019NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
334 in stock
JXD0-0025NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
829 in stock
JXD0-0029NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 1
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded
Features : Board Lock
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
50 in stock
JXD0-2005NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 2
Number of Rows : 1
Applications : 10/100 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.531" (13.49mm)
LED Color : Green - Yellow
Number of Cores per Jack : 4
Shielding : Shielded, Bezel EMI Finger
Features : Board Lock
Tab Direction : Down
Contact Material : Copper Alloy
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 2
Number of Rows : 1
Applications : 10/100 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.531" (13.49mm)
LED Color : Green - Yellow
Number of Cores per Jack : 4
Shielding : Shielded, Bezel EMI Finger
Features : Board Lock
Tab Direction : Down
Contact Material : Copper Alloy
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
289 in stock
JXD0-2015NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 2
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features : Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 2
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.537" (13.65mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features : Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
441 in stock
JXD0-2019NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 2
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.541" (13.75mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded
Features : Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
Packaging : Tray
Series : PULSEJACK™JXD0
Part Status : Active
Connector Type : RJ45
Number of Ports : 2
Number of Rows : 1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation : 90° Angle (Right)
Termination : Solder
Height Above Board : 0.541" (13.75mm)
LED Color : Green - Yellow
Number of Cores per Jack : 8
Shielding : Shielded
Features : Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40°C ~ 85°C
0
235 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
