FFC, FPC (Flat Flexible) Connectors Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

0514411693

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Easy-On 51441
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 16
Pitch : 0.020" (0.50mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.044" (1.12mm)
Locking Feature : Flip Lock
Cable End Type : Straight, Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 85°C
Material Flammability Rating : UL94 V-0

3000 in stock

0514411793

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tape & Reel (TR)
Series : Easy-On 51441
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 17
Pitch : 0.020" (0.50mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.044" (1.12mm)
Locking Feature : Flip Lock
Cable End Type : Straight, Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 85°C
Material Flammability Rating : UL94 V-0

100 in stock

0514411871

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tape & Reel (TR)
Series : Easy-On 51441
Part Status : Obsolete
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 18
Pitch : 0.020" (0.50mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.044" (1.12mm)
Locking Feature : Flip Lock
Cable End Type : Straight, Tapered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Housing Material : Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 85°C
Material Flammability Rating : UL94 V-0

100 in stock

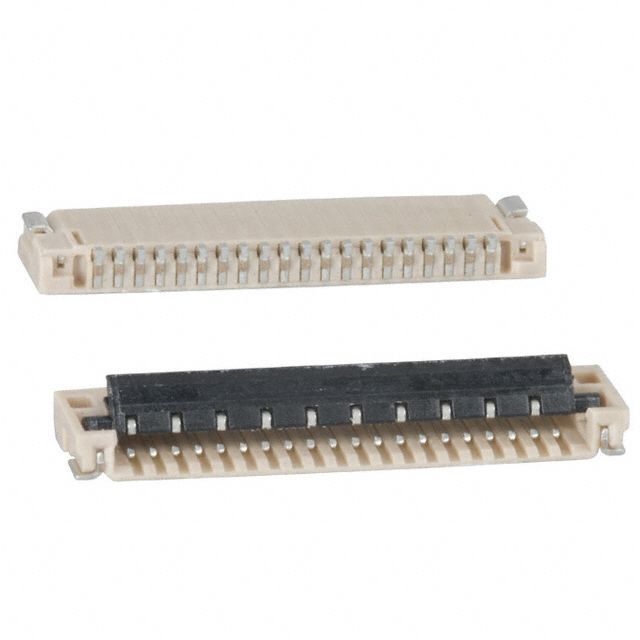

0514412093

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Easy-On 51441
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 20
Pitch : 0.020" (0.50mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.044" (1.12mm)
Locking Feature : Flip Lock
Cable End Type : Straight, Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 85°C
Material Flammability Rating : UL94 V-0

100 in stock

0514412272

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tape & Reel (TR)
Series : Easy-On 51441
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 22
Pitch : 0.020" (0.50mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.044" (1.12mm)
Locking Feature : Flip Lock
Cable End Type : Straight, Tapered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Housing Material : Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 85°C
Material Flammability Rating : UL94 V-0

100 in stock

0514412293

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Easy-On 51441
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 22
Pitch : 0.020" (0.50mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.044" (1.12mm)
Locking Feature : Flip Lock
Cable End Type : Straight, Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material : Polyphenylene Sulfide (PPS), Glass Filled
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 85°C
Material Flammability Rating : UL94 V-0

100 in stock

0520300329

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52030
Part Status : Obsolete
Flat Flex Type : FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 3
Pitch : 0.039" (1.00mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.205" (5.20mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA66), Nylon 6/6
Actuator Material : Polyester
Features : Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 80°C
Material Flammability Rating : UL94 V-0

100 in stock

0520300429

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52030
Part Status : Last Time Buy
Flat Flex Type : FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 4
Pitch : 0.039" (1.00mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.205" (5.20mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA66), Nylon 6/6
Actuator Material : Polyester
Features : Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 80°C
Material Flammability Rating : UL94 V-0

17587 in stock

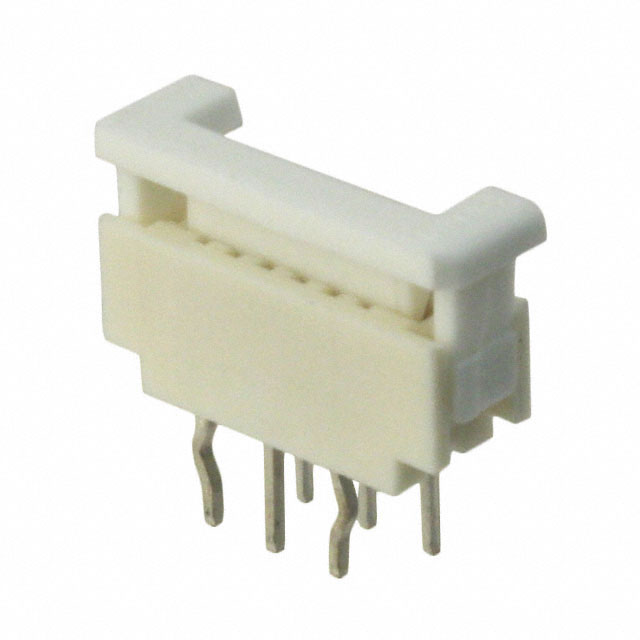

0520300629

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52030
Part Status : Last Time Buy
Flat Flex Type : FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 6
Pitch : 0.039" (1.00mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.205" (5.20mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA66), Nylon 6/6
Actuator Material : Polyester
Features : Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 80°C
Material Flammability Rating : UL94 V-0

740 in stock

0520300729

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52030
Part Status : Active
Flat Flex Type : FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 7
Pitch : 0.039" (1.00mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.205" (5.20mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA66), Nylon 6/6
Actuator Material : Polyester
Features : Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 80°C
Material Flammability Rating : UL94 V-0

1800 in stock

0520300829

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52030
Part Status : Last Time Buy
Flat Flex Type : FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 8
Pitch : 0.039" (1.00mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.205" (5.20mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA66), Nylon 6/6
Actuator Material : Polyester
Features : Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 80°C
Material Flammability Rating : UL94 V-0

19932 in stock

0520300929

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : 52030
Part Status : Active
Flat Flex Type : FPC
Mounting Type : Through Hole
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 9
Pitch : 0.039" (1.00mm)
Termination : Kinked Pin
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.205" (5.20mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin Bismuth
Housing Material : Polyamide (PA66), Nylon 6/6
Actuator Material : Polyester
Features : Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -20°C ~ 80°C
Material Flammability Rating : UL94 V-0

1652 in stock
