- Connectors, Interconnects
- Card Edge Connectors - Edgeboard Connectors
Part Number
Manufacturer
Description
Unit Price
In Stock
RBE05DHFR
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 5
Number of Positions : 10
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : Board Lock
Mounting Type : Surface Mount
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 5
Number of Positions : 10
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : Board Lock
Mounting Type : Surface Mount
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
0
18 in stock

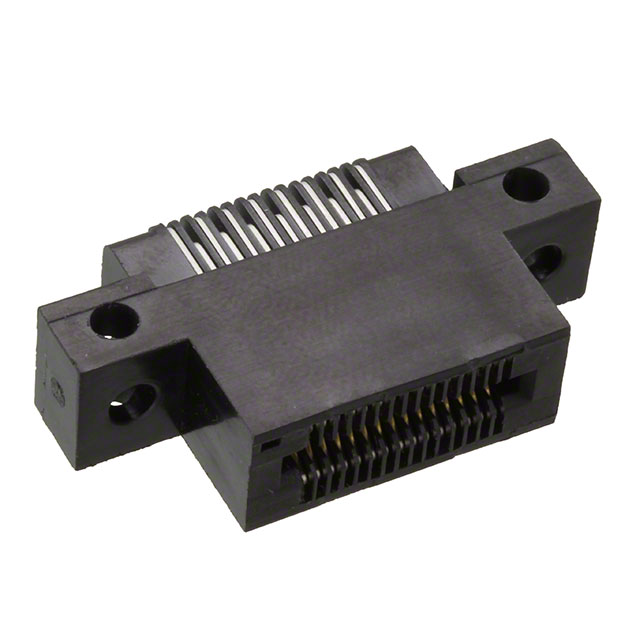

RBE15DHAS
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 15
Number of Positions : 30
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole, Right Angle
Termination : Solder, Staggered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tube
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 15
Number of Positions : 30
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole, Right Angle
Termination : Solder, Staggered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
73 in stock

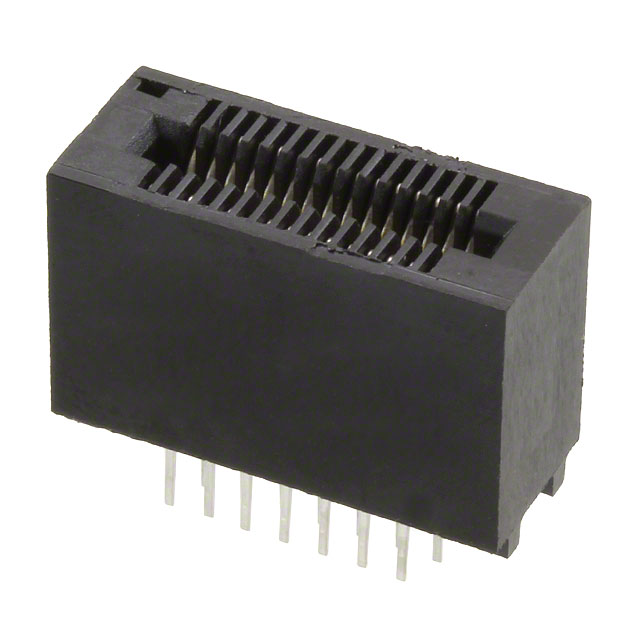

RBE15DHHN
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 15
Number of Positions : 30
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder, Staggered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
Packaging : Tube
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 15
Number of Positions : 30
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder, Staggered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
0
14 in stock
SAL1-120-01-S-S-A-K-TR
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SataLink™ SAL1
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : 20
Number of Positions : 20
Card Thickness : 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows : 1
Pitch : 0.039" (1.00mm)
Read Out : Single
Features : Board Guide, Pick and Place, Solder Retention
Mounting Type : Board Edge, Surface Mount
Termination : Solder
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 125°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SataLink™ SAL1
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : 20
Number of Positions : 20
Card Thickness : 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows : 1
Pitch : 0.039" (1.00mm)
Read Out : Single
Features : Board Guide, Pick and Place, Solder Retention
Mounting Type : Board Edge, Surface Mount
Termination : Solder
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 125°C
0
400 in stock
SAL1-120-01-S-S-A-TR
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Series : SataLink™ SAL1
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : 20
Number of Positions : 20
Card Thickness : 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows : 1
Pitch : 0.039" (1.00mm)
Read Out : Single
Features : Board Guide, Solder Retention
Mounting Type : Board Edge, Surface Mount
Termination : Solder
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 125°C
Packaging : Cut Tape (CT)
Series : SataLink™ SAL1
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : 20
Number of Positions : 20
Card Thickness : 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows : 1
Pitch : 0.039" (1.00mm)
Read Out : Single
Features : Board Guide, Solder Retention
Mounting Type : Board Edge, Surface Mount
Termination : Solder
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 125°C
0
400 in stock
SAL1-130-01-S-S-A-TR
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SataLink™ SAL1
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : 30
Number of Positions : 30
Card Thickness : 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows : 1
Pitch : 0.039" (1.00mm)
Read Out : Single
Features : Board Guide, Solder Retention
Mounting Type : Board Edge, Surface Mount
Termination : Solder
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 125°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SataLink™ SAL1
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : 30
Number of Positions : 30
Card Thickness : 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows : 1
Pitch : 0.039" (1.00mm)
Read Out : Single
Features : Board Guide, Solder Retention
Mounting Type : Board Edge, Surface Mount
Termination : Solder
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 125°C
0
400 in stock
SAL1-140-01-S-S-A-K-TR
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SataLink™ SAL1
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : 40
Number of Positions : 40
Card Thickness : 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows : 1
Pitch : 0.039" (1.00mm)
Read Out : Single
Features : Board Guide, Pick and Place, Solder Retention
Mounting Type : Board Edge, Surface Mount
Termination : Solder
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 125°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SataLink™ SAL1
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : 40
Number of Positions : 40
Card Thickness : 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows : 1
Pitch : 0.039" (1.00mm)
Read Out : Single
Features : Board Guide, Pick and Place, Solder Retention
Mounting Type : Board Edge, Surface Mount
Termination : Solder
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 125°C
0
400 in stock
SAL1-140-01-S-S-A-TR
Samtec, Inc.
Manufacturer : Samtec Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SataLink™ SAL1
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : 40
Number of Positions : 40
Card Thickness : 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows : 1
Pitch : 0.039" (1.00mm)
Read Out : Single
Features : Board Guide, Solder Retention
Mounting Type : Board Edge, Surface Mount
Termination : Solder
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 125°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SataLink™ SAL1
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : 40
Number of Positions : 40
Card Thickness : 0.063" ~ 0.093" (1.60mm ~ 2.36mm)
Number of Rows : 1
Pitch : 0.039" (1.00mm)
Read Out : Single
Features : Board Guide, Solder Retention
Mounting Type : Board Edge, Surface Mount
Termination : Solder
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 125°C
0
400 in stock
SE1002023111111
Amphenol Information Communication & Commercial
Manufacturer : Amphenol Commercial Products
Packaging : Tray
Series : SLIM COOL EDGE®
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 20
Card Thickness : 0.063" (1.60mm)
Number of Rows : 2
Pitch : 0.026" (0.65mm)
Read Out : Dual
Features : Board Guide
Mounting Type : Surface Mount
Termination : Solder
Contact Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : Cantilever
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 105°C
Packaging : Tray
Series : SLIM COOL EDGE®
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 20
Card Thickness : 0.063" (1.60mm)
Number of Rows : 2
Pitch : 0.026" (0.65mm)
Read Out : Dual
Features : Board Guide
Mounting Type : Surface Mount
Termination : Solder
Contact Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : Cantilever
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 105°C
0
100 in stock
SE1002213101031
Amphenol Information Communication & Commercial
Manufacturer : Amphenol Commercial Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SLIM COOL EDGE®
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 22
Card Thickness : 0.063" (1.60mm)
Number of Rows : 2
Pitch : 0.031" (0.80mm)
Read Out : Dual
Features : Board Lock, Latches
Mounting Type : -
Termination : -
Contact Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SLIM COOL EDGE®
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 22
Card Thickness : 0.063" (1.60mm)
Number of Rows : 2
Pitch : 0.031" (0.80mm)
Read Out : Dual
Features : Board Lock, Latches
Mounting Type : -
Termination : -
Contact Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -
0
541 in stock
SE1006013101021
Amphenol Information Communication & Commercial
Manufacturer : Amphenol Commercial Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SLIM COOL EDGE®
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 60
Card Thickness : 0.063" (1.60mm)
Number of Rows : 2
Pitch : 0.031" (0.80mm)
Read Out : Dual
Features : Board Lock
Mounting Type : -
Termination : -
Contact Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SLIM COOL EDGE®
Part Status : Active
Card Type : -
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 60
Card Thickness : 0.063" (1.60mm)
Number of Rows : 2
Pitch : 0.031" (0.80mm)
Read Out : Dual
Features : Board Lock
Mounting Type : -
Termination : -
Contact Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -
0
1076 in stock
SE1006023111111
Amphenol Information Communication & Commercial
Manufacturer : Amphenol Commercial Products
Packaging : Tray
Series : SLIM COOL EDGE®
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 60
Card Thickness : 0.063" (1.60mm)
Number of Rows : 2
Pitch : 0.026" (0.65mm)
Read Out : Dual
Features : Board Guide
Mounting Type : Surface Mount
Termination : Solder
Contact Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : Cantilever
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 105°C
Packaging : Tray
Series : SLIM COOL EDGE®
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 60
Card Thickness : 0.063" (1.60mm)
Number of Rows : 2
Pitch : 0.026" (0.65mm)
Read Out : Dual
Features : Board Guide
Mounting Type : Surface Mount
Termination : Solder
Contact Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : Cantilever
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 105°C
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
