Part Number
Manufacturer
Description
Unit Price
In Stock
EBC15MMWD
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Fits Female Edgecards
Gender : Male
Number of Positions/Bay/Row : 15
Number of Positions : 30
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : -
Color : Blue
Flange Feature : Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Fits Female Edgecards
Gender : Male
Number of Positions/Bay/Row : 15
Number of Positions : 30
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : -
Color : Blue
Flange Feature : Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
407 in stock

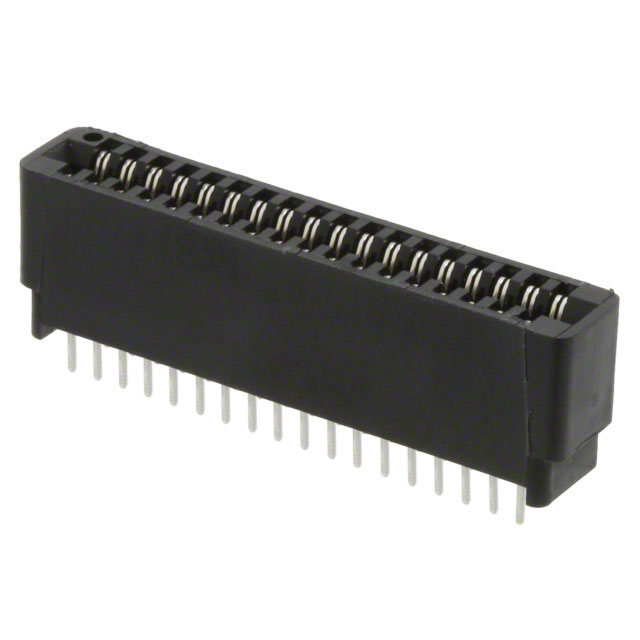

EBC18DCWN-S371
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : ISA
Gender : Female
Number of Positions/Bay/Row : 18
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : ISA
Gender : Female
Number of Positions/Bay/Row : 18
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Hairpin Bellows
Color : Black
Flange Feature : -
Operating Temperature : -65°C ~ 125°C
0
1032 in stock

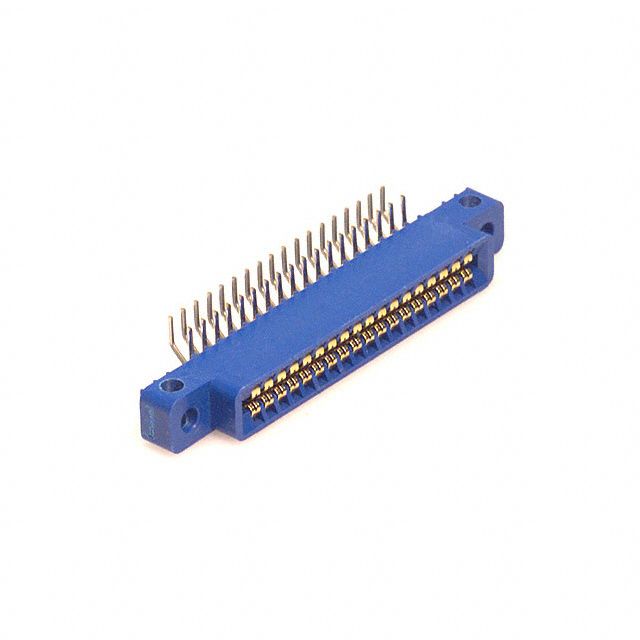

EBC18DRAS
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 18
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 18
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
190 in stock

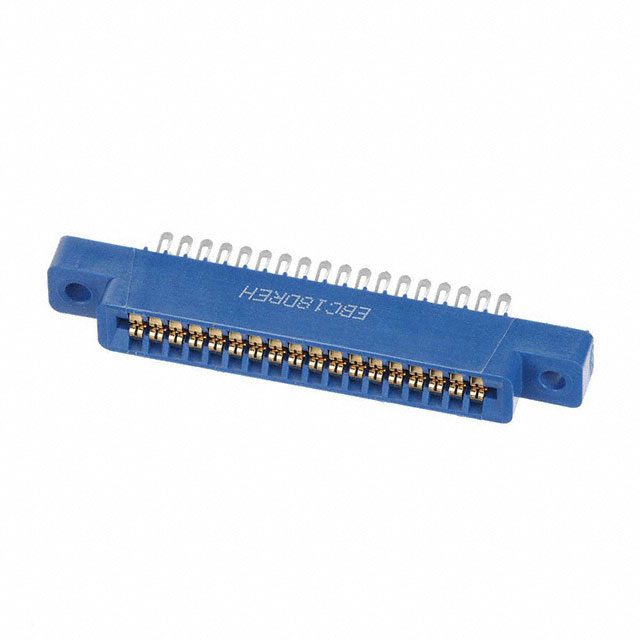

EBC18DREH
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 18
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Panel Mount
Termination : Solder Eyelet(s)
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 18
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Panel Mount
Termination : Solder Eyelet(s)
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
34 in stock
EBC18DRXH
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 18
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 18
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
178 in stock
EBC18MMWD
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Fits Female Edgecards
Gender : Male
Number of Positions/Bay/Row : 18
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : -
Color : Blue
Flange Feature : Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Fits Female Edgecards
Gender : Male
Number of Positions/Bay/Row : 18
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : -
Color : Blue
Flange Feature : Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
90 in stock

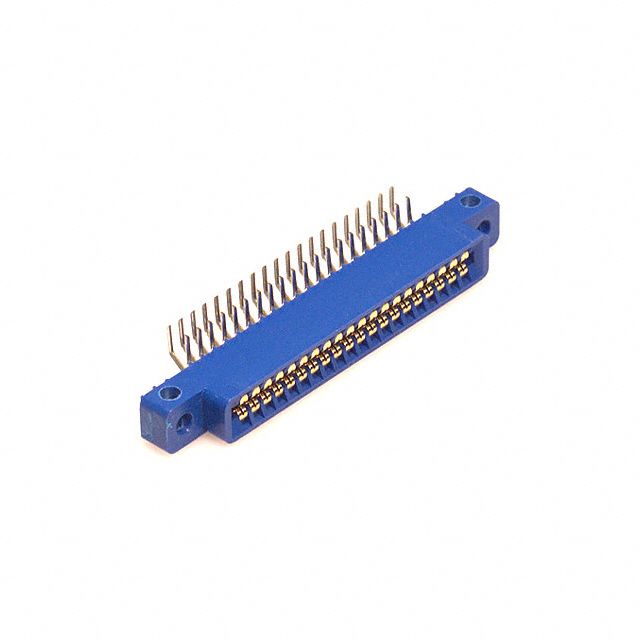

EBC20DRAS
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 20
Number of Positions : 40
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tube
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 20
Number of Positions : 40
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
43 in stock
EBC20DRTH
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 20
Number of Positions : 40
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 20
Number of Positions : 40
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
47 in stock

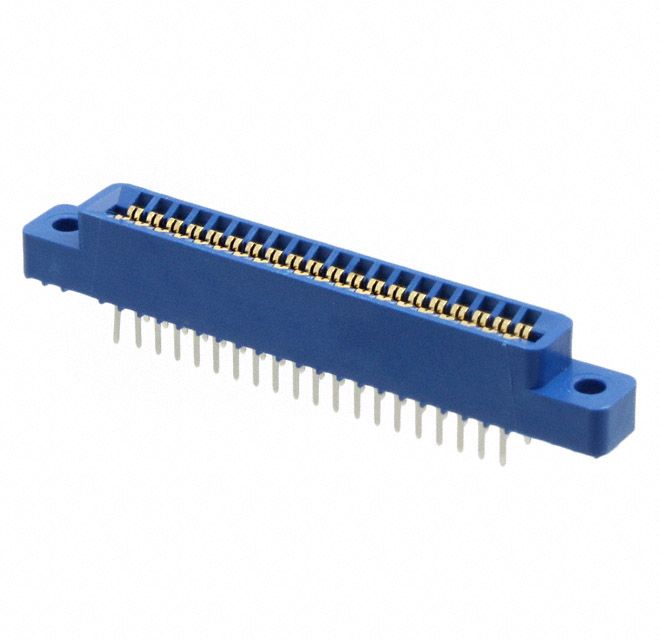

EBC20DRXH
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 20
Number of Positions : 40
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 20
Number of Positions : 40
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
1556 in stock
EBC20MMWD
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Fits Female Edgecards
Gender : Male
Number of Positions/Bay/Row : 20
Number of Positions : 40
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : -
Color : Blue
Flange Feature : Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Fits Female Edgecards
Gender : Male
Number of Positions/Bay/Row : 20
Number of Positions : 40
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : -
Color : Blue
Flange Feature : Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
644 in stock
EBC22DRAS
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 22
Number of Positions : 44
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 22
Number of Positions : 44
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole, Right Angle
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
60 in stock
EBC22DRXH
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 22
Number of Positions : 44
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
Packaging : Tray
Series : -
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : 22
Number of Positions : 44
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Contact Type : Full Bellows
Color : Blue
Flange Feature : Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature : -65°C ~ 125°C
0
75 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
