Part Number

Manufacturer

Description

Unit Price

In Stock

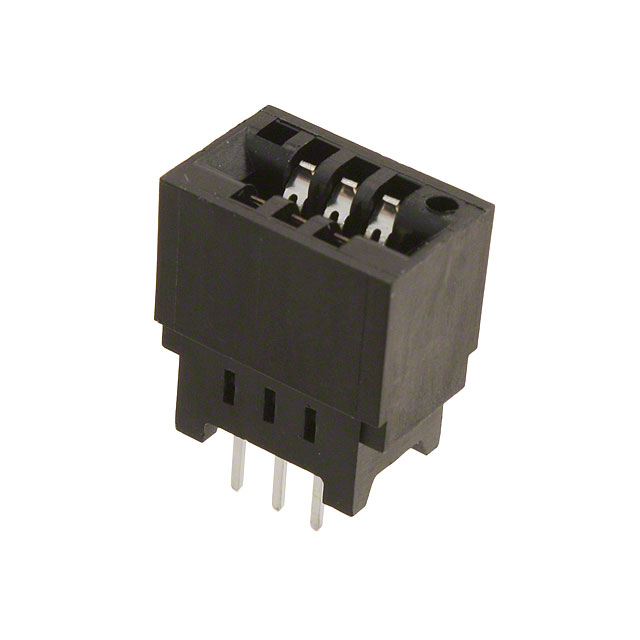

7-5530843-7

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : Standard Edge II
Part Status : Active
Card Type : Multibus I
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 6
Card Thickness : 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 85°C

6020 in stock

76291-0226

Affinity Medical Technologies - a Molex company

Manufacturer : Molex, LLC
Packaging : Tray
Series : EdgeLine 76291
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 226
Card Thickness : 0.057" ~ 0.069" (1.44mm ~ 1.76mm)
Number of Rows : 2
Pitch : 0.030" (0.76mm)
Read Out : Dual
Features : Board Guide
Mounting Type : Through Hole, Right Angle
Termination : Press-Fit
Contact Material : Copper Alloy
Contact Finish : Gold
Contact Finish Thickness : 29.5µin (0.75µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -40°C ~ 105°C

100 in stock

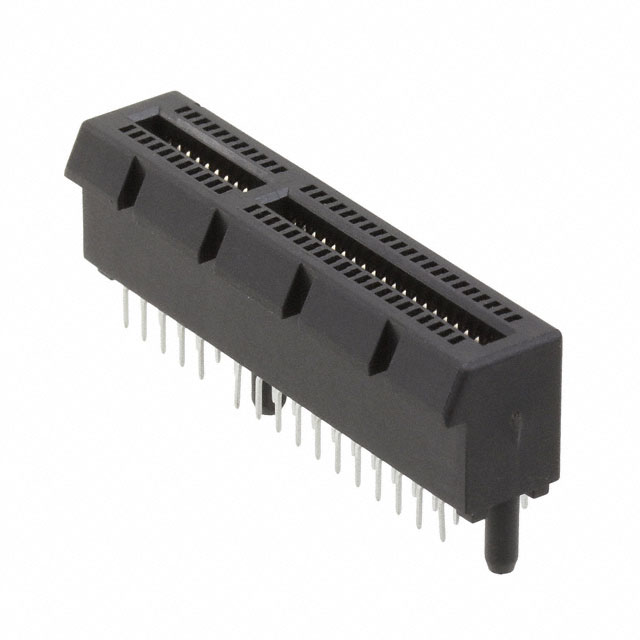

8-1734774-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : -
Part Status : Active
Card Type : PCI Express™
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 64
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : Board Guide, Locking Ramp
Mounting Type : Through Hole
Termination : Solder, Staggered
Contact Material : Phosphor Bronze - Tin Plated
Contact Finish : Gold
Contact Finish Thickness : 145.7µin (3.70µm)
Contact Type : Cantilever
Color : Black
Flange Feature : -
Operating Temperature : -

2254 in stock

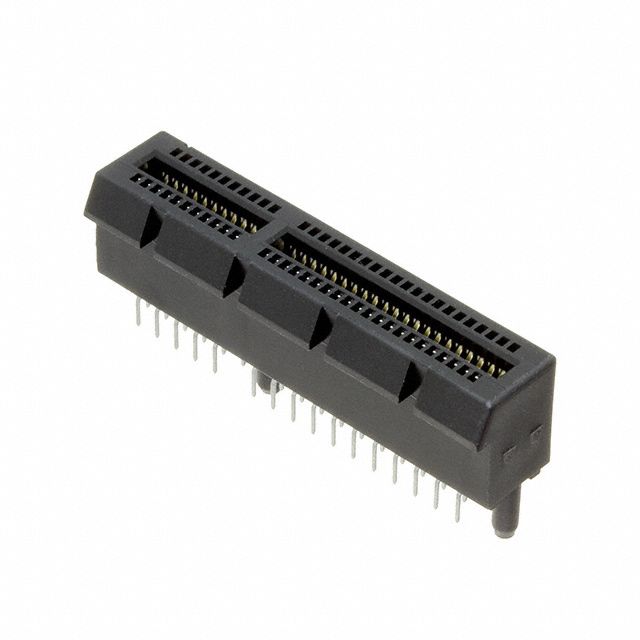

8-1734774-1

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : -
Part Status : Active
Card Type : PCI Express™
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 64
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : Board Guide, Locking Ramp
Mounting Type : Through Hole
Termination : Solder, Staggered
Contact Material : Phosphor Bronze - Tin Plated
Contact Finish : Gold
Contact Finish Thickness : 15.0µin (0.38µm)
Contact Type : Cantilever
Color : Black
Flange Feature : -
Operating Temperature : -

10734 in stock

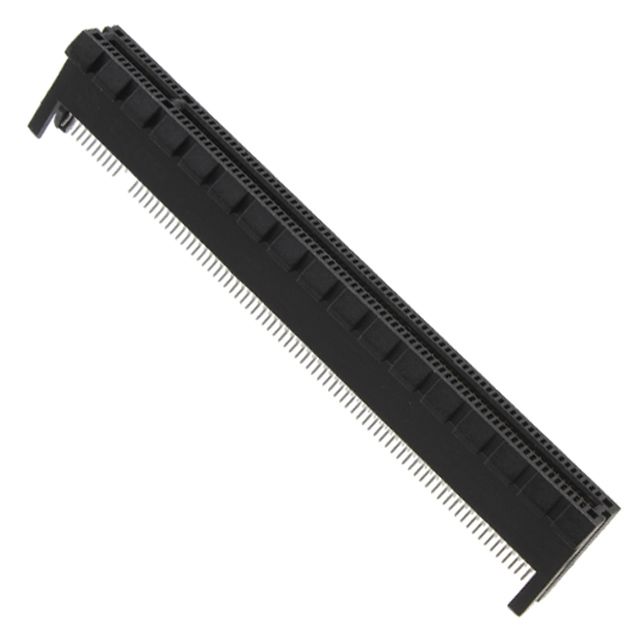

8-1734857-5

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : -
Part Status : Active
Card Type : PCI Express™
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 164
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : Card Extender, Locking Ramp
Mounting Type : Board Edge, Straddle Mount
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -40°C ~ 85°C

764 in stock

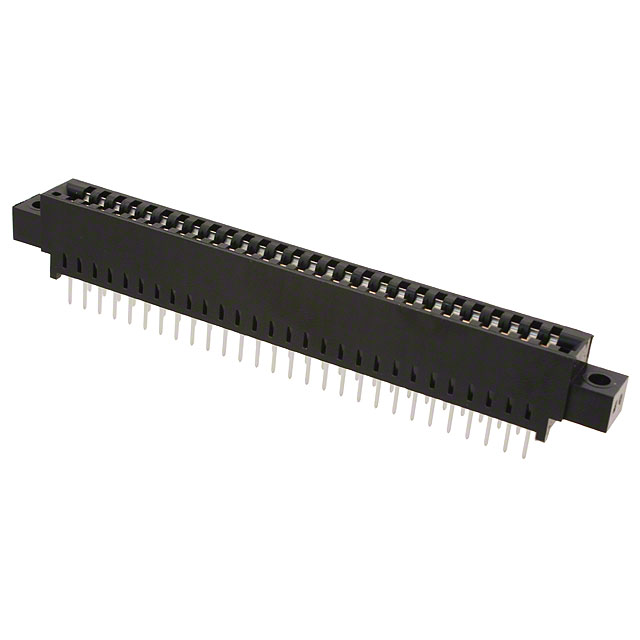

8-531341-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : Standard Edge II
Part Status : Active
Card Type : Non Specified - Dual Edge
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 56
Card Thickness : 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows : 2
Pitch : 0.125" (3.18mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature : -55°C ~ 85°C

1191 in stock

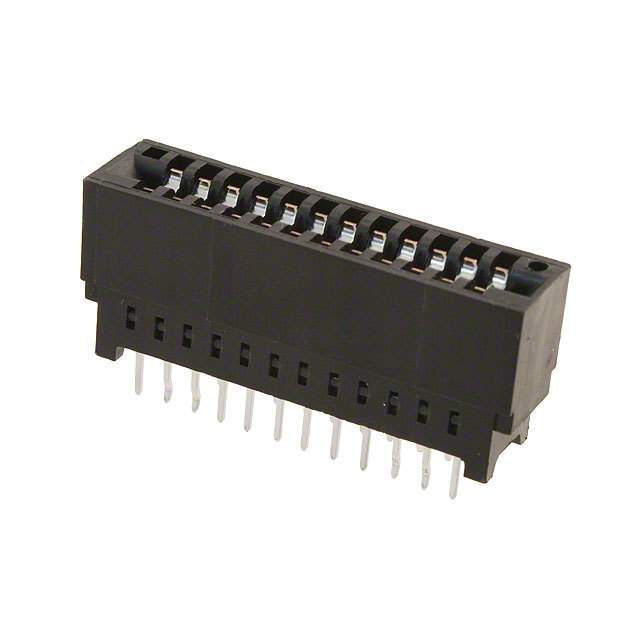

8-5530843-3

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : Standard Edge II
Part Status : Active
Card Type : Multibus I
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 24
Card Thickness : 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows : 2
Pitch : 0.100" (2.54mm)
Read Out : Dual
Features : -
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 85°C

513 in stock

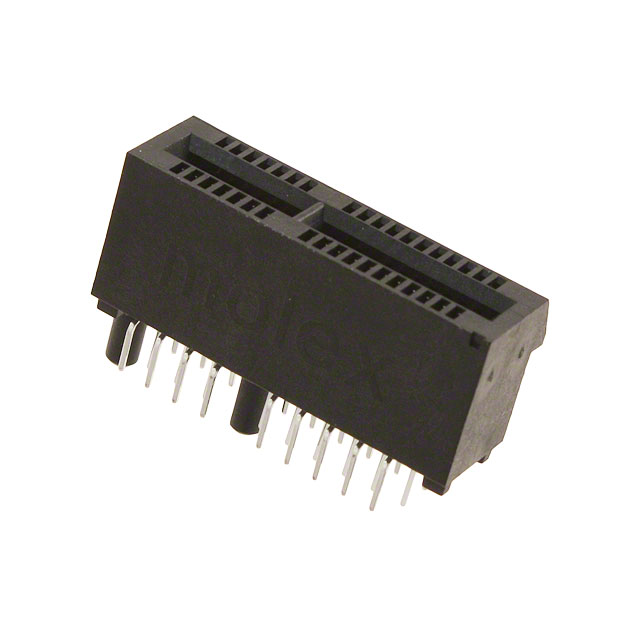

87715-9005

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : 87715
Part Status : Active
Card Type : PCI Express™
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : Board Guide, Locking Ramp
Mounting Type : Through Hole
Termination : Solder
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 15.0µin (0.38µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 85°C

2775 in stock

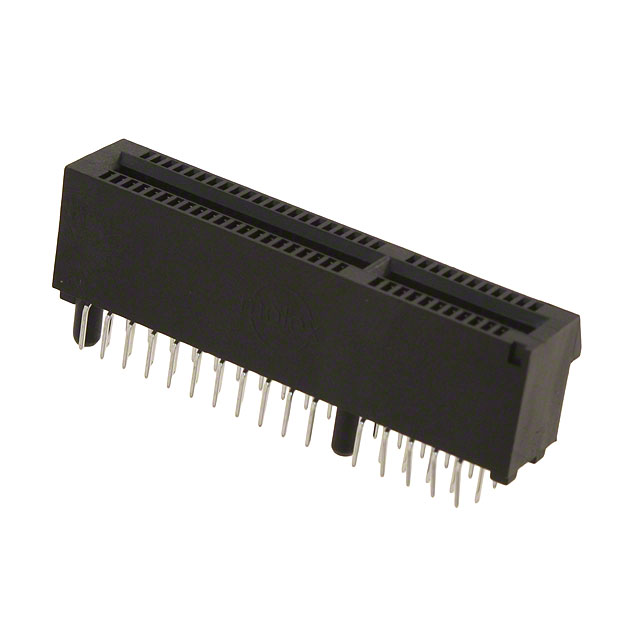

87715-9105

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : 87715
Part Status : Active
Card Type : PCI Express™
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 64
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : Board Guide, Locking Ramp
Mounting Type : Through Hole
Termination : Solder, Staggered
Contact Material : Phosphor Bronze
Contact Finish : Gold
Contact Finish Thickness : 15.0µin (0.38µm)
Contact Type : -
Color : Black
Flange Feature : -
Operating Temperature : -55°C ~ 85°C

1069 in stock

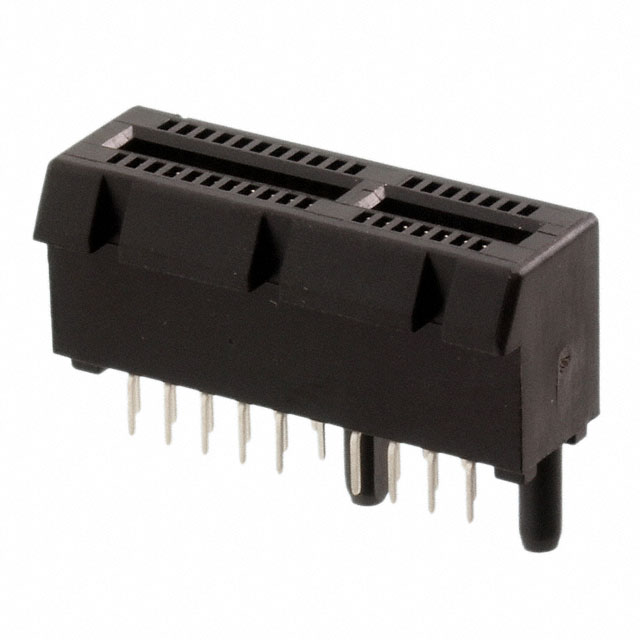

9-1734774-1

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : -
Part Status : Active
Card Type : PCI Express™
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 36
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : Board Guide, Locking Ramp
Mounting Type : Through Hole
Termination : Solder, Staggered
Contact Material : Phosphor Bronze - Tin Plated
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : Cantilever
Color : Black
Flange Feature : -
Operating Temperature : -

2366 in stock

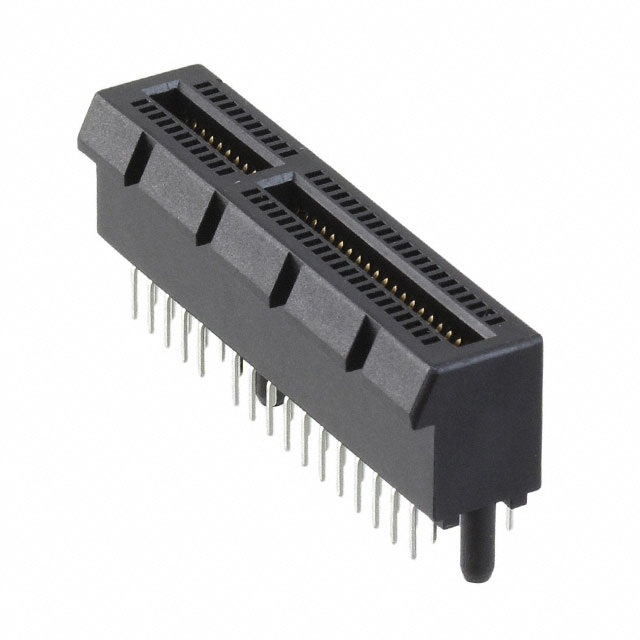

9-1734774-3

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : -
Part Status : Active
Card Type : PCI Express™
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 64
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : Board Guide, Locking Ramp
Mounting Type : Through Hole
Termination : Solder, Staggered
Contact Material : Phosphor Bronze - Tin Plated
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : Cantilever
Color : Black
Flange Feature : -
Operating Temperature : -

10559 in stock

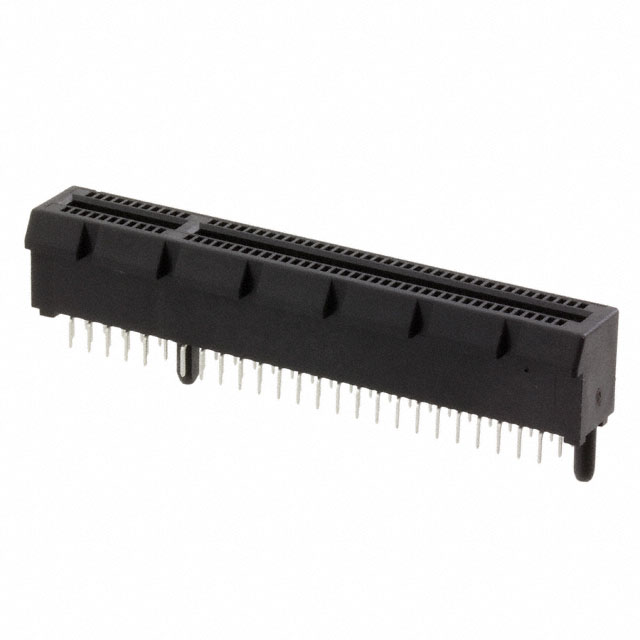

9-1734774-5

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : -
Part Status : Active
Card Type : PCI Express™
Gender : Female
Number of Positions/Bay/Row : -
Number of Positions : 98
Card Thickness : 0.062" (1.57mm)
Number of Rows : 2
Pitch : 0.039" (1.00mm)
Read Out : Dual
Features : Board Guide, Locking Ramp
Mounting Type : Through Hole
Termination : Solder, Staggered
Contact Material : Phosphor Bronze - Tin Plated
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Contact Type : Cantilever
Color : Black
Flange Feature : -
Operating Temperature : -

1256 in stock
