Part Number
Manufacturer
Description
Unit Price
In Stock
RAPC722S
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.236" (6.00mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Shielded
Features : -
Insulation Color : Black
Voltage - Rated : 48VAC/DC
Current Rating : 5A
Mating Length/Depth : 0.374" (9.50mm)
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.236" (6.00mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Shielded
Features : -
Insulation Color : Black
Voltage - Rated : 48VAC/DC
Current Rating : 5A
Mating Length/Depth : 0.374" (9.50mm)
Ingress Protection : -
0
500 in stock

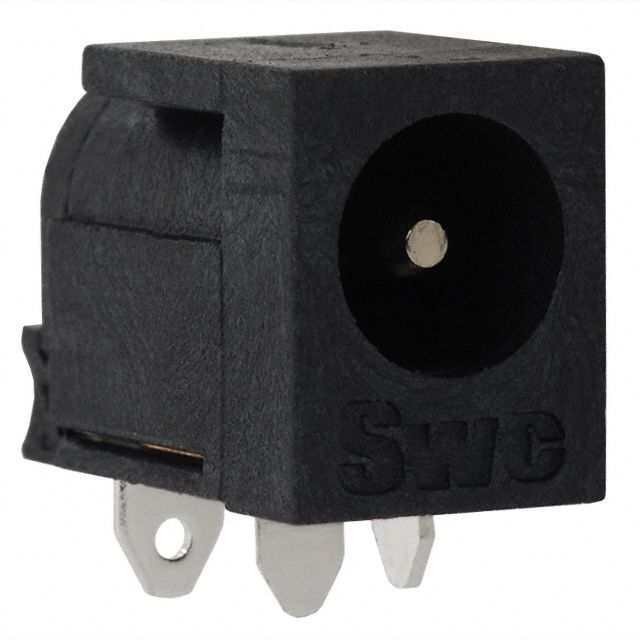

RAPC722X
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 5A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 5A
Mating Length/Depth : -
Ingress Protection : -
0
54293 in stock
RAPC732
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : -
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : -
Actual Diameter : 0.048" (1.22mm ID), 0.169" (4.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 5A
Mating Length/Depth : -
Ingress Protection : -
Packaging : -
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : -
Actual Diameter : 0.048" (1.22mm ID), 0.169" (4.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 5A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock
RAPC732OFX
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : -
Actual Diameter : 0.051" (1.30mm ID), 0.169" (4.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : -
Actual Diameter : 0.051" (1.30mm ID), 0.169" (4.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock

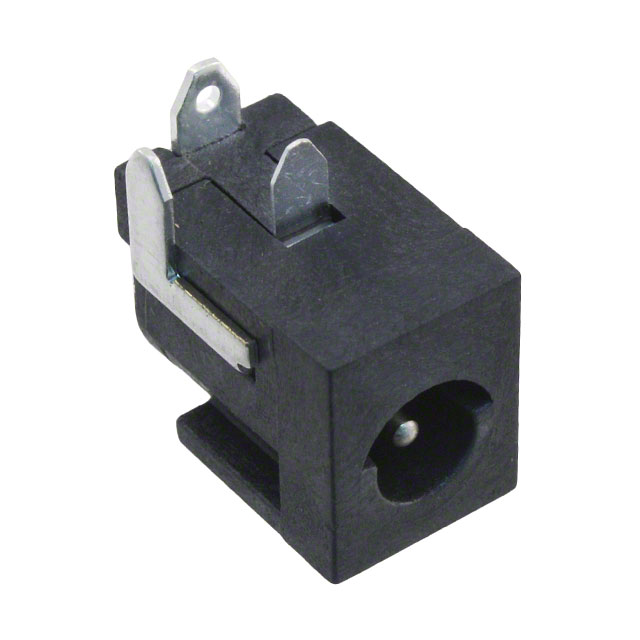

RAPC732X
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : -
Actual Diameter : 0.048" (1.22mm ID), 0.169" (4.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 5A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : -
Actual Diameter : 0.048" (1.22mm ID), 0.169" (4.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 5A
Mating Length/Depth : -
Ingress Protection : -
0
6925 in stock

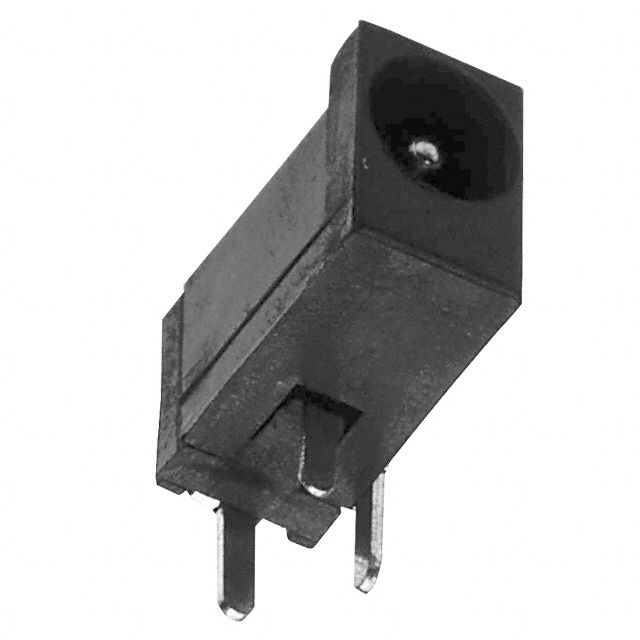

RAPC742
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : -
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : -
Actual Diameter : 0.039" (1.00mm ID), 0.177" (4.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
Packaging : -
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : -
Actual Diameter : 0.039" (1.00mm ID), 0.177" (4.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock
RAPC742OFX
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.10mm ID (0.043"), 3.50mm OD (0.138")
Actual Diameter : 0.039" (1.00mm ID), 0.177" (4.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.10mm ID (0.043"), 3.50mm OD (0.138")
Actual Diameter : 0.039" (1.00mm ID), 0.177" (4.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock

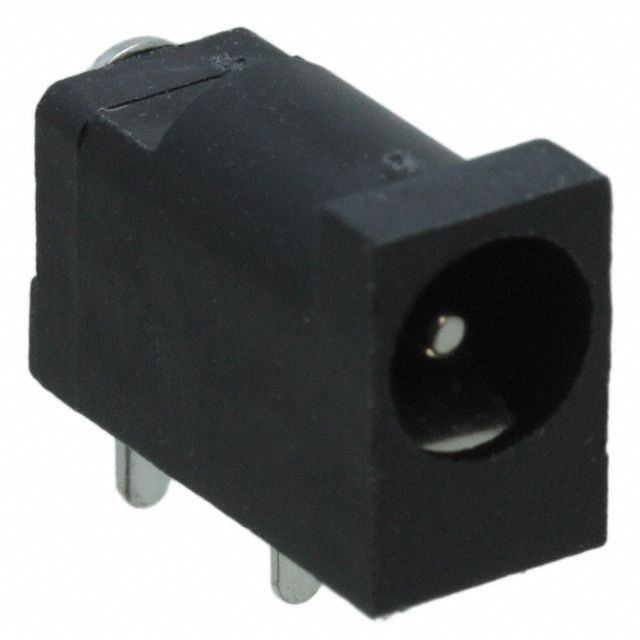

RAPC742X
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : -
Actual Diameter : 0.039" (1.00mm ID), 0.177" (4.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : -
Actual Diameter : 0.039" (1.00mm ID), 0.177" (4.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
0
710 in stock
RAPC752
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : -
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter : 0.026" (0.65mm ID), 0.108" (2.75mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
Packaging : -
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter : 0.026" (0.65mm ID), 0.108" (2.75mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock

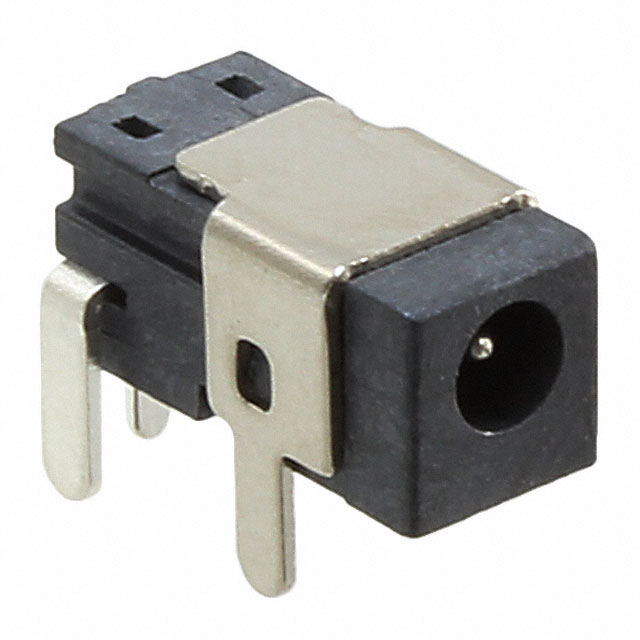

RAPC752SX
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : -
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter : 0.026" (0.65mm ID), 0.108" (2.75mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Shielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
Packaging : -
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter : 0.026" (0.65mm ID), 0.108" (2.75mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Shielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
0
401 in stock
RAPC752X
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter : 0.026" (0.65mm ID), 0.108" (2.75mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter : 0.026" (0.65mm ID), 0.108" (2.75mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : -
Current Rating : 3A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock
RASH10
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Through Hole
Mounting Feature : Bulkhead - Front Side Nut
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 11A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Through Hole
Mounting Feature : Bulkhead - Front Side Nut
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 11A
Mating Length/Depth : -
Ingress Protection : -
0
43 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
