Welcome to Weijie Semiconductor
- Connectors, Interconnects
- Barrel - Power Connectors
Part Number
Manufacturer
Description
Unit Price
In Stock

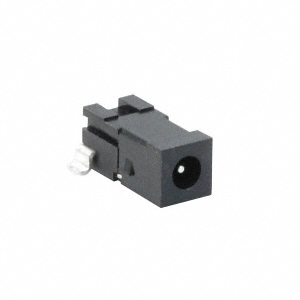

PJ-031H-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter : 0.026" (0.65mm ID), 0.110" (2.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 2.5A
Mating Length/Depth : 0.315" (8.00mm)
Ingress Protection : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter : 0.026" (0.65mm ID), 0.110" (2.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 2.5A
Mating Length/Depth : 0.315" (8.00mm)
Ingress Protection : -
0
1205 in stock

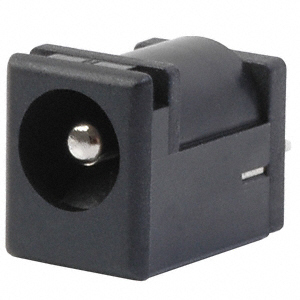

PJ-032BH
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 5A
Mating Length/Depth : 0.354" (9.00mm)
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 5A
Mating Length/Depth : 0.354" (9.00mm)
Ingress Protection : -
0
2956 in stock

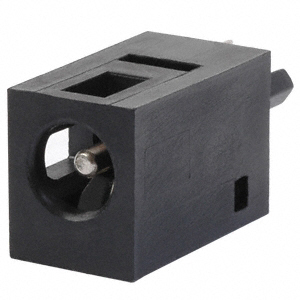

PJ-034A
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : 0.374" (9.50mm)
Ingress Protection : -
Packaging : Tray
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : 0.374" (9.50mm)
Ingress Protection : -
0
100 in stock

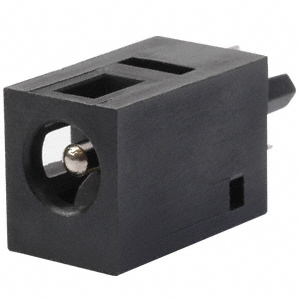

PJ-034B
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tray
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.252" (6.40mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : 0.374" (9.50mm)
Ingress Protection : -
Packaging : Tray
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.252" (6.40mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : 0.374" (9.50mm)
Ingress Protection : -
0
100 in stock

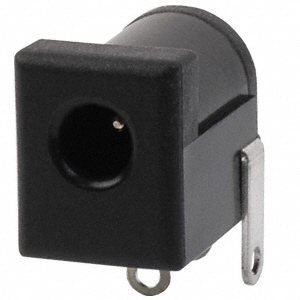

PJ-035C
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter : 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 2A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter : 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 2A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
0
31419 in stock

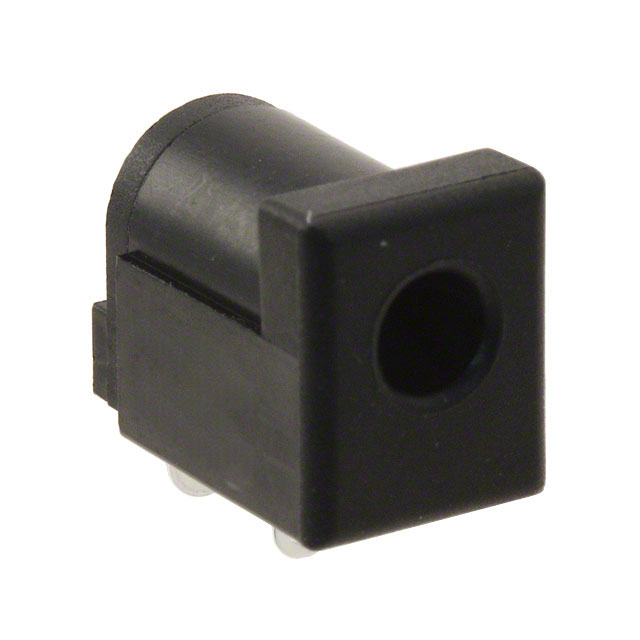

PJ-035DH
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.30mm ID (0.051"), 3.50mm OD (0.138")
Actual Diameter : 0.051" (1.30mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 3.5A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.30mm ID (0.051"), 3.50mm OD (0.138")
Actual Diameter : 0.051" (1.30mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 3.5A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
0
18093 in stock

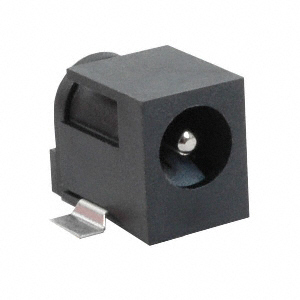

PJ-036AH-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 5A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 5A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
0
14371 in stock

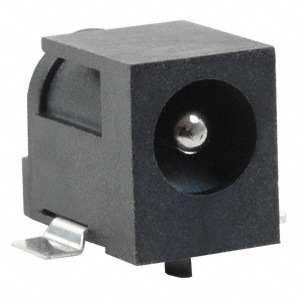

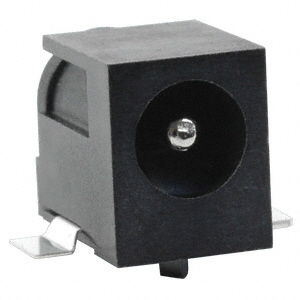

PJ-036A-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock

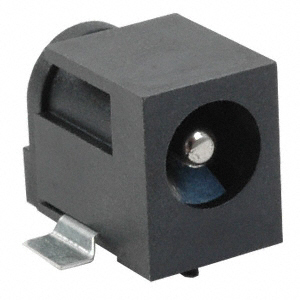

PJ-036BH-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 5A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 5A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
0
16050 in stock
PJ-036B-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock
PJ-036C
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter : 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 2A
Mating Length/Depth : 0.260" (6.60mm)
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter : 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 2A
Mating Length/Depth : 0.260" (6.60mm)
Ingress Protection : -
0
2964 in stock
PJ-036CH
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter : 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 3.5A
Mating Length/Depth : 0.260" (6.60mm)
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter : 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 3.5A
Mating Length/Depth : 0.260" (6.60mm)
Ingress Protection : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
