Welcome to Weijie Semiconductor
- Connectors, Interconnects
- Barrel - Power Connectors
Part Number
Manufacturer
Description
Unit Price
In Stock
PJ-014CH-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter : 0.039" (1.00mm ID), 0.154" (3.90mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 3.5A
Mating Length/Depth : 0.244" (6.20mm)
Ingress Protection : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter : 0.039" (1.00mm ID), 0.154" (3.90mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 3.5A
Mating Length/Depth : 0.244" (6.20mm)
Ingress Protection : -
0
19797 in stock

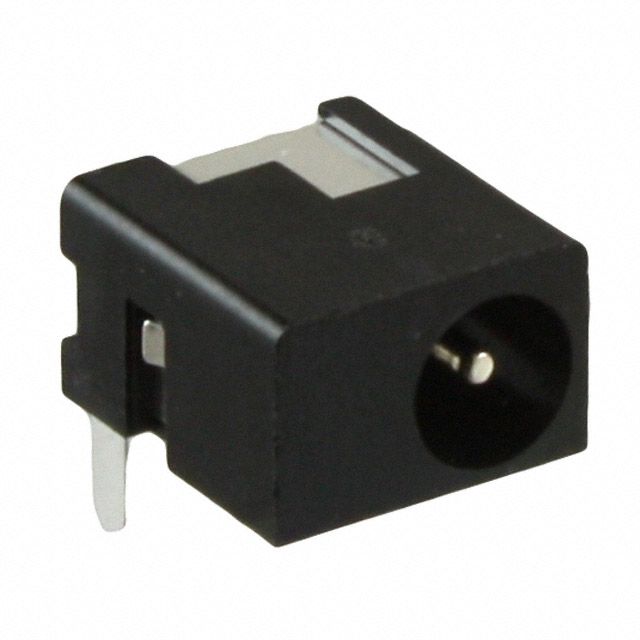

PJ-014C-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter : 0.039" (1.00mm ID), 0.154" (3.90mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter : 0.039" (1.00mm ID), 0.154" (3.90mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock
PJ-014DH-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.30mm ID (0.051"), 3.40mm OD (0.134")
Actual Diameter : 0.051" (1.30mm ID), 0.154" (3.90mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 3.5A
Mating Length/Depth : 0.244" (6.20mm)
Ingress Protection : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.30mm ID (0.051"), 3.40mm OD (0.134")
Actual Diameter : 0.051" (1.30mm ID), 0.154" (3.90mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 3.5A
Mating Length/Depth : 0.244" (6.20mm)
Ingress Protection : -
0
25562 in stock
PJ-014D-SMT-1
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.30mm ID (0.051"), 3.50mm OD (0.138")
Actual Diameter : 0.051" (1.30mm ID), 0.154" (3.90mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.30mm ID (0.051"), 3.50mm OD (0.138")
Actual Diameter : 0.051" (1.30mm ID), 0.154" (3.90mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock

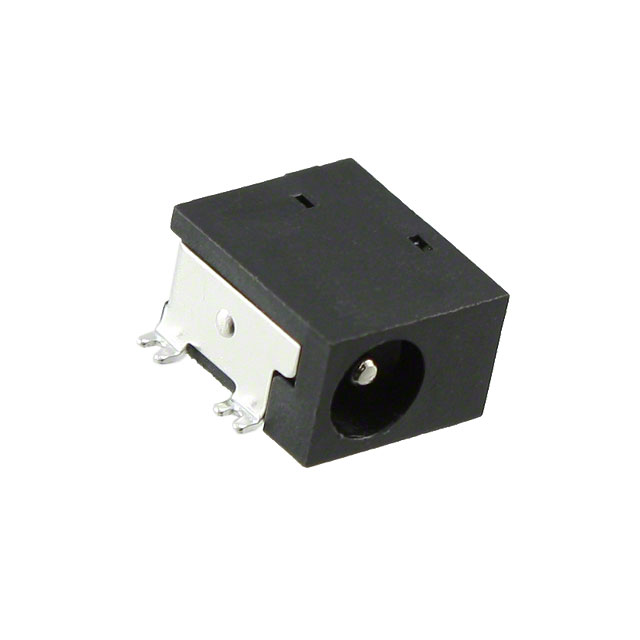

PJ-014D-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.35mm ID (0.053"), 3.50mm OD (0.138")
Actual Diameter : 0.051" (1.30mm ID), 0.154" (3.90mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.35mm ID (0.053"), 3.50mm OD (0.138")
Actual Diameter : 0.051" (1.30mm ID), 0.154" (3.90mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount, Right Angle
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock
PJ-015AH-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.260" (6.60mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 5A
Mating Length/Depth : 0.374" (9.50mm)
Ingress Protection : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.260" (6.60mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 5A
Mating Length/Depth : 0.374" (9.50mm)
Ingress Protection : -
0
6489 in stock

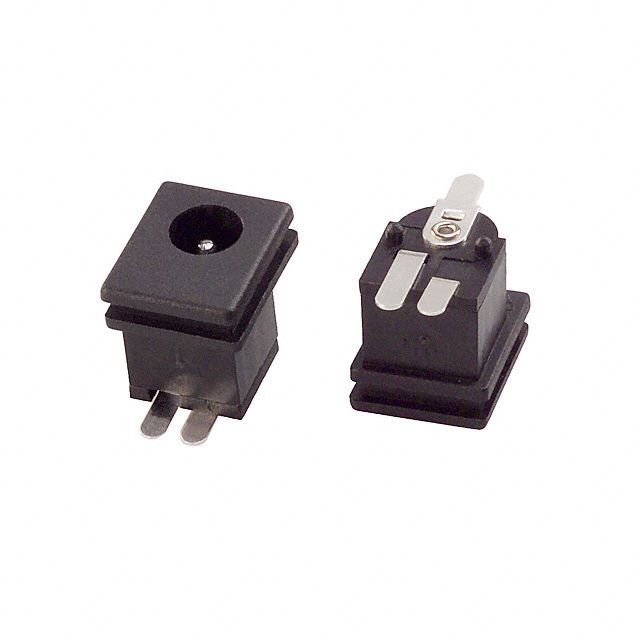

PJ-015A-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter : 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock
PJ-015BH-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.260" (6.60mm OD)
Number of Positions/Contacts : 2 Sets of 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 5A
Mating Length/Depth : 0.374" (9.50mm)
Ingress Protection : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.260" (6.60mm OD)
Number of Positions/Contacts : 2 Sets of 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 5A
Mating Length/Depth : 0.374" (9.50mm)
Ingress Protection : -
0
1507 in stock

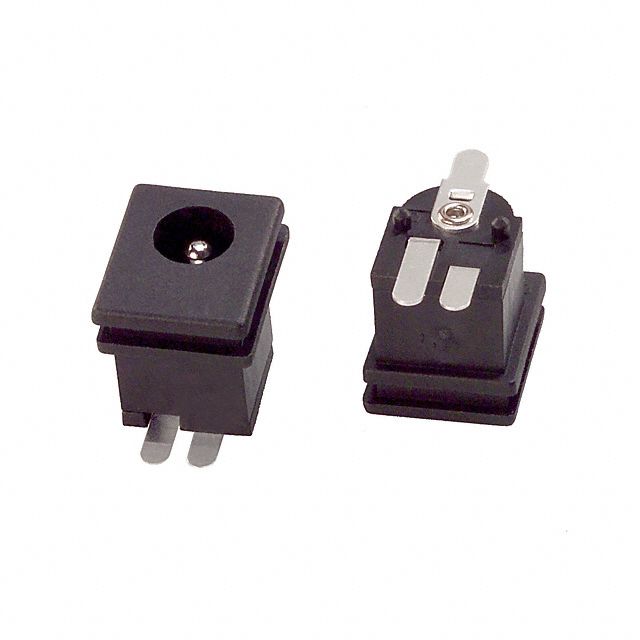

PJ-015B-SMT-TR
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter : 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Surface Mount
Mounting Feature : -
Termination : Solder
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 16VDC
Current Rating : 2.5A
Mating Length/Depth : -
Ingress Protection : -
0
100 in stock
PJ-016
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2
Actual Diameter : 0.065" (1.65mm ID), 0.173" (4.40mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Kinked Pin
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 12VDC
Current Rating : 1A
Mating Length/Depth : -
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2
Actual Diameter : 0.065" (1.65mm ID), 0.173" (4.40mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Kinked Pin
Shielding : Unshielded
Features : Board Guide
Insulation Color : -
Voltage - Rated : 12VDC
Current Rating : 1A
Mating Length/Depth : -
Ingress Protection : -
0
6261 in stock
PJ-017D
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.30mm ID (0.051"), 3.50mm OD (0.138")
Actual Diameter : 0.051" (1.30mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Kinked Pin
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 2A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.30mm ID (0.051"), 3.50mm OD (0.138")
Actual Diameter : 0.051" (1.30mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Kinked Pin
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 2A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
0
2950 in stock
PJ-017DH
CUI, Inc.
Manufacturer : CUI Inc.
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.30mm ID (0.051"), 3.50mm OD (0.138")
Actual Diameter : 0.051" (1.30mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Kinked Pin
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 3.5A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
Packaging : Bulk
Series : -
Part Status : Active
Connector Type : Jack
Gender : Male
Industry Recognized Mating Diameter : 1.30mm ID (0.051"), 3.50mm OD (0.138")
Actual Diameter : 0.051" (1.30mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch, Normally Closed
Mounting Type : Through Hole, Right Angle
Mounting Feature : -
Termination : Kinked Pin
Shielding : Unshielded
Features : -
Insulation Color : -
Voltage - Rated : 24VDC
Current Rating : 3.5A
Mating Length/Depth : 0.360" (9.15mm)
Ingress Protection : -
0
2927 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
