Part Number
Manufacturer
Description
Unit Price
In Stock

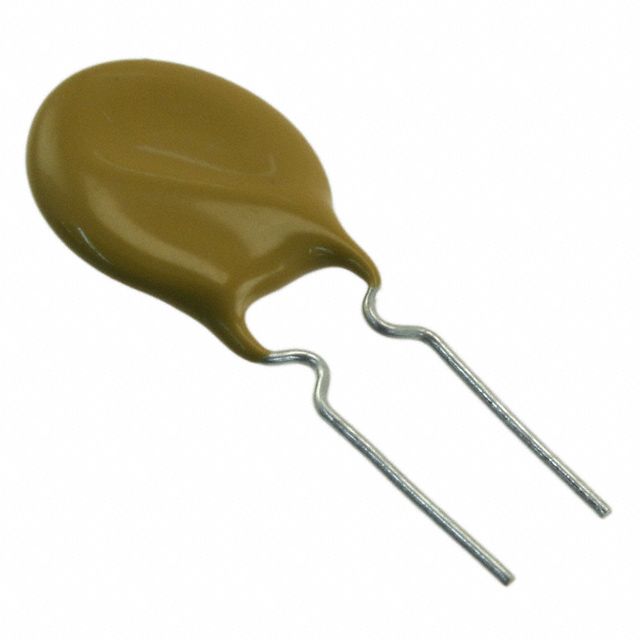

60R090XU
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 7.2s
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.441" Dia x 0.122" T (11.20mm x 3.10mm)
Height - Seated (Max) : 0.622" (15.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 7.2s
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.441" Dia x 0.122" T (11.20mm x 3.10mm)
Height - Seated (Max) : 0.622" (15.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
809 in stock
60R110XMR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" Dia x 0.122" T (13.00mm x 3.10mm)
Height - Seated (Max) : 0.717" (18.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" Dia x 0.122" T (13.00mm x 3.10mm)
Height - Seated (Max) : 0.717" (18.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
5058 in stock

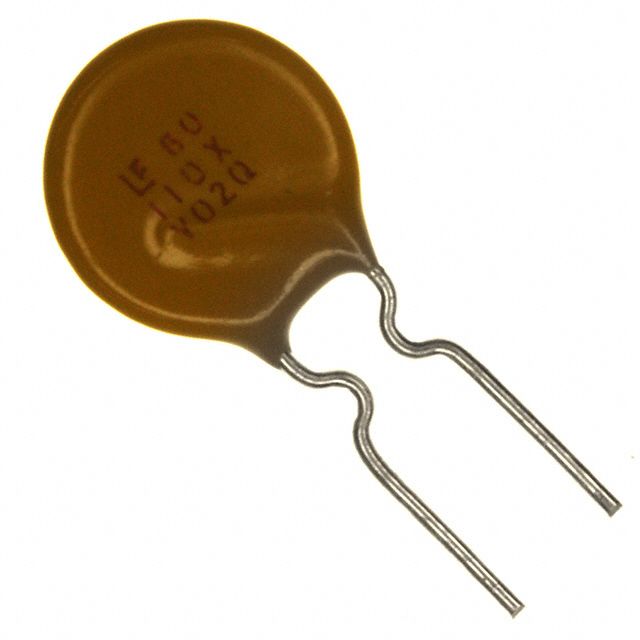

60R110XU
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" Dia x 0.122" T (13.00mm x 3.10mm)
Height - Seated (Max) : 0.717" (18.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" Dia x 0.122" T (13.00mm x 3.10mm)
Height - Seated (Max) : 0.717" (18.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
2771 in stock

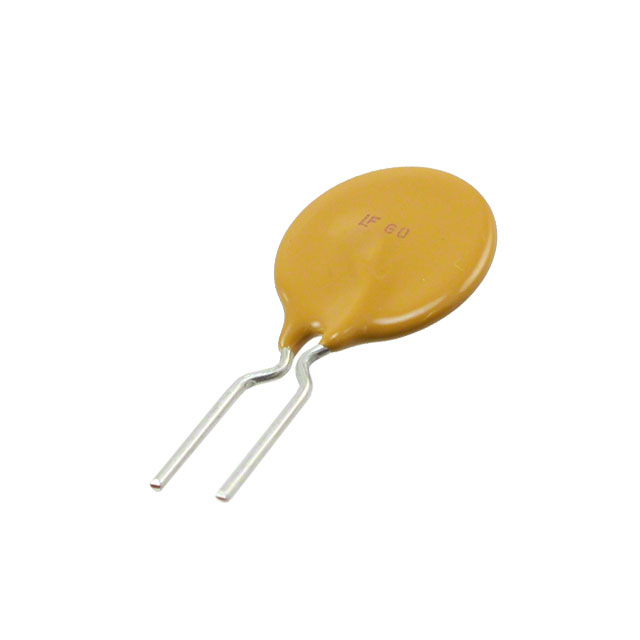

60R135XF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.535" Dia x 0.122" T (13.58mm x 3.10mm)
Height - Seated (Max) : 0.780" (19.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.535" Dia x 0.122" T (13.58mm x 3.10mm)
Height - Seated (Max) : 0.780" (19.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
662 in stock
60R135XMR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.535" Dia x 0.122" T (13.58mm x 3.10mm)
Height - Seated (Max) : 0.780" (19.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.535" Dia x 0.122" T (13.58mm x 3.10mm)
Height - Seated (Max) : 0.780" (19.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1961 in stock
60R160XF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.600" Dia x 0.122" T (15.24mm x 3.10mm)
Height - Seated (Max) : 0.850" (21.60mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.600" Dia x 0.122" T (15.24mm x 3.10mm)
Height - Seated (Max) : 0.850" (21.60mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1474 in stock
60R160XMR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.600" Dia x 0.122" T (15.24mm x 3.10mm)
Height - Seated (Max) : 0.850" (21.60mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.600" Dia x 0.122" T (15.24mm x 3.10mm)
Height - Seated (Max) : 0.850" (21.60mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
517 in stock
60R185XF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.660" Dia x 0.122" T (16.76mm x 3.10mm)
Height - Seated (Max) : 0.906" (23.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.660" Dia x 0.122" T (16.76mm x 3.10mm)
Height - Seated (Max) : 0.906" (23.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3309 in stock

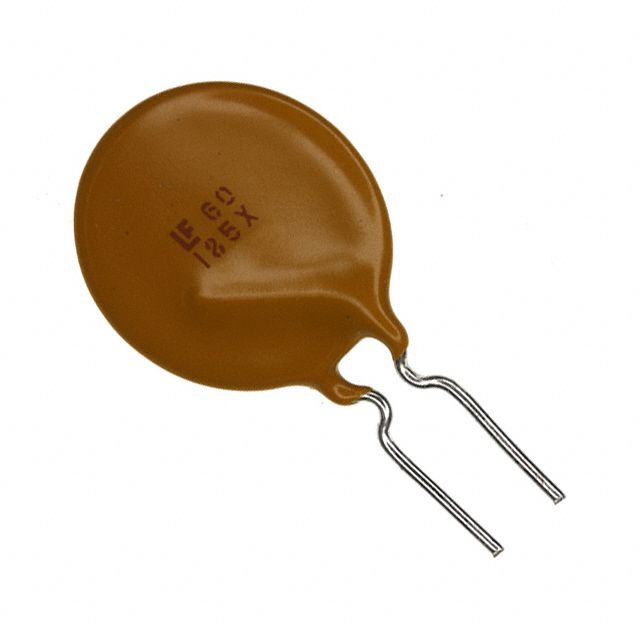

60R185XMR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.660" Dia x 0.122" T (16.76mm x 3.10mm)
Height - Seated (Max) : 0.906" (23.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.660" Dia x 0.122" T (16.76mm x 3.10mm)
Height - Seated (Max) : 0.906" (23.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3203 in stock
60R250XF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 15.6s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 130 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.785" Dia x 0.122" T (19.93mm x 3.10mm)
Height - Seated (Max) : 1.032" (26.20mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 15.6s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 130 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.785" Dia x 0.122" T (19.93mm x 3.10mm)
Height - Seated (Max) : 1.032" (26.20mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
73 in stock
60R250XMR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 15.6s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 130 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.785" Dia x 0.122" T (19.93mm x 3.10mm)
Height - Seated (Max) : 1.032" (26.20mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 15.6s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 130 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.785" Dia x 0.122" T (19.93mm x 3.10mm)
Height - Seated (Max) : 1.032" (26.20mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
2094 in stock
60R300XF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 19.8s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.910" Dia x 0.122" T (23.11mm x 3.10mm)
Height - Seated (Max) : 1.154" (29.30mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Series : POLY-FUSE®, 60R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 19.8s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.910" Dia x 0.122" T (23.11mm x 3.10mm)
Height - Seated (Max) : 1.154" (29.30mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
5299 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
