Part Number
Manufacturer
Description
Unit Price
In Stock

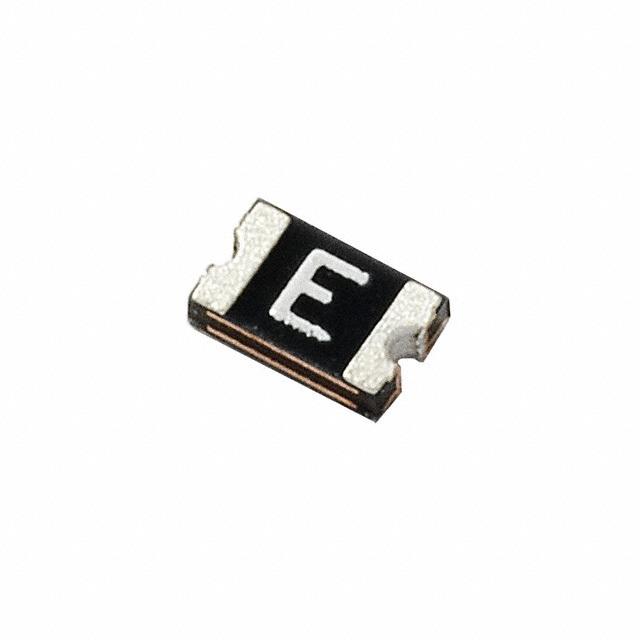

0805L260SLTHYR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 35 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.053" W (2.10mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 35 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.053" W (2.10mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
1688 in stock
0805L300SLWR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 30 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.053" W (2.10mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.055" (1.40mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 30 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.053" W (2.10mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.055" (1.40mm)
Lead Spacing : -
0
32 in stock

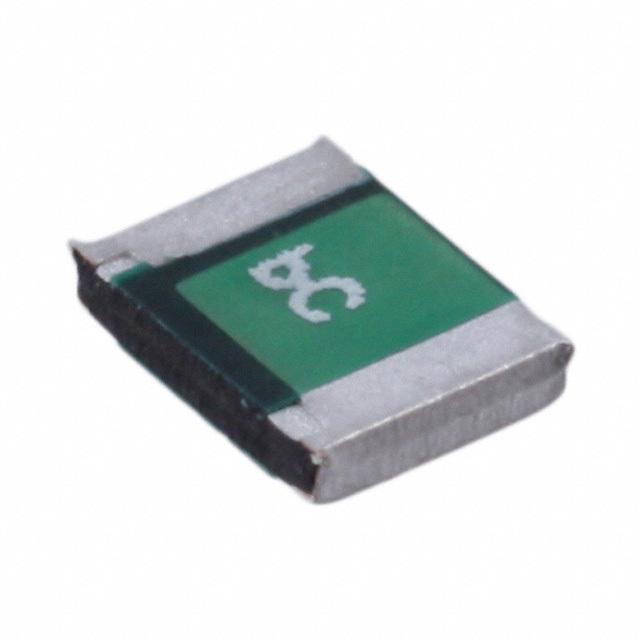

0ZCB0005FF2E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCB
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 3.6 Ohms
Resistance - Post Trip (R1) (Max) : 50 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCB
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 3.6 Ohms
Resistance - Post Trip (R1) (Max) : 50 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
0
100 in stock
0ZCB0020FF2E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCB
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 20ms
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCB
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 20ms
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
100 in stock
0ZCB0075FF2G
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCB
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 8V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 130 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCB
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 8V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 130 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
0
100 in stock

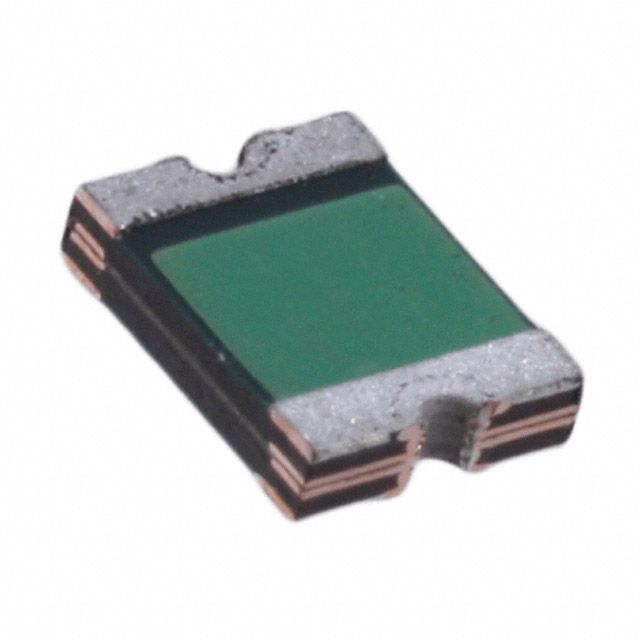

0ZCB0200FF2E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCB
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 70 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.055" (1.40mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCB
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 70 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.055" (1.40mm)
Lead Spacing : -
0
100 in stock

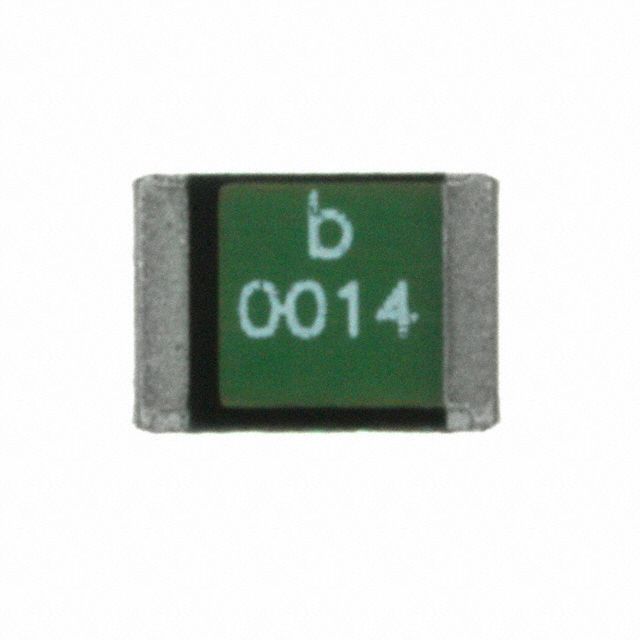

0ZCC0014FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 140mA
Current - Trip (It) : 300mA
Time to Trip : 8ms
Resistance - Initial (Ri) (Min) : 1.2 Ohms
Resistance - Post Trip (R1) (Max) : 6.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 140mA
Current - Trip (It) : 300mA
Time to Trip : 8ms
Resistance - Initial (Ri) (Min) : 1.2 Ohms
Resistance - Post Trip (R1) (Max) : 6.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
0
196000 in stock

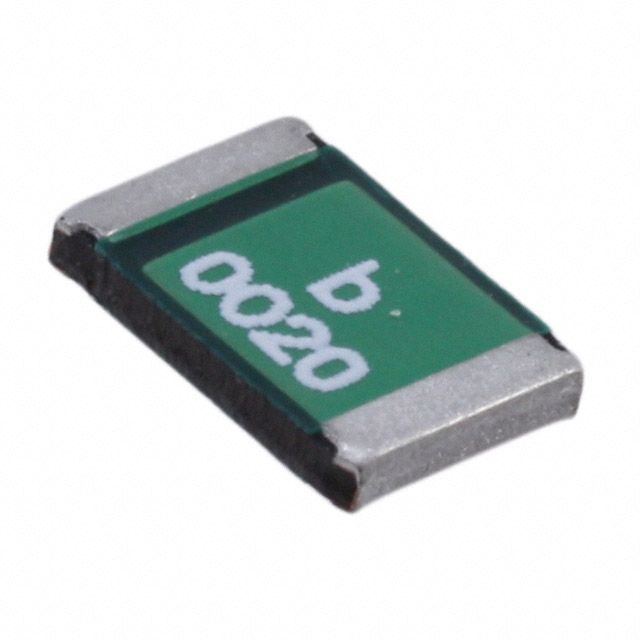

0ZCC0020FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 20ms
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 20ms
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
0
100 in stock
0ZCC0050FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
0
512000 in stock
0ZCC0125FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 400ms
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.022" (0.55mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 400ms
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.022" (0.55mm)
Lead Spacing : -
0
100 in stock
0ZCC0160BF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.053" (1.35mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.053" (1.35mm)
Lead Spacing : -
0
100 in stock
0ZCC0200FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 70 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 0ZCC
Part Status : Obsolete
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 70 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
