Part Number
Manufacturer
Description
Unit Price
In Stock
2016L075/60MR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 20A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 130 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.079" (2.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 20A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 130 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.079" (2.00mm)
Lead Spacing : -
0
13048 in stock
2016L100/33DR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
0
22931 in stock
2016L100PR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
7330 in stock
2016L150DR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 180 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.061" (1.55mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 180 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.061" (1.55mm)
Lead Spacing : -
0
6329 in stock

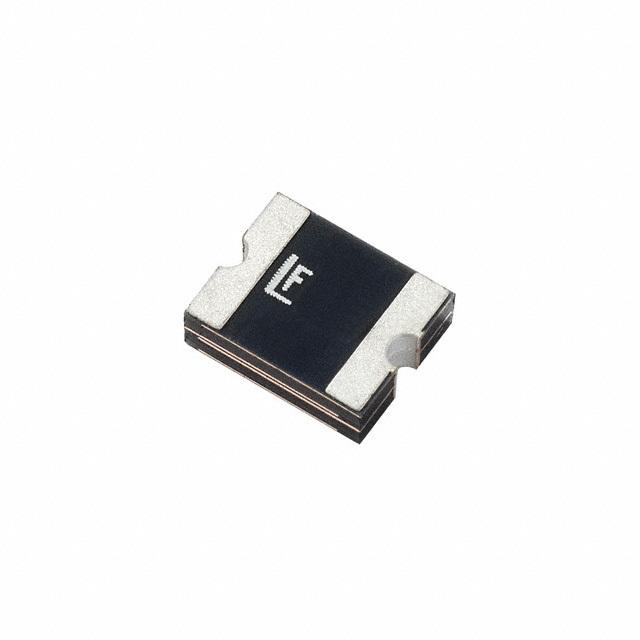

2016L200PR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4.2A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 48 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4.2A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 48 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
1410 in stock
2016L260/24MR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 25 mOhms
Resistance - Post Trip (R1) (Max) : 75 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.063" (1.60mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 25 mOhms
Resistance - Post Trip (R1) (Max) : 75 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.063" (1.60mm)
Lead Spacing : -
0
1431 in stock
2016L300/16MR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 5A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 48 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 5A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 48 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
0
2190 in stock
2016L500DR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 25 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.063" (1.60mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 2016L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 25 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.063" (1.60mm)
Lead Spacing : -
0
1490 in stock

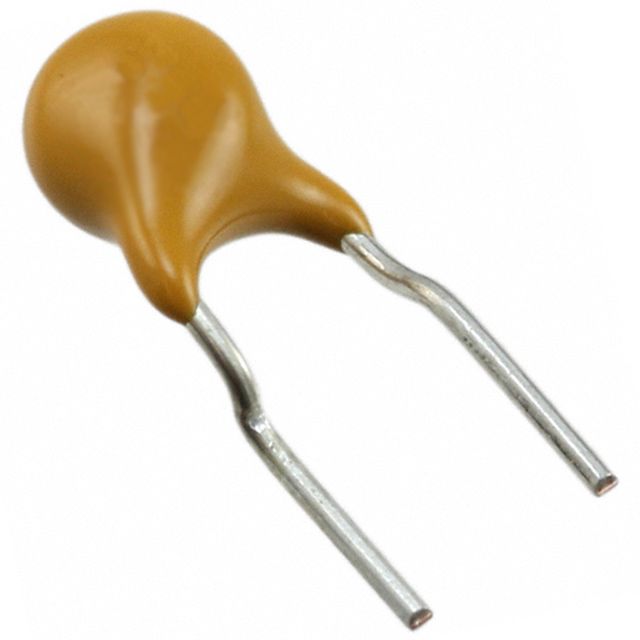

250R080U
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : POLY-FUSE®, 250R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 160mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 14 Ohms
Resistance - Post Trip (R1) (Max) : 33 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.228" Dia x 0.181" T (5.80mm x 4.60mm)
Height - Seated (Max) : 0.390" (9.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : POLY-FUSE®, 250R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 160mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 14 Ohms
Resistance - Post Trip (R1) (Max) : 33 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.228" Dia x 0.181" T (5.80mm x 4.60mm)
Height - Seated (Max) : 0.390" (9.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1673 in stock
250R080ZR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 250R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 160mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 14 Ohms
Resistance - Post Trip (R1) (Max) : 33 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.228" Dia x 0.181" T (5.80mm x 4.60mm)
Height - Seated (Max) : 0.390" (9.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 250R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 160mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 14 Ohms
Resistance - Post Trip (R1) (Max) : 33 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.228" Dia x 0.181" T (5.80mm x 4.60mm)
Height - Seated (Max) : 0.390" (9.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
4085 in stock
250R120-R1U
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 250R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 240mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 6 Ohms
Resistance - Post Trip (R1) (Max) : 16 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.256" L x 0.181" W (6.50mm x 4.60mm)
Height - Seated (Max) : 0.433" (11.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 250R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 240mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 6 Ohms
Resistance - Post Trip (R1) (Max) : 16 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.256" L x 0.181" W (6.50mm x 4.60mm)
Height - Seated (Max) : 0.433" (11.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
4864 in stock
250R120-R2ZR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 250R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 240mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 8 Ohms
Resistance - Post Trip (R1) (Max) : 16 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.256" L x 0.181" W (6.50mm x 4.60mm)
Height - Seated (Max) : 0.433" (11.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 250R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 240mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 8 Ohms
Resistance - Post Trip (R1) (Max) : 16 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.256" L x 0.181" W (6.50mm x 4.60mm)
Height - Seated (Max) : 0.433" (11.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
758 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
