Part Number
Manufacturer
Description
Unit Price
In Stock

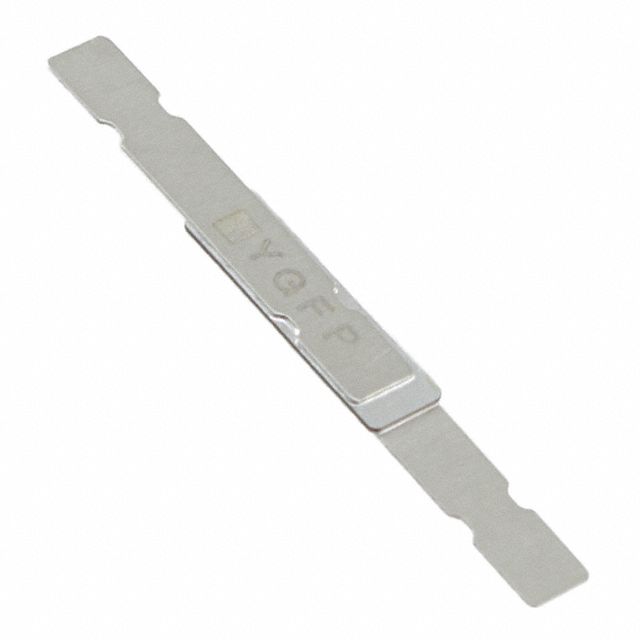

VTP110F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 38 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.008" L x 0.114" W (25.60mm x 2.90mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 38 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.008" L x 0.114" W (25.60mm x 2.90mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
0
4902 in stock

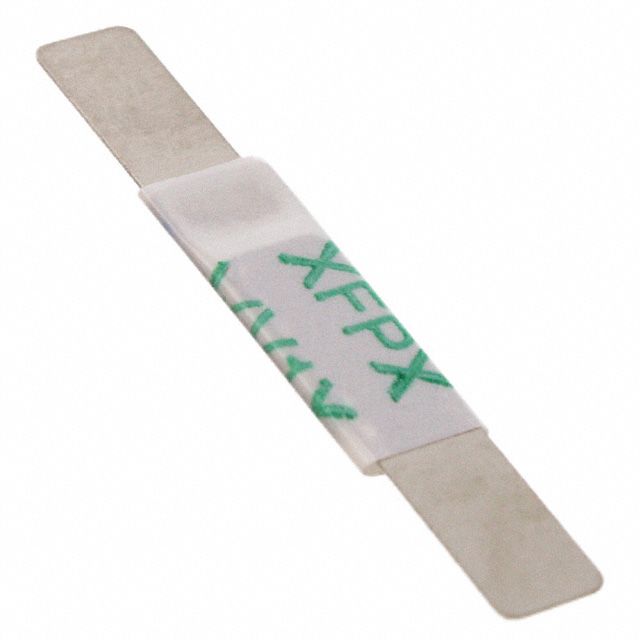

VTP175F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 29 mOhms
Resistance - Post Trip (R1) (Max) : 102 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.874" L x 0.146" W (22.20mm x 3.70mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 29 mOhms
Resistance - Post Trip (R1) (Max) : 102 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.874" L x 0.146" W (22.20mm x 3.70mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
6710 in stock

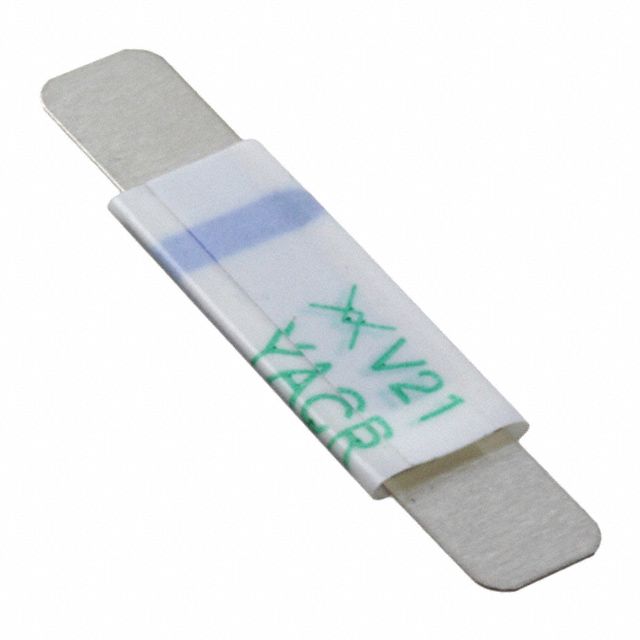

VTP210GF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.1A
Current - Trip (It) : 4.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 18 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.909" L x 0.209" W (23.10mm x 5.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.1A
Current - Trip (It) : 4.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 18 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.909" L x 0.209" W (23.10mm x 5.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
6613 in stock

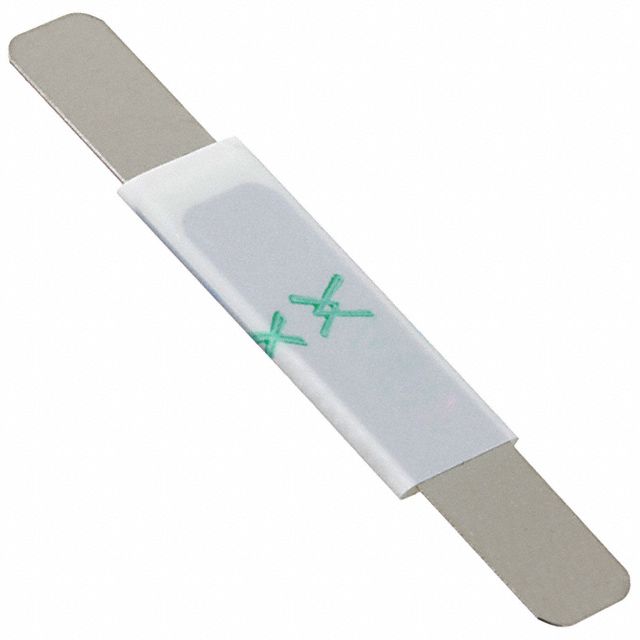

VTP210LF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.1A
Current - Trip (It) : 4.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 18 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.024" L x 0.209" W (26.00mm x 5.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.1A
Current - Trip (It) : 4.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 18 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.024" L x 0.209" W (26.00mm x 5.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
1497 in stock

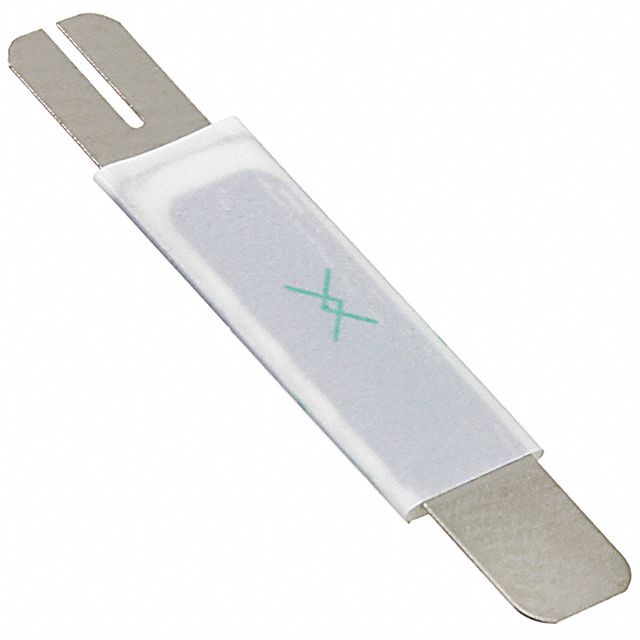

VTP210SF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.1A
Current - Trip (It) : 4.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 18 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.909" L x 0.209" W (23.10mm x 5.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.1A
Current - Trip (It) : 4.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 18 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.909" L x 0.209" W (23.10mm x 5.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
1079 in stock

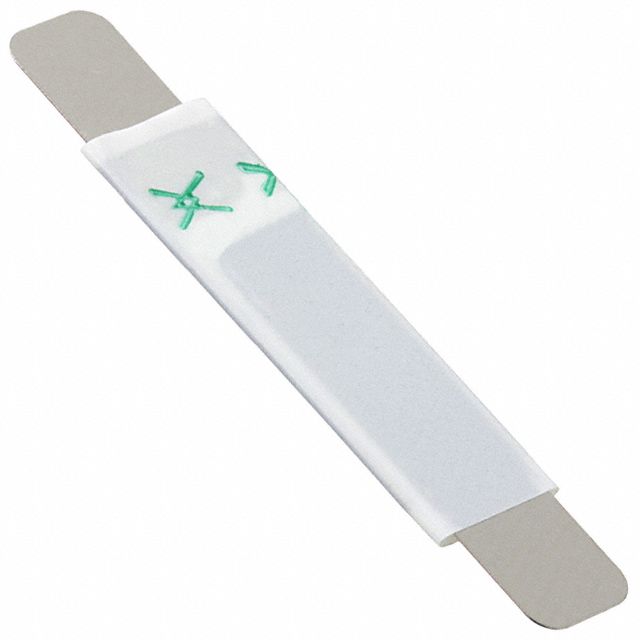

VTP240F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.4A
Current - Trip (It) : 5.9A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 14 mOhms
Resistance - Post Trip (R1) (Max) : 52 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.201" W (25.00mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, VTP
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.4A
Current - Trip (It) : 5.9A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 14 mOhms
Resistance - Post Trip (R1) (Max) : 52 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.201" W (25.00mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
100 in stock

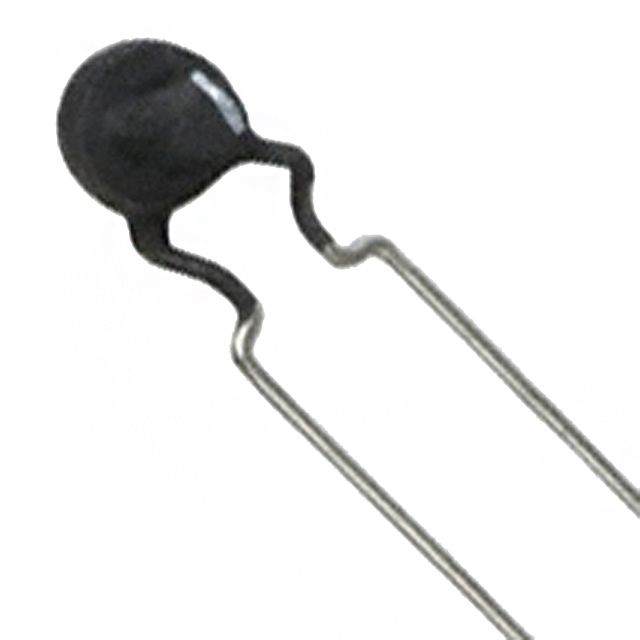

YM120C15N182
Advanced Sensors / Amphenol
Manufacturer : Amphenol Advanced Sensors
Packaging : Bulk
Series : YM
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 100mA
Current - Hold (Ih) (Max) : 16mA
Current - Trip (It) : 23mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 1.8 kOhms
Operating Temperature : 0°C ~ 55°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.157" Dia x 0.177" T (4.00mm x 4.50mm)
Height - Seated (Max) : 0.256" (6.50mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : YM
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 100mA
Current - Hold (Ih) (Max) : 16mA
Current - Trip (It) : 23mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 1.8 kOhms
Operating Temperature : 0°C ~ 55°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.157" Dia x 0.177" T (4.00mm x 4.50mm)
Height - Seated (Max) : 0.256" (6.50mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
682 in stock

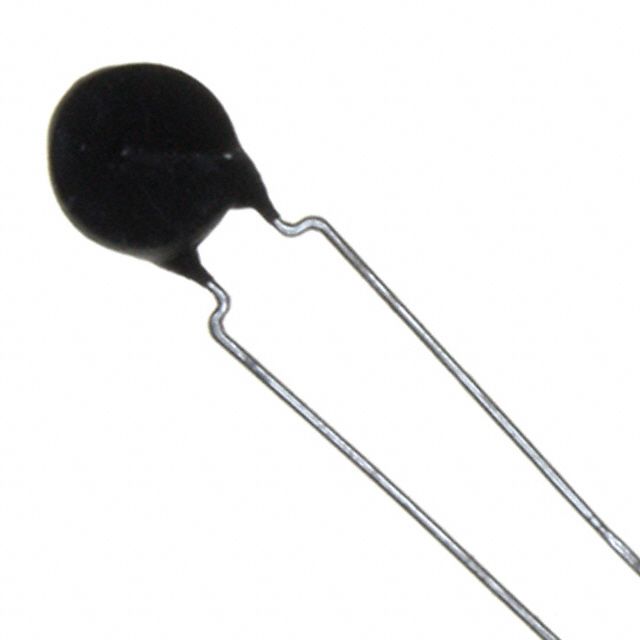

YM120D125N450
Advanced Sensors / Amphenol
Manufacturer : Amphenol Advanced Sensors
Packaging : Bulk
Series : YM
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 700mA
Current - Hold (Ih) (Max) : 110mA
Current - Trip (It) : 155mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 45 Ohms
Operating Temperature : 0°C ~ 55°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.276" Dia x 0.177" T (7.00mm x 4.50mm)
Height - Seated (Max) : 0.374" (9.50mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : YM
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 700mA
Current - Hold (Ih) (Max) : 110mA
Current - Trip (It) : 155mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 45 Ohms
Operating Temperature : 0°C ~ 55°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.276" Dia x 0.177" T (7.00mm x 4.50mm)
Height - Seated (Max) : 0.374" (9.50mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
4577 in stock

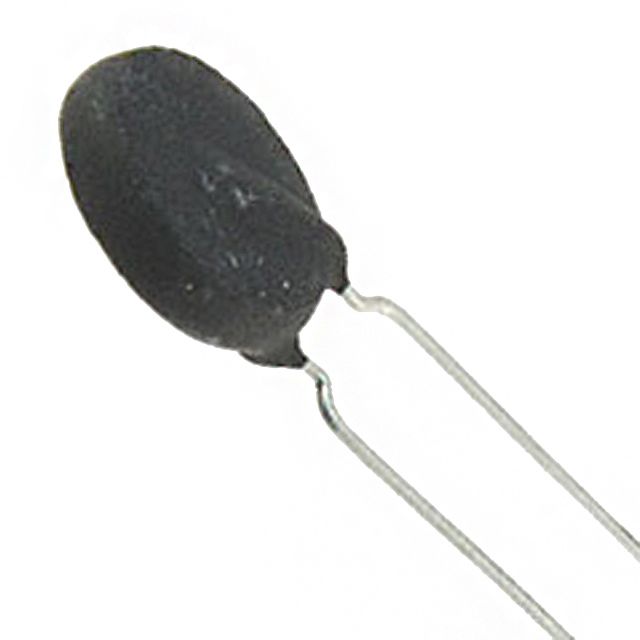

YM120D260N150
Advanced Sensors / Amphenol
Manufacturer : Amphenol Advanced Sensors
Packaging : Bulk
Series : YM
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 1.7A
Current - Hold (Ih) (Max) : 234mA
Current - Trip (It) : 330mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 15 Ohms
Operating Temperature : 0°C ~ 55°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.453" Dia x 0.177" T (11.50mm x 4.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : YM
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 1.7A
Current - Hold (Ih) (Max) : 234mA
Current - Trip (It) : 330mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 15 Ohms
Operating Temperature : 0°C ~ 55°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.453" Dia x 0.177" T (11.50mm x 4.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
1407 in stock
YM120D370N100
Advanced Sensors / Amphenol
Manufacturer : Amphenol Advanced Sensors
Packaging : Bulk
Series : YM
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 2.7A
Current - Hold (Ih) (Max) : 314mA
Current - Trip (It) : 444mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 10 Ohms
Operating Temperature : 0°C ~ 55°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.571" Dia x 0.177" T (14.50mm x 4.50mm)
Height - Seated (Max) : 0.669" (17.00mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : YM
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 2.7A
Current - Hold (Ih) (Max) : 314mA
Current - Trip (It) : 444mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 10 Ohms
Operating Temperature : 0°C ~ 55°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.571" Dia x 0.177" T (14.50mm x 4.50mm)
Height - Seated (Max) : 0.669" (17.00mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
2264 in stock
YQD080N0050
Advanced Sensors / Amphenol
Manufacturer : Amphenol Advanced Sensors
Packaging : Bulk
Series : YQ
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 1A
Current - Hold (Ih) (Max) : 60mA
Current - Trip (It) : 120mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 50 Ohms
Operating Temperature : -0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" Dia x 0.197" T (9.00mm x 5.00mm)
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : YQ
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 1A
Current - Hold (Ih) (Max) : 60mA
Current - Trip (It) : 120mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 50 Ohms
Operating Temperature : -0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" Dia x 0.197" T (9.00mm x 5.00mm)
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
317 in stock
YQD100N1000
Advanced Sensors / Amphenol
Manufacturer : Amphenol Advanced Sensors
Packaging : Bulk
Series : YQ
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 200mA
Current - Hold (Ih) (Max) : 15mA
Current - Trip (It) : 30mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 1 kOhms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.256" Dia x 0.197" T (6.50mm x 5.00mm)
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : YQ
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 200mA
Current - Hold (Ih) (Max) : 15mA
Current - Trip (It) : 30mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 1 kOhms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.256" Dia x 0.197" T (6.50mm x 5.00mm)
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1390 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
