Part Number
Manufacturer
Description
Unit Price
In Stock
TRF250-183-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TRF250
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 183mA
Current - Trip (It) : 685mA
Time to Trip : 1.8s
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.295" Dia x 0.161" T (7.50mm x 4.10mm)
Height - Seated (Max) : 0.413" (10.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TRF250
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 183mA
Current - Trip (It) : 685mA
Time to Trip : 1.8s
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.295" Dia x 0.161" T (7.50mm x 4.10mm)
Height - Seated (Max) : 0.413" (10.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
100 in stock
TRF250-183S
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, TRF250
Part Status : Active
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 183mA
Current - Trip (It) : 685mA
Time to Trip : 1.8s
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.295" Dia x 0.150" T (7.50mm x 3.80mm)
Height - Seated (Max) : 0.374" (9.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : PolySwitch®, TRF250
Part Status : Active
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 183mA
Current - Trip (It) : 685mA
Time to Trip : 1.8s
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.295" Dia x 0.150" T (7.50mm x 3.80mm)
Height - Seated (Max) : 0.374" (9.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
1990 in stock
TRF250-183S-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TRF250
Part Status : Active
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 183mA
Current - Trip (It) : 685mA
Time to Trip : 1.8s
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.295" Dia x 0.150" T (7.50mm x 3.80mm)
Height - Seated (Max) : 0.374" (9.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TRF250
Part Status : Active
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 183mA
Current - Trip (It) : 685mA
Time to Trip : 1.8s
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.295" Dia x 0.150" T (7.50mm x 3.80mm)
Height - Seated (Max) : 0.374" (9.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
2977 in stock

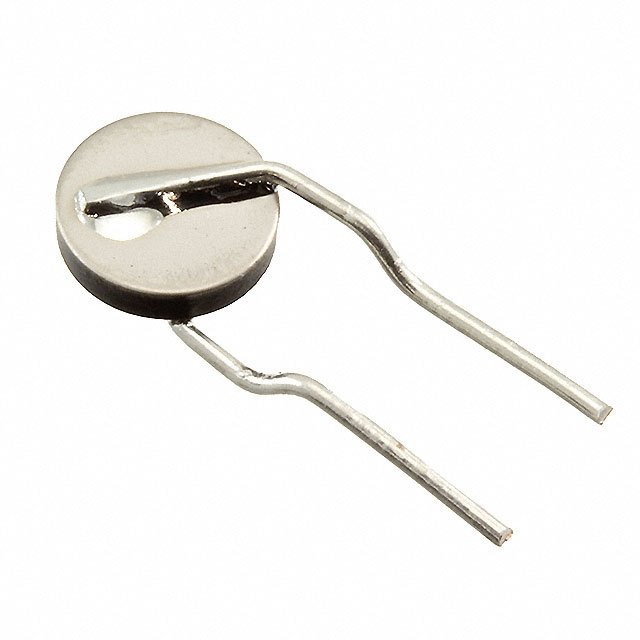

TRF250-183U
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, TRF250
Part Status : Active
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 183mA
Current - Trip (It) : 685mA
Time to Trip : 1.8s
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.256" Dia x 0.118" T (6.50mm x 3.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : PolySwitch®, TRF250
Part Status : Active
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 183mA
Current - Trip (It) : 685mA
Time to Trip : 1.8s
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.256" Dia x 0.118" T (6.50mm x 3.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
773 in stock

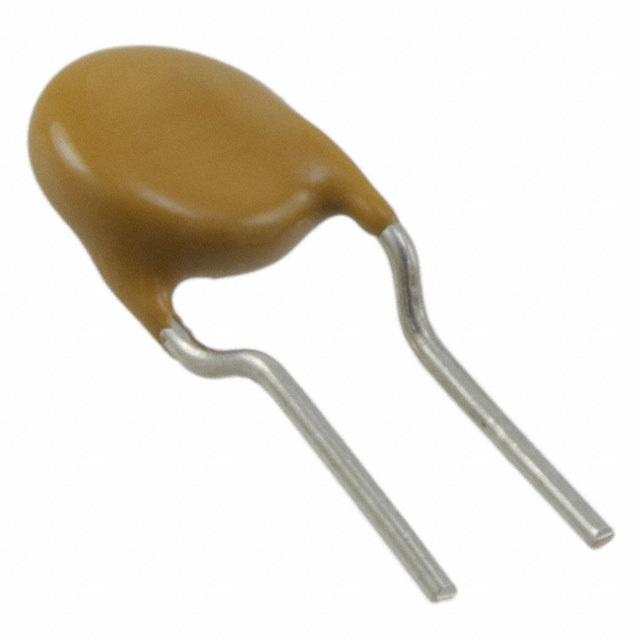

TRF250-183US
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, TRF250
Part Status : Active
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 183mA
Current - Trip (It) : 685mA
Time to Trip : 1.8s
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.256" Dia x 0.118" T (6.50mm x 3.00mm)
Height - Seated (Max) : 0.256" (6.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : PolySwitch®, TRF250
Part Status : Active
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 183mA
Current - Trip (It) : 685mA
Time to Trip : 1.8s
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.256" Dia x 0.118" T (6.50mm x 3.00mm)
Height - Seated (Max) : 0.256" (6.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
1255 in stock
TRF250-184
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, TRF250
Part Status : Active
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 184mA
Current - Trip (It) : 1A
Time to Trip : 1.3s
Resistance - Initial (Ri) (Min) : 1.2 Ohms
Resistance - Post Trip (R1) (Max) : 3.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : 0°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.303" Dia x 0.181" T (7.70mm x 4.60mm)
Height - Seated (Max) : 0.413" (10.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : PolySwitch®, TRF250
Part Status : Active
Type : Polymeric
Voltage - Max : 100V (250V Int)
Current - Max : 10A
Current - Hold (Ih) (Max) : 184mA
Current - Trip (It) : 1A
Time to Trip : 1.3s
Resistance - Initial (Ri) (Min) : 1.2 Ohms
Resistance - Post Trip (R1) (Max) : 3.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : 0°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.303" Dia x 0.181" T (7.70mm x 4.60mm)
Height - Seated (Max) : 0.413" (10.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
2832 in stock

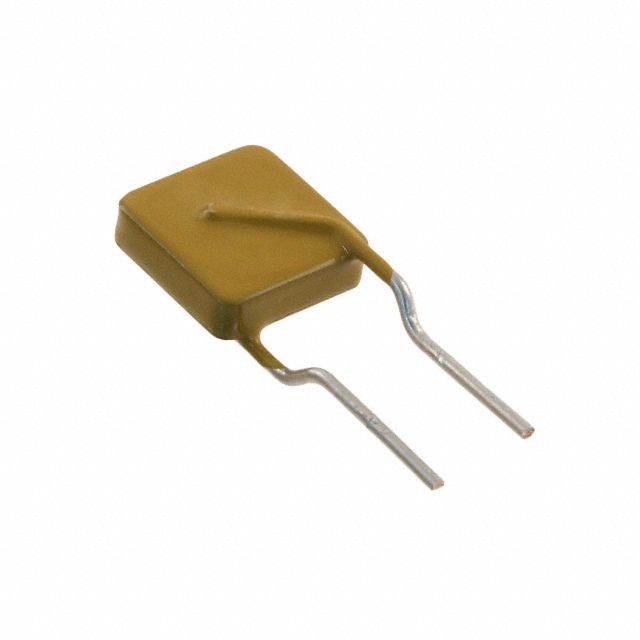

TRF600-150
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, TRF600
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 40A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 6 Ohms
Resistance - Post Trip (R1) (Max) : 17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : PolySwitch®, TRF600
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 40A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 6 Ohms
Resistance - Post Trip (R1) (Max) : 17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
95424 in stock

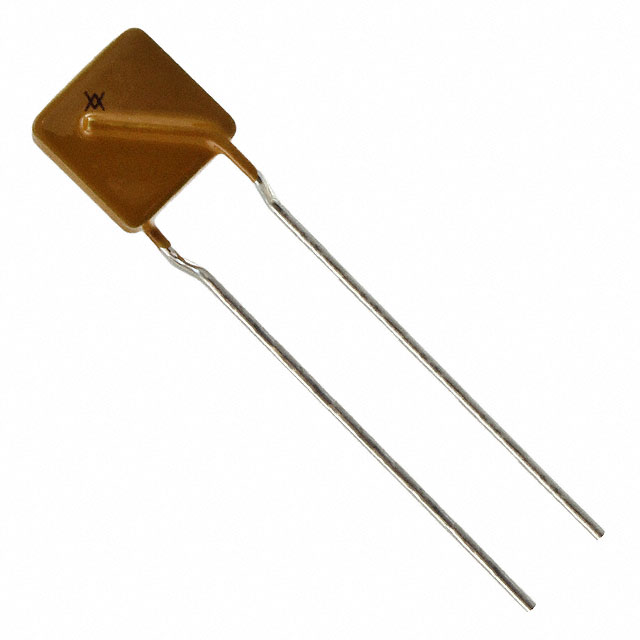

TRF600-150-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
9638 in stock

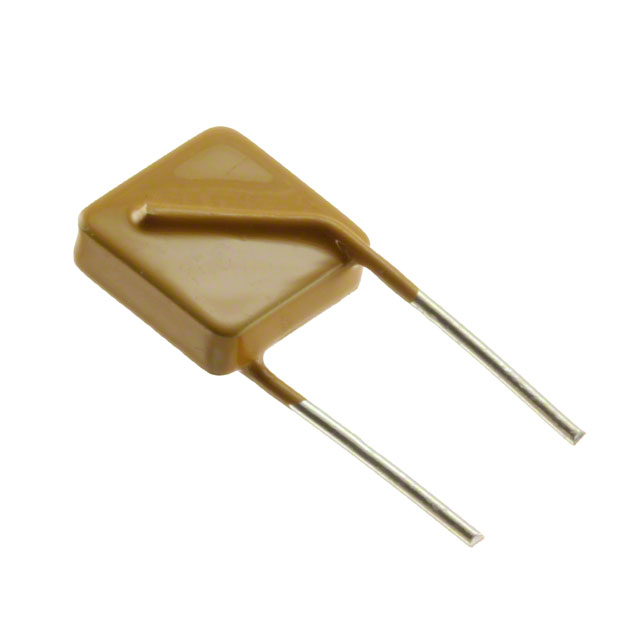

TRF600-150-B-0.5
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, TRF600
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 40A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 6 Ohms
Resistance - Post Trip (R1) (Max) : 17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : PolySwitch®, TRF600
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 40A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 6 Ohms
Resistance - Post Trip (R1) (Max) : 17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
1382 in stock
TRF600-150-B-0.5-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TRF600
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 40A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 6 Ohms
Resistance - Post Trip (R1) (Max) : 17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, TRF600
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 40A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 6 Ohms
Resistance - Post Trip (R1) (Max) : 17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
470 in stock
TRF600-150-R2-B-0.5
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, TRF600
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 7 Ohms
Resistance - Post Trip (R1) (Max) : 17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : PolySwitch®, TRF600
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 7 Ohms
Resistance - Post Trip (R1) (Max) : 17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
1893 in stock
TRF600-150-RB
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, TRF600
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 40A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 9 Ohms
Resistance - Post Trip (R1) (Max) : 22 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : PolySwitch®, TRF600
Part Status : Active
Type : Polymeric
Voltage - Max : 250V (600V Int)
Current - Max : 40A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 300mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 9 Ohms
Resistance - Post Trip (R1) (Max) : 22 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max) : 0.492" (12.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
1312 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
