Part Number
Manufacturer
Description
Unit Price
In Stock
0ZCM0010FF2G
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCM
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 250mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 900 mOhms
Resistance - Post Trip (R1) (Max) : 8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), Concave
Size / Dimension : 0.063" L x 0.029" W (1.60mm x 0.73mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCM
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 250mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 900 mOhms
Resistance - Post Trip (R1) (Max) : 8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), Concave
Size / Dimension : 0.063" L x 0.029" W (1.60mm x 0.73mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
256670 in stock
0ZCM0012FF2G
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCM
Part Status : Active
Type : Polymeric
Voltage - Max : 9V
Current - Max : 40A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 1.1 Ohms
Resistance - Post Trip (R1) (Max) : 5.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), Concave
Size / Dimension : 0.063" L x 0.029" W (1.60mm x 0.73mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCM
Part Status : Active
Type : Polymeric
Voltage - Max : 9V
Current - Max : 40A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 1.1 Ohms
Resistance - Post Trip (R1) (Max) : 5.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), Concave
Size / Dimension : 0.063" L x 0.029" W (1.60mm x 0.73mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
3453 in stock
0ZCM0016FF2G
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCM
Part Status : Active
Type : Polymeric
Voltage - Max : 9V
Current - Max : 40A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 400mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 4.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), Concave
Size / Dimension : 0.063" L x 0.029" W (1.60mm x 0.73mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCM
Part Status : Active
Type : Polymeric
Voltage - Max : 9V
Current - Max : 40A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 400mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 4.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), Concave
Size / Dimension : 0.063" L x 0.029" W (1.60mm x 0.73mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
435 in stock

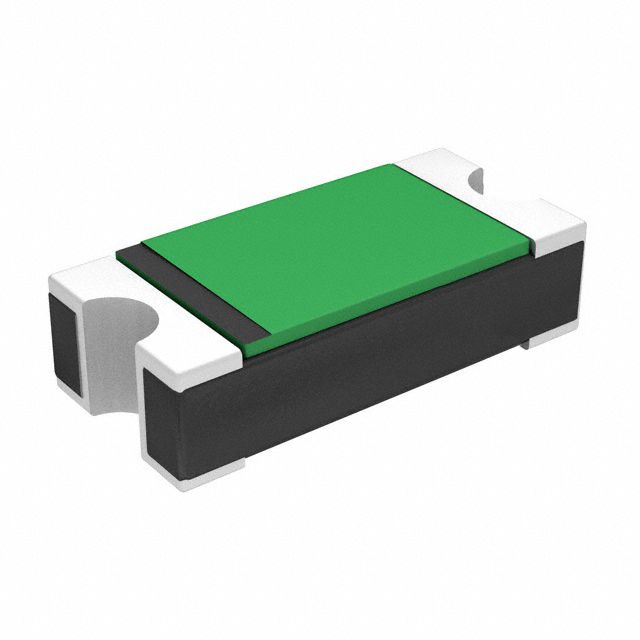

0ZCM0020FF2G
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCM
Part Status : Active
Type : Polymeric
Voltage - Max : 9V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 450mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 550 mOhms
Resistance - Post Trip (R1) (Max) : 3.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), Concave
Size / Dimension : 0.063" L x 0.029" W (1.60mm x 0.73mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCM
Part Status : Active
Type : Polymeric
Voltage - Max : 9V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 450mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 550 mOhms
Resistance - Post Trip (R1) (Max) : 3.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), Concave
Size / Dimension : 0.063" L x 0.029" W (1.60mm x 0.73mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
27877 in stock
0ZCN0030FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 100A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 500 mOhms
Resistance - Post Trip (R1) (Max) : 2.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 100A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 500 mOhms
Resistance - Post Trip (R1) (Max) : 2.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
0
4000 in stock
0ZCN0055FF2A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 100A
Current - Hold (Ih) (Max) : 550mA
Current - Trip (It) : 1.1A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.067" (1.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 100A
Current - Hold (Ih) (Max) : 550mA
Current - Trip (It) : 1.1A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.067" (1.70mm)
Lead Spacing : -
0
2000 in stock
0ZCN0075FF2A
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 130 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.067" (1.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 130 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.067" (1.70mm)
Lead Spacing : -
0
2000 in stock
0ZCN0110AF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : -
Voltage - Max : -
Current - Max : -
Current - Hold (Ih) (Max) : -
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : -
Voltage - Max : -
Current - Max : -
Current - Hold (Ih) (Max) : -
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
0
4000 in stock

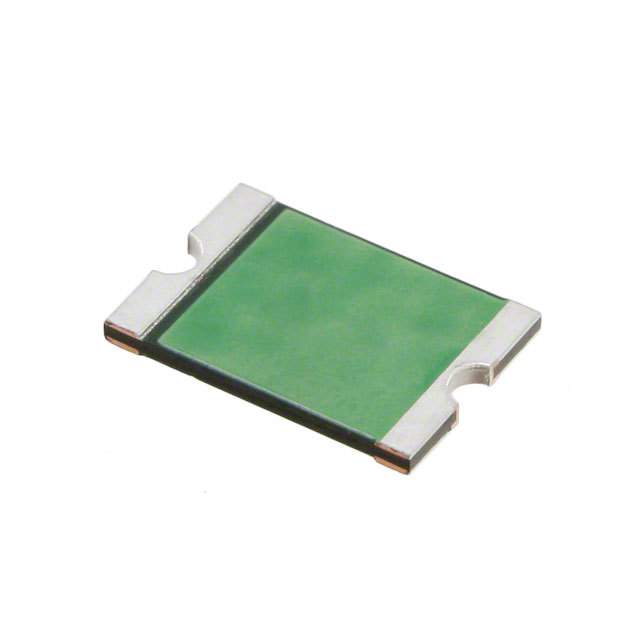

0ZCN0110FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
0
4000 in stock
0ZCN0150FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 800ms
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 180 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.026" (0.65mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 800ms
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 180 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.026" (0.65mm)
Lead Spacing : -
0
4000 in stock
0ZCN0200FF2C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4.2A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 48 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.022" (0.55mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0ZCN
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4.2A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 48 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2016 (5041 Metric), Concave
Size / Dimension : 0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max) : -
Thickness (Max) : 0.022" (0.55mm)
Lead Spacing : -
0
4000 in stock
0ZRA0300FF1C
Bel
Manufacturer : Bel Fuse Inc.
Packaging : Bulk
Series : 0ZRA
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 5.1A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 34 mOhms
Resistance - Post Trip (R1) (Max) : 105 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.280" L x 0.118" W (7.10mm x 3.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : 0ZRA
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 5.1A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 34 mOhms
Resistance - Post Trip (R1) (Max) : 105 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.280" L x 0.118" W (7.10mm x 3.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
