- Capacitors
- Trimmers, Variable Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock
JZ400
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JZ
Part Status : Active
Capacitance Range : 8 ~ 40pF
Adjustment Type : Top
Voltage - Rated : 125V
Dielectric Material : Ceramic
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.057" (1.45mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : General Purpose
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JZ
Part Status : Active
Capacitance Range : 8 ~ 40pF
Adjustment Type : Top
Voltage - Rated : 125V
Dielectric Material : Ceramic
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.057" (1.45mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : General Purpose
0
100 in stock
JZ400HV
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JZ_HV
Part Status : Active
Capacitance Range : 8 ~ 40pF
Adjustment Type : Top
Voltage - Rated : 350V
Dielectric Material : Ceramic
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.057" (1.45mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : General Purpose
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JZ_HV
Part Status : Active
Capacitance Range : 8 ~ 40pF
Adjustment Type : Top
Voltage - Rated : 350V
Dielectric Material : Ceramic
Q @ Freq : 1500 @ 1MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.057" (1.45mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : General Purpose
0
6108 in stock
JZ500
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JZ
Part Status : Active
Capacitance Range : 8 ~ 50pF
Adjustment Type : Top
Voltage - Rated : 125V
Dielectric Material : Ceramic
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.057" (1.45mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : General Purpose
Packaging : Cut Tape (CT)
Alternate Packaging
Series : JZ
Part Status : Active
Capacitance Range : 8 ~ 50pF
Adjustment Type : Top
Voltage - Rated : 125V
Dielectric Material : Ceramic
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.057" (1.45mm)
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Features : General Purpose
0
8567 in stock
NMA1J12HVS
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Bulk
Series : A1_HV
Part Status : Active
Capacitance Range : 0.6 ~ 12pF
Adjustment Type : Side
Voltage - Rated : 500V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.120" Dia (3.05mm)
Height - Seated (Max) : 0.460" (11.68mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
Packaging : Bulk
Series : A1_HV
Part Status : Active
Capacitance Range : 0.6 ~ 12pF
Adjustment Type : Side
Voltage - Rated : 500V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.120" Dia (3.05mm)
Height - Seated (Max) : 0.460" (11.68mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
0
18 in stock

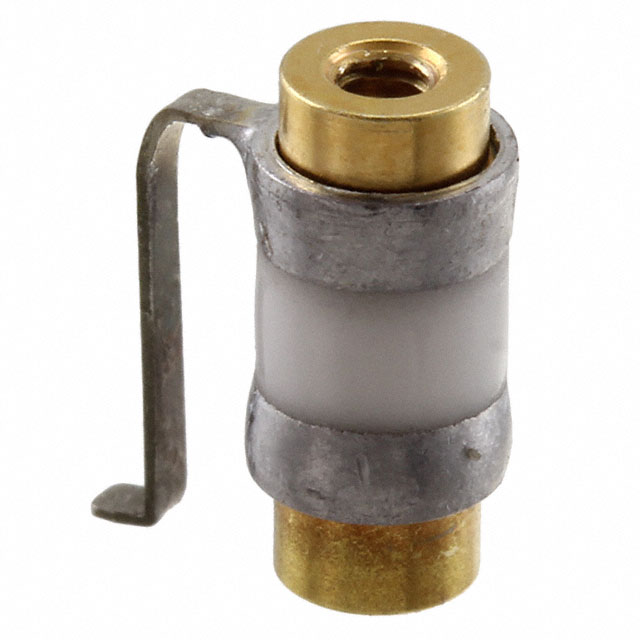

NMA4M5HV
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Bulk
Series : A4_HV
Part Status : Active
Capacitance Range : 0.6 ~ 5pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.120" Dia (3.05mm)
Height - Seated (Max) : 0.325" (8.26mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
Packaging : Bulk
Series : A4_HV
Part Status : Active
Capacitance Range : 0.6 ~ 5pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.120" Dia (3.05mm)
Height - Seated (Max) : 0.325" (8.26mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
0
48 in stock

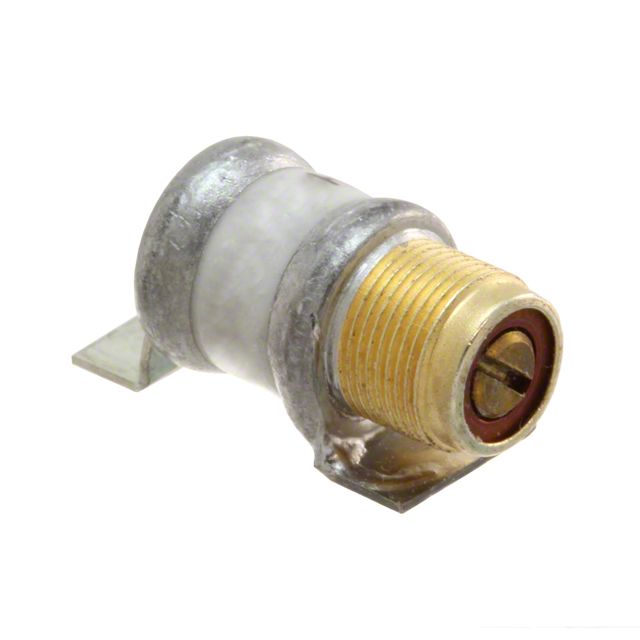

NMAJ25HV
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Bulk
Series : A_HV
Part Status : Active
Capacitance Range : 1 ~ 23pF
Adjustment Type : Side
Voltage - Rated : 750V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.300" Dia (7.62mm)
Height - Seated (Max) : 0.500" (12.70mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
Packaging : Bulk
Series : A_HV
Part Status : Active
Capacitance Range : 1 ~ 23pF
Adjustment Type : Side
Voltage - Rated : 750V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.300" Dia (7.62mm)
Height - Seated (Max) : 0.500" (12.70mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
0
96 in stock
NMAJ30
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Bulk
Series : A_HV
Part Status : Active
Capacitance Range : 1.5 ~ 30pF
Adjustment Type : Side
Voltage - Rated : 250V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : -
Size / Dimension : 0.300" Dia (7.62mm)
Height - Seated (Max) : 0.500" (12.70mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
Packaging : Bulk
Series : A_HV
Part Status : Active
Capacitance Range : 1.5 ~ 30pF
Adjustment Type : Side
Voltage - Rated : 250V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : -
Size / Dimension : 0.300" Dia (7.62mm)
Height - Seated (Max) : 0.500" (12.70mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
0
21 in stock

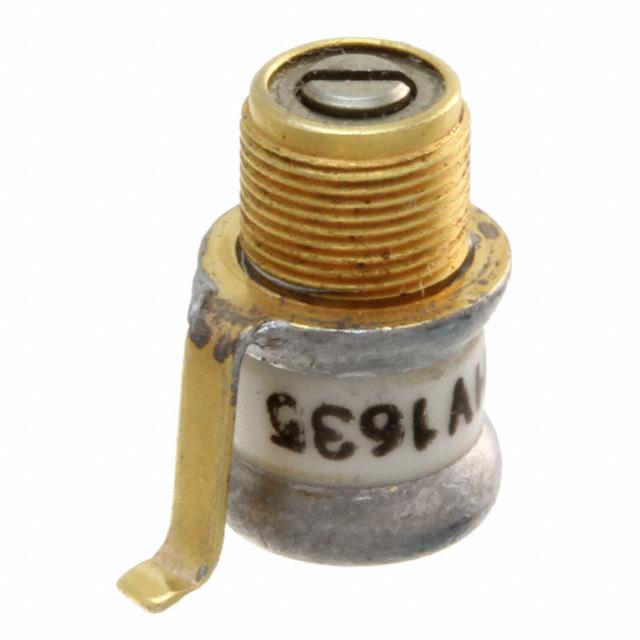

NMAM25HV
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Bulk
Series : A_HV
Part Status : Active
Capacitance Range : 1 ~ 23pF
Adjustment Type : Top
Voltage - Rated : 750V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.300" Dia (7.62mm)
Height - Seated (Max) : 0.480" (12.19mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
Packaging : Bulk
Series : A_HV
Part Status : Active
Capacitance Range : 1 ~ 23pF
Adjustment Type : Top
Voltage - Rated : 750V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.300" Dia (7.62mm)
Height - Seated (Max) : 0.480" (12.19mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
0
77 in stock
NMKJ10HV
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Bulk
Series : K_HV
Part Status : Active
Capacitance Range : 1 ~ 9pF
Adjustment Type : Side
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.230" Dia (5.84mm)
Height - Seated (Max) : 0.490" (12.45mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
Packaging : Bulk
Series : K_HV
Part Status : Active
Capacitance Range : 1 ~ 9pF
Adjustment Type : Side
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.230" Dia (5.84mm)
Height - Seated (Max) : 0.490" (12.45mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
0
15 in stock
NMKM10HV
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Bulk
Series : K_HV
Part Status : Active
Capacitance Range : 1 ~ 9pF
Adjustment Type : Top
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.230" Dia (5.84mm)
Height - Seated (Max) : 0.470" (11.94mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
Packaging : Bulk
Series : K_HV
Part Status : Active
Capacitance Range : 1 ~ 9pF
Adjustment Type : Top
Voltage - Rated : 1000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : 2000 @ 100MHz
Size / Dimension : 0.230" Dia (5.84mm)
Height - Seated (Max) : 0.470" (11.94mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Surface Mount
Features : Non-Magnetic
0
49 in stock
NMNT10-12E
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Bulk
Series : NT
Part Status : Active
Capacitance Range : 2 ~ 10pF
Adjustment Type : Top
Voltage - Rated : 6000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : -
Size / Dimension : 0.550" Dia (13.97mm)
Height - Seated (Max) : 1.845" (46.86mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Panel Mount
Features : Non-Magnetic
Packaging : Bulk
Series : NT
Part Status : Active
Capacitance Range : 2 ~ 10pF
Adjustment Type : Top
Voltage - Rated : 6000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : -
Size / Dimension : 0.550" Dia (13.97mm)
Height - Seated (Max) : 1.845" (46.86mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Panel Mount
Features : Non-Magnetic
0
90 in stock
NMNT23-12E
Knowles Voltronics
Manufacturer : Knowles Voltronics
Packaging : Bulk
Series : NT
Part Status : Active
Capacitance Range : 3 ~ 23pF
Adjustment Type : Top
Voltage - Rated : 6000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : -
Size / Dimension : 0.580" Dia (14.73mm)
Height - Seated (Max) : 1.845" (46.86mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Panel Mount
Features : Non-Magnetic
Packaging : Bulk
Series : NT
Part Status : Active
Capacitance Range : 3 ~ 23pF
Adjustment Type : Top
Voltage - Rated : 6000V
Dielectric Material : Polytetrafluoroethylene (PTFE)
Q @ Freq : -
Size / Dimension : 0.580" Dia (14.73mm)
Height - Seated (Max) : 1.845" (46.86mm)
Operating Temperature : -65°C ~ 125°C
Mounting Type : Panel Mount
Features : Non-Magnetic
0
10 in stock
