Part Number
Manufacturer
Description
Unit Price
In Stock

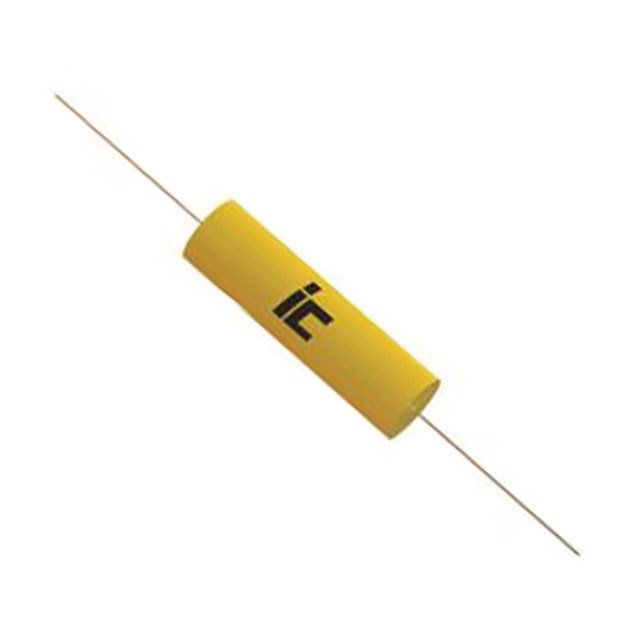

105MWR400K
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 1.415 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.571" Dia x 1.339" L (14.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 1.415 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.571" Dia x 1.339" L (14.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
652 in stock
105MWR630K
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 1.415 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.866" Dia x 1.339" L (22.00mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 1.415 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.866" Dia x 1.339" L (22.00mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
153 in stock

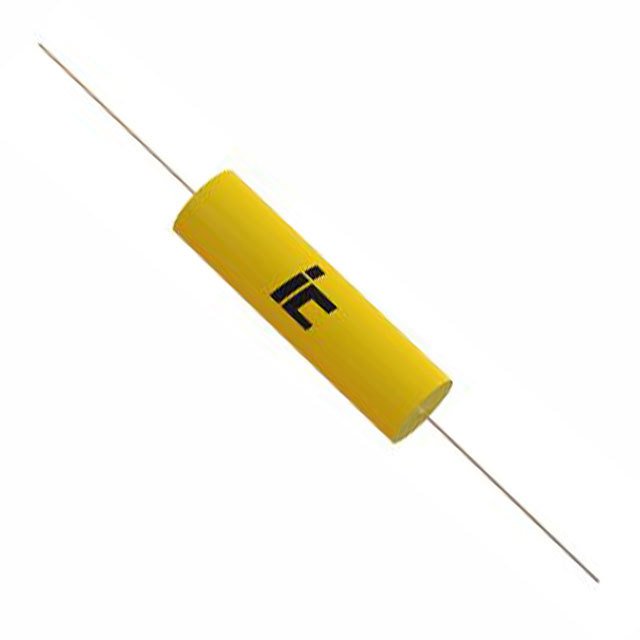

105PHC400K
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 6.7 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.512" Dia x 1.339" L (13.00mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 6.7 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.512" Dia x 1.339" L (13.00mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
0
650 in stock
105PHC600K
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 330V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 6.1 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.689" Dia x 1.339" L (17.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 330V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 6.1 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.689" Dia x 1.339" L (17.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
0
584 in stock

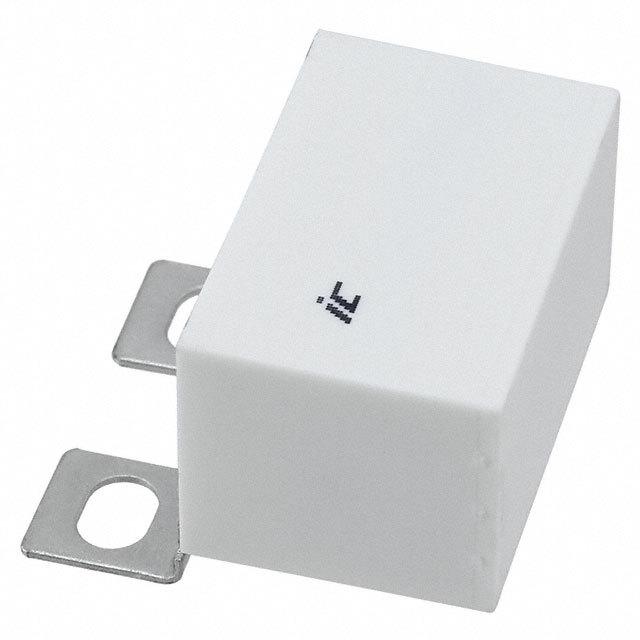

105PMB122KSP1
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PMB
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 630V
Voltage Rating - DC : 1200V (1.2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 2.7 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.673" L x 1.319" W (42.50mm x 33.50mm)
Height - Seated (Max) : 1.398" (35.50mm)
Termination : -
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
Packaging : Bulk
Series : PMB
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 630V
Voltage Rating - DC : 1200V (1.2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 2.7 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.673" L x 1.319" W (42.50mm x 33.50mm)
Height - Seated (Max) : 1.398" (35.50mm)
Termination : -
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
42 in stock
105PMB850KSP2
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PMB
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 450V
Voltage Rating - DC : 850V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 2.7 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.673" L x 0.965" W (42.50mm x 24.50mm)
Height - Seated (Max) : 1.083" (27.50mm)
Termination : Screw Terminals
Lead Spacing : 0.433" (11.00mm)
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
Packaging : Bulk
Series : PMB
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 450V
Voltage Rating - DC : 850V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 2.7 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.673" L x 0.965" W (42.50mm x 24.50mm)
Height - Seated (Max) : 1.083" (27.50mm)
Termination : Screw Terminals
Lead Spacing : 0.433" (11.00mm)
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
72 in stock

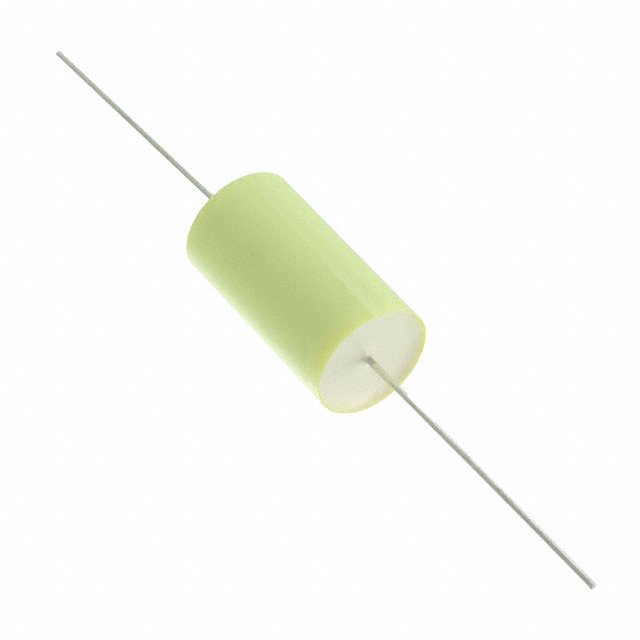

105PPA122K
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPA
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 550V
Voltage Rating - DC : 1200V (1.2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 3.4 mOhms
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 1.260" Dia x 1.811" L (32.00mm x 46.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
Packaging : Bulk
Series : PPA
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 550V
Voltage Rating - DC : 1200V (1.2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 3.4 mOhms
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 1.260" Dia x 1.811" L (32.00mm x 46.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
56 in stock

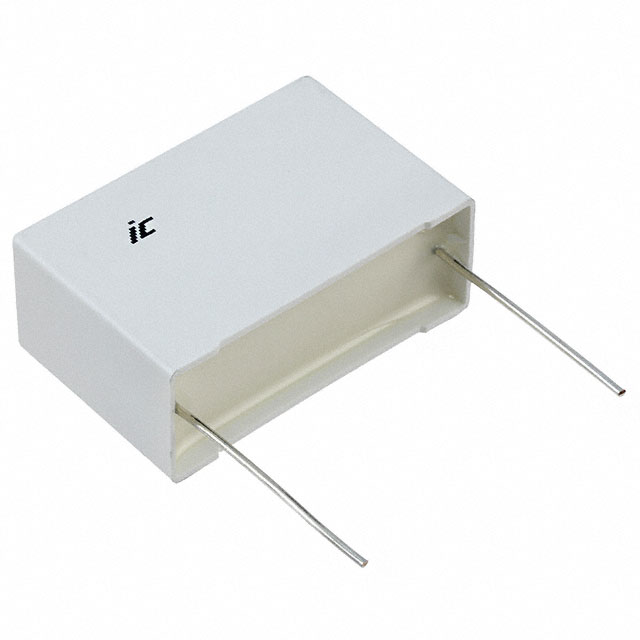

105PPB102K
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPB
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 600V
Voltage Rating - DC : 1000V (1kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.673" L x 1.102" W (42.50mm x 28.00mm)
Height - Seated (Max) : 1.457" (37.00mm)
Termination : PC Pins
Lead Spacing : 1.476" (37.50mm)
Applications : Commutation; High Pulse, DV/DT; Snubber
Ratings : -
Features : -
Packaging : Bulk
Series : PPB
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 600V
Voltage Rating - DC : 1000V (1kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.673" L x 1.102" W (42.50mm x 28.00mm)
Height - Seated (Max) : 1.457" (37.00mm)
Termination : PC Pins
Lead Spacing : 1.476" (37.50mm)
Applications : Commutation; High Pulse, DV/DT; Snubber
Ratings : -
Features : -
0
2805 in stock

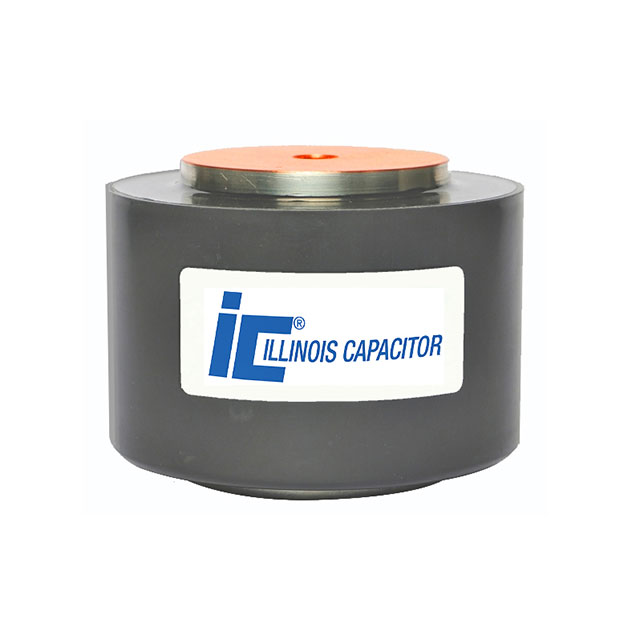

106HC5700KR
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : HC5
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 700V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 600 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Axial, Can - Screw Terminals
Size / Dimension : 3.740" Dia (95.00mm)
Height - Seated (Max) : 2.819" (71.60mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
Packaging : Bulk
Series : HC5
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 700V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 600 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Axial, Can - Screw Terminals
Size / Dimension : 3.740" Dia (95.00mm)
Height - Seated (Max) : 2.819" (71.60mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
1 in stock
106LC5700K5PM8
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : LC5
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 700V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 600 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 3.937" L x 3.937" W (100.00mm x 100.00mm)
Height - Seated (Max) : 2.146" (54.50mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
Packaging : Bulk
Series : LC5
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 700V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 600 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 3.937" L x 3.937" W (100.00mm x 100.00mm)
Height - Seated (Max) : 2.146" (54.50mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
11 in stock
106MABA03KJS
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MAB
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 500V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.673" L x 0.866" W (42.50mm x 22.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Termination : PC Pins
Lead Spacing : 1.476" (37.50mm)
Applications : Motor Run
Ratings : -
Features : -
Packaging : Bulk
Series : MAB
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 500V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.673" L x 0.866" W (42.50mm x 22.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Termination : PC Pins
Lead Spacing : 1.476" (37.50mm)
Applications : Motor Run
Ratings : -
Features : -
0
484 in stock
106MMR100K
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.453" W (26.00mm x 11.50mm)
Height - Seated (Max) : 0.827" (21.00mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : General Purpose
Ratings : -
Features : -
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 10µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.453" W (26.00mm x 11.50mm)
Height - Seated (Max) : 0.827" (21.00mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
1899 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
