Welcome to Weijie Semiconductor
- Capacitors
- Aluminum - Polymer Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock
63PFV22M6.3X8
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 80 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 80 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
320 in stock
63PFV33M8X10.5
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 55mA @ 120Hz
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 55mA @ 120Hz
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
879 in stock
63PFV56M10X10.5
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 70mA @ 120Hz
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 70mA @ 120Hz
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1788 in stock
63PZA22M8X10
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : PZA
Part Status : Active
Type : Polymer
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 90mA @ 120Hz
Ripple Current @ High Frequency : 1.8A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : PZA
Part Status : Active
Type : Polymer
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 90mA @ 120Hz
Ripple Current @ High Frequency : 1.8A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
854 in stock
63PZA47M10X13
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : PZA
Part Status : Active
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 29 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 130mA @ 120Hz
Ripple Current @ High Frequency : 2.6A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.571" (14.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : PZA
Part Status : Active
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 29 mOhm
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 130mA @ 120Hz
Ripple Current @ High Frequency : 2.6A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.571" (14.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
608 in stock
63PZE33M8X9
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : PZE
Part Status : Active
Type : Hybrid
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 85mA @ 120Hz
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : PZE
Part Status : Active
Type : Hybrid
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 85mA @ 120Hz
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1232 in stock

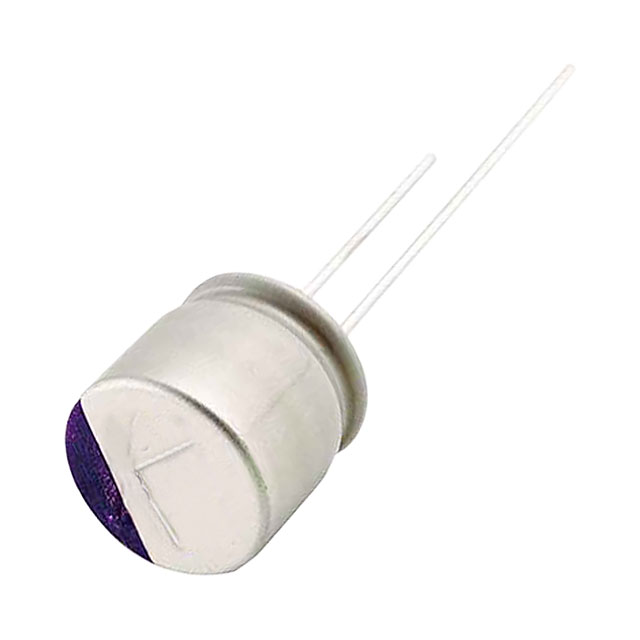

63PZE56M10X9
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : PZE
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 90mA @ 120Hz
Ripple Current @ High Frequency : 1.8A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : PZE
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 90mA @ 120Hz
Ripple Current @ High Frequency : 1.8A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
100 in stock
63PZF33M8X9
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : PZF
Part Status : Active
Type : Hybrid
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 55mA @ 120Hz
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : PZF
Part Status : Active
Type : Hybrid
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 55mA @ 120Hz
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
872 in stock
63PZF56M10X9
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : PZF
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 70mA @ 120Hz
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : PZF
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 70mA @ 120Hz
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
100 in stock

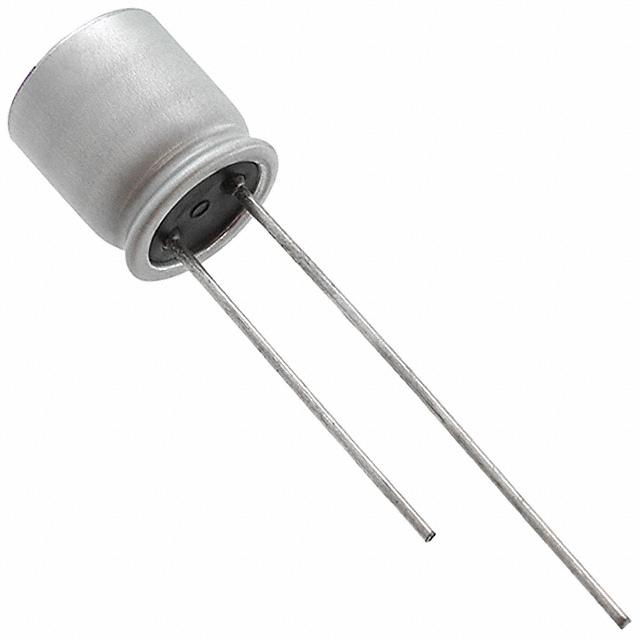

63SXE18M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SXE
Part Status : Active
Type : Polymer
Capacitance : 18µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 60 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 17mA @ 120Hz
Ripple Current @ High Frequency : 340mA @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : OS-CON™, SXE
Part Status : Active
Type : Polymer
Capacitance : 18µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 60 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 17mA @ 120Hz
Ripple Current @ High Frequency : 340mA @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
200 in stock
63SXE33M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SXE
Part Status : Active
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 25 mOhm @ 100kHz
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 147.5mA @ 120Hz
Ripple Current @ High Frequency : 2.95A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : OS-CON™, SXE
Part Status : Active
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 25 mOhm @ 100kHz
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 147.5mA @ 120Hz
Ripple Current @ High Frequency : 2.95A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
70 in stock
63SXE39M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : OS-CON™, SXE
Part Status : Active
Type : Polymer
Capacitance : 39µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 46.5mA @ 120Hz
Ripple Current @ High Frequency : 930mA @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : OS-CON™, SXE
Part Status : Active
Type : Polymer
Capacitance : 39µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 46.5mA @ 120Hz
Ripple Current @ High Frequency : 930mA @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
400 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
