- Capacitors
- Aluminum - Polymer Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock

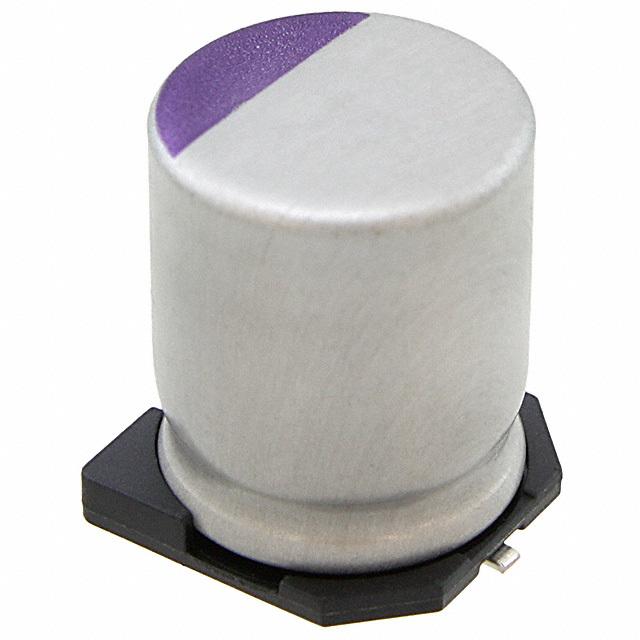

25SVPF330M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPF
Part Status : Active
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 14 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 250mA @ 120Hz
Ripple Current @ High Frequency : 5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPF
Part Status : Active
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 14 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 250mA @ 120Hz
Ripple Current @ High Frequency : 5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
51867 in stock
25SVPF47M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPF
Part Status : Active
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 140mA @ 120Hz
Ripple Current @ High Frequency : 2.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPF
Part Status : Active
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 140mA @ 120Hz
Ripple Current @ High Frequency : 2.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
7950 in stock

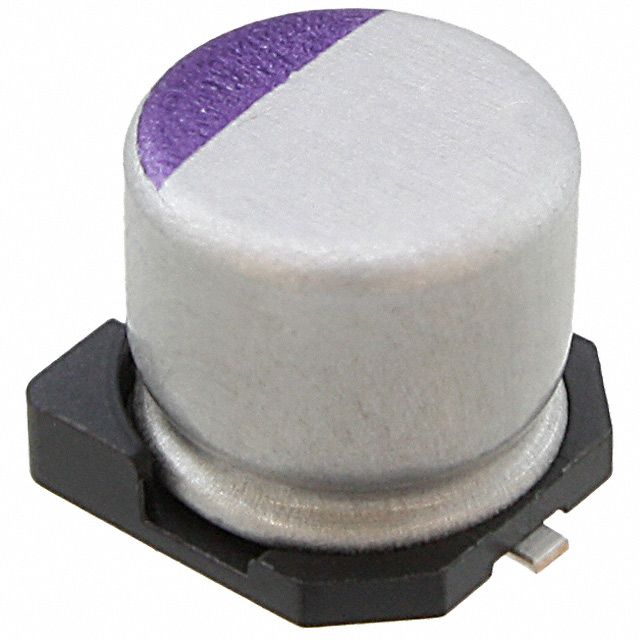

25SVPF56M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPF
Part Status : Active
Type : Polymer
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 140mA @ 120Hz
Ripple Current @ High Frequency : 2.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPF
Part Status : Active
Type : Polymer
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 140mA @ 120Hz
Ripple Current @ High Frequency : 2.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
3369 in stock

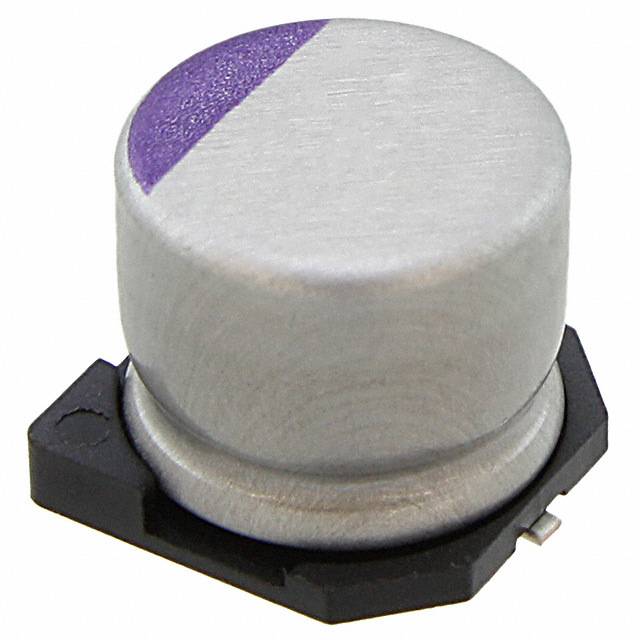

25SVPF82M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPF
Part Status : Active
Type : Polymer
Capacitance : 82µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 150mA @ 120Hz
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPF
Part Status : Active
Type : Polymer
Capacitance : 82µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 150mA @ 120Hz
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
11875 in stock

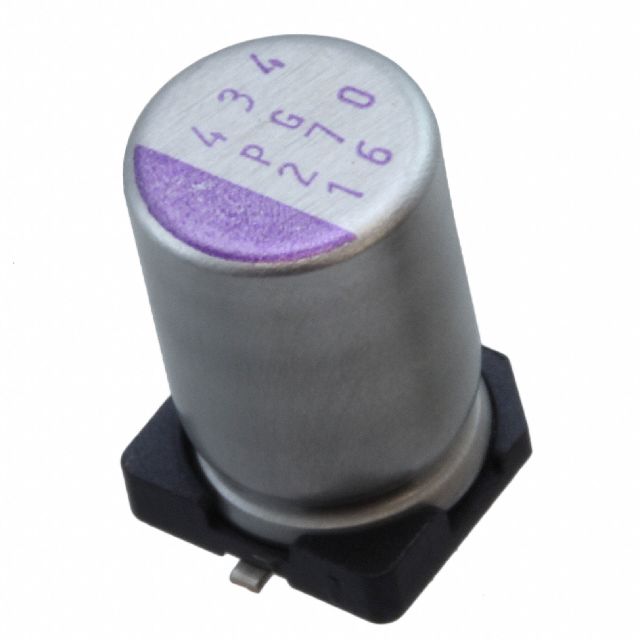

25SVPG15M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPG
Part Status : Active
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 140mA @ 120Hz
Ripple Current @ High Frequency : 2.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
Surface Mount Land Size : 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPG
Part Status : Active
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 140mA @ 120Hz
Ripple Current @ High Frequency : 2.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
Surface Mount Land Size : 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
4856 in stock

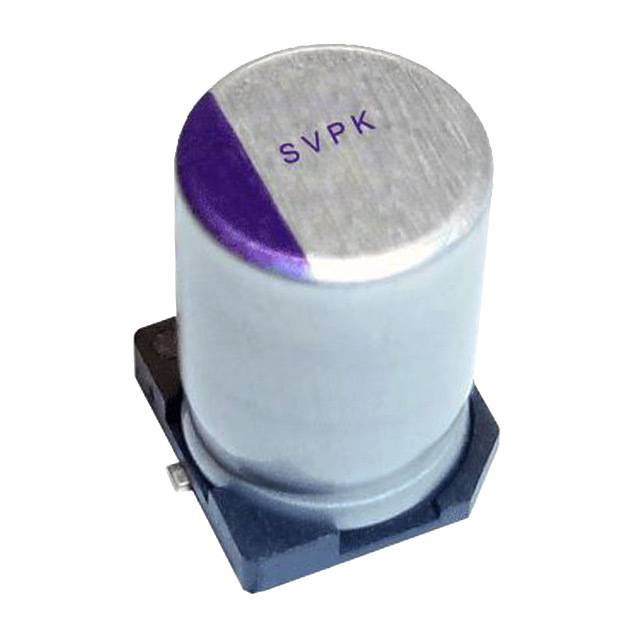

25SVPK120M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPK
Part Status : Active
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 24 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 50.5mA @ 120Hz
Ripple Current @ High Frequency : 1.01A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPK
Part Status : Active
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 24 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 50.5mA @ 120Hz
Ripple Current @ High Frequency : 1.01A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1678 in stock
25SVPK270M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPK
Part Status : Active
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 16 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 73.5mA @ 120Hz
Ripple Current @ High Frequency : 1.47A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPK
Part Status : Active
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 16 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 73.5mA @ 120Hz
Ripple Current @ High Frequency : 1.47A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
497 in stock
25SVPK33M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPK
Part Status : Active
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 41mA @ 120Hz
Ripple Current @ High Frequency : 820mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPK
Part Status : Active
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 41mA @ 120Hz
Ripple Current @ High Frequency : 820mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
2955 in stock
25SVPK470M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPK
Part Status : Active
Type : Polymer
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 14 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 79.5mA @ 120Hz
Ripple Current @ High Frequency : 1.59A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPK
Part Status : Active
Type : Polymer
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 14 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 79.5mA @ 120Hz
Ripple Current @ High Frequency : 1.59A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
501 in stock
25SVPK82M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPK
Part Status : Active
Type : Polymer
Capacitance : 82µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 48mA @ 120Hz
Ripple Current @ High Frequency : 960mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OS-CON™, SVPK
Part Status : Active
Type : Polymer
Capacitance : 82µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 48mA @ 120Hz
Ripple Current @ High Frequency : 960mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1535 in stock

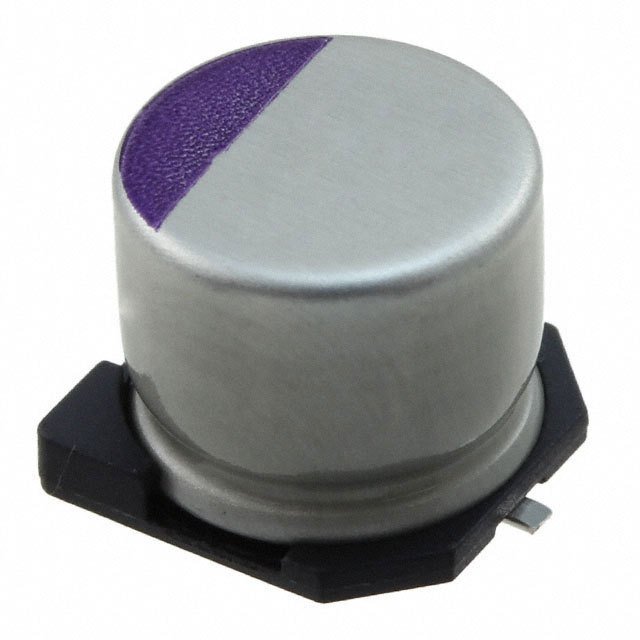

25SVPS10M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Cut Tape (CT)
Series : OS-CON™, SVPS
Part Status : Active
Type : Polymer
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 60 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 75mA @ 120Hz
Ripple Current @ High Frequency : 1.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Series : OS-CON™, SVPS
Part Status : Active
Type : Polymer
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 60 mOhm
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 75mA @ 120Hz
Ripple Current @ High Frequency : 1.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1738 in stock

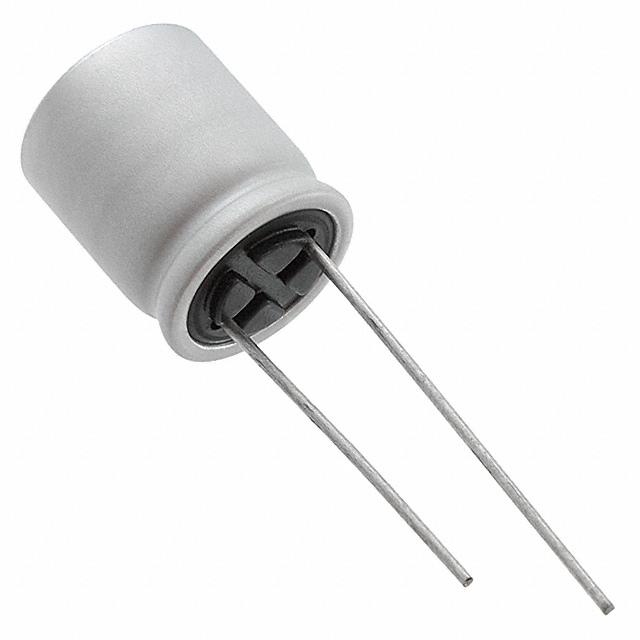

2R5SEP1500M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Alternate Packaging
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 1500µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 272mA @ 120Hz
Ripple Current @ High Frequency : 5.44A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Alternate Packaging
Series : OS-CON™, SEP
Part Status : Active
Type : Polymer
Capacitance : 1500µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 272mA @ 120Hz
Ripple Current @ High Frequency : 5.44A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
