Part Number
Manufacturer
Description
Unit Price
In Stock

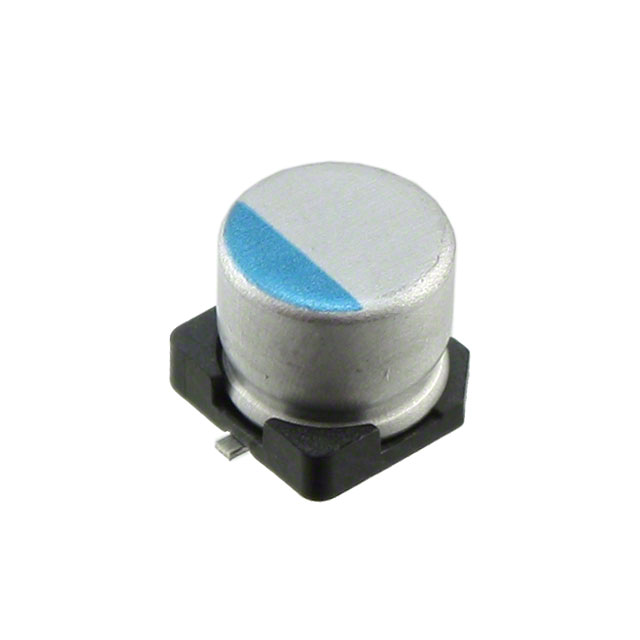

PCX1V100MCL1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 85 mOhm
Lifetime @ Temp. : 1500 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 800mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 85 mOhm
Lifetime @ Temp. : 1500 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 800mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
15537 in stock

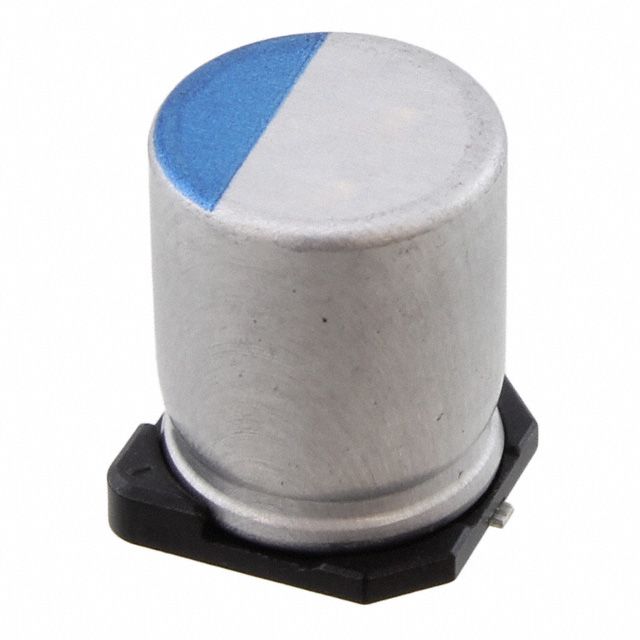

PCX1V101MCL1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 29 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 29 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
946 in stock

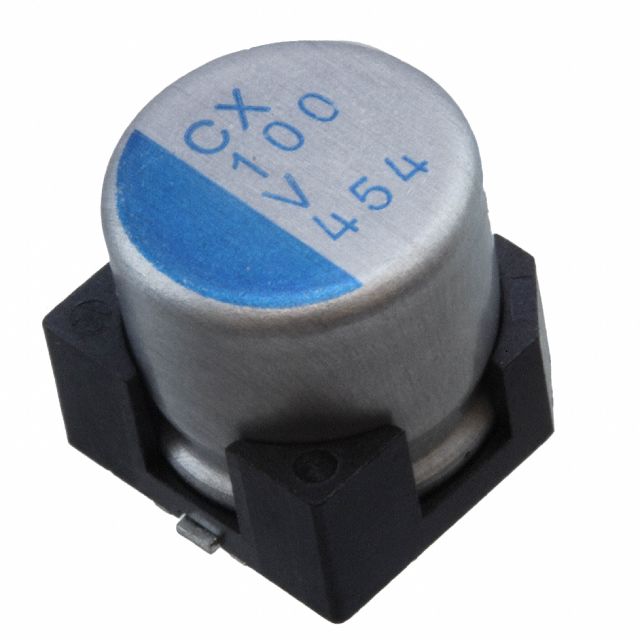

PCX1V101MCS1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
578 in stock

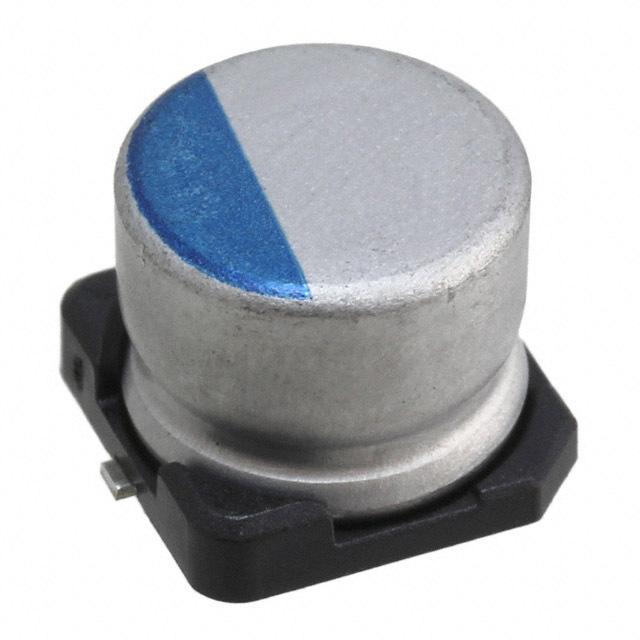

PCX1V180MCL1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 18µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 60 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 18µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 60 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.276" (7.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1936 in stock
PCX1V180MCS1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 18µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 60 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 18µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 60 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
885 in stock
PCX1V270MCL1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 27µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 45 mOhm
Lifetime @ Temp. : 1500 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.319" (8.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 27µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 45 mOhm
Lifetime @ Temp. : 1500 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.319" (8.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
441 in stock

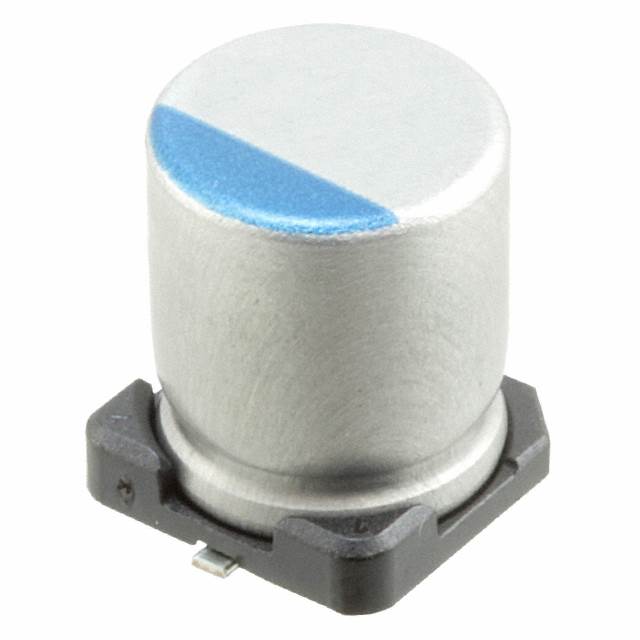

PCX1V270MCS1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 27µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 45 mOhm
Lifetime @ Temp. : 1500 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.335" (8.50mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 27µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 45 mOhm
Lifetime @ Temp. : 1500 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.335" (8.50mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
795 in stock

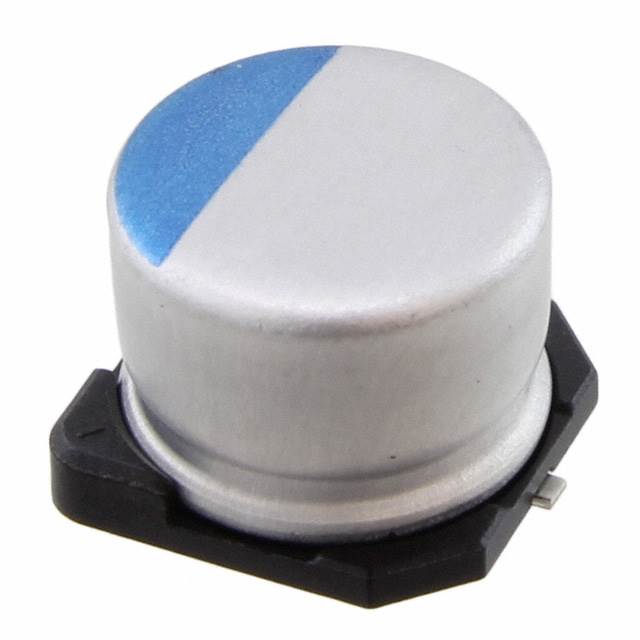

PCX1V390MCL1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 39µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 41 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 39µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 41 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.7A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
884 in stock

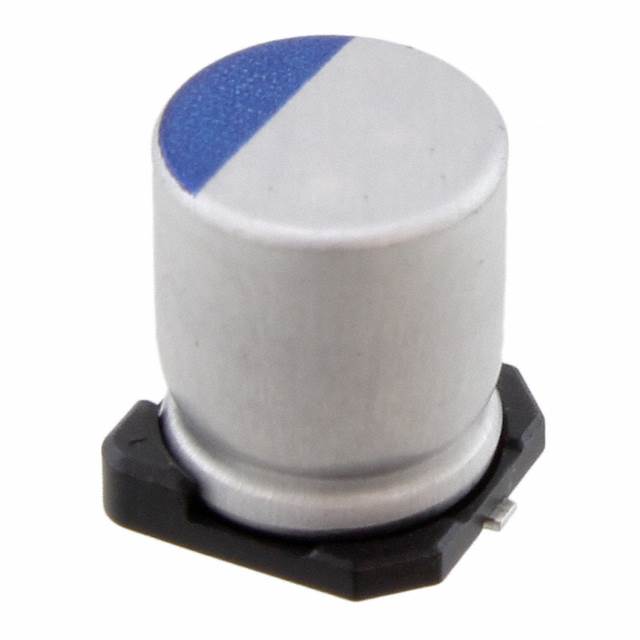

PCX1V390MCL6GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 39µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 39µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1062 in stock

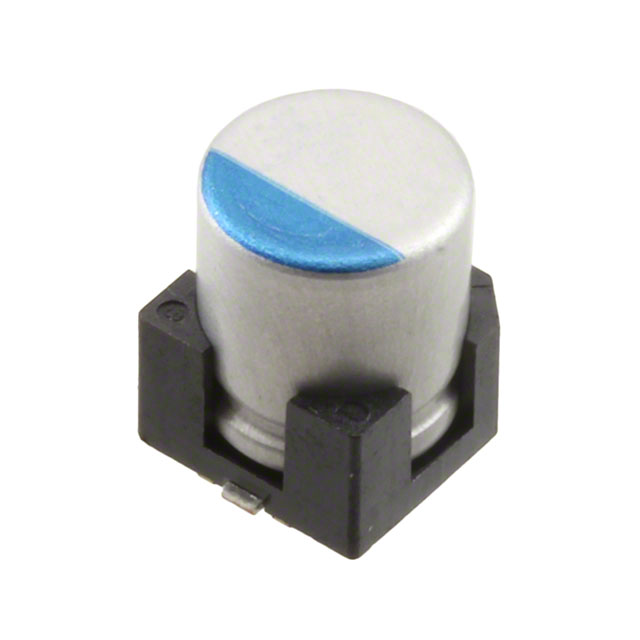

PCX1V390MCS1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 39µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 39µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
480 in stock

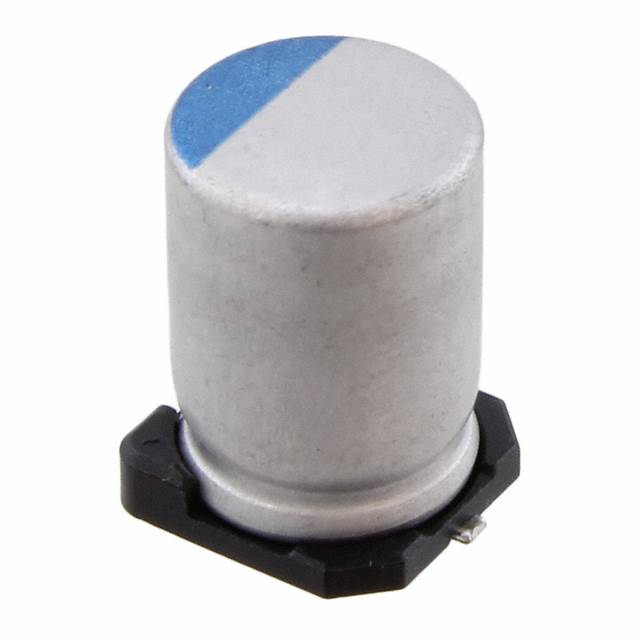

PCX1V560MCL1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 33 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 33 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
3385 in stock

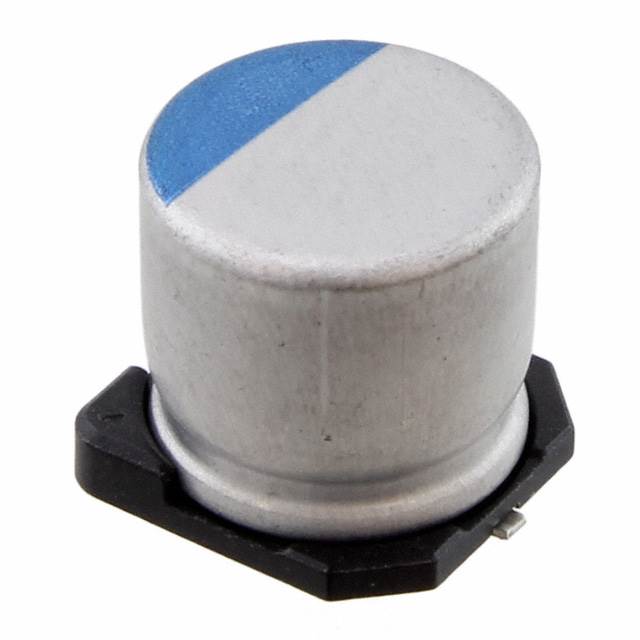

PCX1V680MCL1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PCX
Part Status : Active
Type : Polymer
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 3000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
2976 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
