UPS1H4R7MDD1TD
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPS
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 15.3mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : 7.5 Ohms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPS
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 15.3mA @ 120Hz
Ripple Current @ High Frequency : 90mA @ 100kHz
Impedance : 7.5 Ohms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
3498 in stock

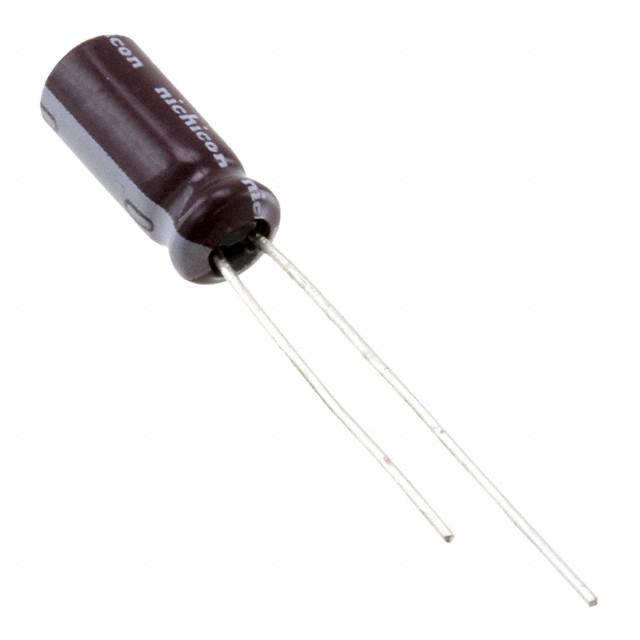

UPS1HR47MDD1TD
Nichicon
Manufacturer : Nichicon
Packaging : Tape & Box (TB)
Alternate Packaging
Series : UPS
Part Status : Not For New Designs
Capacitance : 0.47µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 4.25mA @ 120Hz
Ripple Current @ High Frequency : 25mA @ 100kHz
Impedance : 7.5 Ohms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Tape & Box (TB)
Alternate Packaging
Series : UPS
Part Status : Not For New Designs
Capacitance : 0.47µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 4.25mA @ 120Hz
Ripple Current @ High Frequency : 25mA @ 100kHz
Impedance : 7.5 Ohms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
4000 in stock
UPS2A010MDD1TD
Nichicon
Manufacturer : Nichicon
Packaging : Tape & Box (TB)
Alternate Packaging
Series : UPS
Part Status : Not For New Designs
Capacitance : 1µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 5.1mA @ 120Hz
Ripple Current @ High Frequency : 30mA @ 100kHz
Impedance : 20 Ohms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Tape & Box (TB)
Alternate Packaging
Series : UPS
Part Status : Not For New Designs
Capacitance : 1µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 5.1mA @ 120Hz
Ripple Current @ High Frequency : 30mA @ 100kHz
Impedance : 20 Ohms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
4000 in stock

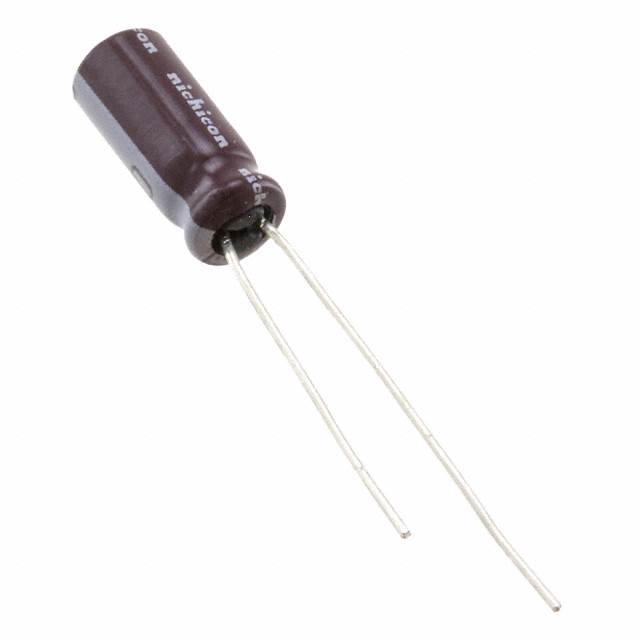

UPW0J101MDD1TD
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 117mA @ 120Hz
Ripple Current @ High Frequency : 180mA @ 100kHz
Impedance : 600 mOhms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 117mA @ 120Hz
Ripple Current @ High Frequency : 180mA @ 100kHz
Impedance : 600 mOhms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
24199 in stock

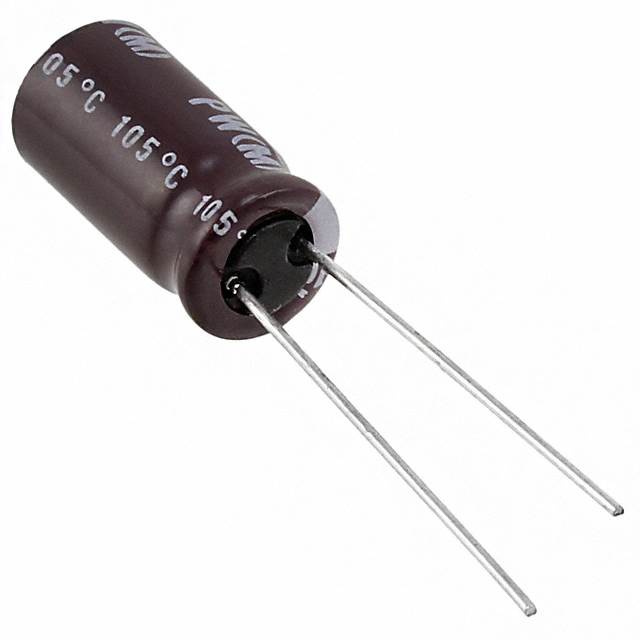

UPW0J821MPD1TD
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 820µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 547.5mA @ 120Hz
Ripple Current @ High Frequency : 730mA @ 100kHz
Impedance : 85 mOhms
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 820µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 547.5mA @ 120Hz
Ripple Current @ High Frequency : 730mA @ 100kHz
Impedance : 85 mOhms
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
61119 in stock
UPW1E100MDD1TD
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 54mA @ 120Hz
Ripple Current @ High Frequency : 180mA @ 100kHz
Impedance : 600 mOhms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 54mA @ 120Hz
Ripple Current @ High Frequency : 180mA @ 100kHz
Impedance : 600 mOhms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
13129 in stock
UPW1E470MDD1TD
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 54mA @ 120Hz
Ripple Current @ High Frequency : 180mA @ 100kHz
Impedance : 600 mOhms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 54mA @ 120Hz
Ripple Current @ High Frequency : 180mA @ 100kHz
Impedance : 600 mOhms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
61338 in stock
UPW1E4R7MDD1TD
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 54mA @ 120Hz
Ripple Current @ High Frequency : 180mA @ 100kHz
Impedance : 600 mOhms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 54mA @ 120Hz
Ripple Current @ High Frequency : 180mA @ 100kHz
Impedance : 600 mOhms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
41969 in stock
UPW1H010MDD1TD
Nichicon
Manufacturer : Nichicon
Packaging : Tape & Box (TB)
Alternate Packaging
Series : UPW
Part Status : Not For New Designs
Capacitance : 1µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 12mA @ 120Hz
Ripple Current @ High Frequency : 40mA @ 100kHz
Impedance : 3.5 Ohms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Tape & Box (TB)
Alternate Packaging
Series : UPW
Part Status : Not For New Designs
Capacitance : 1µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 12mA @ 120Hz
Ripple Current @ High Frequency : 40mA @ 100kHz
Impedance : 3.5 Ohms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
4000 in stock
UPW1H100MDD1TD
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 36mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : 1.4 Ohms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UPW
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 36mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : 1.4 Ohms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
27896 in stock
UPW1H102MHD
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : UPW
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 8000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.235A @ 100kHz
Impedance : 34 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : UPW
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 8000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.235A @ 100kHz
Impedance : 34 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
15247 in stock
UPW1H222MHD
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : UPW
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 8000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.635A @ 120Hz
Ripple Current @ High Frequency : 3.1A @ 100kHz
Impedance : 23 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.398" (35.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : UPW
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 8000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.635A @ 120Hz
Ripple Current @ High Frequency : 3.1A @ 100kHz
Impedance : 23 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.398" (35.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
6118 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
