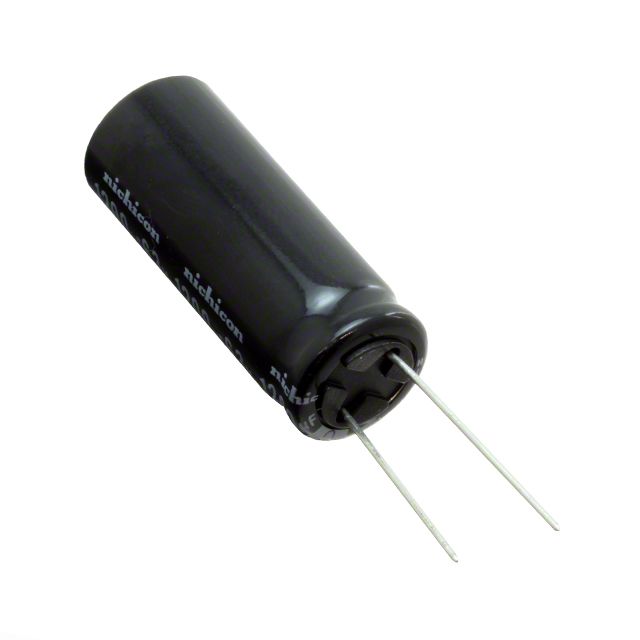

UHE2A681MHD
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : UHE
Part Status : Active
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.418A @ 120Hz
Ripple Current @ High Frequency : 1.89A @ 100kHz
Impedance : 40 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.398" (35.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : UHE
Part Status : Active
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.418A @ 120Hz
Ripple Current @ High Frequency : 1.89A @ 100kHz
Impedance : 40 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.398" (35.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
10659 in stock

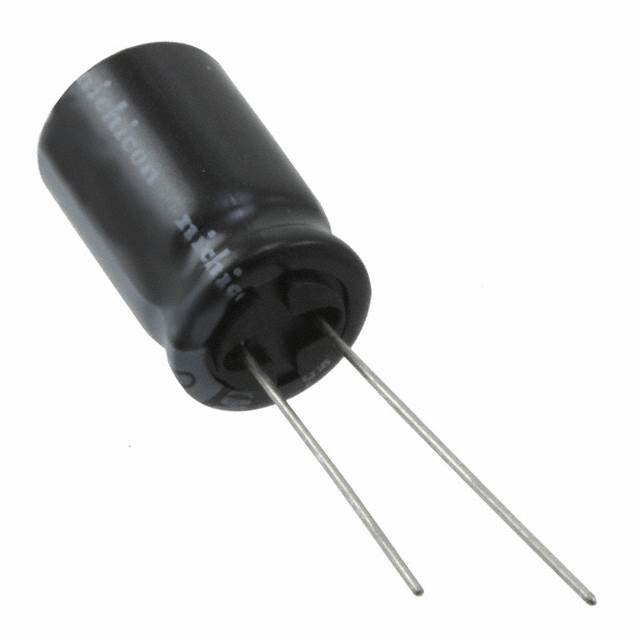

UHV1V102MHD
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : UHV
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 6000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.752A @ 120Hz
Ripple Current @ High Frequency : 2.92A @ 100kHz
Impedance : 16 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.866" (22.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : UHV
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 6000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.752A @ 120Hz
Ripple Current @ High Frequency : 2.92A @ 100kHz
Impedance : 16 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.866" (22.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
12304 in stock

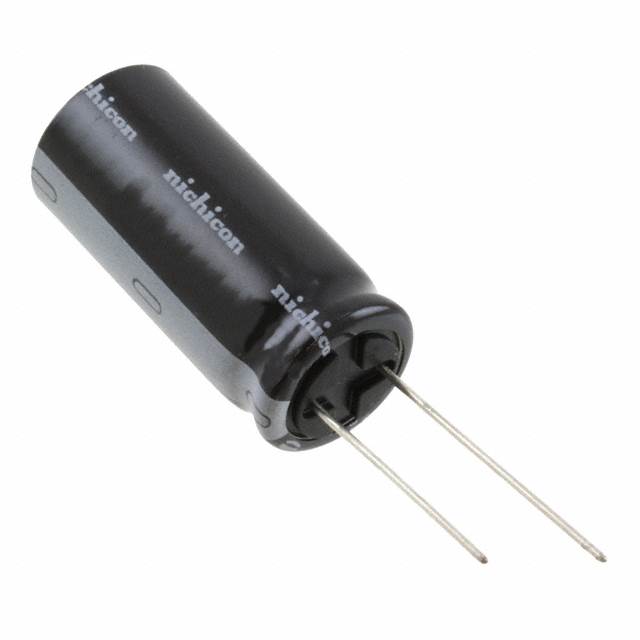

UHW1H272MHD
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : UHW
Part Status : Active
Capacitance : 2700µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.7A @ 120Hz
Ripple Current @ High Frequency : 3.6A @ 100kHz
Impedance : 18 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.476" (37.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : UHW
Part Status : Active
Capacitance : 2700µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.7A @ 120Hz
Ripple Current @ High Frequency : 3.6A @ 100kHz
Impedance : 18 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.476" (37.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2500 in stock

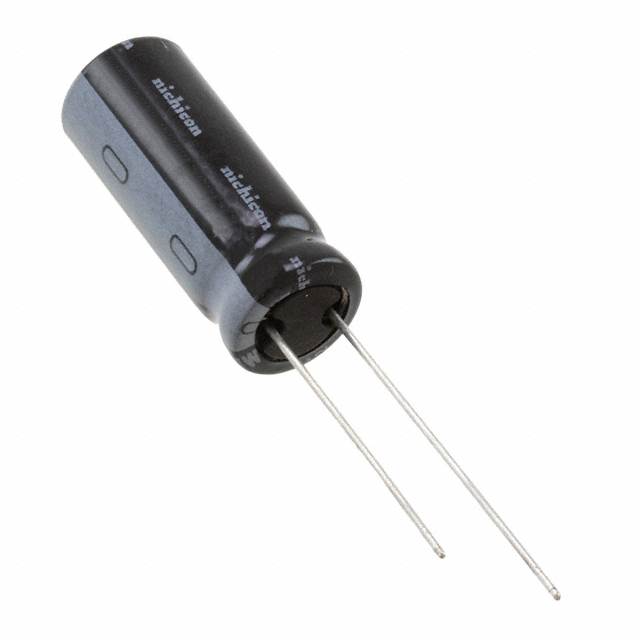

UHW1H471MPD
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : UHW
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.21A @ 120Hz
Ripple Current @ High Frequency : 2.42A @ 100kHz
Impedance : 28 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : UHW
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.21A @ 120Hz
Ripple Current @ High Frequency : 2.42A @ 100kHz
Impedance : 28 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
594 in stock

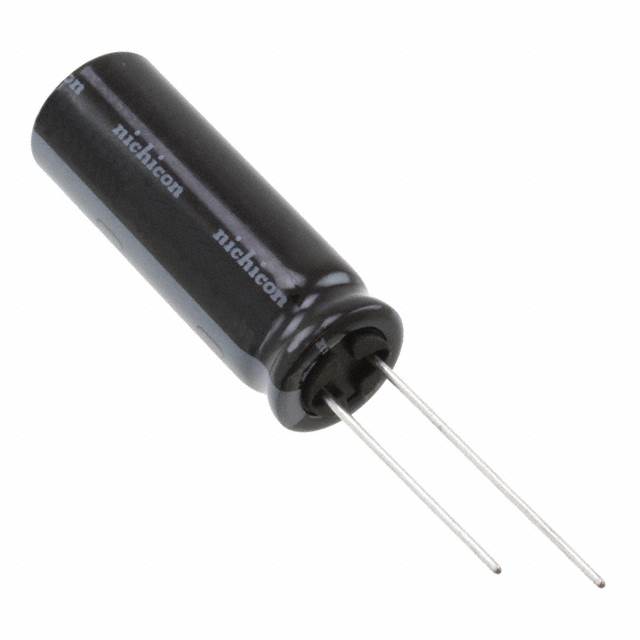

UHW1V222MHD
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : UHW
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.09A @ 120Hz
Ripple Current @ High Frequency : 4.12A @ 100kHz
Impedance : 11 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.476" (37.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : UHW
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.09A @ 120Hz
Ripple Current @ High Frequency : 4.12A @ 100kHz
Impedance : 11 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.476" (37.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
5731 in stock

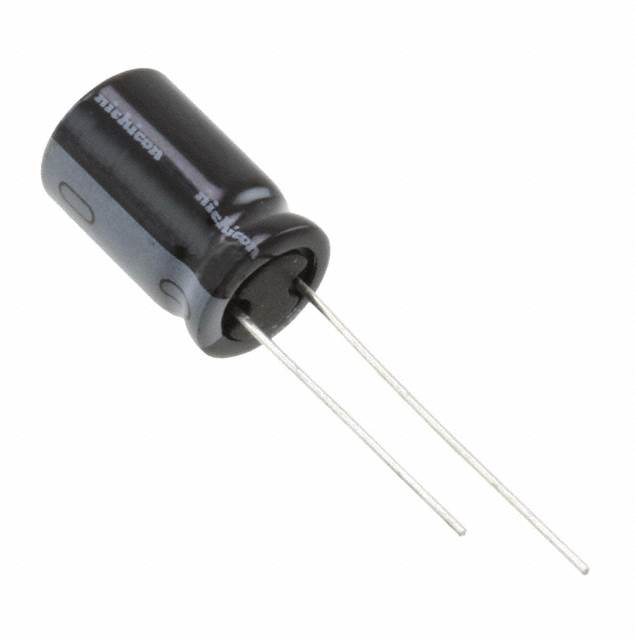

UHW1V471MPD
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : UHW
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1A @ 120Hz
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : 30 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.689" (17.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Bulk
Series : UHW
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1A @ 120Hz
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : 30 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.689" (17.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
46295 in stock

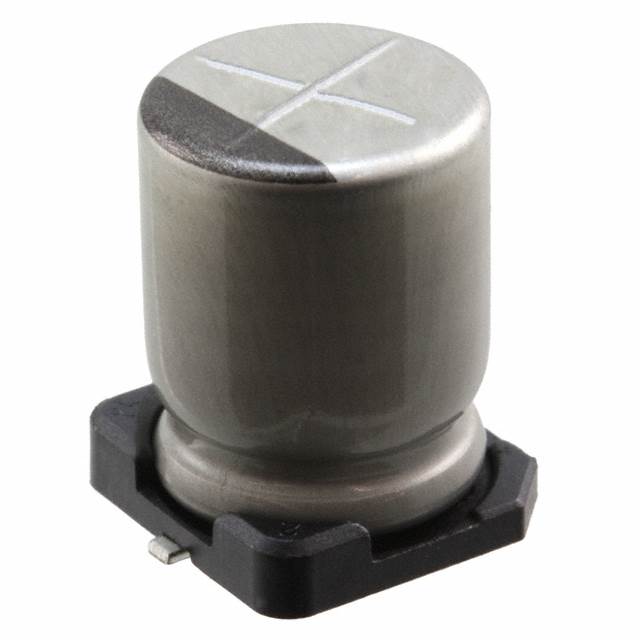

ULH2G3R3MNL1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ULH
Part Status : Active
Capacitance : 3.3µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 30mA @ 120Hz
Ripple Current @ High Frequency : 45mA @ 10kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ULH
Part Status : Active
Capacitance : 3.3µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 30mA @ 120Hz
Ripple Current @ High Frequency : 45mA @ 10kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
5997 in stock

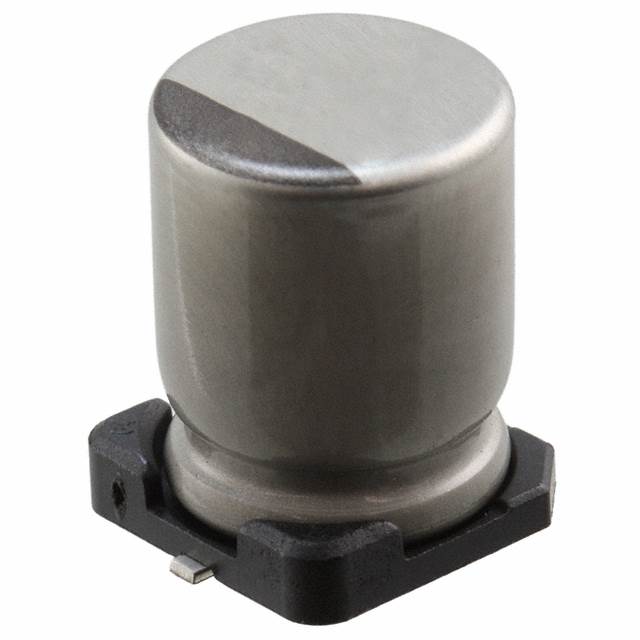

ULR2G4R7MNL1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ULR
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 35mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ULR
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 35mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
5243 in stock

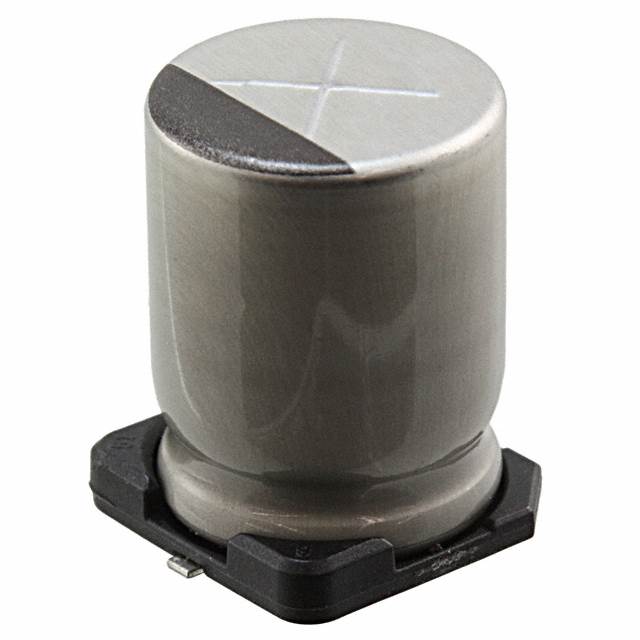

ULV2G100MNL1GS
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ULV
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 55mA @ 120Hz
Ripple Current @ High Frequency : 88mA @ 10kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.571" (14.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ULV
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 55mA @ 120Hz
Ripple Current @ High Frequency : 88mA @ 10kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.571" (14.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
6452 in stock
UMA0J100MCD2TP
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UMA
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 15mA @ 120Hz
Ripple Current @ High Frequency : 22.5mA @ 10kHz
Impedance : -
Lead Spacing : 0.039" (1.00mm)
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UMA
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 15mA @ 120Hz
Ripple Current @ High Frequency : 22.5mA @ 10kHz
Impedance : -
Lead Spacing : 0.039" (1.00mm)
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
7327 in stock
UMA1C100MDD1TP
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UMA
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 23mA @ 120Hz
Ripple Current @ High Frequency : 34.5mA @ 10kHz
Impedance : -
Lead Spacing : 0.059" (1.50mm)
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UMA
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 23mA @ 120Hz
Ripple Current @ High Frequency : 34.5mA @ 10kHz
Impedance : -
Lead Spacing : 0.059" (1.50mm)
Size / Dimension : 0.157" Dia (4.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
6521 in stock
UMA1C4R7MCD2TP
Nichicon
Manufacturer : Nichicon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UMA
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 10mA @ 120Hz
Ripple Current @ High Frequency : 15mA @ 10kHz
Impedance : -
Lead Spacing : 0.039" (1.00mm)
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UMA
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 10mA @ 120Hz
Ripple Current @ High Frequency : 15mA @ 10kHz
Impedance : -
Lead Spacing : 0.039" (1.00mm)
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
4991 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
