Welcome to Weijie Semiconductor
- Capacitors
- Aluminum Electrolytic Capacitors
Part Number
Manufacturer
Description
Unit Price
In Stock
MAL202136479E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 021 ASM
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 4.8 Ohm
Lifetime @ Temp. : 2500 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 104mA @ 10kHz
Impedance : 2.6 Ohms
Lead Spacing : -
Size / Dimension : 0.177" Dia x 0.394" L (4.50mm x 10.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 021 ASM
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 4.8 Ohm
Lifetime @ Temp. : 2500 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 104mA @ 10kHz
Impedance : 2.6 Ohms
Lead Spacing : -
Size / Dimension : 0.177" Dia x 0.394" L (4.50mm x 10.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
0
6424 in stock
MAL202137101E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 021 ASM
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 40V
ESR (Equivalent Series Resistance) : 1.8 Ohm
Lifetime @ Temp. : 2500 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 247mA @ 10kHz
Impedance : 700 mOhms
Lead Spacing : -
Size / Dimension : 0.256" Dia x 0.709" L (6.50mm x 18.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 021 ASM
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 40V
ESR (Equivalent Series Resistance) : 1.8 Ohm
Lifetime @ Temp. : 2500 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 247mA @ 10kHz
Impedance : 700 mOhms
Lead Spacing : -
Size / Dimension : 0.256" Dia x 0.709" L (6.50mm x 18.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
0
9335 in stock
MAL202138101E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 021 ASM
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 1.3 Ohm
Lifetime @ Temp. : 2500 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 350mA @ 10kHz
Impedance : 550 mOhms
Lead Spacing : -
Size / Dimension : 0.315" Dia x 0.709" L (8.00mm x 18.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 021 ASM
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 1.3 Ohm
Lifetime @ Temp. : 2500 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 350mA @ 10kHz
Impedance : 550 mOhms
Lead Spacing : -
Size / Dimension : 0.315" Dia x 0.709" L (8.00mm x 18.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
0
5590 in stock

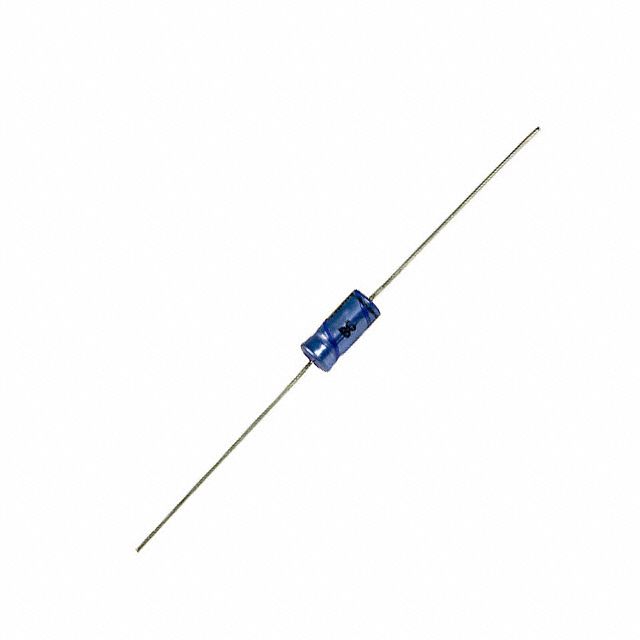

MAL202138109E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 021 ASM
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 13 Ohm
Lifetime @ Temp. : 2500 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 70mA @ 10kHz
Impedance : 5.5 Ohms
Lead Spacing : -
Size / Dimension : 0.177" Dia x 0.394" L (4.50mm x 10.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 021 ASM
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 13 Ohm
Lifetime @ Temp. : 2500 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 70mA @ 10kHz
Impedance : 5.5 Ohms
Lead Spacing : -
Size / Dimension : 0.177" Dia x 0.394" L (4.50mm x 10.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
0
6939 in stock
MAL202138478E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 021 ASM
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 31 Ohm
Lifetime @ Temp. : 2500 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 43.4mA @ 10kHz
Impedance : 12 Ohms
Lead Spacing : -
Size / Dimension : 0.177" Dia x 0.394" L (4.50mm x 10.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 021 ASM
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 31 Ohm
Lifetime @ Temp. : 2500 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 43.4mA @ 10kHz
Impedance : 12 Ohms
Lead Spacing : -
Size / Dimension : 0.177" Dia x 0.394" L (4.50mm x 10.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
0
20617 in stock

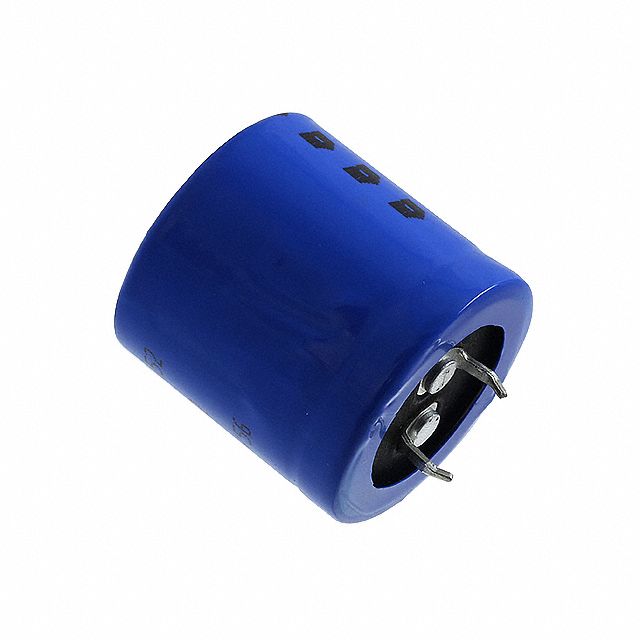

MAL205658103E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Bulk
Series : 056 PSM-SI
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 35 mOhm @ 100Hz
Lifetime @ Temp. : 12000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : Audio
Ripple Current @ Low Frequency : 5.26A @ 100Hz
Ripple Current @ High Frequency : -
Impedance : 30 mOhms
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
Packaging : Bulk
Series : 056 PSM-SI
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 35 mOhm @ 100Hz
Lifetime @ Temp. : 12000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : Audio
Ripple Current @ Low Frequency : 5.26A @ 100Hz
Ripple Current @ High Frequency : -
Impedance : 30 mOhms
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
395 in stock

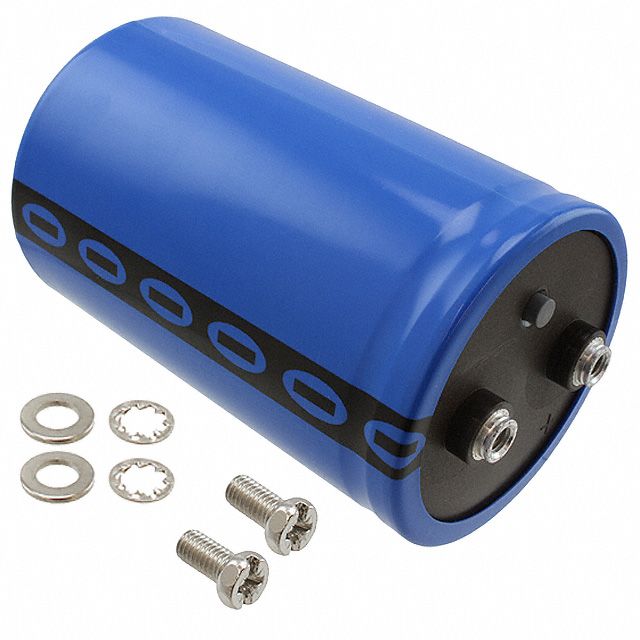

MAL210119223E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Bulk
Series : 101 PHR-ST
Part Status : Active
Capacitance : 22000µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 11 mOhm @ 100Hz
Lifetime @ Temp. : 15000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : -
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 19.24A @ 10kHz
Impedance : 8 mOhms
Lead Spacing : 1.122" (28.50mm)
Size / Dimension : 2.559" Dia (65.00mm)
Height - Seated (Max) : 4.165" (105.80mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Packaging : Bulk
Series : 101 PHR-ST
Part Status : Active
Capacitance : 22000µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 11 mOhm @ 100Hz
Lifetime @ Temp. : 15000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : -
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 19.24A @ 10kHz
Impedance : 8 mOhms
Lead Spacing : 1.122" (28.50mm)
Size / Dimension : 2.559" Dia (65.00mm)
Height - Seated (Max) : 4.165" (105.80mm)
Surface Mount Land Size : -
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
0
342 in stock
MAL211816222E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Bulk
Series : 118 AHT
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 185 mOhm
Lifetime @ Temp. : 8000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.488A @ 10kHz
Impedance : 170 mOhms
Lead Spacing : -
Size / Dimension : 0.709" Dia x 1.181" L (18.00mm x 30.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
Packaging : Bulk
Series : 118 AHT
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 185 mOhm
Lifetime @ Temp. : 8000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.488A @ 10kHz
Impedance : 170 mOhms
Lead Spacing : -
Size / Dimension : 0.709" Dia x 1.181" L (18.00mm x 30.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
0
2838 in stock

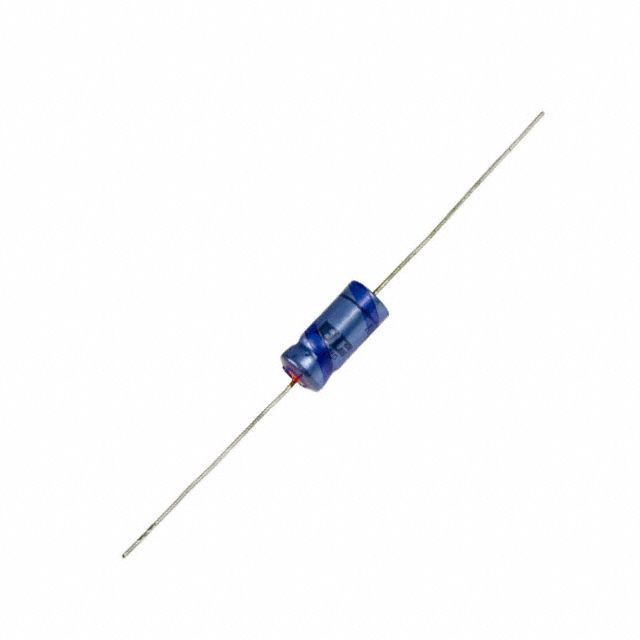

MAL211817222E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Bulk
Series : 118 AHT
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 40V
ESR (Equivalent Series Resistance) : 105 mOhm
Lifetime @ Temp. : 8000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.002A @ 10kHz
Impedance : 100 mOhms
Lead Spacing : -
Size / Dimension : 0.827" Dia x 1.496" L (21.00mm x 38.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
Packaging : Bulk
Series : 118 AHT
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 40V
ESR (Equivalent Series Resistance) : 105 mOhm
Lifetime @ Temp. : 8000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.002A @ 10kHz
Impedance : 100 mOhms
Lead Spacing : -
Size / Dimension : 0.827" Dia x 1.496" L (21.00mm x 38.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
0
577 in stock
MAL211818101E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Bulk
Series : 118 AHT
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 1.91 Ohm
Lifetime @ Temp. : 8000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 442mA @ 10kHz
Impedance : 1.62 Ohms
Lead Spacing : -
Size / Dimension : 0.394" Dia x 1.181" L (10.00mm x 30.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
Packaging : Bulk
Series : 118 AHT
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 1.91 Ohm
Lifetime @ Temp. : 8000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 442mA @ 10kHz
Impedance : 1.62 Ohms
Lead Spacing : -
Size / Dimension : 0.394" Dia x 1.181" L (10.00mm x 30.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
0
1994 in stock

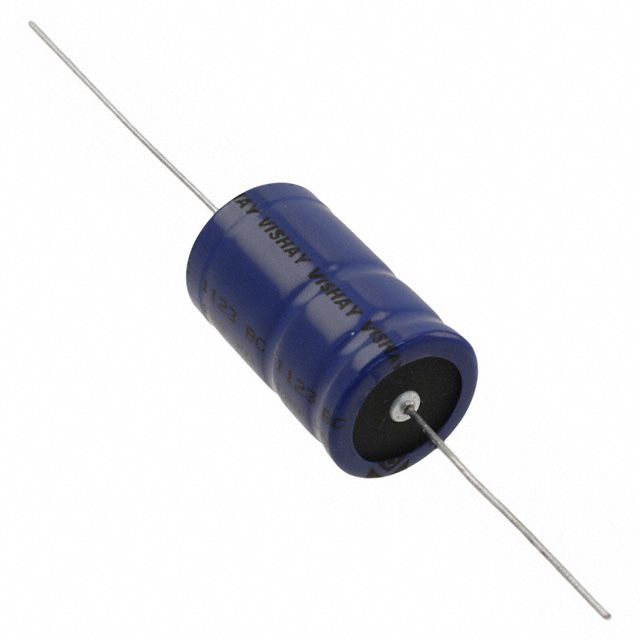

MAL212017102E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Bulk
Series : 120 ATC
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 40V
ESR (Equivalent Series Resistance) : 59 mOhm
Lifetime @ Temp. : 8000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : -
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.15A @ 10kHz
Impedance : 49 mOhms
Lead Spacing : -
Size / Dimension : 0.709" Dia x 1.181" L (18.00mm x 30.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
Packaging : Bulk
Series : 120 ATC
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 40V
ESR (Equivalent Series Resistance) : 59 mOhm
Lifetime @ Temp. : 8000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : -
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.15A @ 10kHz
Impedance : 49 mOhms
Lead Spacing : -
Size / Dimension : 0.709" Dia x 1.181" L (18.00mm x 30.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
0
237 in stock
MAL212019221E3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay BC Components
Packaging : Bulk
Series : 120 ATC
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 181 mOhm
Lifetime @ Temp. : 8000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : -
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.96A @ 10kHz
Impedance : 179 mOhms
Lead Spacing : -
Size / Dimension : 0.709" Dia x 1.181" L (18.00mm x 30.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
Packaging : Bulk
Series : 120 ATC
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 181 mOhm
Lifetime @ Temp. : 8000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : -
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.96A @ 10kHz
Impedance : 179 mOhms
Lead Spacing : -
Size / Dimension : 0.709" Dia x 1.181" L (18.00mm x 30.00mm)
Height - Seated (Max) : -
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Axial, Can
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
