Wurth Electronics Midcom
- Our standard lines and custom-made transformers are used around the world in LED and CFL lighting, smart grid and utility metering, home automation, test & measurement, industrial controls, circuit management, and security systems.
Part Number
Manufacturer
Description
Unit Price
In Stock

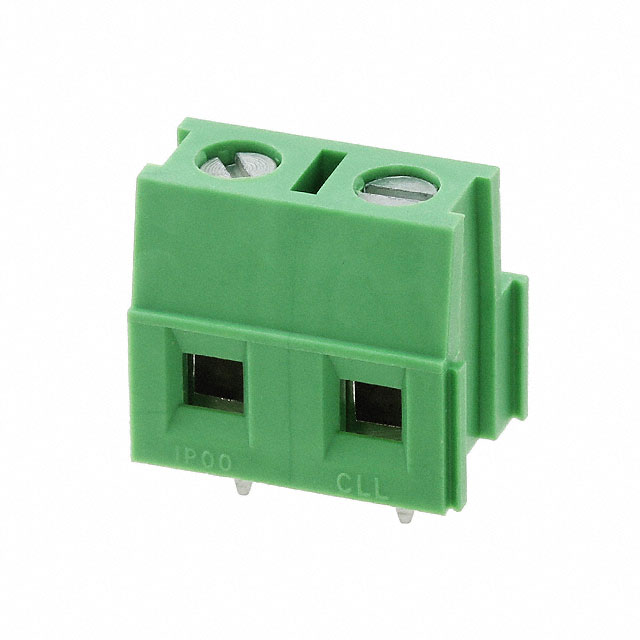

Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Bulk
Series : WR-TBL Series 2169
Part Status : Active
Number of Levels : 1
Positions Per Level : 2
Pitch : 0.295" (7.50mm)
Mating Orientation : Horizontal with Board
Current : 14A
Voltage : 300V
Wire Gauge : 12-30 AWG
Mounting Type : Through Hole
Wire Termination : Screw - Rising Cage Clamp
Features : Interlocking (Side)
Color : Green
0
310 in stock
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-LAN
Part Status : Active
Type : Configurable (For DC/DC)
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 350µH @ 100kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.500" L x 0.346" W (12.70mm x 8.80mm)
Height - Seated (Max) : 0.250" (6.35mm)
Footprint : 0.500" L x 0.370" W (12.70mm x 9.40mm)
Style : -
0
147 in stock

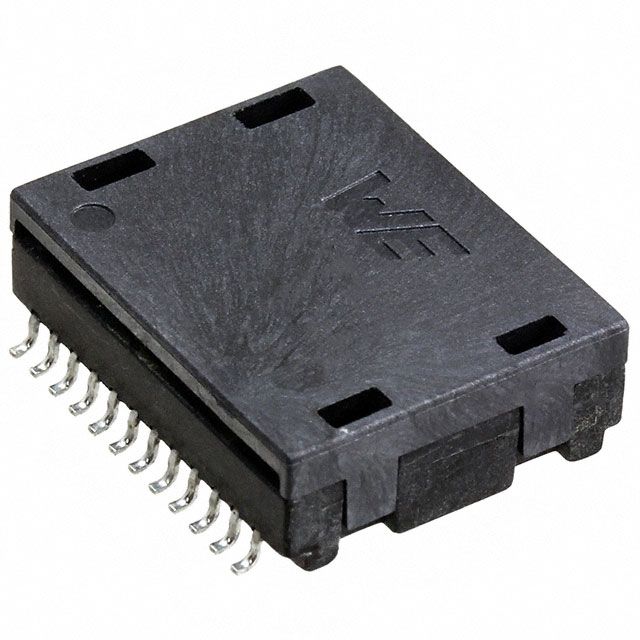

Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-LAN
Part Status : Active
Transformer Type : LAN 10/100/1000 Base-T, Power over Ethernet (PoE)
Inductance : 350µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Surface Mount
Size / Dimension : 0.705" L x 0.551" W (17.91mm x 14.00mm)
Height - Seated (Max) : 0.230" (5.84mm)
Operating Temperature : -
0
253 in stock
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FLEX
Part Status : Active
Type : For DC/DC Converters
Applications : Flexible
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : 8.5µH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : 0.508" L x 0.362" W (12.90mm x 9.20mm)
Height - Seated (Max) : 0.244" (6.20mm)
Footprint : 0.508" L x 0.559" W (12.90mm x 14.20mm)
Style : -
0
578 in stock
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : -
Inductance : 11.3µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 5:1
Mounting Type : Surface Mount
Size / Dimension : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Height - Seated (Max) : 0.500" (12.70mm)
Operating Temperature : -
0
1944 in stock

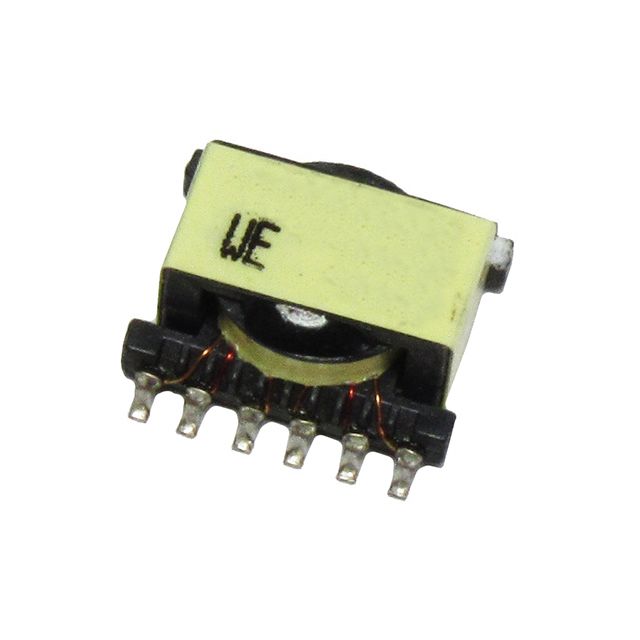

Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3751, LT3750
Chipset Manufacturer : Linear Technology
Voltage - Primary : 3 ~ 24V
Voltage - Auxiliary : -
Voltage - Isolation : 1000VDC
Inductance @ Frequency : 10µH @ 10kHz
Frequency : 100 ~ 400kHz
Operating Temperature : -
Mounting Type : Surface Mount
Size / Dimension : 0.709" L x 0.695" W (18.01mm x 17.65mm)
Height - Seated (Max) : 0.375" (9.53mm)
Footprint : 0.709" L x 0.910" W (18.01mm x 23.11mm)
Style : -
0
1240 in stock
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Capacitor Charger
Intended Chipset : LT3751
Chipset Manufacturer : Linear Technology
Voltage - Primary : 18 ~ 30V
Voltage - Auxiliary : -
Voltage - Isolation : 1000Vrms
Inductance @ Frequency : 10µH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.455" (11.58mm)
Footprint : 0.865" L x 1.130" W (21.97mm x 28.70mm)
Style : -
0
302 in stock
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Capacitor Charger
Intended Chipset : LT3751
Chipset Manufacturer : Linear Technology
Voltage - Primary : 18 ~ 30V
Voltage - Auxiliary : -
Voltage - Isolation : 1000Vrms
Inductance @ Frequency : 10µH @ 10kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.455" (11.58mm)
Footprint : 0.865" L x 1.130" W (21.97mm x 28.70mm)
Style : -
0
389 in stock
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : -
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : -
Inductance @ Frequency : -
Frequency : -
Operating Temperature : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Footprint : -
Style : -
0
20 in stock
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : -
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : -
Inductance @ Frequency : -
Frequency : -
Operating Temperature : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Footprint : -
Style : -
0
20 in stock

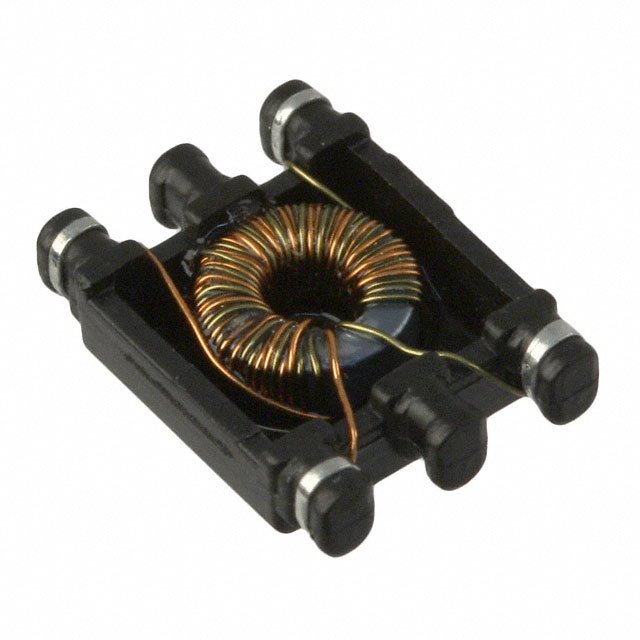

Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Filter Type : -
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 47µH @ 100kHz
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 500 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.258" L x 0.240" W (6.55mm x 6.10mm)
Height (Max) : 0.100" (2.54mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock

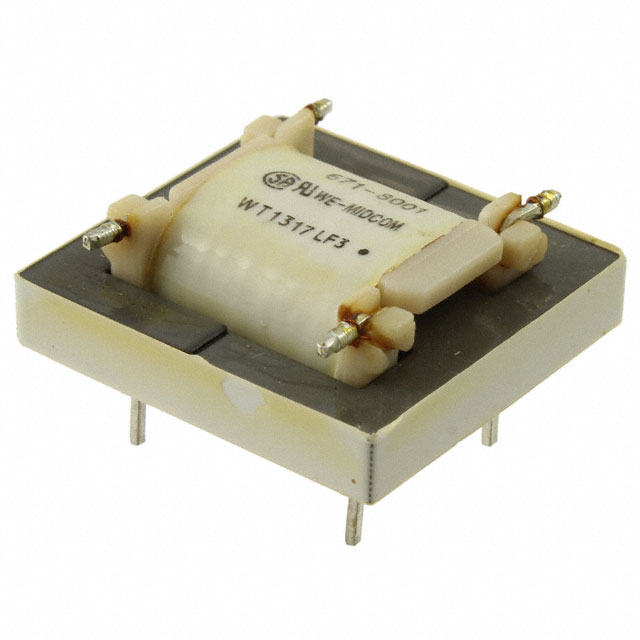

Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE-AMT, MID-AMT
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 185mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.945" L x 0.906" W (24.00mm x 23.00mm)
Height - Seated (Max) : 0.472" (11.99mm)
Operating Temperature : -40°C ~ 85°C
0
1605 in stock
