Wurth Electronics iBE
- Wurth Electronics iBE is a leading global manufacturer of automotive passive components. The company was founded in 1982 and became part of the Würth Elektronik Group in 2005. The product range of Wurth Electronics iBE contains customized rod core chokes, high current inductors, automotive ferrites, and power inductors used in a variety of automotive subsystems. The company is ISO 14001 and ISO/TS 16949 certified. With its global production sites, the company is represented on every important market and continent: Germany, Czech Republic, Bulgaria, Mexico, and China. Up to 955 million components were sold in 2016.
Part Number
Manufacturer
Description
Unit Price
In Stock

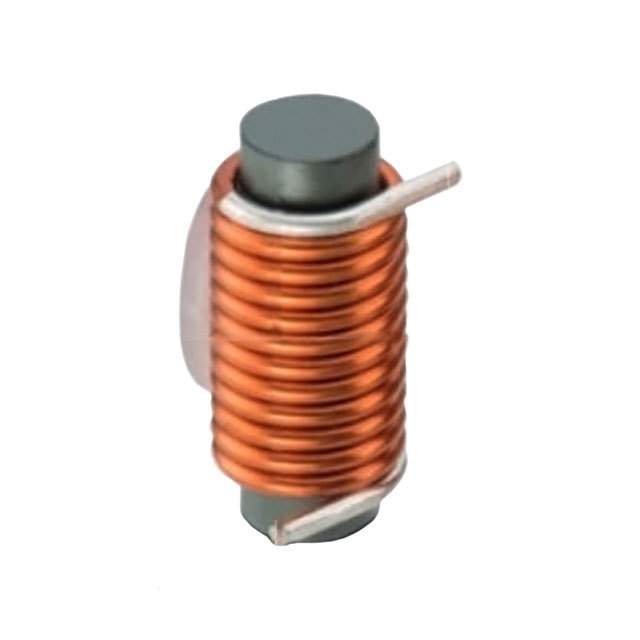

Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SDP
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 1µH
Tolerance : ±20%
Current Rating : 22A
Current - Saturation : 29A
Shielding : Unshielded
DC Resistance (DCR) : 2 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Radial, Horizontal Cylinder
Supplier Device Package : -
Size / Dimension : 0.280" Dia x 0.591" L (7.10mm x 15.00mm)
Height - Seated (Max) : -
0
935 in stock

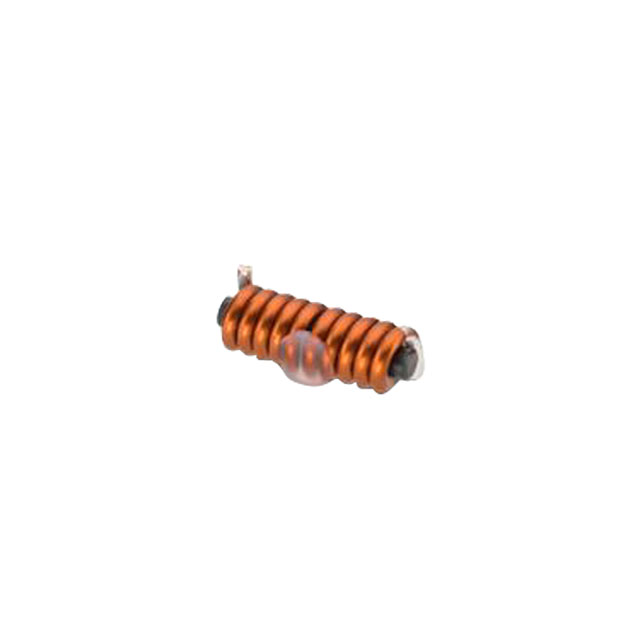

Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SDP
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10.4µH
Tolerance : ±20%
Current Rating : 2.5A
Current - Saturation : 7.5A
Shielding : Unshielded
DC Resistance (DCR) : 33 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Radial, Horizontal Cylinder
Supplier Device Package : -
Size / Dimension : 0.213" Dia x 0.709" L (5.40mm x 18.00mm)
Height - Seated (Max) : -
0
1432 in stock

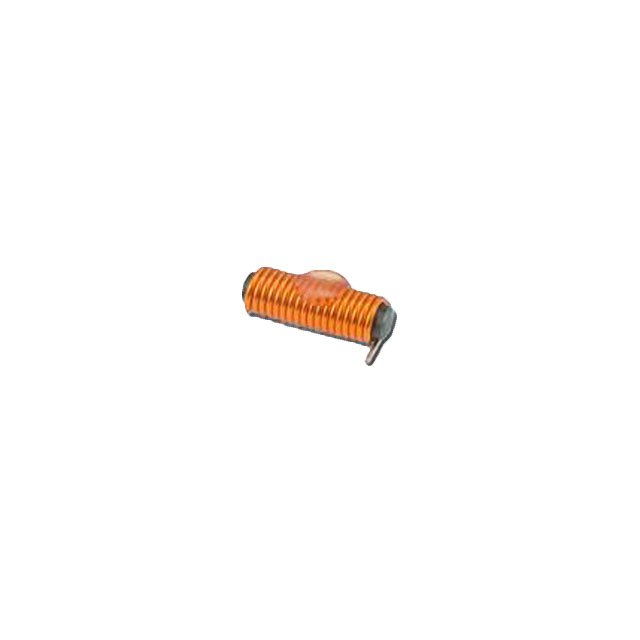

Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SDP
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 1.41µH
Tolerance : ±20%
Current Rating : 18.5A
Current - Saturation : 14A
Shielding : Unshielded
DC Resistance (DCR) : 1.1 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Radial, Horizontal Cylinder
Supplier Device Package : -
Size / Dimension : 0.362" Dia x 0.984" L (9.20mm x 25.00mm)
Height - Seated (Max) : -
0
728 in stock

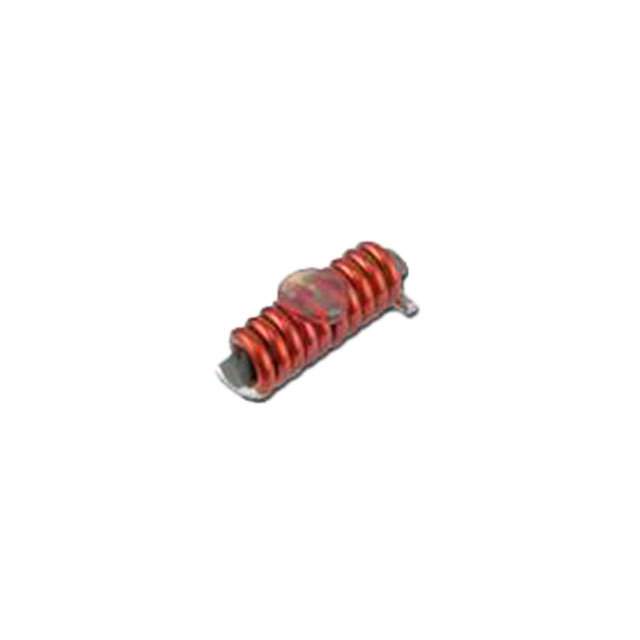

Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SDP
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 1.96µH
Tolerance : ±20%
Current Rating : 15A
Current - Saturation : 39A
Shielding : Unshielded
DC Resistance (DCR) : 2.4 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Radial, Horizontal Cylinder
Supplier Device Package : -
Size / Dimension : 0.366" Dia x 0.709" L (9.30mm x 18.00mm)
Height - Seated (Max) : -
0
2009 in stock

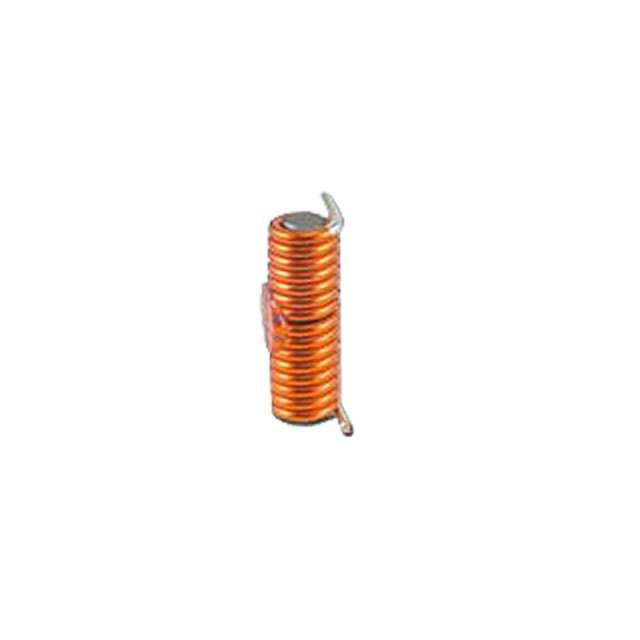

Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SDP
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 2.72µH
Tolerance : ±20%
Current Rating : 10A
Current - Saturation : 18A
Shielding : Unshielded
DC Resistance (DCR) : 6.4 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Radial, Horizontal Cylinder
Supplier Device Package : -
Size / Dimension : 0.256" Dia x 0.591" L (6.50mm x 15.00mm)
Height - Seated (Max) : -
0
919 in stock
Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SDP
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.45µH
Tolerance : ±10%
Current Rating : 12A
Current - Saturation : 45A
Shielding : Unshielded
DC Resistance (DCR) : 3.8 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Radial, Horizontal Cylinder
Supplier Device Package : -
Size / Dimension : 0.453" Dia x 0.984" L (11.50mm x 25.00mm)
Height - Seated (Max) : -
0
386 in stock

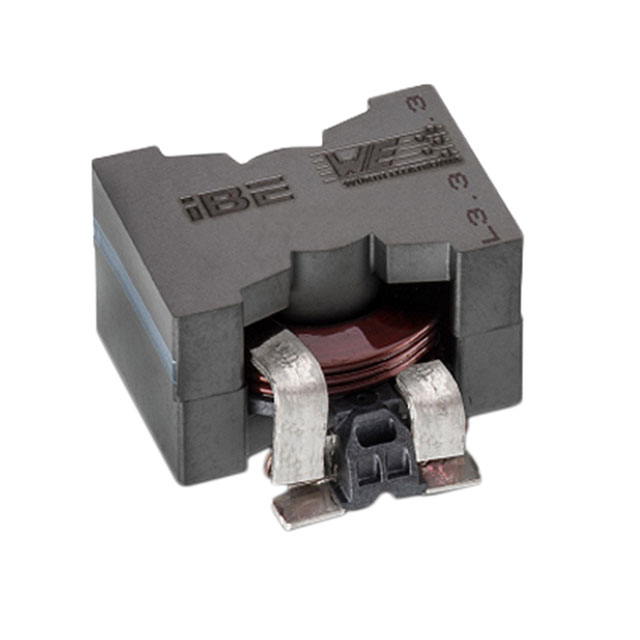

Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FLAT-I
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 1µH
Tolerance : ±25%
Current Rating : 50A
Current - Saturation : 65A
Shielding : Shielded
DC Resistance (DCR) : 0.6 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.083" L x 1.083" W (27.50mm x 27.50mm)
Height - Seated (Max) : 0.669" (17.00mm)
0
255 in stock
Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FLAT-I
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10µH
Tolerance : ±15%
Current Rating : 35A
Current - Saturation : 10A
Shielding : Shielded
DC Resistance (DCR) : 1.1 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.083" L x 1.083" W (27.50mm x 27.50mm)
Height - Seated (Max) : 0.669" (17.00mm)
0
88 in stock
Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FLAT-I
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 1.5µH
Tolerance : ±25%
Current Rating : 50A
Current - Saturation : 45A
Shielding : Shielded
DC Resistance (DCR) : 0.6 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.083" L x 1.083" W (27.50mm x 27.50mm)
Height - Seated (Max) : 0.669" (17.00mm)
0
73 in stock
Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FLAT-I
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 3.3µH
Tolerance : ±15%
Current Rating : 35A
Current - Saturation : 40A
Shielding : Shielded
DC Resistance (DCR) : 1.1 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.083" L x 1.083" W (27.50mm x 27.50mm)
Height - Seated (Max) : 0.669" (17.00mm)
0
257 in stock
Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FLAT-I
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.7µH
Tolerance : ±15%
Current Rating : 35A
Current - Saturation : 30A
Shielding : Shielded
DC Resistance (DCR) : 1.1 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.083" L x 1.083" W (27.50mm x 27.50mm)
Height - Seated (Max) : 0.669" (17.00mm)
0
79 in stock
Wurth Electronics iBE
Manufacturer : Wurth Elektronik iBE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FLAT-I
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 6.8µH
Tolerance : ±15%
Current Rating : 35A
Current - Saturation : 20A
Shielding : Shielded
DC Resistance (DCR) : 1.1 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 150°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.083" L x 1.083" W (27.50mm x 27.50mm)
Height - Seated (Max) : 0.669" (17.00mm)
0
144 in stock
